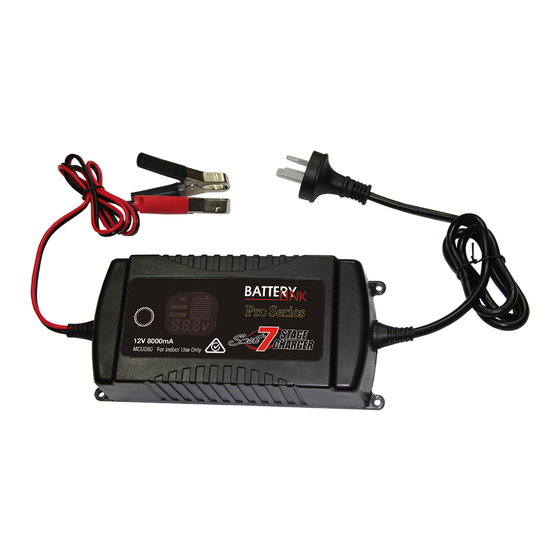

- Page 1 Part Number: MCU080 Battery Charger Manual For your personal safety read, understand and follow the information provided in this instruction manual.
-
Page 2: Important Safety Instructions
Important Safety Instructions WARNING! To avoid any personal injury, please read the safety instructions below. This battery charger is not intended for use by children or infirm persons without supervision. • The ACID/FLUID within a battery is highly corrosive and poisonous. It can produce flammable and toxic gases when recharged and will explode if ignited, When working with batteries, always wear eye protection, remove jewellery and ensure the area is well ventilated. - Page 3 Key Charger Features The MCU080 charger is a sophisticated 7 stage charger, utilizing switch mode and fully automatic computerised control, designed to charge most 12 Volt SLA, Gel, Lead Acid and Calcium batteries. CHARGING POWER • Ideal for automotive & marine batteries.
-
Page 4: Operating The Charger
Operating the Charger Connecting the charger to a battery in a vehicle: Ensure the ignition and all of the accessories in the vehicle are switched off. This will maximize the charge your battery receives. It will also minimize any chance of damage occurring to the vehicles on-board electronics. -
Page 5: Charging Stages
Charging Stages This charger automatically employs a 7 stage charging program. These stages automatically switch from one to the next without any user input required. Charging Stages VOLTAGE CURRENT (AMPS) DESULPHATION SOFT START BULK ABSORPTION ANALYSIS BOOST MAINTENANCE NOTE: Voltages and charging algorithm vary between battery types to ensure that battery is charged and maintained in optimum manner for selected battery type. - Page 6 Charging Stages Continued Absorption: After the bulk stage, the charger will automatically begin to reduce its current output whilst maintaining the required voltage (depending on the battery selection). When the current reaches a pre-determined threshold level, charging will halt allowing the next analysis stage to be performed. Analysis (Testing the battery whilst charging): After the absorption stage, the battery charger will start the analysis stage and will stop charging the battery for approximately 1 minute.
-
Page 7: Charging Times
Maintains (amps) (Min-Max) (max) Max) (max) MCU025 7-40 AH 60 AH 80- 250 CCA 650CCA 4-24 hrs MCU080 60-100 AH 200 AH 300-700 CCA 1000 CCA 4-24 hrs MCU120 12.0 80-160 AH 260 AH 480-1100 CCA 2000 CCA 4-24 hrs *Charge Time depends on state of charge &... -
Page 8: Fault Finding
Fault Finding » Charger won’t indicate » • Charger not connected to battery. charging. • Check terminal connection. • Battery is not 12V. » Charger features an inbuilt safety device to prevent sparking if clamps » No spark when charging clamps or terminals or terminals accidentally touch together.
