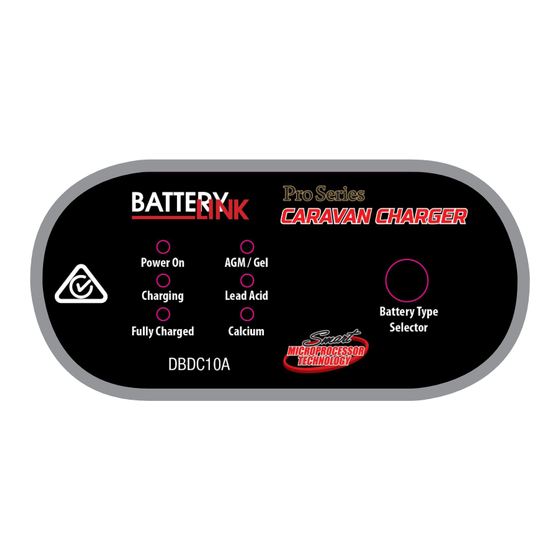

Dc to dc dual battery charger

Advertisement

Part Number: DBDC10 / DBDC20
DC to DC
Dual Battery Charger
Manual
For your personal safety read, understand and follow
the information provided in this instruction manual.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DBDC10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for BATTERY LINK DBDC10

  • Page 1 Part Number: DBDC10 / DBDC20 DC to DC Dual Battery Charger Manual For your personal safety read, understand and follow the information provided in this instruction manual.
  • Page 2: Important Safety Instructions

    Important Safety Instructions WARNING! To avoid any personal injury, please read the safety instructions below. This battery charger is not intended for use by children or infirm persons without supervision. FOR AUTOMOTIVE AND RECREATIONAL VEHICLE 12V DEEP CYCLE BATTERY USE ONLY. NOT TO BE USED WITH DRY CELL BATTERIES.
  • Page 3 Key Charger Features This DBDC10/ DBDC20 charger is a sophisticated multi stage charger, utilizing switch mode and fully automatic computerised control, designed to charge most 12 Volt Gel, Lead Acid and Calcium batteries. • Heavy duty aluminum case and mounting brackets •...
  • Page 4 Installation Options/ Instructions Installing the Charger Installation of this unit will require twin core wiring - and suitable cable connectors (not included). See specifications page for details. Any existing cables used in conjunction with this charger will require checking to ensure size is suitable gauge.
  • Page 5 • If the charger is located in a camper/caravan we recommend the use of an Anderson style plug between the tow vehicle and the camper/caravan as shown below. • Fit suitable connectors on either end of the twin core cables. •...
  • Page 6: Operating The Charger

    Operating the Charger Once correctly installed the Battery Link DC-DC charger is a simple set and forget dual battery switch. • Start the vehicle and let it idle. • The charger will now recognize that there is charge being applied to the main starting battery.
  • Page 7: Specifications

    Specifications Model: DBDC10 / DBDC20 Type: Multi Stage Input : 12.5 to 16.0 Volts DC Output / Charging Voltage: 13.3-16.2V (stops charging when alternator output or vehicle battery below 12.5V) Output Current: DBDC10 DBDC20 Minimum Start Voltage: 1.5 Volts - for battery being charged...
  • Page 8 Charging algorithm will change according to battery type. Charging voltages: LEAD ACID CALCIUM Charging 14.8V 15.2V 16.2V Boost 14.3V 14.8V 15.6V Float 13.3V 13.7V 13.7V...
  • Page 9: Additional Information

    Additional information Deep cycle batteries It is expected that this charger will be used to charge a ‘deep cycle’ type auxiliary battery. Deep cycle batteries are designed to provide battery power to run items like fridges and lighting in caravans and campers. It is generally accepted that the life of a deep cycle battery can be extended if it is not discharged below 50% of its full capacity.
  • Page 10 • After returning from trip and ‘parking-up’ your camper/van it is good practise to remove all electrical connections from battery. The batteries should then be fully recharged and ideally maintained using a smart charger (see Battery Link Pro Series Smart chargers). CHARGING POWER...
  • Page 11: Fault Finding

    Fault Finding » Charger won’t indicate » • Charger not connected to battery. charging. • Check terminal connection. • Battery is not 12V. » • Verify that all wiring meets specifications. » Battery won’t charge. • Check condition of batteries. •...
  • Page 12: Warranty

    Warranty Thank you for purchasing one of our quality products. Any claim against defects under this warranty must be made by the original purchaser within 12 months from the date of purchase. To make a claim under the warranty, take the product along with your proof of purchase to the store where the purchase took place.

This manual is also suitable for:

Dbdc20
