Dirty Dog 4x4 DD-P-JKFS-07 Installation Instructions

Front pet divider with rear seat saver for jeep wrangler unlimited 2007-up
Hide thumbs
1
2
3

Advertisement

Table of Contents

Thank you for purchasing a Dirtydog 4x4 netting system.
-
Please read these instructions fully to familiarize yourself with
the installation. Set aside 20 minutes for the first time you
install your pet divider. Your pet divider/seat saver comes in
two main pieces. You start with the pet divider first.

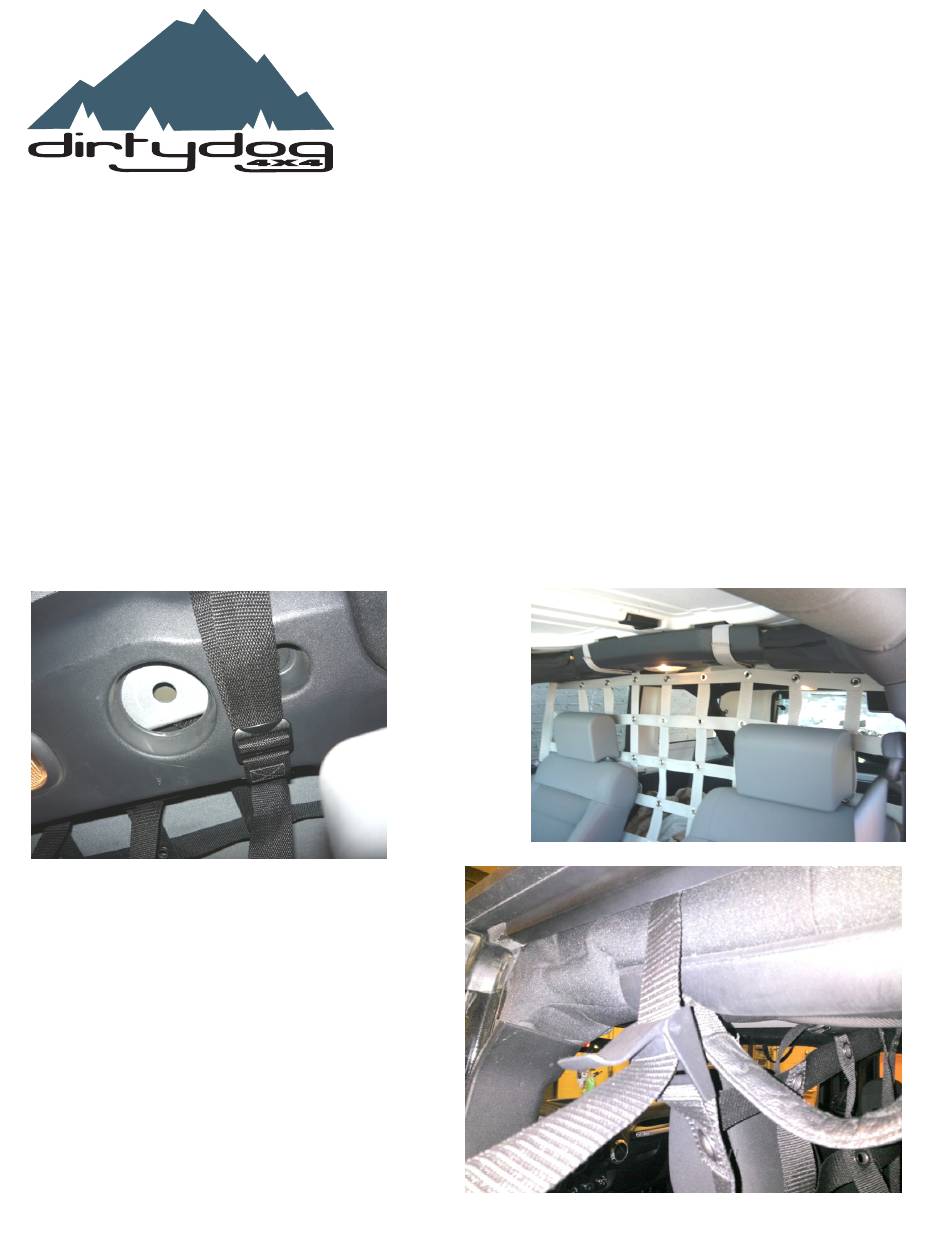

In order to position the net properly. The dirtydog log faces
forward. There are 2 long straps at the top that wrap over the
roll bar and connect to the ladderloc sewn onto the net.Center
them and snug them up.
The two straps that run out
horizontilly at the top go over
top the roll bar and come out
around the side. These connect
into the cam buckles on the
net. (see Photo). Tighten up
both sides and postion the net
so everything is centered and
hanging evenly
Installation Instructions
Front pet divider with rear seat saver
for Jeep Wrangler unlimited 2007-up
DD-P-JKFS-07

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DD-P-JKFS-07 and is the answer not in the manual?

Questions and answers

Related Manuals for Dirty Dog 4x4 DD-P-JKFS-07

Summary of Contents for Dirty Dog 4x4 DD-P-JKFS-07

  • Page 1 Installation Instructions Front pet divider with rear seat saver for Jeep Wrangler unlimited 2007-up DD-P-JKFS-07 Thank you for purchasing a Dirtydog 4x4 netting system. Please read these instructions fully to familiarize yourself with the installation. Set aside 20 minutes for the first time you install your pet divider.
  • Page 2 The long straps at the bottom pull down and wrap underneath the front seat seat brackets as shown. The straps come back up. The next step is to attach it to outside ladderloc hanging off the bottom of the net. The pet divider portion is now installed.
  • Page 3 On the underside of the seat protector you will find a short piece of webbing attached. with a snap. This piece wraps around the loop at the back of the seat as shown and snaps in place. The last step is to install the final strap that reaches back to the rear roll bar and connects onto the ladderloc.
