Summary of Contents for Riotoro CR280

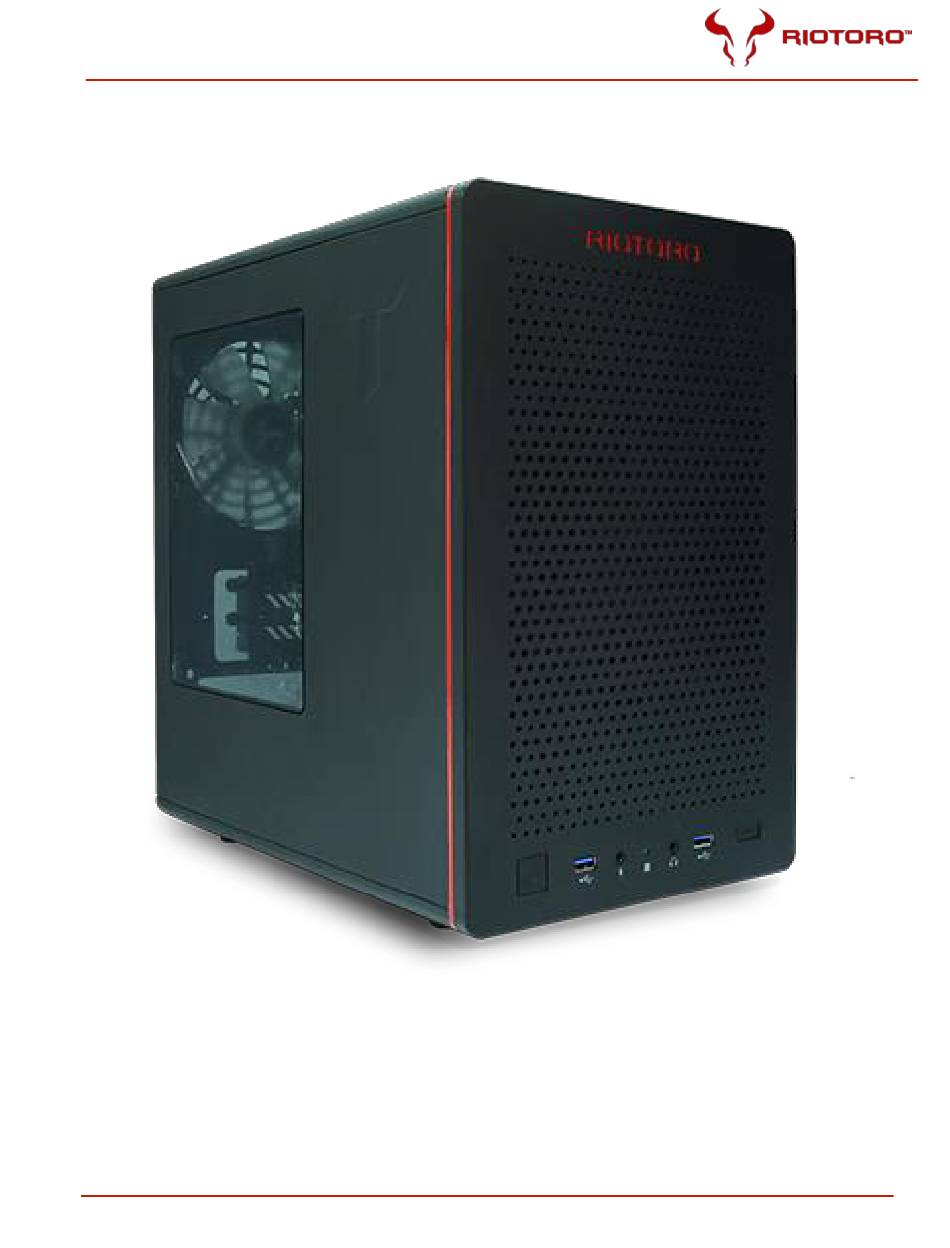

  • Page 1 RIOTORO CR280 Installation Guide...
  • Page 3: Included Hardware

    Welcome to RIOTORO Thank you for purchasing the RIOTORO CR280. The CR280 chassis squeezes raw computing power into in a cool, quite and elegant PC that compliments any office while occupying minimal little desk space. The CR280 achieves this by combining mini-ITX motherboard support with ample space for full-size graphics cards and power supplies for true desktop PC performance.
  • Page 4: Key Installation Points

    Key Installation Points 2) I/O panel cutout 1) Front panel 3) PCI-E expansion slots USB 3.0 ports 4) Fans and fan/rad mounts Microphone jack 5) Motherboard mount points Headphone jacks 6) Power supply bay Power switch 7) 2.5” drive mount Reset switch 8) 2.5”...
  • Page 5: Before You Begin

    Before You Begin Please take the following precautions:  Handle all PC components and cards with care.  Hold cards and processors by their edges to avoid damaging components.  To avoid damaging components by electrostatic discharge, periodically ground yourself by touching an unpainted metal surface or by using a wrist grounding strap.
  • Page 6: Install The Motherboard

    Remove each panel by slide the the panel toward the rear. Install the motherboard The CR280 is compatible with mini-ITX motherboards enabling you to build a high-performance compact PC. Let’s install one.
  • Page 7 Install Hard Drives and SSDs The CR280 has one 3.5” drive bays and two 2.5” drive bays. These bays are located in the compartment under the motherboard. To install a 3.5” hard drive The 3.5” hard drive will be held in place by two pins on the side of the case and by pins a retaining bracket.
  • Page 8 To install drives into the 2.5” mounts The CR280 case has two mounts for 2.5” drives such as solid state drives (SSD). The mounts are two sets of four screw standoffs. To mount a 2.5 drive: In the motherboard compartment of the case, place the 2.5” drive on one set of drive standoffs.
  • Page 9: Attach Cables

    Attach Cables Connect the Front Panel Switches and LEDs The CR280 front panel switches, LEDs, and USB ports have wire leads that need to be attached to header pins the motherboard. Refer to your motherboard manual to locate the proper motherboard header pins and attach the cable connectors listed below.
  • Page 10: Install The Power Supply

    Refer to your motherboard manual for more information. Note: The CR280 includes mounts for two more 120mm fans – one in the lower front and one in the rear. The fans can be removed to make room for a 240mm liquid cooling radiator. Screws and rubber grommets are provided to allow you to add optional fans and radiators.
  • Page 11: Specifications

    Specifications Motherboard support Mini-ITX Drive bays - 1x 3.5” - 3x 2.5” Front panel I/O - 2x USB 3.0 ports - 1x Headphone out - 1x Microphone in Expansion slots Fans Fans included - 1x 120mm front intake - 1x 120mm rear exhaust Fan radiator mount points - 2x 120mm or 1x 240mm front - 2x 120mm or 1x 240mm front...
  • Page 12 Technical Support and Customer Service US & Canada 1-888- 270-7090 support@riotoro.com customerservice@riotoro.com Sales sales@riotoro.com © Copyright 2016 RIOTORO. All rights reserved. All trademarks are the property of their respective owners. Reproduction in whole or part without written permission is prohibited.
