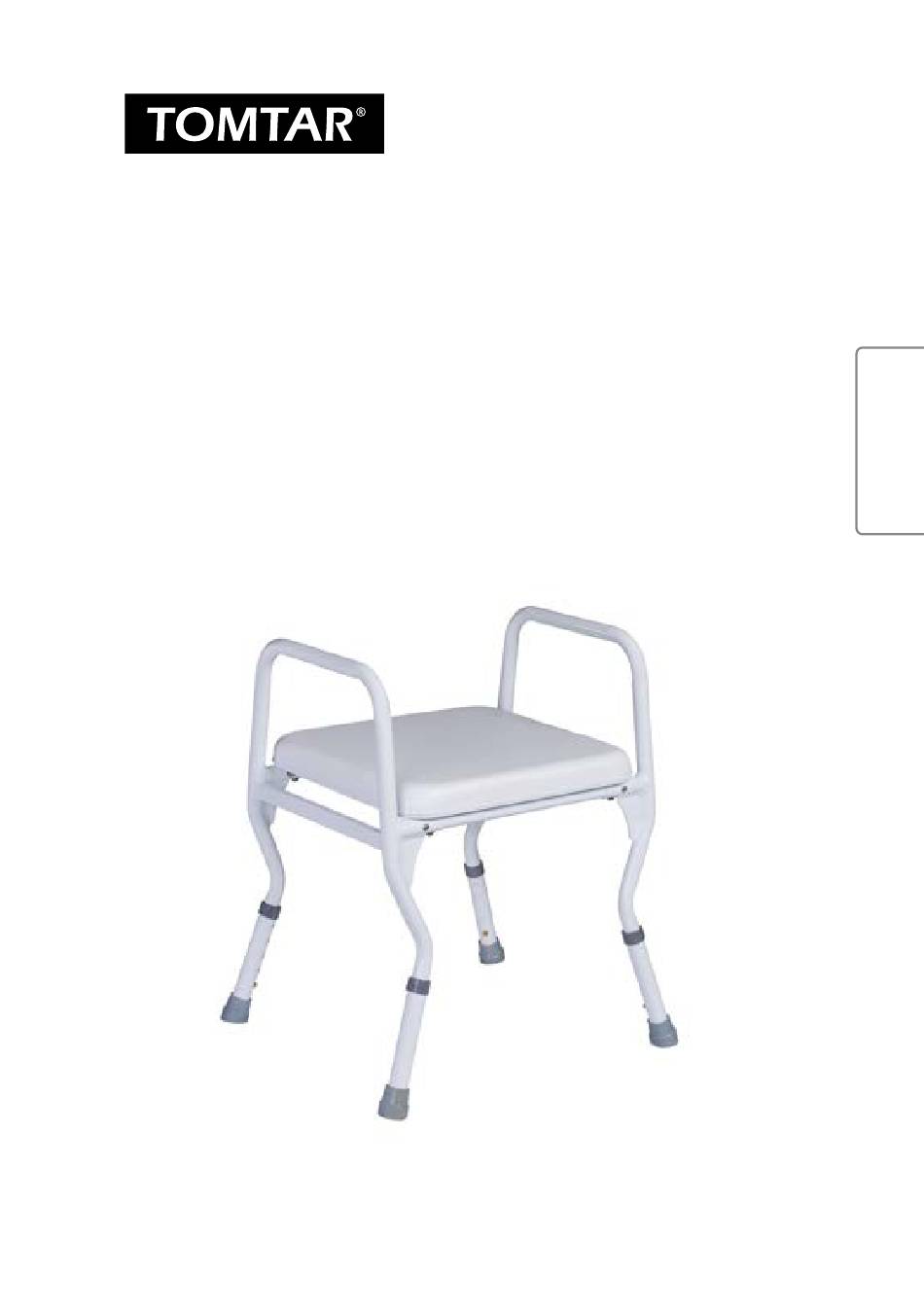

- Page 1 Comfort Shower stool User manual Version 5.0.0...
- Page 2 Record of product identification data We recommend that you write down your product identification data below (found on product label), so that you have these on hand should you require any further information about your product (see chapter “Product labelling”). Type / model Item No.
- Page 3 FOREWORD Thank you for choosing to purchase the shower stool Comfort from DIETZ. This shower stool is a medical aid. In order to use it properly and avoid possible risks due to unintended use, you must become thoroughly familiar with its operation.
-
Page 4: Table Of Contents
Product tests ......12 DIETZ GmbH // User manual for shower stool Comfort / version 5.0.0 EN... -
Page 5: Important Information
The shower stool is not suitable for persons who are smaller than 146 cm or weigh less than 40 kg (BMI < 17). The Comfort shower stool is not suitable for use as permanent seating. It is not to be used to transport multiple persons or loads. -
Page 6: Product Description
The shower stool will need to be assembled after being unpacked. The assembly and the functional check are to be performed by the specialist dealer. The dealer's technician will adapt the shower stool to the respective user. DIETZ GmbH // User manual for shower stool Comfort / version 5.0.0 EN... -
Page 7: Preparing The Shower Stool For Use
03 PREPARING THE SHOWER STOOL FOR USE ASSEMBLY INSTRUCTIONS / TOOLS When assembling the shower stool, make sure that all screw connections are properly tightened and use only the original screws supplied with the product. Assembling the seat frame Tools / screw set: Allen key 4 mm, open- end spanner 10 mm, 4 x M6 x 30 mm screw (hexagon socket) 4 x washer (concave), 4 x cap nut... -
Page 8: Seat Height Adjustment
2. Use a long object (e.g. screwdriver) to move the spring-mounted button on the inside of the chair leg (2) back into the correct position Fig.5 through the drill hole (3). DIETZ GmbH // User manual for shower stool Comfort / version 5.0.0 EN... -
Page 9: Using The Shower Stool
04 USING THE SHOWER STOOL HOW TO USE THE SHOWER STOOL The shower stool consists of a seat cushion, four stool legs, and two side frame elements. The tubular armrests of the side frame ele- ments act as supports when sitting down on and getting up from the shower stool. -
Page 10: Accessories And Add-Ons From External Suppliers
The dimensions given here refer to the standard configuration of the shower stool. NOTE All dimensions taken on textile parts (e.g. back upholstery) are to be understood with a toler- ance of +/– 10 mm. Fig.7 Fig.8 DIETZ GmbH // User manual for shower stool Comfort / version 5.0.0 EN... -
Page 11: Technical Specifications
05 TECHNICAL DATA TECHNICAL SPECIFICATIONS Comfort shower stool Technical specifications Min. Max. d Seat height a Seat width (seat cushion) c Effective seat width b Seat depth (seat cushion) f Effective seat depth e Total width h Overall depth g Total height... -
Page 12: Product Tests
Check the shower stool for damage be- fore each use. Do not use the shower stool if damaged. DIETZ GmbH // User manual for shower stool Comfort / version 5.0.0 EN... -
Page 13: Instructions For General Use
"Troubleshooting". The following disinfectants are suitable for use on the shower stool comfort: Aldehyde-free disinfectants based on alcohol (max. 70% propyalcohol) -
Page 14: Troubleshooting
Comfort 160 kg Material damages: Avoid exposing the *140012* shower stool to heat sources during storage or 140012 placing objects on it. 2019-09 (01)04260241682052 (10)2000XXX (21)65800XXXXX DIETZ GmbH // User manual for shower stool Comfort / version 5.0.0 EN Fig.9... -
Page 15: Manufacturer Declarations
08 MANUFACTURER DECLARATIONS WARRANTY Markings on the product: Warranty services refer to all product defects Trademark which are verifiably attributable to material or TYPE/Model manufacturing flaws. The warranty period is 24 months as of receipt of notification of read- REF = Item number iness for shipping, but following delivery at the latest. - Page 16 Fax: +49 7248.9186-86 info@dietz-rehab.de www.dietz-reha.de TOMTAR is a registered trademark belonging to DIETZ GmbH. TOMTAR products are sold by DIETZ GmbH. Misprint, falsities, price and product changes reserved. © DIETZ GmbH, Karlsbad Reproduction, either in part or in whole, only with written permission of...
