Summary of Contents for Milestone Chief FSB4041

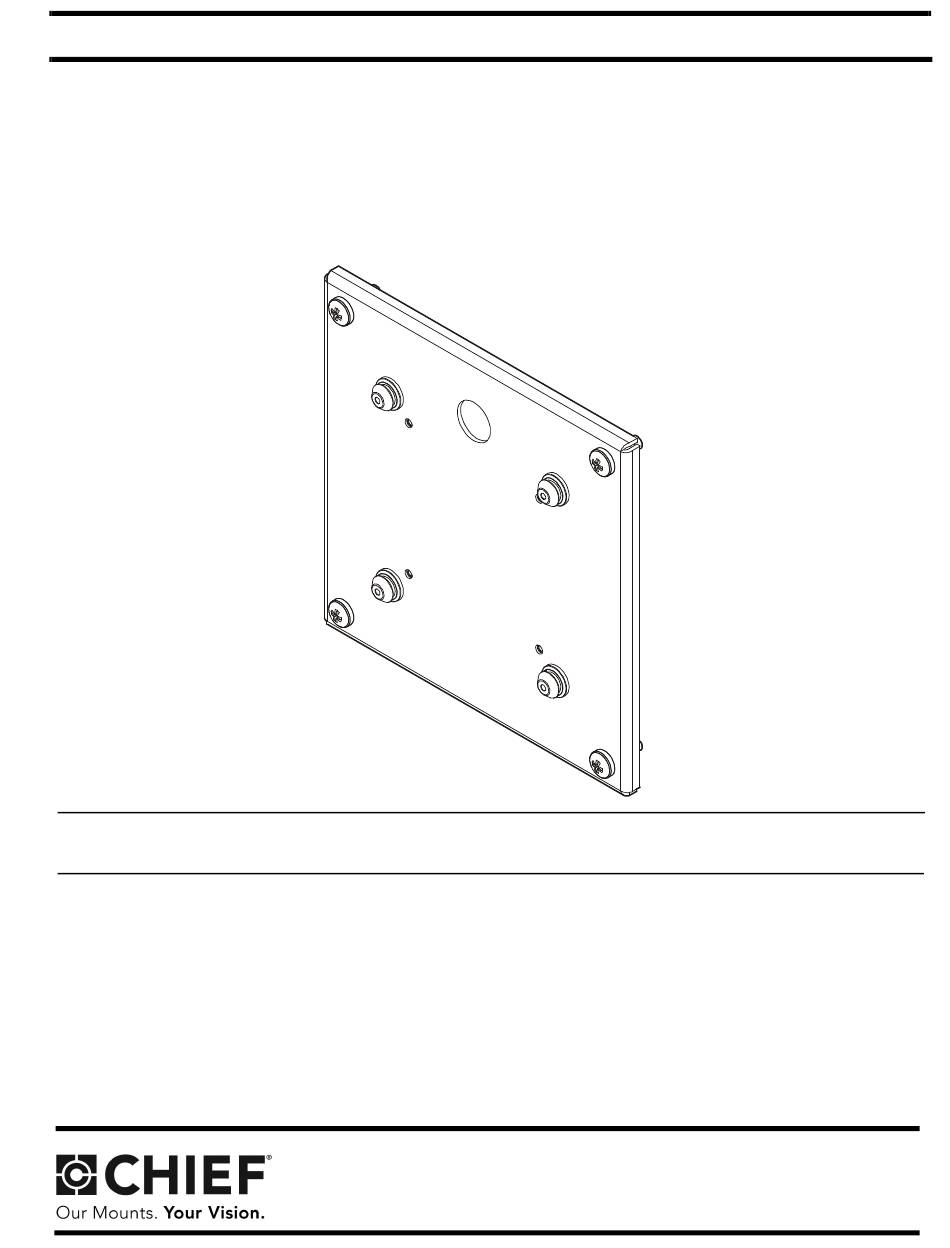

- Page 1 I N S T A L L A T I O N I N S T R U C T I O N S Small Flat Panel Interface Bracket Spanish Product Description German Product Description Portuguese Product Description Italian Product Description Dutch Product Description French Product Description FSB4041...
- Page 2 The information contained in this document is subject to change without notice or obligation of any kind. Milestone WARNING: Exceeding the weight capacity can result in makes no representation of warranty, expressed or implied, serious personal injury or damage to equipment! It is the regarding the information contained herein.
- Page 3 Installation Instructions FSB4041 TOOLS / PARTS FOR INSTALLATION D (1) [Interface Bracket] C (4) A (4) B (4) 10-24 x 1/2" M8 x 25mm M8 x 20mm F (4) G (1) 1/8" E (4) .875x.330x.375" 1/8" (Included) [Mounting buttons] ASSEMBLY AND INSTALLATION Attach interface bracket (D) to back of display using four NOTE: For mounts with the Q2™...
- Page 4 Chief, a products division of Asia Pacific A Office No. 918 on 9/F, Shatin Galleria Milestone AV Technologies 18-24 Shan Mei Street Fotan, Shatin, Hong Kong 8800-002675 Rev00 P 852 2145 4099 2014 Milestone AV Technologies F 852 2145 4477 www.chiefmfg.com 11/14...
