I N S T A L L A T I O N I N S T R U C T I O N S
XCB1U
(Shown installed to
CPA Series extension column
as example only)

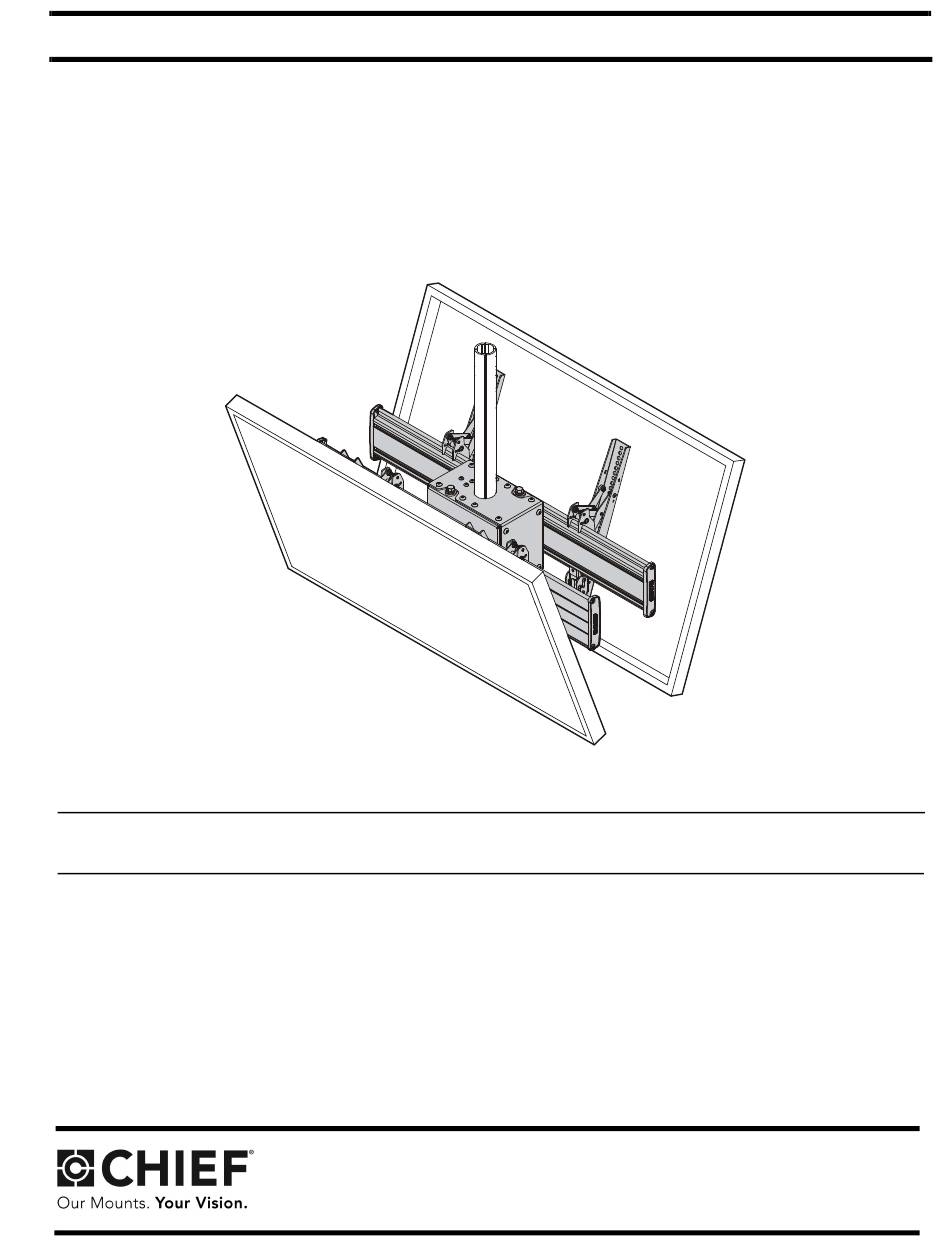

Back-to-Back Large Flat Panel Ceiling Mount
Spanish Product Description
German Product Description
Portuguese Product Description
Italian Product Description
Dutch Product Description
French Product Description
XCB1U

Advertisement

loading
Need help?

Need help?

Do you have a question about the Chief XCB1U and is the answer not in the manual?

Questions and answers

Summary of Contents for Milestone Chief XCB1U

  • Page 1 I N S T A L L A T I O N I N S T R U C T I O N S XCB1U (Shown installed to CPA Series extension column as example only) Back-to-Back Large Flat Panel Ceiling Mount Spanish Product Description German Product Description Portuguese Product Description...
  • Page 2: Important Safety Instructions

    The information contained in this document is subject Table 1: Weight Capacity to change without notice or obligation of any kind. Milestone makes no representation of warranty, expressed or implied, MODEL...
  • Page 3: Installation Instructions

    Installation Instructions XCB1U DIMENSIONS 15.75 400.0 MAX MOUNTING PATTERN HEIGHT 31.92 810.7 MAX MOUNTING PATTERN WIDTH DIMENSIONS: INCHES [MILLIMETERS]...
  • Page 4 XCB1U Installation Instructions LEGEND Tighten Fastener Adjust Apretar elemento de fijación Ajustar Befestigungsteil festziehen Einstellen Apertar fixador Ajustar Serrare il fissaggio Regolare Bevestiging vastdraaien Afstellen Serrez les fixations Ajuster Loosen Fastener Remove Aflojar elemento de fijación Quitar Befestigungsteil lösen Entfernen Desapertar fixador Remover Allentare il fissaggio...
  • Page 5: Tools Required For Installation

    Installation Instructions XCB1U TOOLS REQUIRED FOR INSTALLATION 3/32" (included) 1/8" (included) 5/32" (included) 1/2" or 13mm PARTS [Interface Bracket Hardware Kit] (2 bags total - quantities listed per bag) R (3) Q (1) S (1) D (4) A (4) C (4) 1/8"...
  • Page 6 XCB1U Installation Instructions INSTALLATION WARNING: FAILURE TO PROVIDE ADEQUATE STRUCTURAL STRENGTH FOR THIS COMPONENT CAN RESULT IN SERIOUS PERSONAL INJURY OR DAMAGE TO EQUIPMENT! It is the installer’s responsibility to make sure the structure to which this component is attached can support five times the combined weight of all equipment.
  • Page 7 Installation Instructions XCB1U Attaching Mount to CPA Extension Column CAUTION: WATCH FOR PINCH POINTS! Do not place fingers between movable parts. Check inside of mount housing for screws encroaching in extension column area. Loosen two 5/16 x 3-1/2" button head cap screws on end of housing until they no longer extend into the extension column area inside housing, but do NOT remove the screws (CC)
  • Page 8 XCB1U Installation Instructions Align the center of the interface bracket (DD) with center of Attaching Displays to Ceiling Mount screen. (See Figure 6) Ensure that the latch mechanisms on interface brackets NOTE: (DD) are already lowered. (See Figure 5) The diamond-shape hole in the bracket corresponds to the center of the mount.
  • Page 9 Installation Instructions XCB1U Fasten bracket against ceiling mount using one 10-24 x 5/8" Tilt button head cap screw (Y). (See Figure 9) The interface brackets allow -5° to 20° tilt, and can be locked at Repeat for remaining interface bracket on display. 0°, 10°...
  • Page 10 XCB1U Installation Instructions OPTIONAL: Security OPTIONAL: Add padlock (not included) to each interface bracket to lock displays to ceiling mount. (See Figure 12) Padlock (Near mounting rail not shown (Optional) for clarity) Figure 12...
  • Page 11 Installation Instructions XCB1U...
  • Page 12 P +31 (0) 495 580 852 F +31 (0) 495 580 845 Chief Manufacturing, a products division Asia Pacific A Office No. 918 on 9/F, Shatin Galleria of Milestone AV Technologies 18-24 Shan Mei Street Fotan, Shatin, Hong Kong 8800-003044 Rev00 P 852 2145 4099...
