PoolMaster Waterfall Fountain 54507 Manual

Waterfall Fountain
54507
770 Del Paso Road, Sacramento, CA 95834-0308
Spray Head (A)
Inlet Connector (D)
Before You Begin: Please note that every pool is di erent so the orientation of the spray head and riser arm
must be adjusted to your speci c situation. Therefore, there will be some trial and error with the adjustment
of the spray head and riser arm through a testing process that will require your pool pump to be turned o
and on until the desired result is achieved

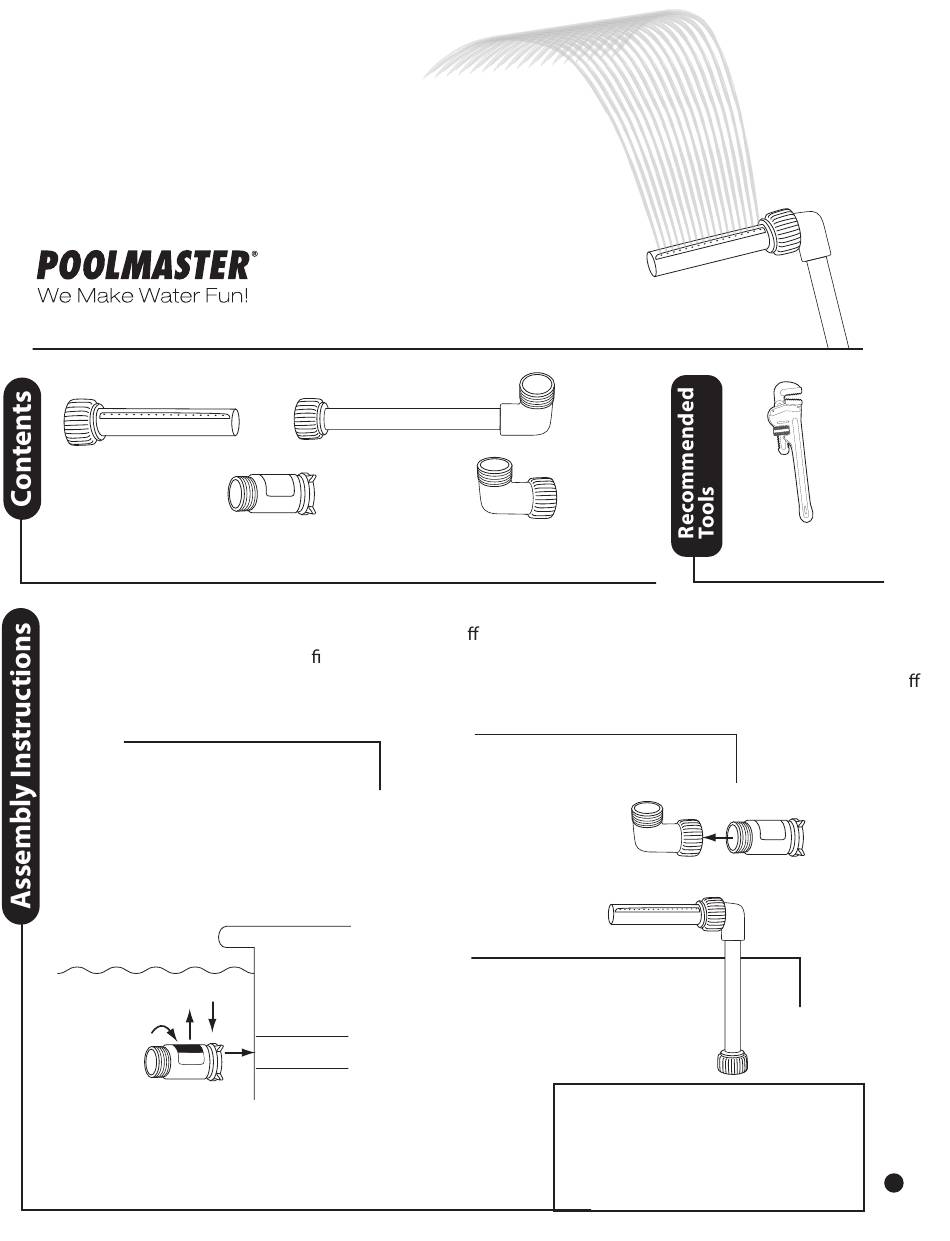

Step 1
Attach Inlet Connector (D) to pool
return until secure. Use the rotating
ring to help securely tighten in place,
ensuring that the connector opening
faces UP as shown. This will allow you
to adjust the spray height easier in
Step 5.
Ring
Connector
Opening
Riser (B)
Elbow Connector (C)
Step 2
Attach Elbow Connector (C) to Inlet
Connector (D) – Loosely secure. DO
NOT tighten completely.
Pool Edge
Step 3
Attach Spray Head (A) to Riser (B).
Pool Wall
Loosely secure. Do NOT tighten
completely.
Return
Pipe Wrench
(C)
(A)
