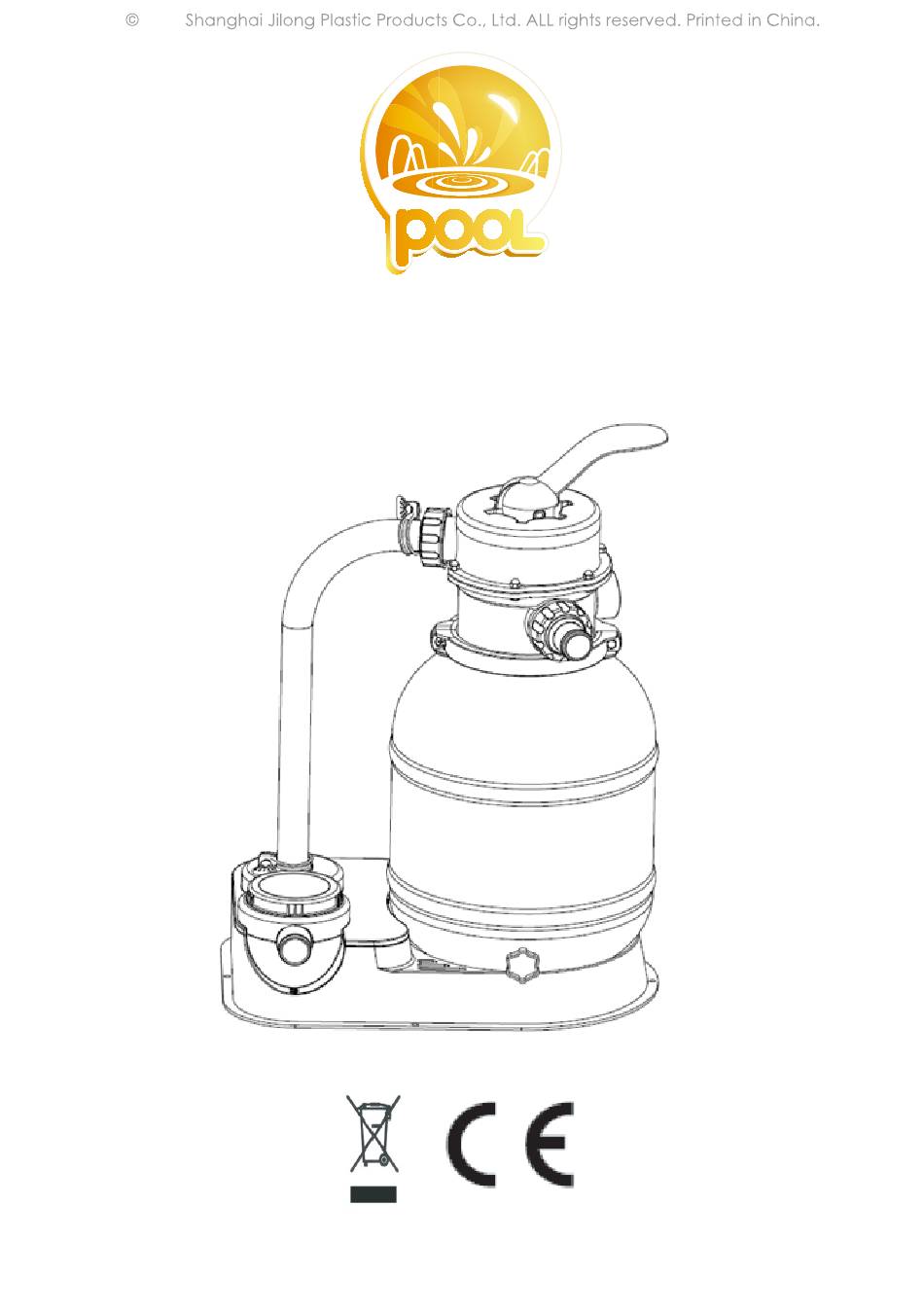

- Page 1 2014 SFP3-14-GB INFLATABLE’S EXPERT SAND FILTER PUMP MANUAL...
-
Page 2: Specifications
Specifications Model JL29P423NG Voltage 220-240 V Power 65 W Max. operation pressure 1bar (15psi) Effective filter area 0.05m² (0.57ft²) Max. water flow rate 800 gal/h (3000L/h) Rated filter flow rate 530 gal/h （ 2000L/h ） Max. water temperature 35 ℃... - Page 3 To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling. www.jilong.com SFP3-14-GB...
-
Page 4: Installation Instructions
The sand filter pump should be secured on a cement pedestal or wood platform to avoid it tipping over. Note: the hole diameter of the pedestal is 6.4mm. Note: the maximum diameter of the two screws and lock nuts used is 6.4mm. www.jilong.com SFP3-14-GB... - Page 5 4. Remove the positioning plate (P16) (see FIG. 06) and spread the sand evenly with one’s hands 5.Clear away the sand around the top of the body. FIG. 03 FIG. 04 FIG. 05 FIG. 06 FIG. 07 FIG. 08 www.jilong.com SFP3-14-GB...
- Page 6 F of the pool. Secure tightly with a strap (P17). 2. Connect one end of the connecting pipe P12 to Port C of the control valve, the other end to Port C of the motor. Secure tightly with the strap www.jilong.com SFP3-14-GB...
- Page 7 Closed C l o s e d w a t e r f l o w between the filter and the pool www.jilong.com SFP3-14-GB...
- Page 8 2.Insert the plug into the matched receptacle to run the sand filter pump. Note: During the operation of the sand filter pump, check the pressure reading of the manometer (P1). Generally, when the pressure of the recommended www.jilong.com SFP3-14-GB...
- Page 9 6.Install the seal ring (P14) of the slag blocking barrel, the slag blocking screen (P13) and the cover (P15) of the slag blocking barrel in their original positions (see FIG. 13). www.jilong.com SFP3-14-GB...
- Page 10 To avoid shrinkage or corrosion, do not cover or wrap the motor with a plastic bag. 9.Please store the motor and parts in a dry place at 32°F (0°C) ~104°F (40°C). www.jilong.com SFP3-14-GB...
- Page 11 T h e m a n o m e t e r i s the inner wall damaged Replace the fittings Sand enters the pool The sand particles are too Use 20# quartz sand only fine Particle size of the sand is 0.45-1.25mm Or replace the sand www.jilong.com SFP3-14-GB...
- Page 12 After Sales Service Centers For service questions or to order replacement parts, please listed below or visit www. jilong.com for answers to most frequently asked questions.contract the appropriate office BML UK Benross House,Bridge Industrial Estate, Speke Hall Road, Liverpool, L24 9WD, UK Tel:440151-448-69-73 E-mail: service.uk@jilong.com...
