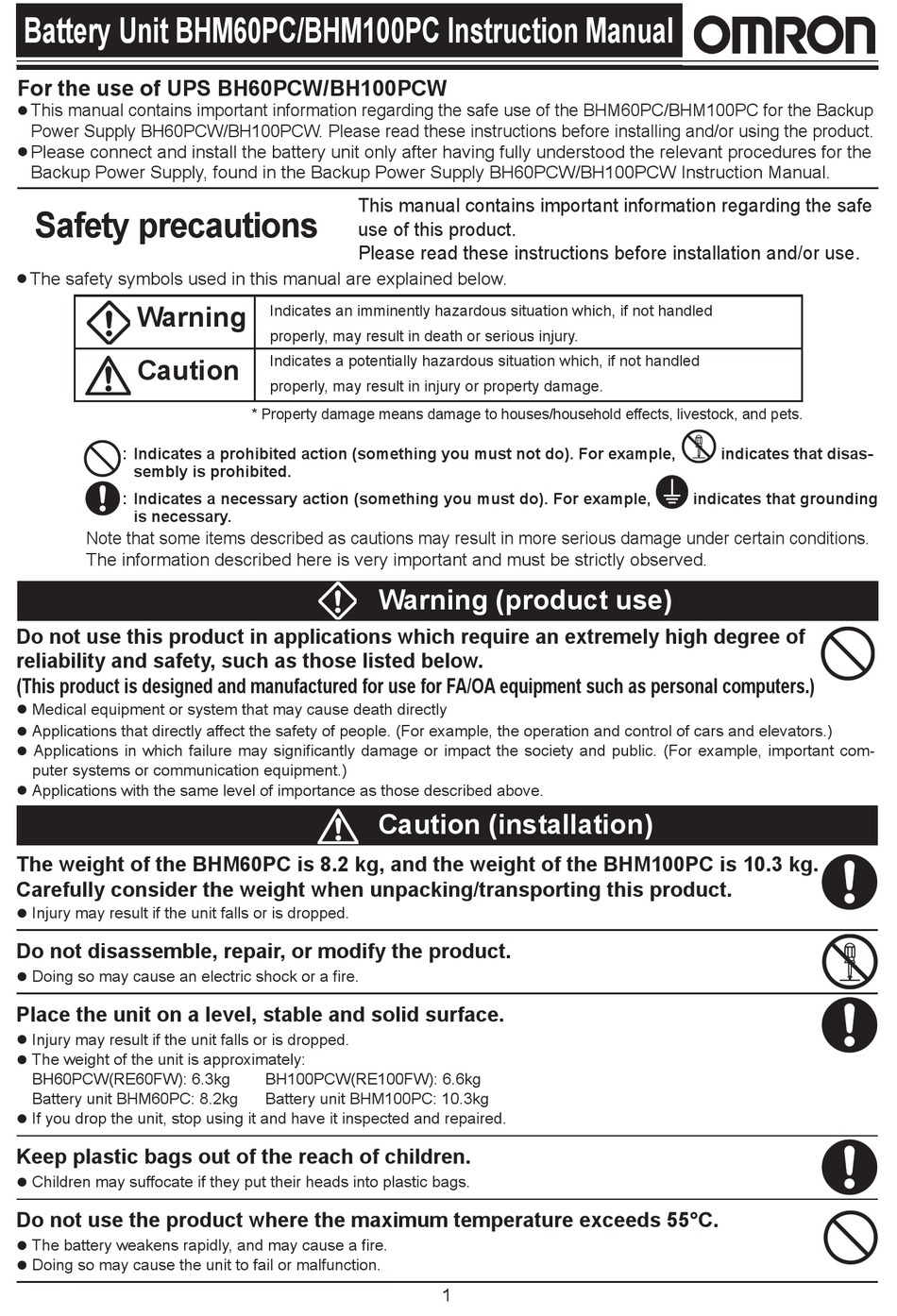

Battery Unit BHM60PC/BHM100PC Instruction Manual
For the use of UPS BH60PCW/BH100PCW
This manual contains important information regarding the safe use of the BHM60PC/BHM100PC for the Backup

Power Supply BH60PCW/BH100PCW. Please read these instructions before installing and/or using the product.
Please connect and install the battery unit only after having fully understood the relevant procedures for the

Backup Power Supply, found in the Backup Power Supply BH60PCW/BH100PCW Instruction Manual.
Safety precautions
The safety symbols used in this manual are explained below.

Warning
Caution
: Indicates a prohibited action (something you must not do). For example,
sembly is prohibited.
: Indicates a necessary action (something you must do). For example,
is necessary.
Note that some items described as cautions may result in more serious damage under certain conditions.
The information described here is very important and must be strictly observed.
Do not use this product in applications which require an extremely high degree of
reliability and safety, such as those listed below.
(This product is designed and manufactured for use for FA/OA equipment such as personal computers.)
 Medical equipment or system that may cause death directly
 Applications that directly affect the safety of people. (For example, the operation and control of cars and elevators.)
 Applications in which failure may significantly damage or impact the society and public. (For example, important com-
puter systems or communication equipment.)
 Applications with the same level of importance as those described above.
The weight of the BHM60PC is 8.2 kg, and the weight of the BHM100PC is 10.3 kg.
Carefully consider the weight when unpacking/transporting this product.
 Injury may result if the unit falls or is dropped.
Do not disassemble, repair, or modify the product.
 Doing so may cause an electric shock or a fire.
Place the unit on a level, stable and solid surface.
 Injury may result if the unit falls or is dropped.
 The weight of the unit is approximately:
BH60PCW(RE60FW): 6.3kg
Battery unit BHM60PC: 8.2kg
 If you drop the unit, stop using it and have it inspected and repaired.
Keep plastic bags out of the reach of children.
 Children may suffocate if they put their heads into plastic bags.
Do not use the product where the maximum temperature exceeds 55°C.
 The battery weakens rapidly, and may cause a fire.
 Doing so may cause the unit to fail or malfunction.
This manual contains important information regarding the safe
use of this product.
Please read these instructions before installation and/or use.
Indicates an imminently hazardous situation which, if not handled
properly, may result in death or serious injury.
Indicates a potentially hazardous situation which, if not handled
properly, may result in injury or property damage.
* Property damage means damage to houses/household effects, livestock, and pets.
Warning (product use)
Caution (installation)
BH100PCW(RE100FW): 6.6kg
Battery unit BHM100PC: 10.3kg
1
indicates that disas-
indicates that grounding
