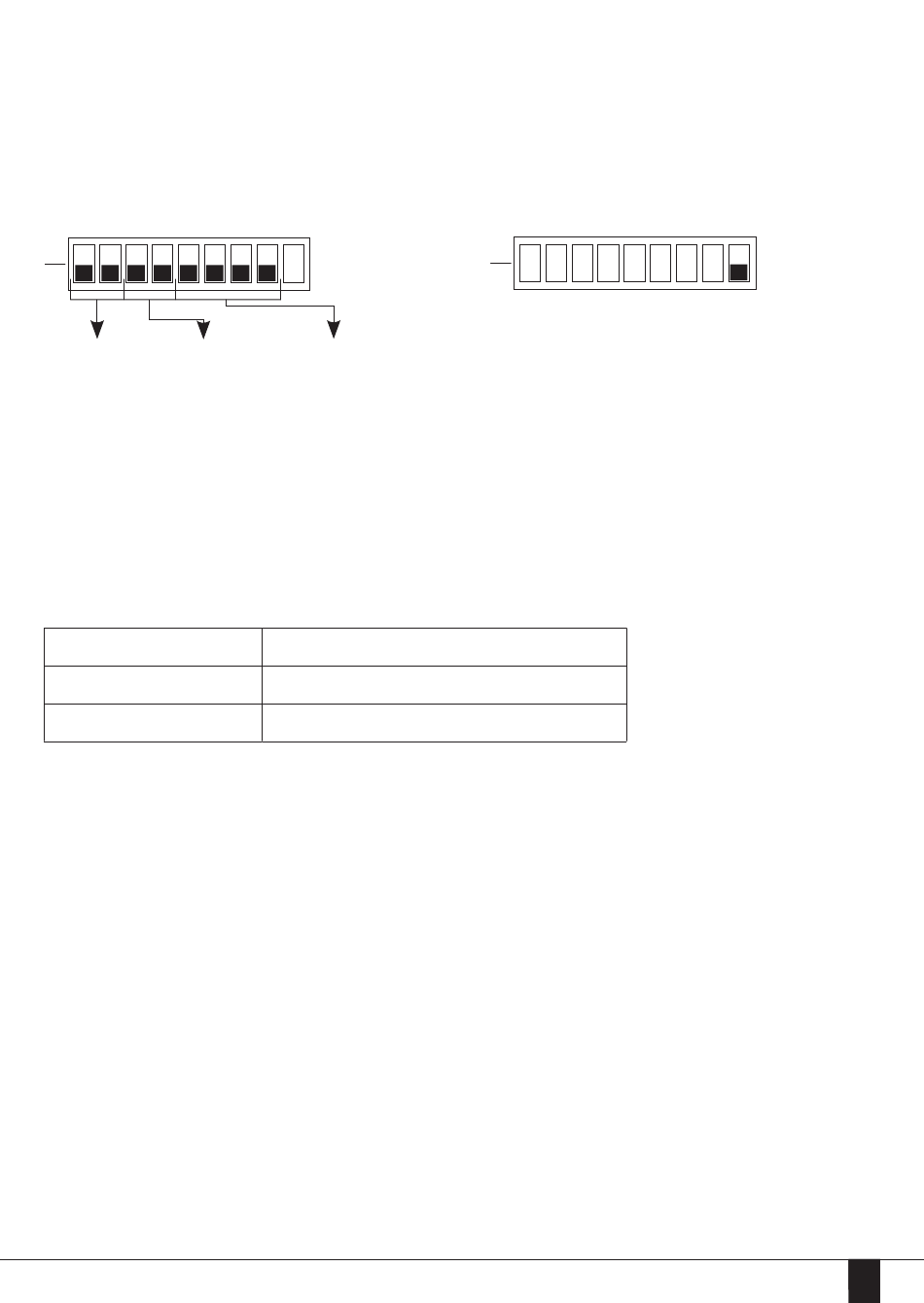

DIP-Switch
Use DIP-Switch for adjustment of Modbus®-address and termination. The DIP-switches have priority followed by the
parameters in the registers. As soon as the DIP-switch is on '0' the address acc. Register 4x0764 (Modbus Baseaddress,
Default = 40) are valid. Changes of the DIP-switch are active after 5 seconds.
Modbus®-addressing
1 2 3 4 5 6
1 1
0 0
Baud rate Format
00 = 9600 00 = 1-8-E-1
01 = 19200 01 = 1-8-O-1
10 = 38400 10 = 1-8-N-1
11 = 57600 11 = 1-8-N-2
Push-Button
Duration of operation
5 ... 10 s
10 ... 20 s
Zero point reset
Reset pressure variations with the zero point reset.
Please remove pressure hoses before zero point reset.
During initial operation a zero-point reset is not necessary.
Reset to factory setting
Sensor is reset to delivered setting. Factory settings are listed in the register list – default values.
Huba Control AG | Industriestrasse 17, 5436 Würenlos - 699M - Edition 02/2020 - 120225
Technische Änderungen vorbehalten | Technical data subject to change | Sous réserve de modifications techniques
7 8
Address
0000 Baseaddress
0001 Baseaddress + 1
0010 Baseaddress + 2
1101 Baseaddress + 13
1110 Baseaddress + 14
1111 Baseaddress + 15
Function
Zero point reset
Reset to factory setting
Modbus®-termination
120 Ω + 1nF
1 1
0 0
1 = On
0 = Off
