Control Element - Huba Control 699M Operating Instructions Manual

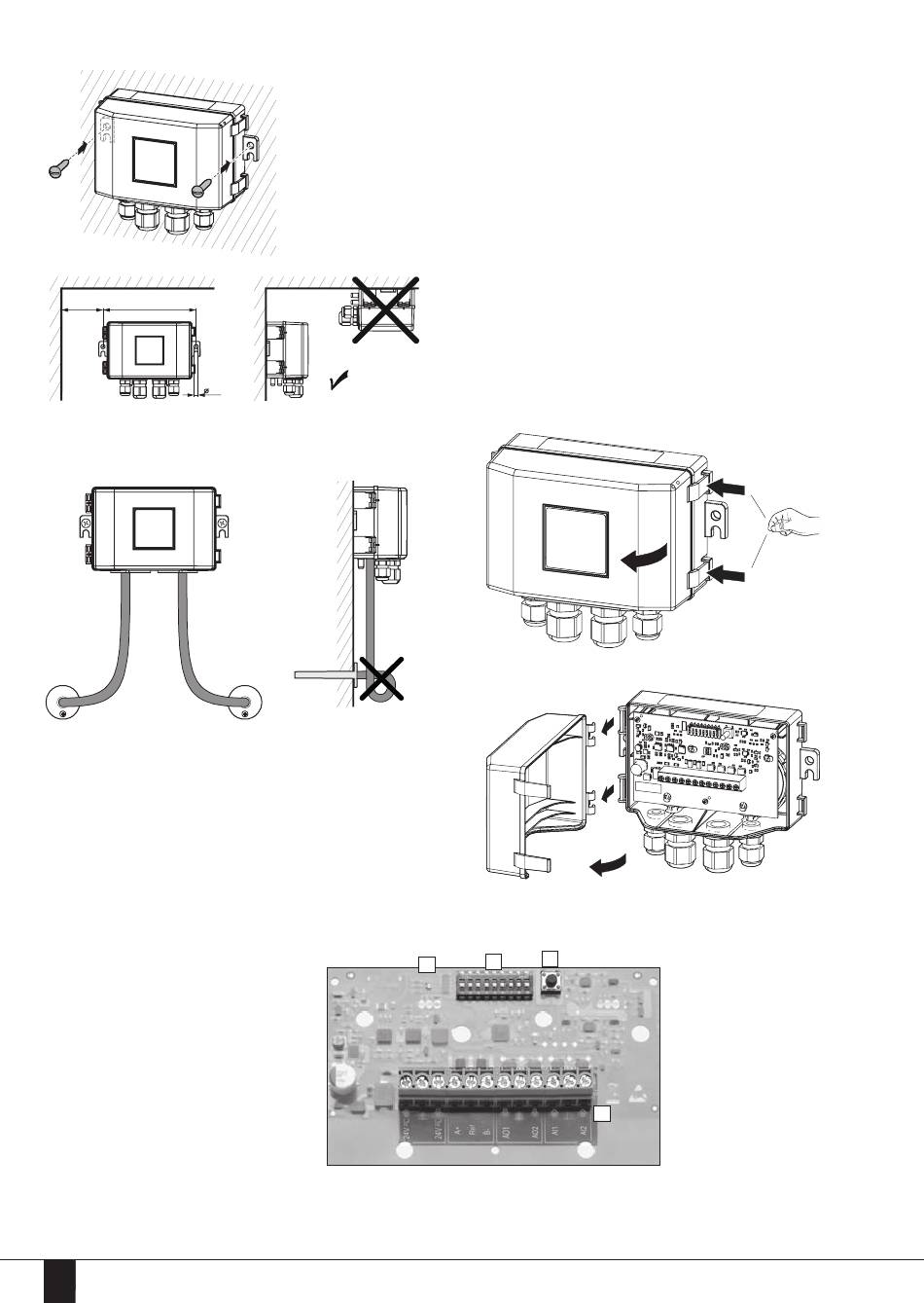

Installation arrangement / use relative pressure transmitter
min. 75 134
5.5

Control element

A: status-LED
B: DIP-Switch
C: Push-button
D: Connecting terminals
10
Vertical with pressure connections facing downwards, drain of possible condensed
water (factory calibration)
For the measurement of relative pressure the indication 'connected to ambient
atmosphere' is shown.
A
Huba Control AG | Industriestrasse 17, 5436 Würenlos - 699M - Edition 02/2020 - 120225
Technische Änderungen vorbehalten | Technical data subject to change | Sous réserve de modifications techniques
Quick release fasteners and detached cover
- Open the housing with the quick release fasteners
2
2
2
90°
1
C
B
D
1
1
