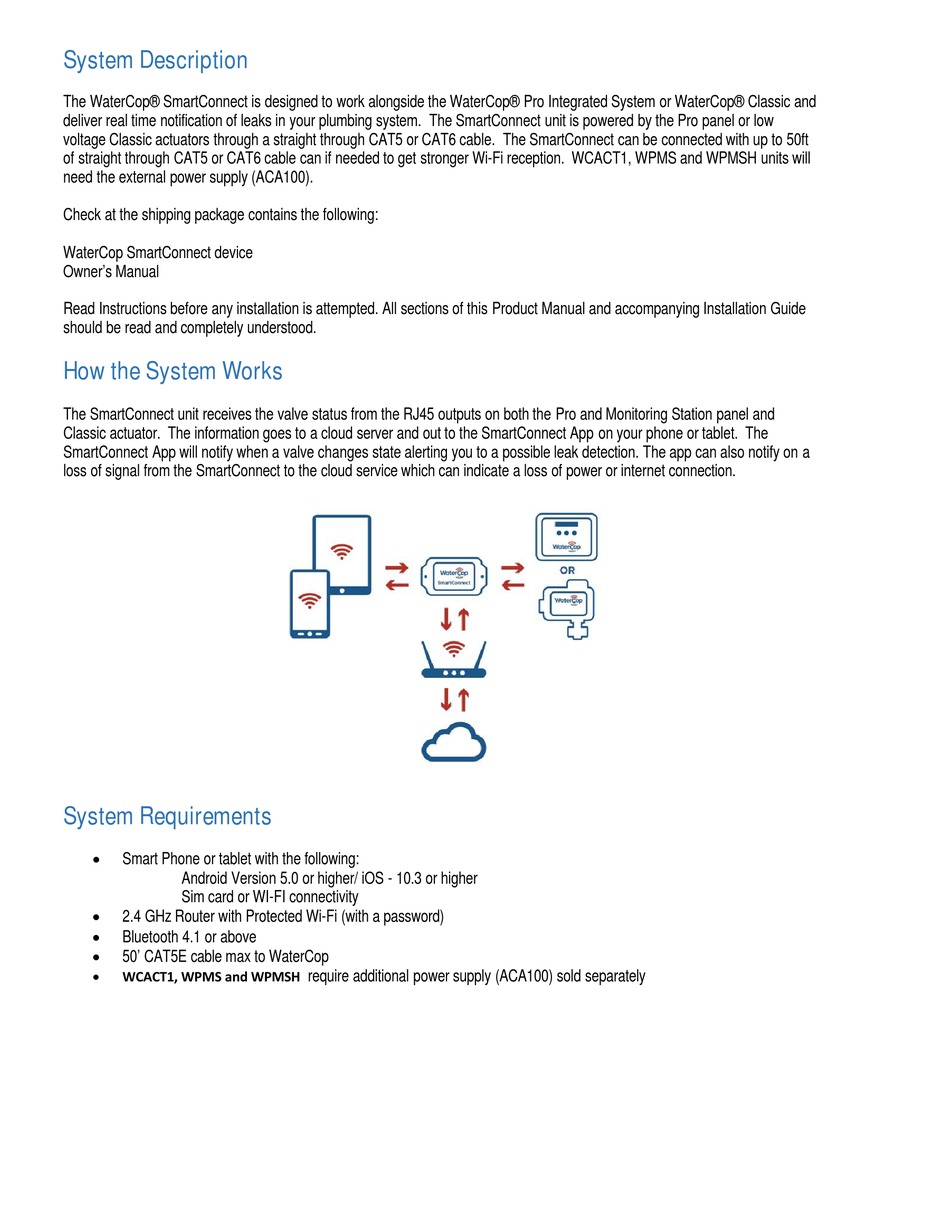

System Description

The WaterCop® SmartConnect is designed to work alongside the WaterCop® Pro Integrated System or WaterCop® Classic and
deliver real time notification of leaks in your plumbing system. The SmartConnect unit is powered by the Pro panel or low
voltage Classic actuators through a straight through CAT5 or CAT6 cable. The SmartConnect can be connected with up to 50ft
of straight through CAT5 or CAT6 cable can if needed to get stronger Wi-Fi reception. WCACT1, WPMS and WPMSH units will
need the external power supply (ACA100).
Check at the shipping package contains the following:
WaterCop SmartConnect device
Owner's Manual
Read Instructions before any installation is attempted. All sections of this Product Manual and accompanying Installation Guide
should be read and completely understood.

How the System Works

The SmartConnect unit receives the valve status from the RJ45 outputs on both the Pro and Monitoring Station panel and
Classic actuator. The information goes to a cloud server and out to the SmartConnect App on your phone or tablet. The
SmartConnect App will notify when a valve changes state alerting you to a possible leak detection. The app can also notify on a
loss of signal from the SmartConnect to the cloud service which can indicate a loss of power or internet connection.

System Requirements

Smart Phone or tablet with the following:
Android Version 5.0 or higher/ iOS - 10.3 or higher
Sim card or WI-FI connectivity
2.4 GHz Router with Protected Wi-Fi (with a password)
Bluetooth 4.1 or above
50' CAT5E cable max to WaterCop
WCACT1, WPMS and WPMSH
require additional power supply (ACA100) sold separately

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SmartConnect and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for WaterCop SmartConnect

Summary of Contents for WaterCop SmartConnect

  • Page 1 Classic actuator. The information goes to a cloud server and out to the SmartConnect App on your phone or tablet. The SmartConnect App will notify when a valve changes state alerting you to a possible leak detection. The app can also notify on a loss of signal from the SmartConnect to the cloud service which can indicate a loss of power or internet connection.
  • Page 2 If using wireless, verify signal strength before choosing the location of the SmartConnect device. When running cable from the actuator or control panel to the SmartConnect, use CAT5 or CAT6, and keep the cable 50’ or (use the supplied short cable if signal is adequate).
  • Page 3 Once saved and connected, cycle the valve open and closed from the app to ensure the SmartConnect is connected, operating and sending notifications. Delete your contact info by clicking the ‘ > ‘ icon on the Contacts line and then the ‘-‘ sign to the right. Click ‘yes’ when asked “Are you sure?’.
  • Page 4   Trouble Shooting Turn the device’s Bluetooth off and back on to restart the Bluetooth radio and try again Cannot see or connect to device at Add  screen    Remove the CAT5 cable or power supply from the  SmartConnect and reconnect to cycle power  No connect, buttons gray after configuring  Verify network name and password are correct, app will  Wi‐Fi network  not notify of incorrect name or password    If the issue remains contact DynaQuip Controls  While adding and setting up device, if 30 seconds pass  before connecting to a network it will send the  Valve CONNECTION LOST message  connection lost message    Loss of internet connection, or loss of power to the  WaterCop system   ...
