  • Page 2 Mismatches or incorrect installation supplied or; a cart, rack, or stand that is recommended may result in overheating and battery case rupture. by Steinberg/Yamaha. If a cart, etc., is used, please observe all safety markings and instructions that Warning: accompany the accessory product.
  • Page 3 Address : 6600 Orangethorpe Ave., Buena Park, Calif. 90620 Telephone : 714-522-9011 Type of Equipment : ADVANCED INTEGRATION CONTROLLER Model Name : CC121 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:...
  • Page 4 AC outlet. Then have the instrument inspected by in damage to the instrument or overheating. qualified Steinberg/Yamaha service personnel. • Check the electric plug periodically and remove any dirt or dust • Never insert or remove an electric plug with wet hands.
  • Page 5 If you experience any hearing loss or ringing in the ears, consult a physician. Steinberg/Yamaha cannot be held responsible for damage caused by improper use or modifications to the instrument, or data that is lost or destroyed.

  • Page 6: Table Of Contents

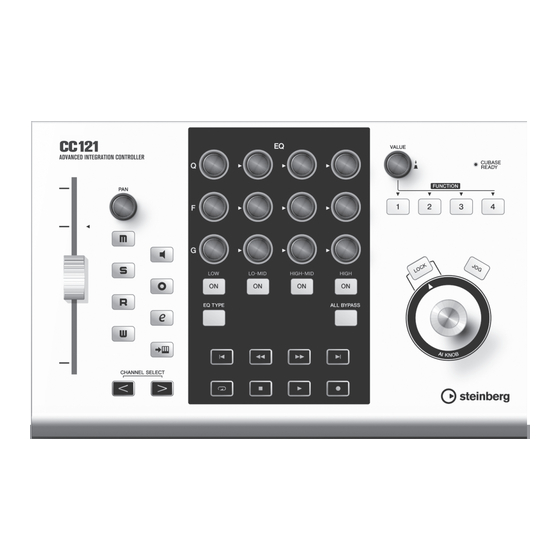

    The CC121 serves as a comprehensive control surface for Cubase (versions that are compatible with the Link func- tion, such as Cubase 4.5 and Cubase AI 4.5; see page 15). Simply connect the CC121 to a computer via a USB cable and enjoy a hardware/software link specifically designed to give you tremendous efficiency and speed in your work-...

  • Page 7: Package Contents

    Package Contents Package Contents The CC121 package contains the following items. After opening the CC121 package, make sure that it includes all of the items listed below. · CC121 · AC power adaptor (PA-3C, PA-130 or equivalent)* · CC121 Operation Manual (this book) ·...

  • Page 8: Turning The Power On And Off

    Turning the Power On and Off Power Supply CAUTION • While the CC121 is turned ON, a Macintosh com- To make the CC121 active, connect the CC121 to puter connected to the CC121 via USB cannot your computer via a USB cable so that the power enter the power-saving mode (such as sleep and can be supplied from the computer to the CC121.
  • Page 9 flow while the switch is in the STANDBY position. If • Use only the included power adaptor (PA-3C or PA- you do not plan to use the CC121 for an extended 130) or an equivalent recommended by Yamaha). period of time, please be sure to unplug the adap- Use of a different adaptor may result in equipment tor from the wall outlet.

  • Page 10: Software Installation

    · If you have already installed a version of Cubase (such as Cubase 4.5) that is compatible with operation with the CC121 (page 15), the instructions on installing Cubase AI 4 described below are not necessary. Jump to the next sec- tion “Installation using TOOLS for CC121.”...
  • Page 11 Disconnect all other USB devices except case, click [Cancel]. mouse and keyboard from the computer. · If a newer version of Steinberg CC121 Extension has Log on to the Administrator account. already been installed in your computer, a dialog box...
  • Page 12 From the Start menu, select [Control Panel] ➝ [Programs and Features] to call up the · If a newer version of Steinberg CC121 Extension has already been installed in your computer, a dialog box “Uninstall or change a program” panel.
  • Page 13 ➝ “jp.co.yamaha.USBMIDIDriver.plist” NOTE (Created after the Driver has been installed). · “Library”➝ “Audio”➝ “MIDI Drivers”➝ “YAMA- · If Steinberg CC121 Extensions has been installed, it HAUSBMIDIDriver.plugin.” will be overwritten by the new installed version. · “Library”➝ “PreferencePanes”➝ “YAMAHAUSB- Execute the installation by following the on- MIDIPatch.prefPane.”...

  • Page 14: Starting The Cc121 And Cubase

    · You can connect or disconnect the AC power adaptor to/from the CC121 while the [STANDBY/ON] switch is set to ON. CAUTION • As soon as you turn off the power of the computer connected to the CC121, make sure to press the [STANDBY/ ON] switch of the CC121 to set it to the STANDBY position.

  • Page 15: The Controls And Connectors

    CC121 and the computer is enabled or not. This lamp flashes to indicate that the CC121 is bus-powered from the connected computer. When the lamp is lit continuously, communication with the computer is enabled and Link functions are avail- able.
  • Page 16 NOTE · The motorizing function of the fader is available only when the AC power adaptor is connected to the CC121. · The touch sensitivity of the fader can be adjusted. Refer to “Adjusting the touch sensitivity of the fader”...
  • Page 17 [Devices] menu) on Cubase. From this window, for punch-in recording ease) by connecting a foot- select “Steinberg CC121” under “Remote Devices” switch to the FOOT SW jack on the rear panel. For in the Devices box then select the desired Function information about instructions on assigning the func- set at the “Bank”...
  • Page 18 The pressed button lights, allowing you to confirm Setup...] under the [Devices] menu). After selecting which button is selected. “Steinberg CC121” under “Remote Devices” in the Devices box then selecting “User Assignable,” set When “Studio Control” is selected: the following parameters.
  • Page 19 AI KNOB are the VST 3 plug-ins included with Cubase (as of July 2008). For the latest information about compatible plug-in soft- ware, refer to the following URL: http://service.steinberg.de/goto.nsf/show/ supportupdates_cc121_gb 2 [LOCK] button You can “lock” the parameter to be edited via the AI KNOB by turning this button on.
  • Page 20 2 USB TO HOST terminal This terminal is used to connect the CC121 and the computer by using a USB cable. Since the CC121 is bus-pow- ered, the power can be supplied from the computer to the CC121 via this terminal.

  • Page 21: Adjusting The Touch Sensitivity Of The Fader

    A setting of “1” produces the most gradual Press the [STANDBY/ON] switch of the response while a setting of “8” produces the CC121 to set it to the STANDBY ( ) posi- most sensitive response. tion, then connect the CC121 to the com- puter via a USB cable.

  • Page 22: Troubleshooting

    * Specifications and descriptions in this manual are for information purposes only. Steinberg/Yamaha Corp. reserves the right to change or modify products or specifications at any time without prior notice. Since specifi- cations, equipment or options may not be the same in every locale, please check with your Steinberg/Yamaha dealer.

  • Page 23: License Agreement For Tools For Cc121

    License Agreement for TOOLS for CC121 License Agreement for TOOLS for CC121 ATTENTION SOFTWARE LICENSE AGREEMENT PLEASE READ THIS SOFTWARE LICENSE AGREEMENT (“AGREEMENT”) CAREFULLY BEFORE USING THIS SOFTWARE. YOU ARE ONLY PERMITTED TO USE THIS SOFTWARE PURSUANT TO THE TERMS AND CONDITIONS OF THIS AGREE- MENT.

  • Page 24: License Agreement For Cubase Ai 4

    All intellectual property rights in the software belong to Steinberg Media Technologies GmbH (hereinafter: “Steinberg”) and its suppliers. Steinberg permits you only to copy, download, install and use the software in accordance with the terms and condi- tions of this Agreement. The product may contain product activation for protection against unlawful copying which per- mits a permanent use of the software only after the activation process has been totally completed.
  • Page 25 License Agreement for Cubase AI 4 Inc., Yamaha Corporation and other licensors) and are 4. Support, Upgrades and Updates after Product licensed by Steinberg to you only for use in the creation of Registration a live or recorded performance that includes the licensed 4.1.
  • Page 26 6. Defect and loss of the Steinberg key version of the software to third parties the right to use the 6.1. In the case of a defect or damage to the Steinberg key upgrade or update of the software shall expire.
  • Page 27 13 Infringement a first buyer of the software are located within the EU, the You should inform Steinberg promptly in writing if a third party following limitation of liability shall apply. raises any claim against your use of the software. Steinberg 12.2.1.
  • Page 28 Niederlassung und bei Steinberg Vertragshändlern in den jeweiligen Bestimmungsländern erhältlich. Pour plus de détails sur les produits, veuillez-vous adresser à Steinberg ou au distributeur le plus proche de vous figurant dans la Para detalles sobre productos, contacte su tienda Steinberg más liste suivante.
  • Page 29 Steinberg Web Site http://www.steinberg.net U.R.G., Pro Audio & Digital Musical Instrument Division, Yamaha Corporation © 2008 Yamaha Corporation This document is printed on chlorine free (ECF) paper. Auf Umweltpapier gedruckt. Ce document a été imprimé sur du papier non blanchi au chlore.
