INSTRUCTIONS MANUAL FOR USE AND
Carbel models:
KRONOS 100
■
KRONOS 80
■
KRONOS 70
■
MAINTENANCE
CARBEL
C/ Ciudad de Cartagena, 22
46988 Polígono Industrial Fuente de Jarro (Paterna)
Valencia
Tel. 96 1340716
E-mail:
carbel@carbel.net
www.carbel.net
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KRONOS 100 and is the answer not in the manual?

Questions and answers

Related Manuals for CARBEL KRONOS 100

Summary of Contents for CARBEL KRONOS 100

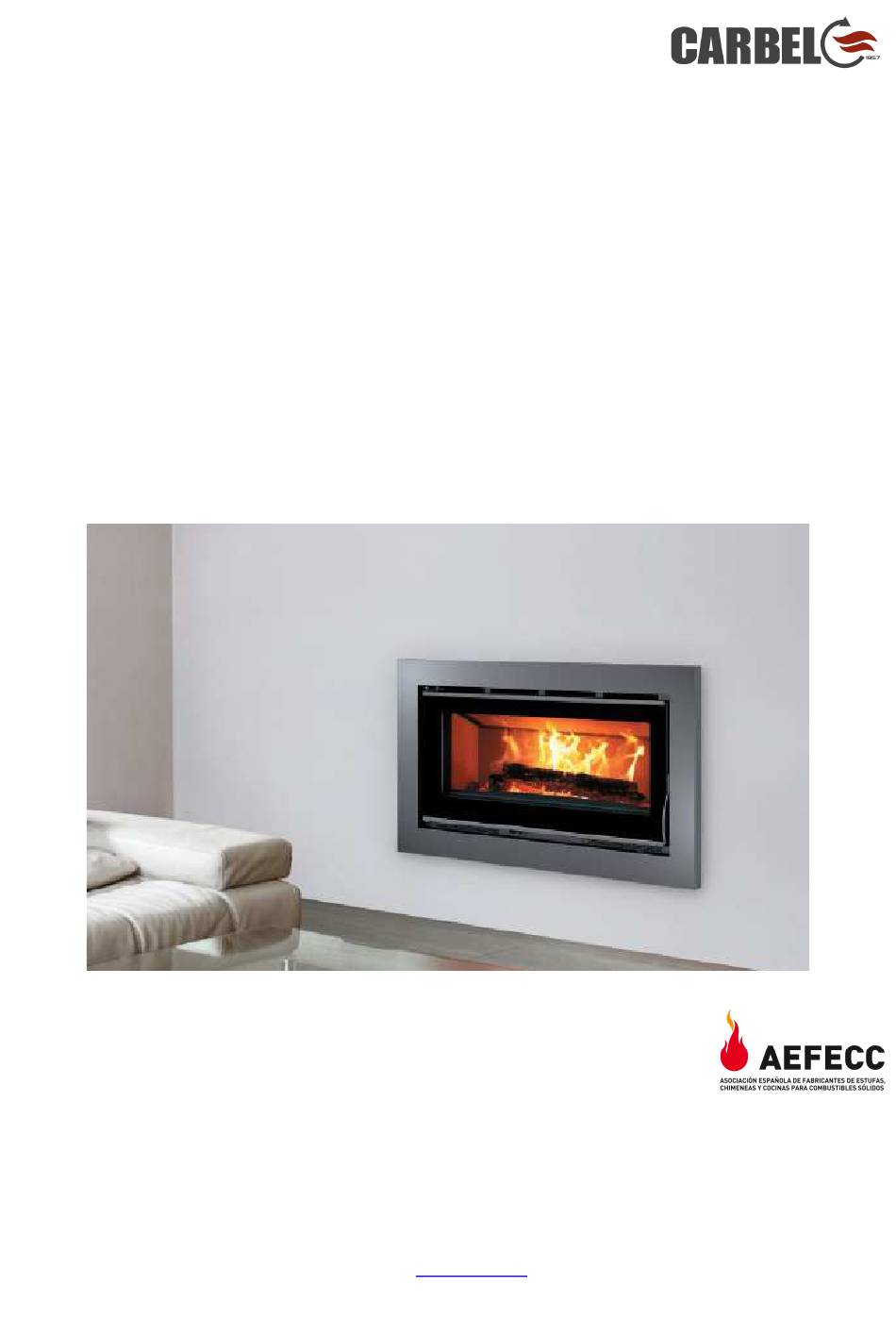

  • Page 1 INSTRUCTIONS MANUAL FOR USE AND MAINTENANCE Carbel models: KRONOS 100 ■ KRONOS 80 ■ KRONOS 70 ■ CARBEL C/ Ciudad de Cartagena, 22 46988 Polígono Industrial Fuente de Jarro (Paterna) Valencia Tel. 96 1340716 E-mail: carbel@carbel.net www.carbel.net...

  • Page 2: Installation

    NOTE FROM THE MANUFACTURER Thank you for choosing one of our models. Please read this manual carefully. It has been written to give you tips on installation, use and maintenance. If you need further clarification, please contact your dealer or the manufacturer directly.
  • Page 3 - When the flue has to have angles or bends, avoid horizontal or downward sections. You must plan for the cleaning of the flue and, if necessary, install pipes with access holes or cleaning hatches in sections that are not easily accessed. - When a metal chimney is fitted inside a brick chimney, it must exceed the height of the latter and protrude a few centimetres at the top.
  • Page 4 1- Fumes exhaust pipe Ø 200 or 150, according to model 2- Entry of cold air into the chimney chamber by natural convection. 3- Entry of air into the cassette convection chamber, drawn in by fans. 4- Optional entry of air from the outside (optional lower or rear connection).

  • Page 5: Operation

    JUNTA DE DILATACION VISTA EN PLANTA MINIMO 1 cm. JUNTA DE DILATACION MINIMO 0'5 cm. VISTA PERFIL OPERATION Fans Fans at the bottom of the fireplace are operated by the switch or automatically by means of a safety thermostat only if the temperature reaches 50 °C at the bottom of the fireplace. You can vary the fan speed at any time.
  • Page 6 3. After a certain period of time, which varies depending on the type of firewood, the maximum temperature value is reached and the gases emitted from the firewood decrease slowly along with the volume of the flames. When the firewood gas emission is complete, the flame goes out and the firewood turns to burning embers. - The fuel load should have the approximate weight recommended by the manufacturer for each model.
  • Page 7 LIGHTING A FIRE 1. Load a generous amount of firewood, placing a layer of wood chips or thin firewood and another layer of thicker wood on top. 2. Light the first layer of wood chips or thin wood using fire-lighters or special lighting products, if necessary. 3.

  • Page 8: During Operation

    The optimal regulation of the air inlets can vary depending on various factors, such as the chimney flue, the temperature of the woodburner, the quality of the wood (moisture, size and shape). WHEN LIGHTING A FIRE - Primary air inlet It is essential to open this inlet to maximum position when lighting the fire and to leave the door ajar to avoid the condensation of fumes on the glass, closing it again once the appliance has warmed up.

  • Page 9: Maintenance

    40 and 55 centimetres in length and of a weight of 1.25 to 2.1 kg. Mod. Kronos 100: one piece of beech wood between 45 and 65 centimetres in length and of a weight of 1.6 to 2.5 kg.
  • Page 10 KRONOS 100 Size (excluding frame). 47,5 Ø8 Ø8 Entrada de aire exterior opcional. Model: Kronos 100 Performance: Nominal thermal power: 9.3 kW Ø12 Firewood load for nominal power: 2.25 kg Ø20 Reload interval for nominal power: 48 mins Maximum firewood load: 3.6 kg...
  • Page 11 KRONOS 70 Size (excluding frame). 42,5 69,5 Ø8 Ø8 Entrada de aire exterior opcional. Model: Kronos 70 Performance: Nominal thermal power: 7 kW Firewood load for nominal power: 1.5 kg Ø12 Reload interval for nominal power: 3-5 mins. Ø15 Maximum firewood load: 2.5 kg Weight: 85 kg...
  • Page 12 25 W POTENCIA INSTALADA: 42 W 0'33 A Max. 14 W 14 W 14 W 50 Hz 50 Hz 50 Hz Modelo: KRONOS 100 2 POSICIONES 2 POSICIONES BASE ENCHUFE CLAVIJAS 230 V 50 Hz 1000 Ohmios 820 Ohmios 15 W 25 W TENSIÓN DE TRABAJO: 230 V...

  • Page 13: Certificate Of Warranty

    For the warranty to take effect, the manufacturer must be sent a copy of this certificate and a copy of the customer invoice. ’ ’ DEALER S SIGNATURE AND STAMP CUSTOMER S COPY Cocinas Carbel, S.L C/ Ciudad de Cartagena, 22 Polígono Industrial Fuente del Jarro 46988 (Paterna) VALENCIA ------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CERTIFICATE OF WARRANTY NAME...
  • Page 14 CARBEL, S.L. Cocinas C/ Ciudad de Cartagena, 22 46988 Polígono Industrial Fuente de Jarro (Paterna) Valencia Tel. 96 1340716 E-mail: carbel@carbel.net...
