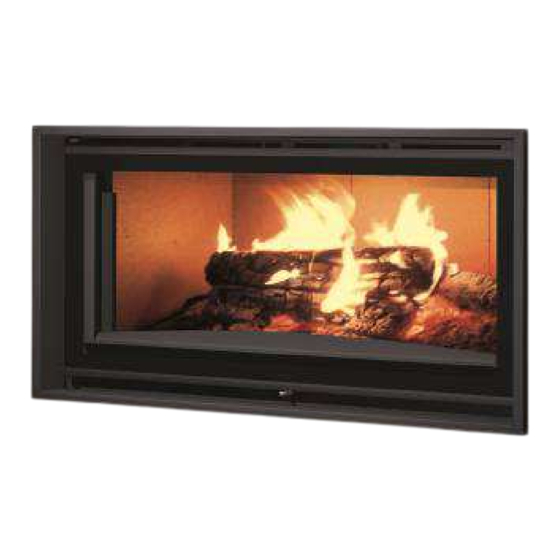

- Page 1 INSTRUCTION MANUAL Models: - H-100 Plus - H-80 Plus - H-50 Plus - H-100 Plus Double Sided COCINAS CARBEL C/ Ciudad de Cartagena, 22 46988 Polígono Industrial Fuente de Jarro (Paterna) Valencia Tel. 96 1340716 Fax: 96 1340449 E-mail: carbel@carbel.net...
- Page 2 NOTE FROM THE MANUFACTURER Thank you for choosing one of our models. Please read this manual carefully. It has been written to give you tips on installation, use and maintenance. If you need further clarification, please contact your dealer or the manufacturer directly. All our models are designed and manufactured for optimal performance.
- Page 3 - The chimney should run through the interior of the building. Install insulated double-walled pipes when the chimney flue runs outside the building. - When the flue has to have angles or bends, avoid horizontal or downward sections. - You must plan for the cleaning of the flue and, if necessary, install pipes with access holes or cleaning hatches in sections that are not easily accessed.
- Page 4 EXTERIOR AIR INLET For the fireplace draught to work correctly, the room must have an outside air inlet that is at least sufficient to replenish the volume of air that comes out of the chimney flue. An air inlet must be fitted through the outer wall and if a vent is installed, it must not be adjustable and must be fitted in such a way that it cannot be blocked.
- Page 5 The building work must be finished in such a way that the woodburner can expand during operation: the brickwork must never be supported on or against the sides of the appliance. Leave a minimum expansion joint of 0.5 cm on each side and at least 1 cm the top of the front.
- Page 6 Fitting the turbine housing. It is important to mount the turbine housing even when no turbine (optional) is installed. It has an air inlet through a piece for a flue of Ø 120 mm. First fit the screw on the air inlet piece, leaving a few millimetres of separation to insert the tab with the screw recess.
- Page 7 Installing the turbine (optional). Models: H-100 Plus, H-100 Plus double-sided and H-80 Plus Remove in this order: the woodholder that protects the glass. Remove the primary air inlet nozzle Remove the fireplace base.
- Page 8 Unscrew the eight screws and remove the turbine access cover. Remove the convection chamber vent by breaking the micro-couplings. Fit the turbine and tighten the screws.
- Page 9 Replace the turbine access cover and tighten the screws. Replace the base, the air inlet nozzle and the woodholder that protects the glass.
- Page 10 Installing the turbine (optional). Model H-50 Plus Remove the vent at the bottom of the convection chamber by breaking the micro-couplings. Fit the turbine directly from the outside, tighten the screws and fit the air inlet box.
- Page 11 Fastening the appliance to the wall (models: H-100 Plus, H-80 Plus and H-50 Plus) In order to ensure the optimal stability and support of the appliance, we recommend you install the two supplied brackets. Use the supplied screws to fasten the two brackets to the top of the appliance.
- Page 12 Anchoring the appliance to the floor: In order to ensure the proper anchoring of the appliance to the floor, you can use the metal legs designed for said purpose. The choice of suitable bolts will be the fitter’s responsibility.
- Page 13 Fitting the New Line vertical frame (model: H-50 Dekor New Line) Top panel Side panels Bottom panel Screw the top and bottom panels to the side panels.
- Page 14 Remove the fireplace door and position and screw the New Line frame to the front of the appliance. Refit the door. Frame fixing screws...
- Page 15 Lighting a fire Important: the fire must be lit using thin, dry wood. 1. Load a generous amount of firewood, placing a layer of wood chips or thin firewood and another layer of thicker wood on top. 2. Light the first layer of wood chips or thin wood using fire-lighters or special lighting products, if necessary.
- Page 16 - Primary air inlet It is essential to open to maximum position when lighting the fire and to leave the door ajar to avoid the condensation of fumes on the glass, closing it again once the appliance has warmed In order to avoid burns, always use the glove supplied with the appliance when adjusting the primary air inlet and opening the door.
- Page 17 Combustion To achieve a good combustion, when the wood is well lit and a high temperature has been reached, close the primary air inlet (via the ash box). In this way, the combustion air (preheated in the upper section of the fireplace) enters through the secondary air inlet at the top of the fireplace near the glass, resulting in better gas combustion.
-
Page 18: Electrical Schematic
- The fuel load should have the approximate weight recommended by the manufacturer for each model. Preferably in one or two pieces. - Avoid overloading with firewood that is too thin as this can cause poor combustion. The firewood emits an excessive amount of gas very quickly and the air supply is insufficient. Although there is a large volume of flames, combustion it is not good and the glass tends to get dirty. -
Page 19: Maintenance
MAINTENANCE It is very important not to wet the woodburner with window-cleaner, water or special cleaning products. Heatproof paint is not waterproof. Clean the paintwork with a feather duster or a soft, dry cloth. If over time you want to repaint the insert, the manufacturer makes a spray paint available from your dealer. - Page 20 - Do not use the woodburner as an incinerator, never burn plastics, waste, garbage or rubbish. - Remove the ashes when the woodburner is off and place them in a metal container as there may be burning embers hidden in the ashes. - You should check the chimney regularly and keep it clean and in good condition.
- Page 21 Fireplace Double-sided fireplace Fireplace Fireplace Fireplace...
- Page 22 Average temp. of fumes Weight (kg) Diam. Fumes outlet. 20 cm 20 cm 20 cm 15 cm COCINAS CARBEL, S.L. C / Ciudad de Cartagena, 22 46988 Polígono Industrial Fuente de Jarro (Paterna) Valencia Tel. 96 1340716 Fax: 96 1340449 E-mail: carbel@carbel.net...
- Page 23 For the warranty to take effect, the manufacturer must be sent a copy of this certificate and a copy of the customer invoice. DEALER’S SIGNATURE AND STAMP CUSTOMER’S COPY Cocinas Carbel, S.L C/ Ciudad de Cartagena, 22 Polígono Industrial Fuente del Jarro...
