Belden Hirschmann BAT-ANT-N-6ABG-IP65 Mounting Instruction

Hemispherical antenna for 2.4 and 5 ghz band

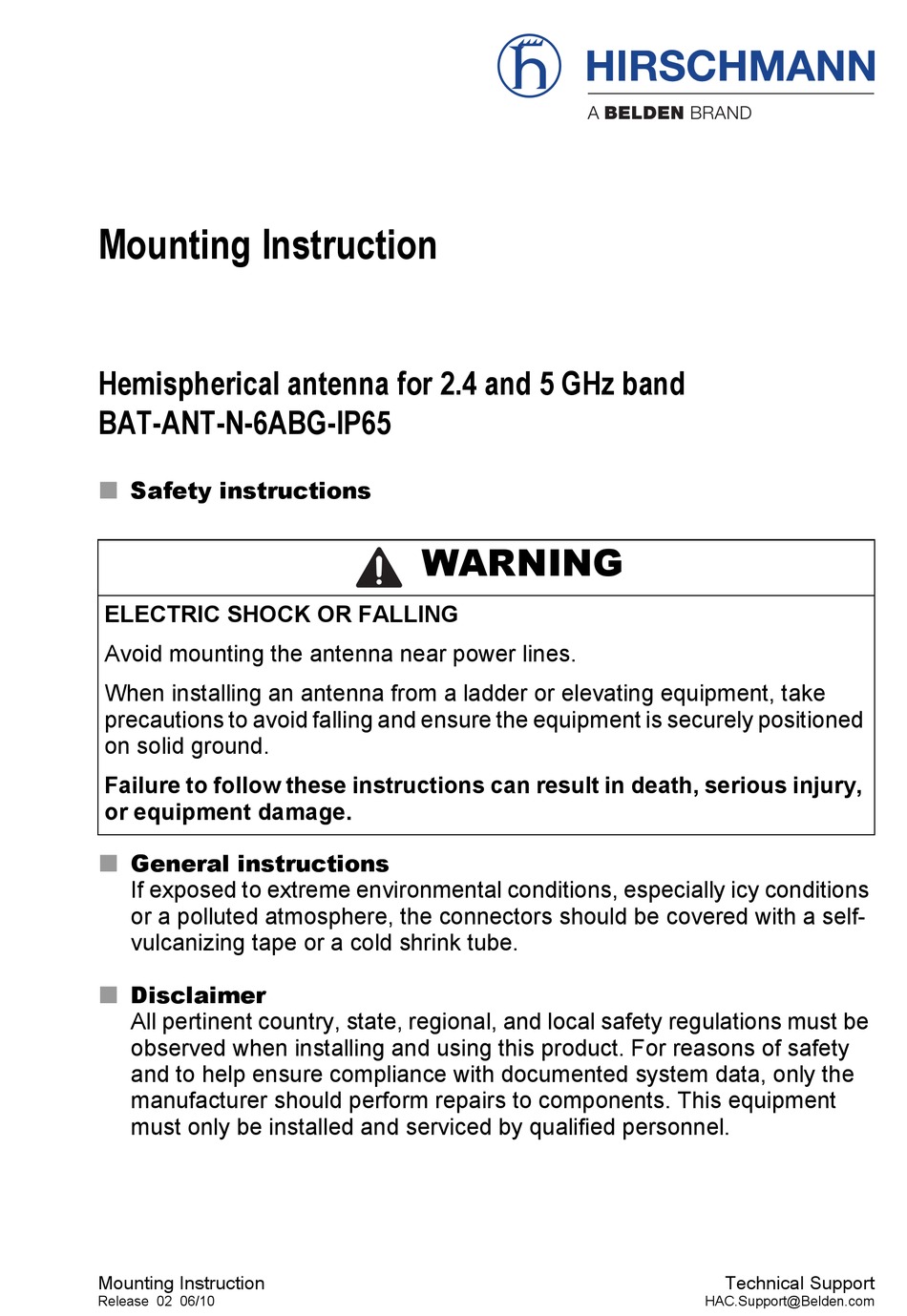

Mounting Instruction

Hemispherical antenna for 2.4 and 5 GHz band

BAT-ANT-N-6ABG-IP65

Safety instructions



ELECTRIC SHOCK OR FALLING

Avoid mounting the antenna near power lines.

When installing an antenna from a ladder or elevating equipment, take

precautions to avoid falling and ensure the equipment is securely positioned

on solid ground.

Failure to follow these instructions can result in death, serious injury,

or equipment damage.



If exposed to extreme environmental conditions, especially icy conditions

or a polluted atmosphere, the connectors should be covered with a self-

vulcanizing tape or a cold shrink tube.



All pertinent country, state, regional, and local safety regulations must be

observed when installing and using this product. For reasons of safety

and to help ensure compliance with documented system data, only the

manufacturer should perform repairs to components. This equipment

must only be installed and serviced by qualified personnel.

Mounting Instruction

Release 02 06/10

WARNING

Technical Support

HAC.Support@Belden.com

Table of Contents

Do you have a question about the Hirschmann BAT-ANT-N-6ABG-IP65 and is the answer not in the manual?

Page 1 For reasons of safety and to help ensure compliance with documented system data, only the manufacturer should perform repairs to components. This equipment must only be installed and serviced by qualified personnel. Mounting Instruction Technical Support Release 02 06/10 HAC.Support@Belden.com...
Page 2 Measuring units  The dimensions are in mm. The tightening torques are in lb in and Nm. Indoor mounting   Mount the holder using M4 screws, as shown. Note: Use a maximum tightening torque of 17.7 lb in / 2 Nm. Figure 1: Indoor mounting / Bottom view of the antenna: mounting without sealing Outdoor mounting and vehicular applications ...
