File: MBA5-P11M User Guide Version : V1.0 Table of content Background..........................3 Product introduction ......................... 4 Introduction ........................4 Precaution before using battery ..................5 Charger..........................5 Notes ..........................6 Installation instructions ......................7 Appearance ........................7 Install Micro SD and SIM cards ..................8 Battery charge ........................ -
Page 3: Background
File: MBA5-P11M User Guide Version : V1.0 1 Background Description Date Version Author Auditor First parution 24/04/2019 V1.0 3/19 AXEM Technology 11 rue Auguste Perret, 94042 Créteil, FRANCE – info@axemtec.com – +33 (0)1 41 94 11 85 – www.axemtec.com Siret : 45071140300045 - APE : 4652Z - RCS : CRETEIL 450711403 - N° TVA intracom : FR05450711403 - Capital : 500 000,00 €... -
Page 4: Product Introduction

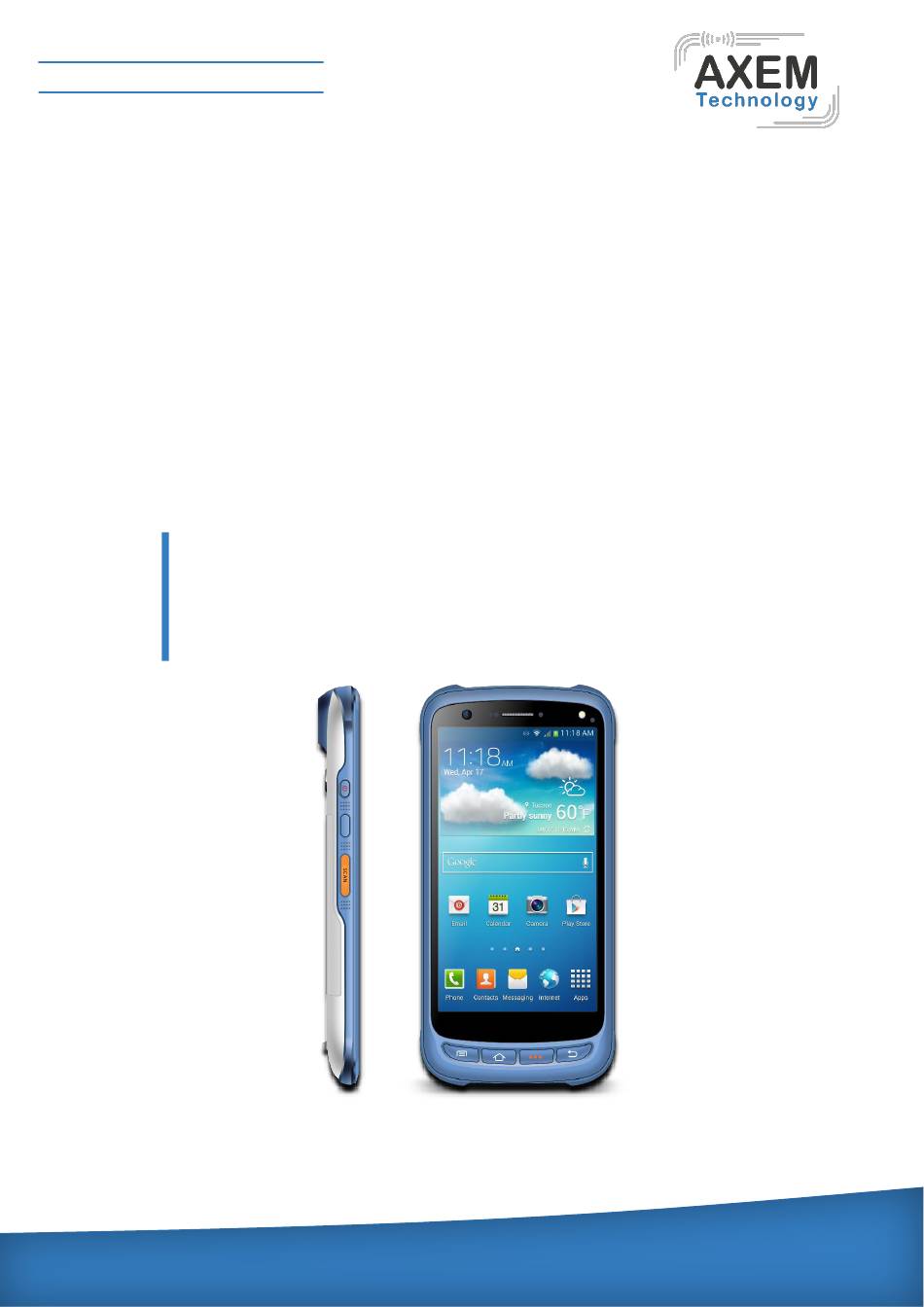

2 Product introduction 2.1 Introduction The MBA5-P11M runs under Android 6.0 operating system and is equipped with an 1.3 GHz quad- core processor. Its 5.2″ FHD touch screen allows its use with wet hands or gloves. The mobile device has HF/NFC RFID technology to enable wireless identification and traceability in many applications…... -
Page 5: Precaution Before Using Battery
File: MBA5-P11M User Guide Version : V1.0 2.2 Precaution before using battery • Do not leave battery unused for long time, no matter it is in device or inventory. If battery has been used for 6 months already, it should be check for charging function or it should be disposed correctly. -
Page 6: Notes
File: MBA5-P11M User Guide Version : V1.0 2.4 Notes Note 1: Using the incorrect type battery has danger of explosion. Please dispose the used battery according to instructions. Note 2: Due to the used enclosure material, the product shall only be connected to a USB Interface of version 2.0 or higher. -
Page 7: Installation Instructions
File: MBA5-P11M User Guide Version : V1.0 3 Installation instructions 3.1 Appearance Buttons instructions Power Located on left side, press to ON/OFF device. Located on left side, its function can be defined by Function key Side button software. Scanning button located on both sides. There are SCAN button two scanning buttons. -
Page 8: Install Micro Sd And Sim Cards
3.4 Buttons and function area display MBA5-P11M has 4 side buttons and 4 main buttons, NFC identification area 2D scanning module and Infrared scanning lens locates at front. HD camera, optical fingerprint sensor and flashlight locate at rear. -
Page 9: Call Function
File: MBA5-P11M User Guide Version : V1.0 4 Call function 4.1 Calling numbers 1. Click icon 2. Click number key to input phone numbers. 3. Click icon to call. 4. Click icon to end call. 4.2 Contacts 1. Click contacts to open contacts list. -
Page 10: Barcode Reader-Writer
File: MBA5-P11M User Guide Version : V1.0 5 Barcode reader-writer In App Center, to open 2D barcode scan test. 2. Press “SCAN” button or click scan key to start scanning, the parameter “Auto interval” can be adjusted. 10/19 AXEM Technology 11 rue Auguste Perret, 94042 Créteil, FRANCE –... - Page 11 File: MBA5-P11M User Guide Version : V1.0 Caution: Please scan codes in correct way otherwise the scanning will be failed. 1D barcode: 2D barcode: Max. radiant power: 0.6mW Wave length: 655nm IEC 60825-1 (Ed.2.0). 21CFR 1040.10 and 1040.11 standard. 11/19 AXEM Technology 11 rue Auguste Perret, 94042 Créteil, FRANCE –...
-
Page 12: Rfid Reader
File: MBA5-P11M User Guide Version : V1.0 6 RFID reader 6.1 NFC Click App Center, open “NFC” to read and write tag information 12/19 AXEM Technology 11 rue Auguste Perret, 94042 Créteil, FRANCE – info@axemtec.com – +33 (0)1 41 94 11 85 – www.axemtec.com... -
Page 13: Other Functions
File: MBA5-P11M User Guide Version : V1.0 7 Other functions Bluetooth 1. Open “BT Printer” in App Center. 2. In the list of detected devices, click the device that you want to pair. 3. Select printer and click “Print” to start printing contents. -
Page 14: Gps
File: MBA5-P11M User Guide Version : V1.0 7.2 GPS 1. Click “GPS” in App Center to open GPS test. 2. Setup GPS parameters to access GPS information. 14/19 AXEM Technology 11 rue Auguste Perret, 94042 Créteil, FRANCE – info@axemtec.com – +33 (0)1 41 94 11 85 – www.axemtec.com... -
Page 15: Volume Setup
File: MBA5-P11M User Guide Version : V1.0 7.3 Volume setup 1. Click “Volume” in App Center. 2. Setup volume by requirements. 15/19 AXEM Technology 11 rue Auguste Perret, 94042 Créteil, FRANCE – info@axemtec.com – +33 (0)1 41 94 11 85 – www.axemtec.com... -
Page 16: Sensor
File: MBA5-P11M User Guide Version : V1.0 7.4 Sensor 1. Click “Sensor” in App Center. 2. Setup the sensor by requirements. 16/19 AXEM Technology 11 rue Auguste Perret, 94042 Créteil, FRANCE – info@axemtec.com – +33 (0)1 41 94 11 85 – www.axemtec.com... -
Page 17: Keyboard
File: MBA5-P11M User Guide Version : V1.0 7.5 Keyboard 1. Click “Keyboard” in App Center. 2. Setup and test the main value of the device. 17/19 AXEM Technology 11 rue Auguste Perret, 94042 Créteil, FRANCE – info@axemtec.com – +33 (0)1 41 94 11 85 – www.axemtec.com... -
Page 18: Network
File: MBA5-P11M User Guide Version : V1.0 7.6 Network 1. Click “Network” in App Center. 2. Test WIFI/Mobile signal by requirements. 7.7 Keyboard emulator The keyboard emulator can be used in multiple operating background and output formats directly. And it includes Prefix/Suffix/Enter/TAB. -
Page 19: Fingerprint Module (Option)
File: MBA5-P11M User Guide Version : V1.0 7.8 Fingerprint module (option) 1. Click “Fingerprint(morpho)” in Appcenter. 2. Click “acquisition” after module has initiated successfully and click “CleanAll”. 3. Select “Security Level” to 0 and click “set” and “get”. 4. Click “Enroll” and put your finger on captor and follow the tips to start capture fingerprint.
