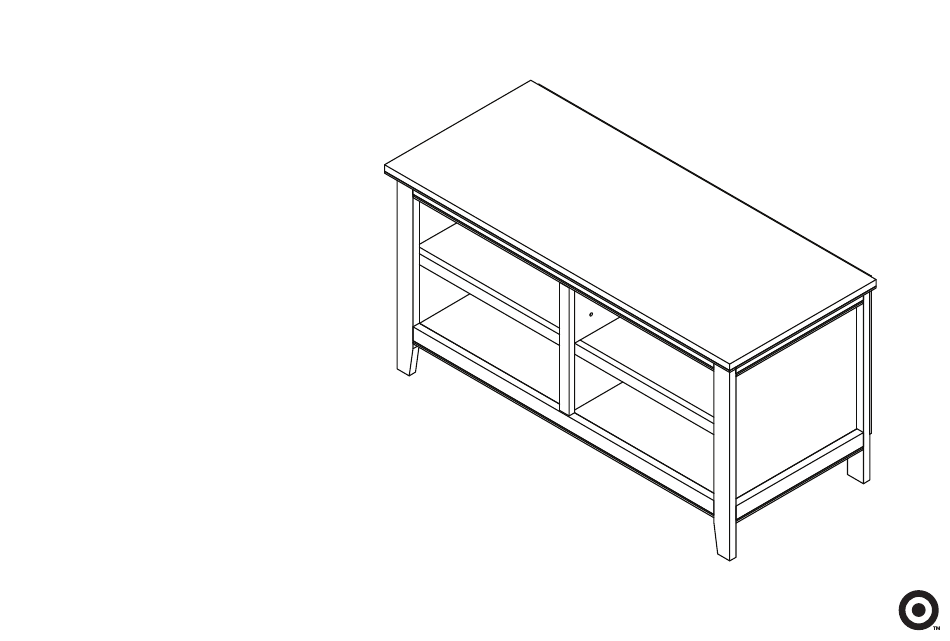

- Page 1 # CAMEDIAXES dpci # 249-14-0035 ebony style # CAMEDIAXEB dpci # 249-14-0036 cherry style # CAMEDIAXMT dpci # 249-10-0318 white style # CAMEDIAXWH dpci # 249-10-0319 >> assembly instructions...
-
Page 2: Before You Begin
Congratulations on your latest Target purchase. Now what? Don’t start sweating over this box of parts. This will be easy. We did the hard work for you. All you need to do is follow our simple instructions and you’ll be on your way to transforming your room in no time. - Page 3 table of contents introduction hardware parts list how to use the cam lock system assembly 7-13 QUESTIONS? Just call 1-855-MYTGTHOME (855-698-4846) for parts and service. For faster service, have the style number and dpci number ready when calling.
- Page 4 hardware (H1) x 14 (H2) x 12 (H3) x 14 (H4) x 14 (H5) x 19 wooden dowel flat-head screw cam bolt 12mm pan-head screw (H6) x 8 (H7) x 1 (H8) x 1 (H9) x 1 (H10) x 1 shelf pin 15mm truss head screw wall strap...
- Page 5 ITEM DESCRIPTION QUANTITY Top Panel Bottom Assembly Left Side Assembly Right Side Assembly Center Assembly Adjustable Shelf Back Panel Front Beam Side Trim Front Trim...
-
Page 6: How To Use The Cam Lock System
how to use the cam lock system 180º... - Page 7 step 1. grooved front rail should face up (H1) x 2 (H2) x 2 wooden dowel flat-head screw 1. Carefully tap wooden dowels into place. Leave 1/2” of the dowels sticking out. 2. Do not over tighten screws.
- Page 8 step 2. (H1) x 6 (H2) x 6 (H3) x 6 wooden dowel cam bolt 1. Carefully tap wooden dowels into place. Leave 1/2” of the dowels sticking out. 2. Screw-In cam bolts must be screwed down flush. 3. Refer to page 6 for instructions on how to use the cam lock system. 4.
- Page 9 step 3. (H2) x 10 flat-head screw 1. Do not over tighten screws.
- Page 10 step 4. (H1) x 6 (H2) x 8 (H3) x 8 wooden dowel cam bolt 1. Carefully tap wooden dowels into place. Leave 1/2” of the dowels sticking out. 2. Screw-In cam bolts must be screwed down flush. 3. Refer to page 6 for instructions on how to use the cam lock system. 4.
- Page 11 step 5. Begin by installing all of the screws along one edge of the back panel. Next, using a square or tape measure, make sure that the cabinet is hole for anti-tip square. (If using a tape measure, the distance from one corner, diagonally to the other corner should be the same in both directions.) Install in g...
- Page 12 step 6. (H6) x 8 shelf pin 1. Insert pins into desired height location. 2. Place shelves onto the pins.
- Page 13 step 7. (H9) Position against wall (H8) (H11) Mark position of strap hole on (H7) wall w it h te Drill 1/4’’ hole in s ie r 5 .3 le v ta b te le is io ili ty v is a th io n r le...
- Page 14 WARNING For use with televisions weighing 100 holds flat panel tvs pounds (45.3 kg) or less. Use with up to 42” or 100 lbs. heavier televisions may result in instability causing tip over resulting in death or serious injury. Use of anti-tip restraints may only reduce, but not eliminate, the risk 45 lbs.
- Page 15 © 2014 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
