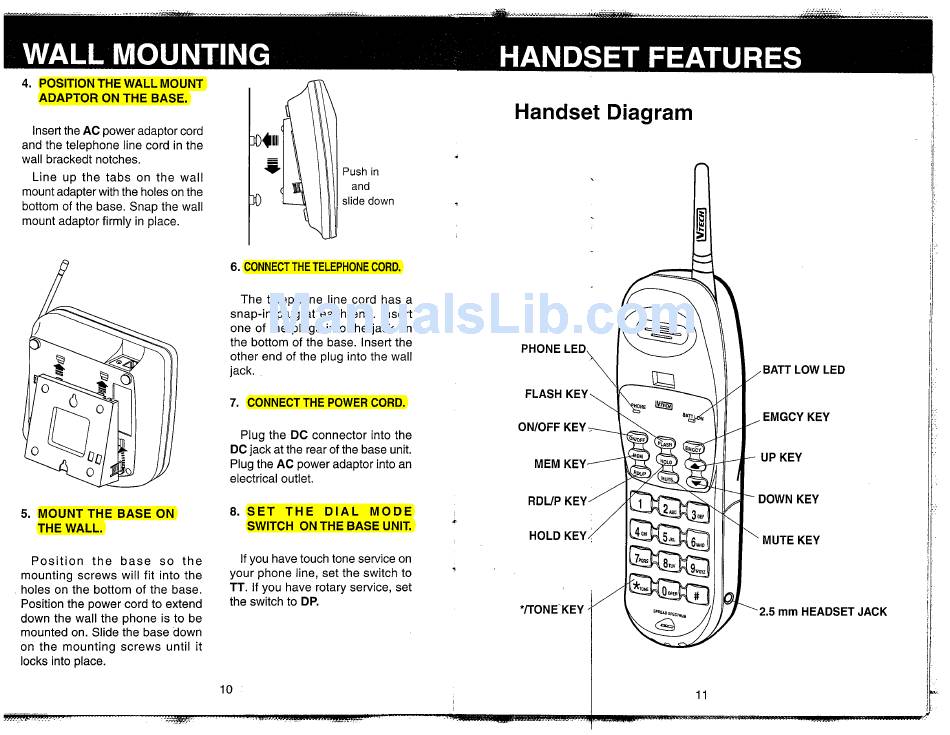

4. POSITION THE WALL MOUNT
ADAPTOR ON THE BASE.
lnsert the AC power adaptor cord
and the telephone line cord in the
wall brackedt notches.
Line up the tabs on the wall
mount adapter with the holes on the
bottom of the base. Snap the wall
mount adaptor firmly in place.
Push in
and
slide down
5. MOUNT THE BASE ON
THE WALL.
P o s i t i o n t h e b a s e s o t h e
mounting screws will fit into the
holes on the bottom of the base.
Position the power cord to extend
down the wall the phone is to be
mounted on. Slide the base down
on the mounting screws until it
locks into place.
6. CONNECT THE TELEPHONE CORD.
The telephone line cord has a
snap-in plug at each end. lnsert
one of the plugs into the jack on
the bottom of the base. lnsert the
other end of the plug into the wall
jack.
7. CONNECT THE POWER CORD.
Plug the DC connector into the
DC jack at the rear of the base unit.
Plug the AC power adaptor into an
electrical outlet.
8. S E T T H E D I A L M O D E
SWITCH ON THE BASE UNIT.
If you have touch tone service on
your phone line, set the switch to
TT. If you have rotary service, set
the switch to DP.
Handset Diagram
PHONE LED,
,
BATT LOW LED
2.5 mm HEADSET JACK
