Summary of Contents for Briteq LDP ACCUSPOT 7TC
-
Page 3: Before Use

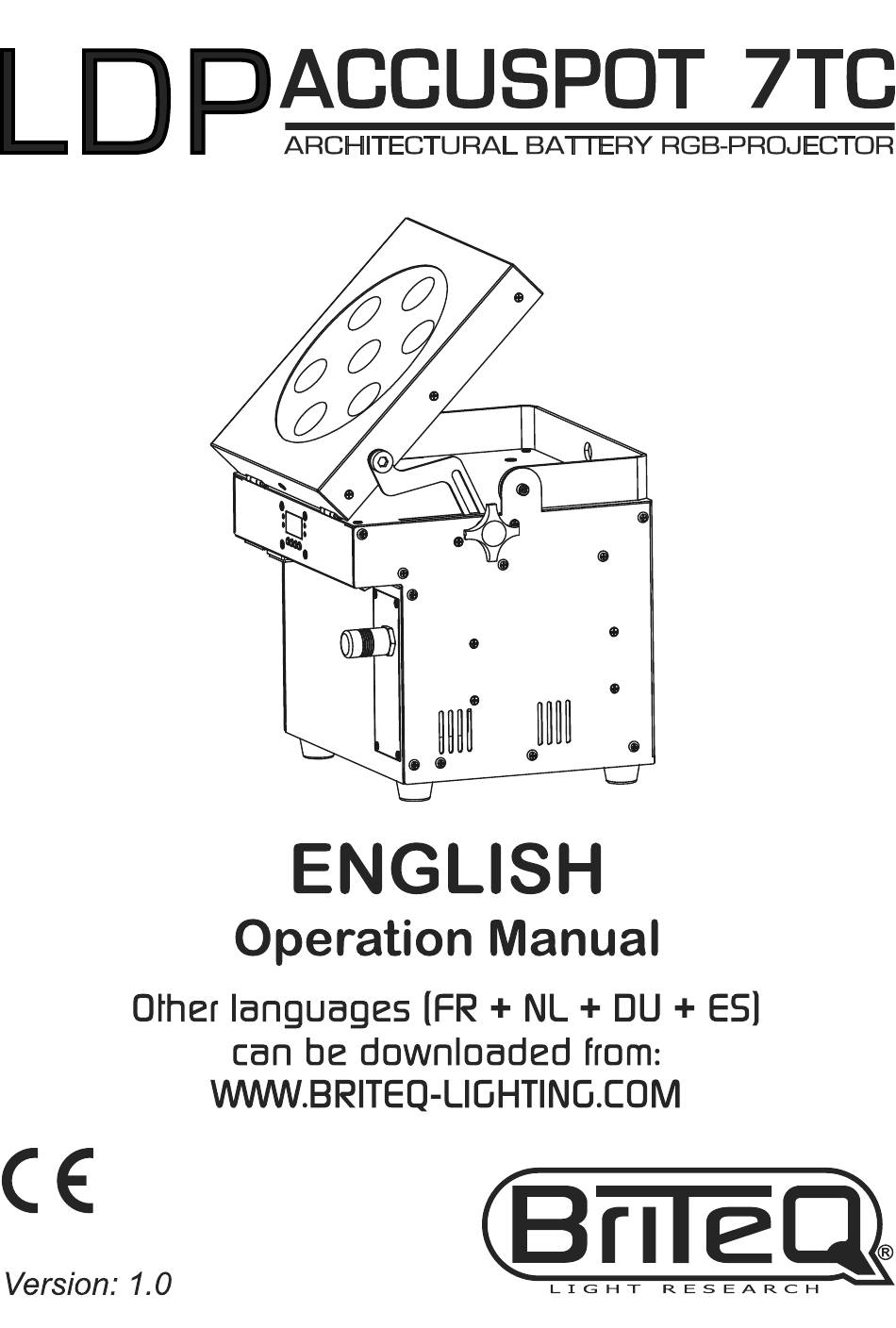

ENGLISH USER MANUAL OPERATION MANUAL ® Thank you for buying this BRITEQ product. To take full advantage of all possibilities and for your own safety, please read these operating instructions very carefully before you start using this unit. FEATURES This unit is radio-interference suppressed. This product meets the requirements of the current European and national guidelines. -
Page 4: Safety Instructions
Never repair a fuse or bypass the fuse holder. Always replace a damaged fuse with a fuse of the same type and electrical specifications! In the event of serious operating problems, stop using the fixture and contact your dealer immediately. BRITEQ 2/13 LDP-ACCUSPOT 7TC... - Page 5 DMX-control of the projector. To reduce cost you can daisy chain the other projectors using a normal DMX-cable. 22. CHARGING INDICATOR: color is red while the battery is charged, color turns green when the battery is fully charged. BRITEQ 3/13 LDP-ACCUSPOT 7TC ®...
-
Page 6: Installing The Battery
Europe. Here we provide you some links to online resellers. Please note that ® Briteq /Beglec has absolutely NO connection to any of these resellers so we cannot guarantee the quality of their products! We just give you some examples of batteries that could be used in the projectors. -
Page 7: Electrical Installation
DMX-input is the “master”, the others are the slave units. Make sure that all units are switched on. Refer to chapter HOW TO SETUP for more information. Done! BRITEQ 5/13 LDP-ACCUSPOT 7TC ®... - Page 8 Set the desired DMX start address on all projectors, take in account the number of DMX channels used by the selected DMX-channel mode! (see chapter HOW TO SETUP: option Synchronize the first projector in the DMX-chain with the wireless W-DMX transmitter (our Briteq ®...
-
Page 9: How To Set Up
Once the level is set, press the ENTER button save it. To go back to the main menu without any change press the MENU button shortly. If you want to go back to normal running mode: press the MENU button for about 2 seconds. BRITEQ 7/13 LDP-ACCUSPOT 7TC... - Page 10 Use DOWN and UP buttons to change the DMX512 address. Once the correct address is shown on the display, press the ENTER button to confirm. Press the MENU button for about 2 seconds to return to running mode. BRITEQ 8/13 LDP-ACCUSPOT 7TC ®...
- Page 11 “no”: when no DMX-signal is detected, the unit automatically switches to master mode. “YeS”: when no DMX-signal is detected, the unit shuts down the output (blackout) “hold”: when no DMX-signal is detected, the unit keeps the last received data on the output. BRITEQ 9/13 LDP-ACCUSPOT 7TC...
- Page 12 Don’t forget to set the Blackout mode to ‘NO Blackout’ or nothing will happen. Remark: You can connect a JBS CA-8 or JBS LEDCON-02 remote controller to the master unit if you want to have more control over the master/slave operation. BRITEQ 10/13 LDP-ACCUSPOT 7TC...
- Page 13 4 or 6 DMX-channels as shown in the DMX chart below: Channel modes 1 + 2 + 3 + 4: Channel4 can have 4 different behaviors, depending on the channel mode (1,2,3 or 4) you selected. BRITEQ 11/13 LDP-ACCUSPOT 7TC...
-
Page 14: Maintenance
Each country has its own regulations for the recycling of used rechargeable batteries: check the local regulations in your country or ask your battery vendor for more information on recycling of the used rechargeable batteries! BRITEQ 12/13 LDP-ACCUSPOT 7TC... -
Page 15: Specifications
7 LEDs 3IN1 3W Beam angle: 25° Size: see drawing below Weight: 5.5 kg Every information is subject to change without prior notice You can download the latest version of this user manual on our website: www.beglec.com BRITEQ 13/13 LDP-ACCUSPOT 7TC ®...
