Page 3: Before Use

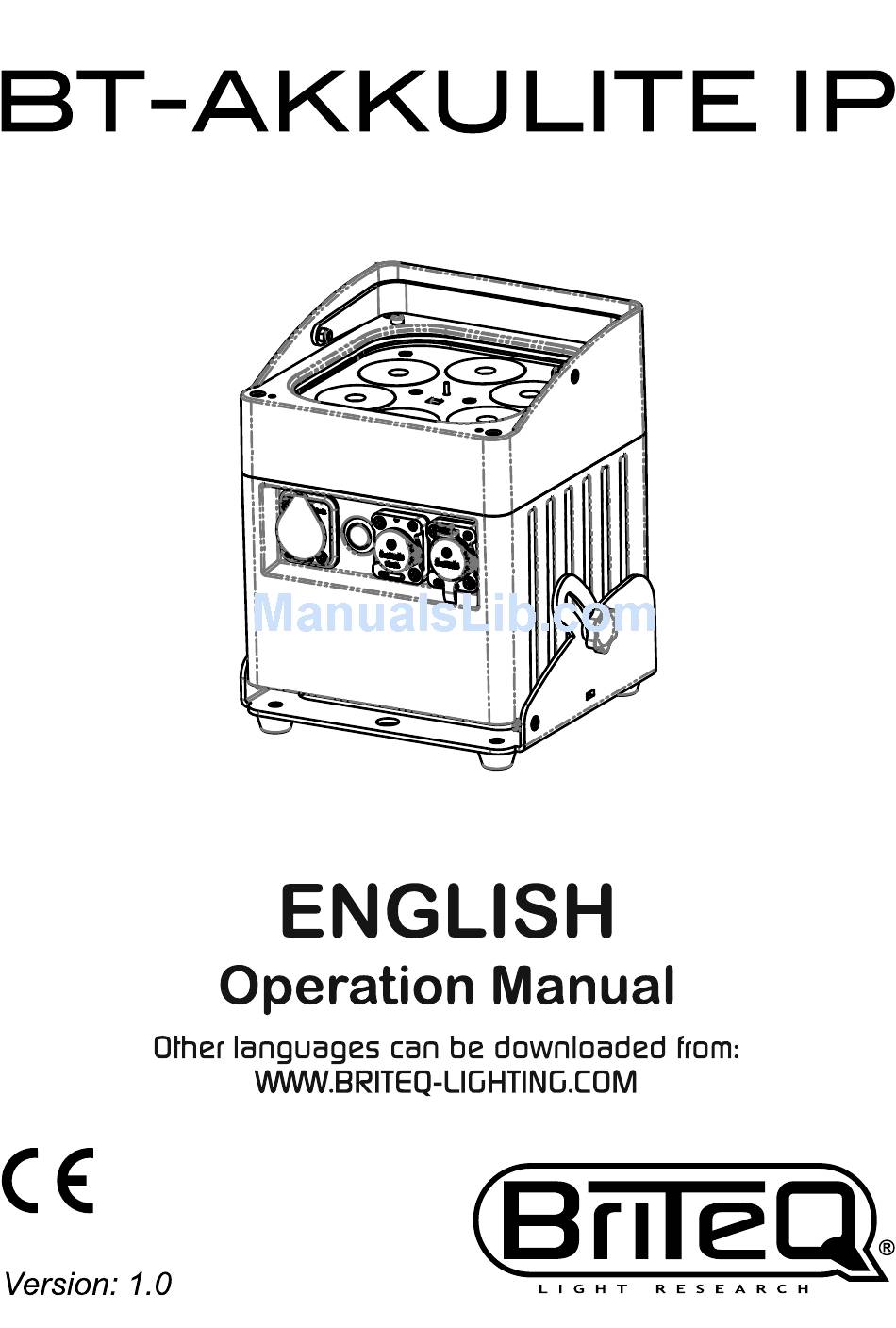

ENGLISH USER MANUAL OPERATION MANUAL ® Thank you for buying this Briteq product. To take full advantage of all possibilities and for your own safety, please read these operating instructions very carefully before you start using this unit. FEATURES • Battery operated outdoor LED-projector, based on 6pcs 10Watt RGBWA-LEDs to avoid unwanted color shadows. -
Page 4: Safety Instructions
• In the event of serious operating problems, stop using the fixture and contact your dealer immediately. • The housing and the lenses must be replaced if they are visibly damaged. • Please use the original packing when the device is to be transported. Briteq 2/13 BT-AKKULITE IP ®... - Page 5 22. ▲ button : push this button to go up in the menu 23. ▼ button : push this button to go down in the menu 24. [ID-Set] button : used to connect projector wireless to another projector. (see chapter : [SETUP MENU]) Briteq 3/13 BT-AKKULITE IP ®...
-
Page 6: Electrical Installation
Electrical installation for two or more units in DMX-mode: You can control the BT-AKKULITE IP by DMX in different ways, depending on your needs. You can go for a wired solution (using cables), you can go for a completely wireless solution or you can go for a combination of both…... - Page 7 • Set the desired DMX start address on all projectors, take in account the number of DMX channels used by the selected DMX-channel mode! (see chapter [SETUP MENU]: option [Addr] ) • Synchronize the first projector in the DMX-chain with the wireless DMX transmitter (for example : Briteq ®...
-
Page 8: Setup Menu
• Once the desired color or show is selected, press the [ENTER] button to confirm. [ASC-] Mode Used to choose the desired color changing show. • Press the [MENU] button. • Press the ▲ or ▼ buttons until [ASC-] is shown on the display. Briteq 6/13 BT-AKKULITE IP ®... - Page 9 • Press the ▲ or ▼ buttons until [AL--] is shown on the display. • Press the [ENTER] button to select. The display starts blinking. • Use ▲ and ▼ buttons to select the speed (A000…A255) • Once the desired value is selected, press [ENTER] to confirm. Briteq 7/13 BT-AKKULITE IP ®...
- Page 10 • Press the [MENU] button. • Press the ▲ or ▼ buttons until the display shows [UErn]. • Press the [ENTER] button. The display starts blinking and shows the version [UE2.0]. • Press the [MENU] button to leave. Briteq 8/13 BT-AKKULITE IP ®...
- Page 11 SETTING UP IN RECEIVER MODE (LED = GREEN) • Keep the [ID] button (24 ) pressed while powering up the WIRELESS part of the BT-AKKULITE IP by pressing the according button (19). The status LED will become WHITE shortly, than turns BLUE, RED or GREEN (the last selected mode).
-
Page 12: Operating Instructions
Connect the controller to the DMX-input of the first unit (master). Make sure that the BT-AKKULITE IP projectors are all set to channel mode [LEDc]. Now you can control all the connected units in 4 or 8channel mode. Refer to the user manual of the JB Systems LEDCON-02 Mk2 or LEDCON XL controller for more information. -
Page 13: Dmx Charts
Red color dimmer 000-255 Green color dimmer 000-255 Blue color dimmer 000-255 White color dimmer 000-255 Amber color dimmer 000-014 Open STROBE 015-255 Strobe Slow to fast 000-031 Open 032-063 Close-open AUTOMATIC MODES 064-095 Open-close Briteq 11/13 BT-AKKULITE IP ®... -
Page 14: Maintenance
Each country has its own regulations for the recycling of used rechargeable batteries: check the local regulations in your country or ask your battery vendor for more information on recycling of the used rechargeable batteries! Briteq 12/13 BT-AKKULITE IP ®... -
Page 15: Specifications
IP Rating: IP65 Size: 180 x 150 x 198mm Weight: 4.5 kg Every information is subject to change without prior notice You can download the latest version of this user manual on our website: www.briteq-lighting.com Briteq 13/13 BT-AKKULITE IP ®...
