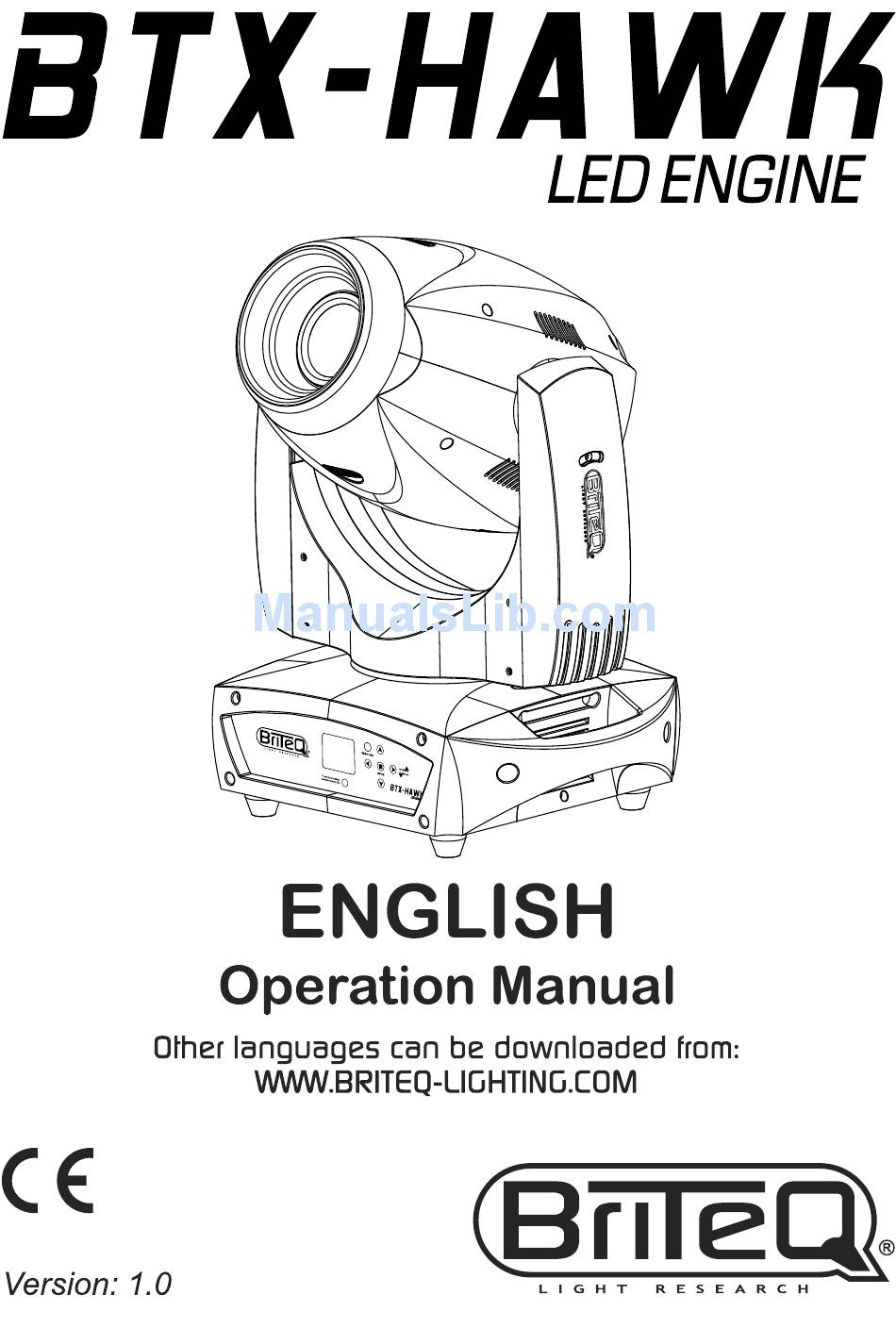

Briteq BTX-HAWK Operation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for Briteq BTX-HAWK

Summary of Contents for Briteq BTX-HAWK

  • Page 3: Before Use

    ENGLISH OPERATION MANUAL OPERATION MANUAL ® Thank you for buying this Briteq product. To take full advantage of all possibilities and for your own safety, please read these operating instructions very carefully before you start using this unit. FEATURES  A very bright moving head projector based on a powerful 180W LED engine! ...

  • Page 4: Safety Instructions

     The housing and the lenses must be replaced if they are visibly damaged.  Please use the original packing when the device is to be transported.  Due to safety reasons it is prohibited to make unauthorized modifications to the unit. BRITEQ 2/19 BTX-HAWK ®...
  • Page 5  Go 1 level up in the SETUP-menu: press shortly to go 1 level up.  Leave the SETUP-menu: press several times until the standard display is shown.  ◄/►Buttons: mainly used to navigate in the SETUP-menu. The ►button is also used to rotate the display over 180° (upsidedown). BRITEQ 3/19 BTX-HAWK ®...

  • Page 6: Overhead Rigging

     The operator has to make sure that the safety-relating and machine- technical installations are approved by an expert before using them for the first time. The installations should be inspected every year by a skilled person to be sure that safety is still optimal. BRITEQ 4/19 BTX-HAWK ®...

  • Page 7: Setup Menu

    ENGLISH OPERATION MANUAL SETUP MENU With the setup menu you can fully configure the projector. All settings are preserved when the unit is disconnected from the mains. BRITEQ 5/19 BTX-HAWK ®...
  • Page 8  [Stage Floor]: Fixture is placed on a stage, in front of the audience. The spot is always projecting towards the audience’s direction; i.e. in front of the stage. [PAN] movement angle (left to right to left): 160°. [TILT] movement angle: 90° (60° above horizon; 30° below horizon.) BRITEQ 6/19 BTX-HAWK ®...
  • Page 9 Used to select if the TILT movements are inverted or not.  Press the ▲/▼/◄/► buttons until the desired function is showing on the display.  Press the [ENTER] button: the values can be changed  Use ▲/▼ buttons to toggle between [ON] and [OFF]. BRITEQ 7/19 BTX-HAWK ®...
  • Page 10 Never use “no Delay” while using a simple DMX-controller with faders to set the functions manually!  Press the ▲/▼/◄/► buttons until the desired function is showing on the display.  Press the [ENTER] button: the values can be changed  Use ▲/▼ buttons to select one of these options: BRITEQ 8/19 BTX-HAWK ®...
  • Page 11  Press the ▲/▼/◄/► buttons until the desired function is showing on the display.  Press the [ENTER] button: the values can be changed  Use ▲/▼ buttons to toggle between ON and OFF.  Press the [ENTER] button to confirm. BRITEQ 9/19 BTX-HAWK ®...
  • Page 12  [Total Time]: The total time the unit was used since it was used for the 1 time, non resettable.  [Last JOB]: The time the unit was used on the last job. This timer can be reset in the (hidden) calibration menu. BRITEQ 10/19 BTX-HAWK ®...

  • Page 13: Calibration Menu

    Note: The firmware of this unit can be upgraded using a special upgrade tool with Windows software. (separately available from Briteq). More information about this can be found in the user manual of the upgrade tool and / or our website: www.briteq-lighting.com [TEST/RESET >...

  • Page 14: Electrical Installation

     Done! Remark: if there’s no output, please make sure to set the option [NO DMX Mode] of the projector to [Audio] (audio mode) and sound sensitivity [MIC Sense] to a value over 70 (see previous chapter). BRITEQ 12/19 BTX-HAWK ®...
  • Page 15  Make sure that all units are connected to the mains.  Each light effect in the chain needs to have its proper starting address so it knows which commands from the controller it has to decode. BRITEQ 13/19 BTX-HAWK ®...

  • Page 16: Dmx Charts

    Open 008-037 Gobo 1 038-067 Gobo 2 068-097 Gobo 3 098-127 Gobo 4 128-157 Gobo 5 158-187 Gobo 6 188-217 Gobo 7 218-255 AUTO gobo changing PAN/TILT SPEED 000-007 Hold AUDIO control slow → fast 008-255 BRITEQ 14/19 BTX-HAWK ®...
  • Page 17 085 - 098 COLOR 6 (Orange) 099 - 112 COLOR 7 (Red) 113 - 178 Color wheel turning clockwise (fast → slow) 179 - 189 Color wheel stops turning 190 - 255 Color wheel turning counter clockwise (slow → fast) BRITEQ 15/19 BTX-HAWK ®...
  • Page 18 204 - 255 Gobo wheel turning counter clockwise (slow → fast) Prism on/off 000 - 031 Effect OFF 032 - 063 3 Facet Prism effect ON 064 - 095 Linear Prism effect ON 096 - 127 Frost filter ON 128 – 255 Effect OFF BRITEQ 16/19 BTX-HAWK ®...
  • Page 19 210 - 219 Activate blackout during gobo/color or pan/tilt change (*) 220 - 229 Disable blackout during gobo/color or pan/tilt change (*) 230 - 255 Sound activated automatic mode sound sensitivity from low to high ROTATING GOBO FIXED GOBO BRITEQ 17/19 BTX-HAWK ®...

  • Page 20: Maintenance

     Clean with a soft cloth using normal glass cleaning products.  Always dry the parts carefully. Attention: We strongly recommend internal cleaning to be carried out by qualified personnel! BRITEQ 18/19 BTX-HAWK ®...

  • Page 21: Specifications

    2 quarter turn quick clamps Size: see drawing below Weight: 15,5 kg LUX CHART The information might be modified without prior notice You can download the latest version of this user manual on our website: www.briteq-lighting.com BRITEQ 19/19 BTX-HAWK ®...
