Diamond
Assembly manual
Revision 4
1
Ultimate Jets - Diamond assembly manual - Revision 4 - 01/01/2015

Advertisement

loading

Summary of Contents for Ultimate jets Diamond

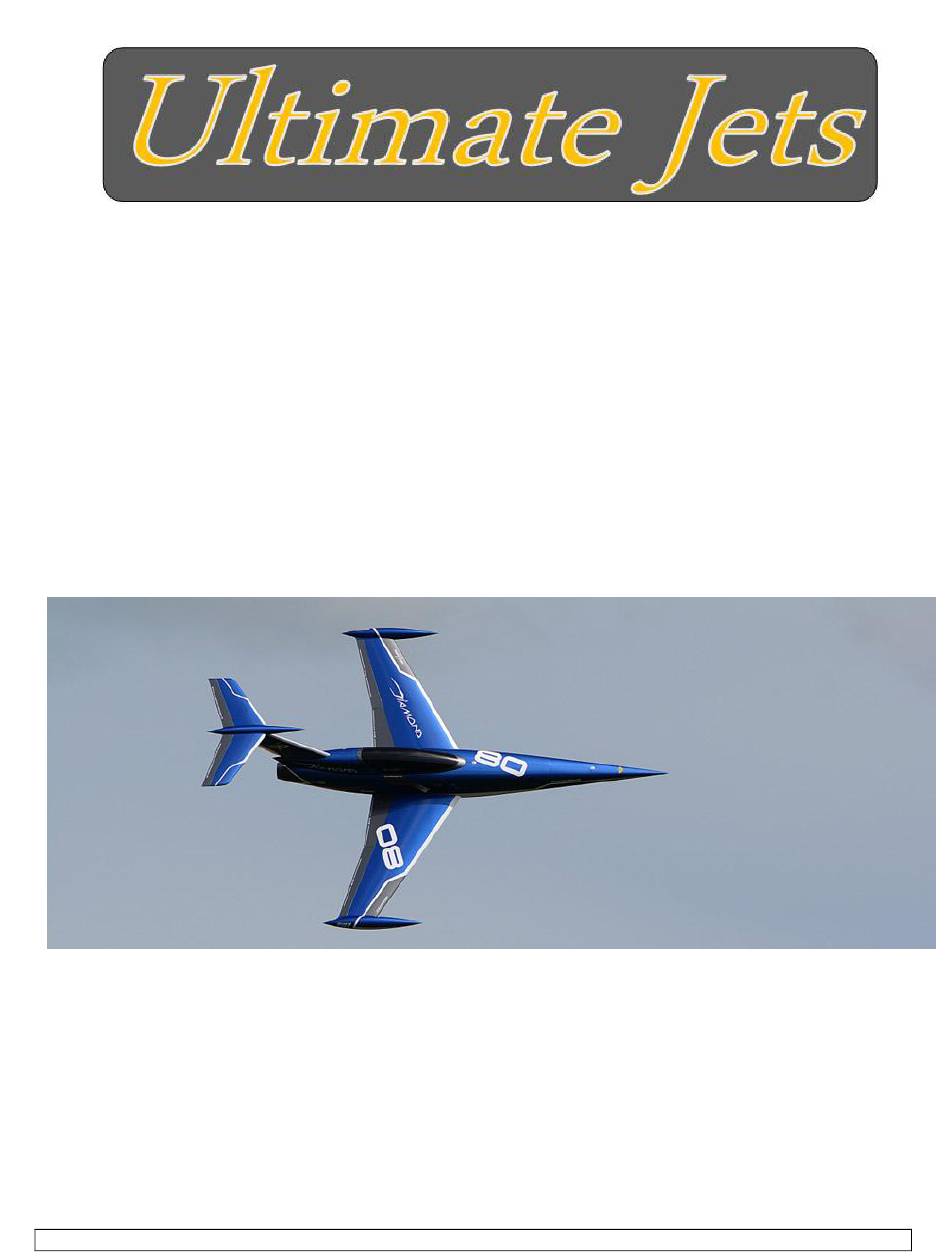

  • Page 1 Diamond Assembly manual Revision 4 Ultimate Jets - Diamond assembly manual - Revision 4 - 01/01/2015...
  • Page 2 8190 Barker Cypress, Suite #300, Cypress, Texas, 77433 Phone: 281-855-9154 www.ultimate-jets.net Ultimate Jets - Diamond assembly manual - Revision 4 - 01/01/2015...
  • Page 3 INTRODUCTION The Diamond is our new performance jet. It is fully composite, delivered assembled and painted. It was designed for advanced jet pilots with following objectives : Very easy to fly. Short take off and landing due to custom designed laminar airfoil, large flaps and low wing loading...
  • Page 4 Deluxe electric retractable landing gear with special CNC oleo legs and wheels set on bearing + brakes Stainless steel exhaust pipe - Clear canopy with carbon fiber cap - Resin instrument panel Ultimate Jets - Diamond assembly manual - Revision 4 - 01/01/2015...
  • Page 5 - LCD instrument panel - Molded baquet seat - Plastic molded 1/3 size pilot - Scale 1/3 size pilot - Wings, rudders, stabs protection covers Ultimate Jets - Diamond assembly manual - Revision 4 - 01/01/2015...
  • Page 6 DISCLAIMER Ultimate Jets assumes no liability for the operation and use of these products. The owner and operator of these products should have the necessary experience and exercise common sense. Said owner and operator must have a valid Model Airplane license/ waiver and insurance as required.
  • Page 7 Ultimate Jets - Diamond assembly manual - Revision 4 - 01/01/2015...
  • Page 8 Assemble the gear according to the Ultimate Jets Behotec e-tract gear assembly manual. The pneumatic gear assembles the same, thus the same manual is relevant for this job.
  • Page 9 Connect all gear tubing or E-Tract electrical loom as described in the gear manual. Fit the brake tubings/ brake loom and attach them with tie wraps or stainless steel safety wire. Ultimate Jets - Diamond assembly manual - Revision 4 - 01/01/2015...
  • Page 10 0.2 mm. Use an electric file or a tungsten carbide rotary file for this job. Once the servo is installed, setup the pushrod by installing the two ball links on the threaded rod and trimming it to the appropriate length. Ultimate Jets - Diamond assembly manual - Revision 4 - 01/01/2015...
  • Page 11 Also make sure that the link stays flat on its ball Fit the front gear on the vertical bulkhead of the plywood nose structure. Fasten the front gear with four 5x16 mm socket head screws and blind nuts. Ultimate Jets - Diamond assembly manual - Revision 4 - 01/01/2015...
  • Page 12: Elevator Servos

    0.5 mm , evenly split both sides. Apply thread lock fluid. Ultimate Jets - Diamond assembly manual - Revision 4 - 01/01/2015...
  • Page 13 Make a slot in both stabilizers at the root between the main tube and the rear anti rotation pin to pass the servo plug through. Glue the anti-rotation aluminum pins in the stabilizers with Hysol E-20HP. Make sure that the pins extend from the root by 10 mm. Ultimate Jets - Diamond assembly manual - Revision 4 - 01/01/2015...
  • Page 14: Aileron And Flap Servos

    Here is the aileron simulation: The flaps need a more powerful servo of at least 300 oz.in. We recommend the JR 8711HV. Maximum speed for takeoff flaps is 115 mph: Ultimate Jets - Diamond assembly manual - Revision 4 - 01/01/2015...
  • Page 15 0.5 mm , evenly split both sides. Apply thread lock fluid. Ultimate Jets - Diamond assembly manual - Revision 4 - 01/01/2015...
  • Page 16 Check securing with the provided #2 countersink screws and remove. Locate the flap and aileron control horns. Detach from the machined plate and prepare. The gluing surface should be scuffed off and drilled as per the pictures below. Ultimate Jets - Diamond assembly manual - Revision 4 - 01/01/2015...
  • Page 17 Check the CNC machined slot in the control surface. It should allow a good clearance around the horn fiber for a good bond. Verify the alignment with the pushrod out of the servo hatch. Enlarge/ modify if necessary. Flaps control horn Ultimate Jets - Diamond assembly manual - Revision 4 - 01/01/2015...
  • Page 18 Connect two of the supplied 4-40 mm HD ball links with the 4-40 threaded rod. Fasten the servo cover with the supplied #2 screws. Connect the servo to the control horn. Apply thread lock. Ultimate Jets - Diamond assembly manual - Revision 4 - 01/01/2015...
  • Page 19 Make a square hole in the fuselage the USC female plug. Make sure to align the plug with the oval hole previously made in the wing. Fasten the female plug with two sheet metal screws. Ultimate Jets - Diamond assembly manual - Revision 4 - 01/01/2015...
  • Page 20: Rudder Servo

    We recommend the use of a high quality digital servo of at least 200 oz.in for the rudder. The JR 8711 is our preferred choice for this control. Here is the flight control simulation: Ultimate Jets - Diamond assembly manual - Revision 4 - 01/01/2015...
  • Page 21 Secure the female plugs with two sheet metal screws and install the fin loom as per the diagram below. Ultimate Jets - Diamond assembly manual - Revision 4 - 01/01/2015...
  • Page 22 Countersink the hole. Insert a countersink 4-40 by 1" machine screw. Make sure that the screw penetrates well into the aluminum tube and secure with a drop of white glue. Ultimate Jets - Diamond assembly manual - Revision 4 - 01/01/2015...
  • Page 23 Insert the other stabilizer. Mark the tube center. Drill the other side similarly. Tap at M3 and insert another screw. Upon removing the stabilizer, mark the tube for up/ down, side and position. Ultimate Jets - Diamond assembly manual - Revision 4 - 01/01/2015...
  • Page 24: Fuel Tanks

    Make sure you place the tanks properly ( left/ right ) without overstressing the mini formers. The special bacquet seat will lock the tanks in position. Ultimate Jets - Diamond assembly manual - Revision 4 - 01/01/2015...
  • Page 25 The main tank will be full when fuel comes from the air vent tube. When tanks are full, close the filling tubing. The air vent must be open before flying. Ultimate Jets - Diamond assembly manual - Revision 4 - 01/01/2015...
  • Page 26 The rear end of the pipe will be held against the fuselage. Ultimate Jets - Diamond assembly manual - Revision 4 - 01/01/2015...
  • Page 27: Ecu Installation

    ECU installation: Place the ECU on the Ultimate Jets engine tray, just behind the fuel buffer tank. Fit the fuel pump and valves at the front of the ECU and hold them with tie wraps. This setup is designed to allow easy balancing and the shortest possible fuel line supply to the pump to avoid cavitation.
  • Page 28: Engine Installation

    25 mm. Install the Ultimate Jets carbon bypass system. This bypass is designed to optimize top speed and reduce the venturi effect. If the engine is installed too far aft inside the bellhousing, this will increase the venturi effect dramatically and could vacuum the fuselage as well as create engine stall conditions in certain regimes.
  • Page 29 Ultimate Jets - Diamond assembly manual - Revision 4 - 01/01/2015...
  • Page 30 The picture below shows the power plug being inserted through the cockpit bulkhead, below the inlet duct. The following tubes/ wires should pass through: Engine data cable, engine power cable, start fuel line, main fuel line, refill fuel line. Ultimate Jets - Diamond assembly manual - Revision 4 - 01/01/2015...
  • Page 31 The Weatronic switch fits into the front cockpit bulkhead hole, just above the e-tract gear controller. Very little wood work is needed to fit the module. Ultimate Jets - Diamond assembly manual - Revision 4 - 01/01/2015...
  • Page 32 A couple of indents machined into the tray will help securing the straps in position. Ultimate Jets - Diamond assembly manual - Revision 4 - 01/01/2015...
  • Page 33 If not sure, test on canopy cut remains. Remove the protective tape before the silicon compound dries out. Let it thoroughly dry for 24 to 48 hours. Ultimate Jets - Diamond assembly manual - Revision 4 - 01/01/2015...
  • Page 34 Place the nose cone on the fuselage and secure firmly with tape. Make sure the nose is straight. Drill 4 holes at 22 mm in front of of the cone junction. Use a 1.5 mm jobber. Insert the supplied 2 mm sheet metal screws. Ultimate Jets - Diamond assembly manual - Revision 4 - 01/01/2015...
  • Page 35 Tack glue with a drop of thin CA and spray accelerator. Un-tighten the M3 screw immediately to ensure that no CA goes into the thread. The socket head screw should now be spring-loaded up and blocked by the 5 mm tube. Ultimate Jets - Diamond assembly manual - Revision 4 - 01/01/2015...
  • Page 36 +/-25 mm at the root Flaps + 160 mm at the root for landing + 30 mm at the root for takeoff Stabilizer +/- 15 mm at the root Ultimate Jets - Diamond assembly manual - Revision 4 - 01/01/2015...
  • Page 37: Center Of Gravity

    In other hand if the nose drops considerably move the batteries aft or add weight in the tail. An easy way to adjust the CG on the Diamond is to separate the wings from the fuselage for a few mm and to slide a strong rope between the wings and under the fuselage placed at the proper location with a large knot at the tip.
  • Page 38 Pay a close attention to structural integrity. This jet could reach speeds of over 500 km/h - 300 mph if not handled properly. It is your responsibility to operate it safely and comply with AMA regulations. Specifications may change without notice. Ultimate Jets - Diamond assembly manual - Revision 4 - 01/01/2015...
