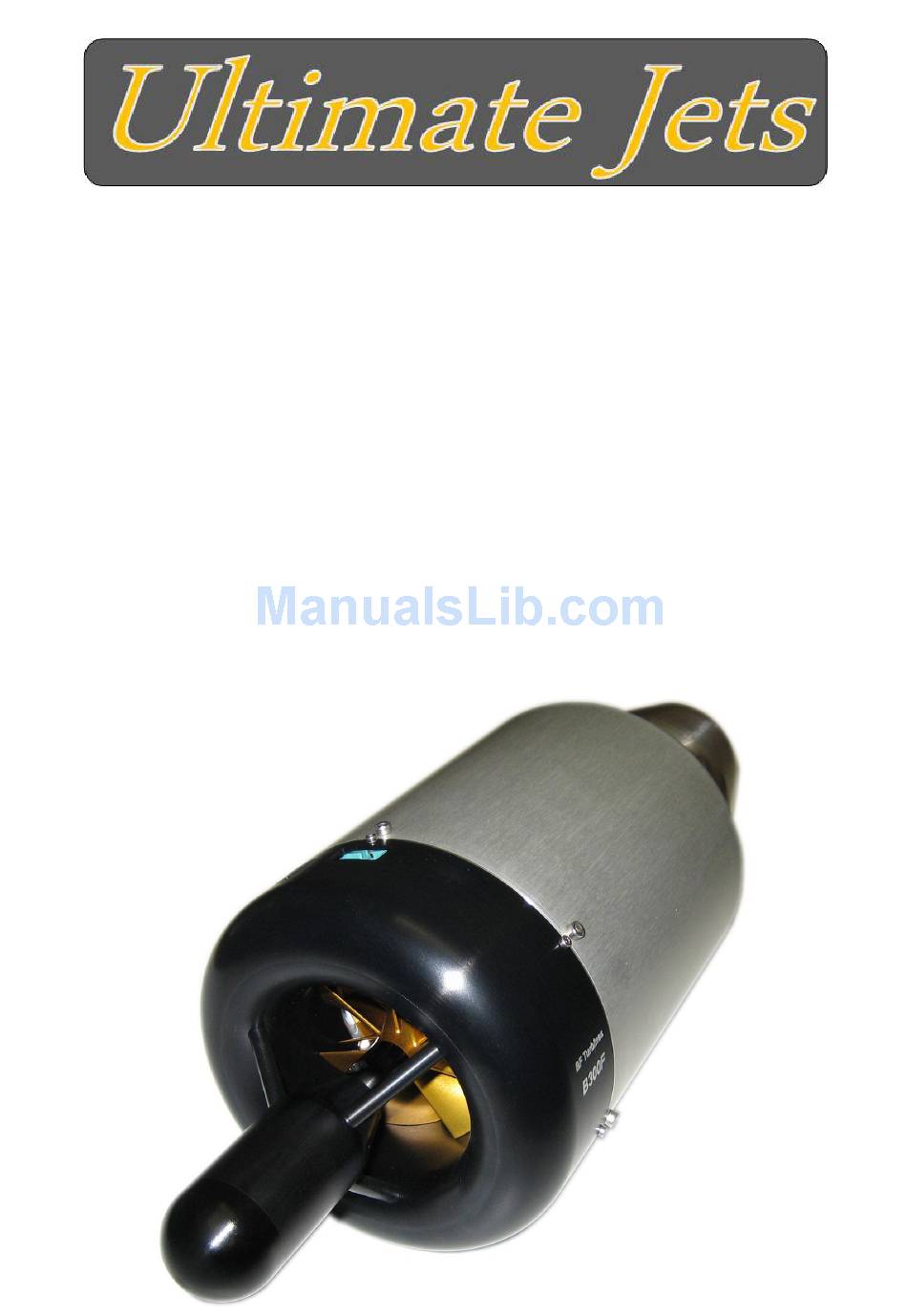

  • Page 1 B300F User Manual revision 5...
  • Page 2 R/C jet plane. Please read these instructions carefully after receiving your turbine and before the first operations. Keep this manual for later consultation and check for the latest update on our web site. Ultimate Jets B300F User manual rev5. 1st June 2014...

  • Page 3: Table Of Contents

    Ultimate-Jets, LLC two Years Limited Warranty..............21 System Installation Plan ........................25 6.1.General engine setup schematics ....................25 6.2. General system setup picture ....................25 6.3. Other considerations and pictures ....................27 Ultimate Jets B300F User manual rev5. 1st June 2014...

  • Page 4: Directions For Safe Operations

    Operating personnel and their assistants must be in best physical and mental condition and pay full attention to the operation. This engine must only be used for unmanned operation in R/C aircraft. The instructions in this manual must be exactly followed. Ultimate Jets B300F User manual rev5. 1st June 2014...
  • Page 5  jet engines and turbines in general must only be operated with the highest diligence  ear protection must be worn during operation to avoid hearing damage  indoor operation is forbidden  a fire extinguisher (CO2) must be within reach! Ultimate Jets B300F User manual rev5. 1st June 2014...

  • Page 6: Warning

    Please refer to the AMA regulations from the link posted above. Servos should be carefully chosen, at least 1.5 times as strong as for comparable models with conventional engines. Ultimate Jets supplies a set of tools to compute servo torque requirements and choose the proper servo for the task.

  • Page 7: Before Starting The Engine

    20 cm of the compressor (intake). The enormous suction can grasp everything within reach and cause severe injury or damage.  Never look into the jet exhaust. Severe burns could result. Ultimate Jets B300F User manual rev5. 1st June 2014...

  • Page 8: After Shutting Down The Engine

     All tube connections must be inspected for leakage after each flight. The fuel tanks must be emptied in case of extreme outside air temperatures or when there is no further operations planned for the day (danger of explosion!). Ultimate Jets B300F User manual rev5. 1st June 2014...

  • Page 9: Installation Of The Turbine

     Should you want to avoid gluing the bracket on the engine, you can use the securing tabs provided with the engine in a separate bag and follow the specific instructions included with the set. Ultimate Jets B300F User manual rev5. 1st June 2014...

  • Page 10: Engine Mounting Rules

     The intake area must absolutely be kept clear. The vacuum generated by the intake is very strong. Make sure that the intake duct is reinforced with carbon fiber, especially if it is long. Ultimate Jets B300F User manual rev5. 1st June 2014...

  • Page 11: Assembly Of The Complete System

     Use yellow, highly flexible Tygon tube, attach it to the pump and secure with safety wire. Fuel system accessories can be found in the Ultimate Jets line of products.  The fuel pump must be installed directly after the hopper tank.
  • Page 12  Finally connect the receiver to your ECU. The cable is welded on the ECU. Only use original adaptor cables if other receiver plugs are necessary. The ECU is only operated by one input channel (engine power limiter). Ultimate Jets B300F User manual rev5. 1st June 2014...

  • Page 13: First Turbine Operations

    Should the turbine have been flooded, place the model with the nozzle facing downwards ( nose up ) to allow excess kerosene to exit the turbine. This should avoid a hot start, that can damage turbine. Ultimate Jets B300F User manual rev5. 1st June 2014...

  • Page 14: Starting Your Turbine

     Put the model against the wind and wait until the after cooling process is over (around 2 minutes). When completed, you can turn off the receiver unit.  Check the model’s fuel supply connections and de-fuel, if necessary. Ultimate Jets B300F User manual rev5. 1st June 2014...

  • Page 15: Control Functions And Failsafe

     The following parameters are to be verified, i.e. changed, also after a system reset (see attached sheet). Battery voltage Adjustment of the temperature probe Glow voltage Pulse width of the sender signal Pump starting voltage Ultimate Jets B300F User manual rev5. 1st June 2014...

  • Page 16: Maintenance Instructions

     Your turbine’s maintenance interval is at 40 to 50 hours (about 300 flights). After this time as well as after a special event (crash, etc.) the turbine should be returned to the factory. Ultimate Jets B300F User manual rev5. 1st June 2014...

  • Page 17: Repair Work

    Please contact Ultimate Jets with all service related questions. Warranty return can only be carried out by Ultimate Jets for the USA Maintenance and repair work performed by non authorized personnel will void the warranty.

  • Page 18: Terms Of Use And Warranty

    Buyer expressly agrees not to allow any person to assist in the start- Ultimate Jets B300F User manual rev5. 1st June 2014...

  • Page 19: Full Assumption Of Liability; Waiver And Release Of Ultimate-Jets

    Model Engine, to any later sale, or other changes in circumstances. (c) Release Extends to Ultimate-Jets and All Its Associates. The  waiver and release contained herein protects Ultimate-Jets, and all of its employees, officers, principals, owners, designers, and agents ("Associates"). Ultimate Jets B300F User manual rev5. 1st June 2014...

  • Page 20: No Modifications To Model Engine

    OWNERSHIP, USE, OR OPERATION OF THE MODEL ENGINE, SHALL BE SETTLED BY ARBITRATION ADMINISTERED BY THE JUDICIAL ARBITRATION AND MEDIATION SERVICE/ENDISPUTE, AT ITS LOS ANGELES OFFICE, UNDER ITS THEN APPLICABLE RULES AND Ultimate Jets B300F User manual rev5. 1st June 2014...

  • Page 21: This Document Is The Full Expression Of Parties' Agreement

    . If the Buyer is not prepared to fully accept the PURCHASE AGREEMENT, FULL ASSUMPTION OF LIABILITY AND INDEMNITY AGREEMENT, the Buyer is advised to return this Model Engine immediately in new and unused condition to the place of purchase. Ultimate Jets B300F User manual rev5. 1st June 2014...

  • Page 22: Ultimate-Jets, Llc Two Years Limited Warranty

    Model Engine by a dated bill of sale or dated itemized receipt. 7. The Buyer must bear the cost of shipping to Ultimate-Jets in Cypress, Texas. Ultimate-Jets shall bear the cost of shipping the Model Engine Ultimate Jets B300F User manual rev5. 1st June 2014...
  • Page 23 10. The Model Engine consists of newly assembled equipment that may contain used components that have been reprocessed to allow machine compliance with Model Engine performance and reliability specifications. Ultimate Jets B300F User manual rev5. 1st June 2014...
  • Page 24 15. This limited warranty allocates the risk of failure of the Model Engine between the Buyer and Ultimate-Jets. The allocation is recognized by the Buyer and is reflected in the purchase price of the Model Engine. Ultimate Jets B300F User manual rev5. 1st June 2014...
  • Page 25 Burner Fuel Jet A1, Diesel (with 5% Oil ) Acceleration 33-104.000U/min ca.4 seconds Acceleration 60-104.000U/min ca.1 seconds Maintenance interval every 50 hours, earlier in case of bearing noise or other reasons Ultimate Jets B300F User manual rev5. 1st June 2014...

  • Page 26: System Installation Plan

    System Installation Plan 6.1.General engine setup schematics 6.2. General system setup picture Ultimate Jets B300F User manual rev5. 1st June 2014...
  • Page 27 Ultimate Jets B300F User manual rev5. 1st June 2014...

  • Page 28: Other Considerations And Pictures

    75% of the tank length. Now place a 6mm flat washer on the felt pendulum and connect it with the Ultimate Jets B300F User manual rev5. 1st June 2014...
  • Page 29 3 – 4 cm. The extension pipe must be securely attached to the model. Ultimate Jets B300F User manual rev5. 1st June 2014...
  • Page 30 Ultimate Jets 8190 Barker Cypress Suite #300 Cypress Texas 77433 Phone: 281-855-9154 Ultimate Jets B300F User manual rev5. 1st June 2014...
