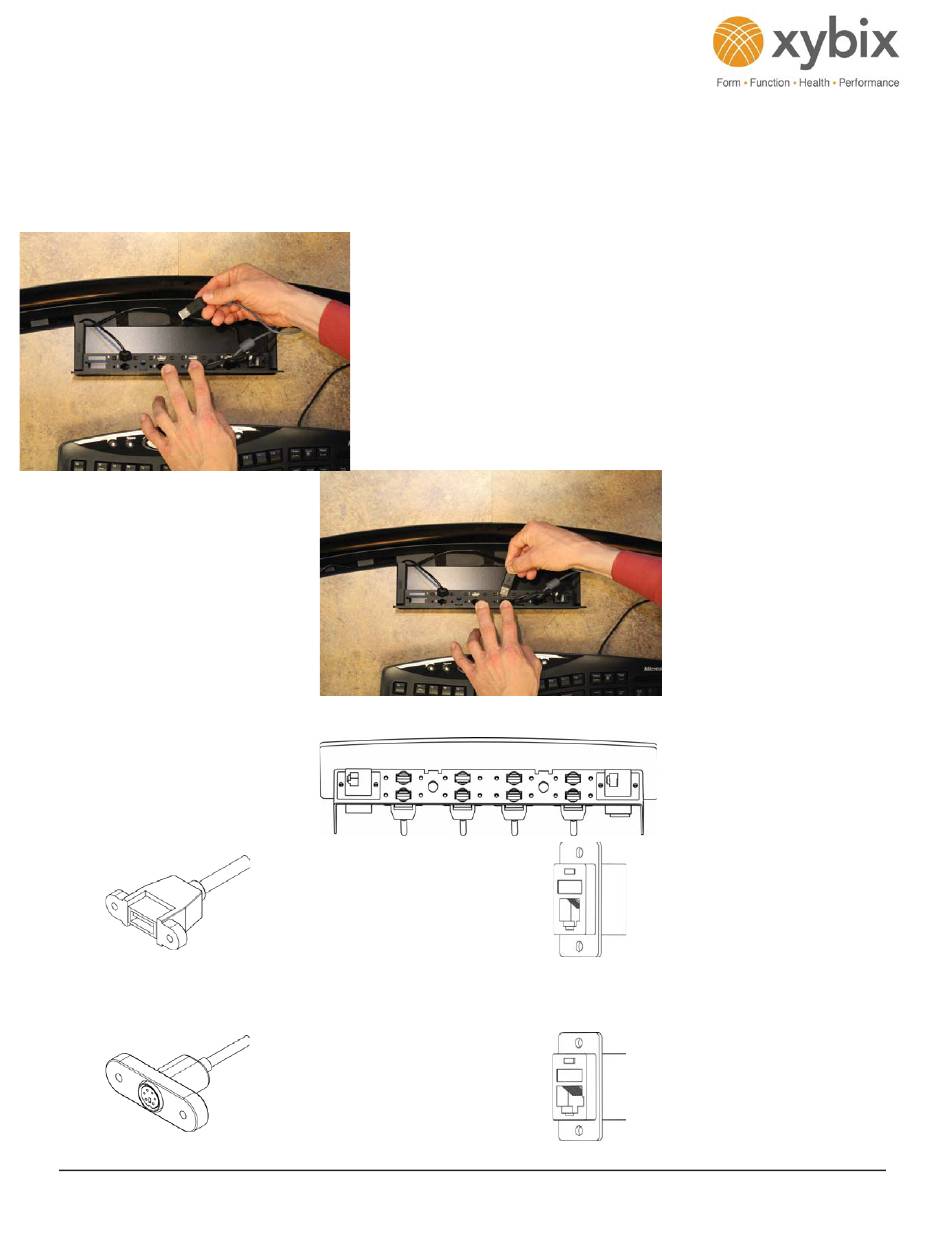

Data Dock
Data Dock is a fl ip-open confi gurable data port located on the
keyboard worksufrace.
Flips open for easy user access and closes fl ush to desktop
surface.
Allowing users to add/change keyboards, mice and other personal
input devices without having access to the CPU unit.
The cable management channel at the back edge of the keyboard
surface allows for easy cable changes. All wiring is concealed and
organized, eliminating dangling cords and clutter.
Data Dock Cable Port Options
Ext Cable USB Type A to Type A
Panel Mount for Datadock
(used for multiple computer devices)
Ext Cable PS2 Panel Mount
for Datadock
(used for keyboard and mouse extension)
Datadock - Panel Mount RJ11
CAT3 Coupler (used for phone)
RJ11
Datadock - Panel Mount RJ45 CAT5
Coupler (used for data)
RJ45
14
