Console Operation
Operating your Xybix console will be easy and effortless.
Xybix consoles offer two separate work surfaces, a front and a rear. The rear surface will contain
®
Rollervision , the focal depth adjustment feature, as well as any lighting features attached to the rear arc.
Attached to Rollervision
to 6 monitors to be seamlessly adjusted with one simple forward and reverse movement). Located under
your monitors, on the rear work surface will be your MyClimate personal fan. (If applicable this is also
where the CPU hangers are located).
The front surface, is the work surface closest to the user; this is where your keyboard and mice will be
located, as the optional data dock, cup holder and hand controls.
MyClimate Cooling Fan
MyClimate Hand Control
*Controls lighting, heat and air
Recessed Hand Controls
Xybix Systems, Inc. • 8207 SouthPark Circle • Littleton, CO 80120 • 800.788.2810 • www.xybix.com
®
will be your computer monitors (as noted earlier, Rollervision

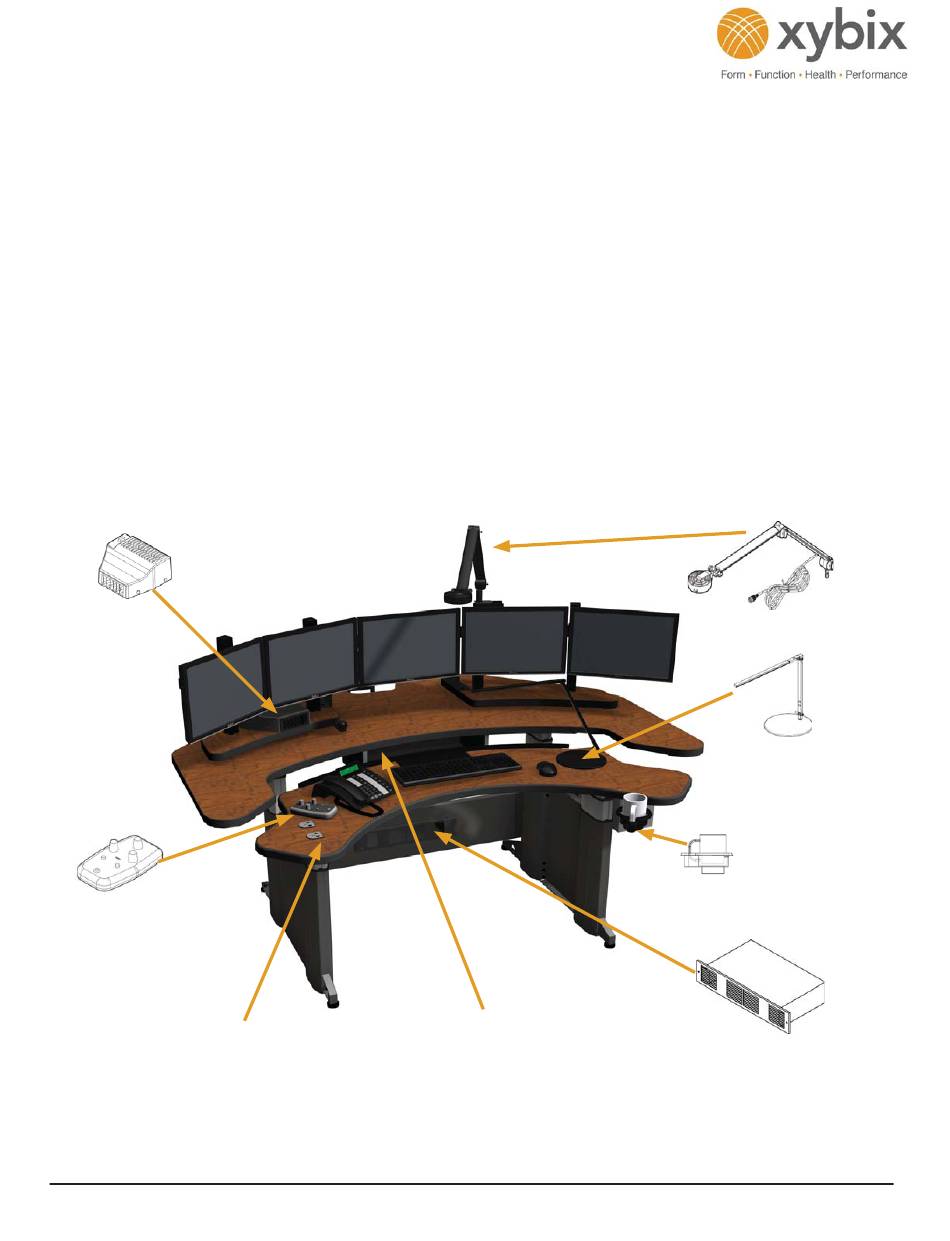

Basic Console Components and Features
Open Space
within primary reach zone,
for accessing personal items or
reference materials
19
®
allows for up
Trillium LED Task Lighting
*Compatible with MyClimate
4 Step dimmable I-Bar
LED Task Light
Swing out Cup Holder
Forced Air Heater
*Compatible with MyClimate
