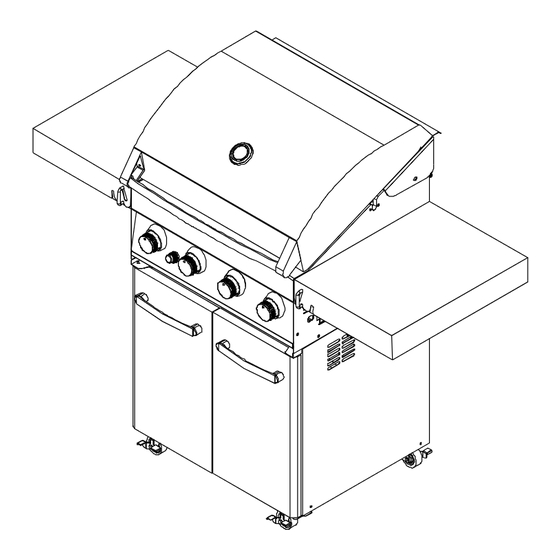

Liquid Propane Gas (LPG) Grill
Models B2610ALP, B3210ALP
Natural Gas (NG ) Grill
Models B2610ANG, B3210ANG
FREE HELP
Grill Information Center:
FROM THE GRILL EXPERTS
Grand Hall is the expert on this product
and trained to help you with:
Ÿ
Assembly Questions
Ÿ
Grill Operation
Ÿ
Replacement of Damaged or Missing parts
visit www.grandhall.com or call:
1-877-934-7455
Monday - Friday 8:00am-4:30pm CST
IMPORTANT:
Ÿ
NOTE TO ASSEMBLER / INSTALLER:
Leave this manual with the consumer.
Ÿ
NOTE TO CONSUMER:
Keep this manual for future reference.
Ÿ
RECORD YOUR SERIAL #
__________________
(see silver CSA label on main body of grill)
B2610ALP/NG
Ÿ
Ÿ
Ÿ
Ÿ
Ÿ
Ÿ
Ÿ
Operator's Manual
B3210ALP/NG
WARNING
!
Failure to comply with these instructions could
result in a fire or explosion that could cause
serious bodily injury, death or property damage.
Whether this grill was assembled by you or
someone else, you must read this entire manual
before using your grill to ensure the grill is
properly assembled, installed and maintained.
Use your grill at least 3 feet away from any
wall or surface. Use your grill at least 3 feet
away from combustible objects that can melt or
catch fire such as vinyl or wood siding, fences
and overhangs or sources of ignition including
pilot lights on water heaters and live electrical
appliances.
THIS GAS APPLIANCE IS DESIGNED FOR OUT-
DOOR USE ONLY.
Never use your gas grill in a garage, porch,
shed, breezeway or any other enclosed area.
Never obstruct the flow of ventilation air
around your gas grill housing.
Never disconnect the gas regulator or any gas
fitting while your grill is lit. A lit grill can ignite
leaking gas and cause a fire or explosion which
could result in property damage, personal injury
or death.
Manual # P80151109C - Date:2010/04/30
!
Advertisement
Table of Contents
Related Manuals for Capt'n Cook B2610ALP
Summary of Contents for Capt'n Cook B2610ALP
-
Page 1: Primary Safety Warnings
Operator's Manual Liquid Propane Gas (LPG) Grill Models B2610ALP, B3210ALP Natural Gas (NG ) Grill Models B2610ANG, B3210ANG B3210ALP/NG B2610ALP/NG FREE HELP WARNING Grill Information Center: FROM THE GRILL EXPERTS Ÿ Failure to comply with these instructions could Grand Hall is the expert on this product... -
Page 2: Table Of Contents
Table of Contents WARNING Primary Safety Warnings......1-3 Pre-Assembly Instructions........3 Do not store or use gasoline or other Part Diagrams and Lists......4-13 flammable liquids or vapors in the Assembly Instructions.........14-20 vicinity of this or any other appli- Use & Care Instructions: ances. -
Page 3: Pre-Assembly Instructions
Pre-Assembly Instructions For Your Safety CAUTION PRE-ASSEMBLY Read and perform the following pre-assembly instruc- tions: Failure to comply with these instructions may result Tools Required for Assembly in a hazardous situation which, if not avoided, may • protective work gloves result in injury. -
Page 4: Part Diagrams And Lists
Hardware Parts List for Model B2610ALP PART # PART DESCRIPTION PURPOSE OF PART P06030025A Hardware Pack For use in assembly of B2610ALP S182G0306A Pan Head Screw 3/16"x3/8" Install Caster Seats S112G0406A Phillips Head Screw 1/4"x3/8" S142G0306A Countersink Flat Head Screw 3/16"x3/8"... - Page 5 Hardware Parts List for Model B3210ALP PART # PART DESCRIPTION PURPOSE OF PART P06030023A Hardware Pack For use in assembly of B3210ALP S182G0306A Pan Head Screw 3/16"x3/8" Install Caster Seats S112G0406A Phillips Head Screw 1/4"x3/8" S142G0306A Countersink Flat Head Screw 3/16"x3/8" Install Door Lower Hinges S112G0306A Phillips Head Screw 3/16"x3/8"...
- Page 6 Hardware Parts List for Model B2610ANG PART # PART DESCRIPTION PURPOSE OF PART P06030026A Hardware Pack For use in assembly of B2610ANG S182G0306A Pan Head Screw 3/16"x3/8" Install Caster Seats S112G0406A Phillips Head Screw 1/4"x3/8" S142G0306A Countersink Flat Head Screw 3/16"x3/8" Install Door Lower Hinges S112G0306A Phillips Head Screw 3/16"x3/8"...
- Page 7 Hardware Parts List for Model B3210ANG PART # PART DESCRIPTION PURPOSE OF PART P06030024A Hardware Pack For use in assem bly of B3210ANG S182G0306A Pan Head Screw 3/16"x3/8" Install Caster Seats S112G0406A Phillips Head Screw 1/4"x3/8" S142G0306A Countersink Flat Head Screw 3/16"x3/8" Install Door Lower Hinges S112G0306A Phillips Head Screw 3/16"x3/8"...
- Page 8 Parts Diagram for Models B2610ALP/NG...
- Page 9 Parts List for Models B2610ALP/NG DESCRIPTION PART# Lid Assembly P001462764 Temperature Gauge P00601071A Lid Hinge P055010204 Lid Handle Bracket, Left P03303124A Lid Handle Bracket, Right P03303125A Lid Handle Heat Insulating Spacer P06802007J Lid Handle P00218001R Protective Pad P055180021I Cooking Rack/Secondary...
- Page 10 Parts List for Models B2610ALP/NG DESCRIPTION PART# Regulator with Hose (LPG) P03601040A Door Assembly, Right P04303051D Lighting Stick P05313025B Grease Tray P02706404A Grease Tray Handle P0272008H4 Bowl Bracket, Left P01301014D Cart Bracket, Front P03305074J Door Hinge Bracket, Upper Left P03302014J...
- Page 11 Parts Diagram for Models B3210ALP/NG...
- Page 12 Parts List for Models B3210ALP/NG DESCRIPTION PART# Lid Assembly P001473364 Temperature Gauge P00601071A Lid Hinge P055010204 Lid Handle Bracket, Left P03303124A Lid Handle Bracket, Right P03303125A Lid Handle Heat Insulating Spacer P06802007J Lid Handle P00218002R Protective Pad P055180021I Cooking Rack/Secondary P01516004E Cooking Grid, 6.5"...
- Page 13 Parts List for Models B3210ALP/NG DESCRIPTION PART# Bowl Bracket, Left P01301014D Cart Bracket, Front P03305080J Door Hinge Bracket, Upper Left P03302014J Cart Side Panel, Left P07617048E Door Magnet P05523004K Cart Panel/Rear P07702120E Weight P05344009Q Door Handle Insulating Spacer P06801023G Tank Holder Bracket, Right (LPG) P03304056J Door Assem bly, Left P04302055D...
-
Page 14: Assembly Instructions
Assembly Instructions CAUTION : While it is possible for one person to assemble this grill, obtain assistance from 2 people when handling some of the larger, heavier pieces. Install Caster Seats and Door Lower Hinges Align the holes on the Caster Seats (LF/LR) onto the Left Cart Side Panel. Secure the Caster Seats by tightly securing 4 Phillips Head Screws 1/4’’x3/8’’... - Page 15 Install Casters Position the Cart as shown. Install 4 Casters onto the Caster Seats using 16 Phillips Head Screws 1/4’’x3/8’’. Tighten the screws securely as shown. Phillips Head Screw 1/4"x3/8" Qty. 16 Rear Part # S112G0406A Front Install Weight onto Cart Bottom Shelf Position Cart as shown.
- Page 16 Install Cart Front Bracket and Cart Rear Panel. Install Tank Holder Assembly (for B2610ALP and B3210ALP) Install the Tank Holder Brackets onto the Cart Bottom Shelf using 4 Phillips Head Screws 3/16’’x3/8’’. Secure the Tank Holder Brackets and Screws using 4 Flange Nuts 3/16’’ as shown. Be sure that the flat surfaces of the Tank Holder Brackets are positioned so that they face inwards as shown.
- Page 17 Qty. 4 Part # S112G0314A Install Bowl onto Cart. Install Hose Holders (for B2610ALP & B3210ALP Models) With the help of your assistants, lift the Grill Head onto the top of the Cart so that the bottom of the Grill Head sits on top of the Bowl Brackets.
- Page 18 Hose Holder/Grill Qty. 1 Part # P05536001Q Install Grease Tray and Lighting Stick (for B2610ALP/NG Models) 10-1 Install the Grease Tray and Lighting Stick onto the Grease Tray Handle using 3 Phillips Head Screws 3/16’’x3/8’’, 3 Washers 3/16’’, and 3 Flange Nuts 3/16’’. Secure and tighten all hardware.
- Page 19 Install Grease Tray and Lighting Stick (for B3210ALP/NG Models) 10-2 Install the Grease Tray and Lighting Stick onto the Grease Tray Handle using 4 Phillips Head Screws 3/16’’x3/8’’, 4 Washers 3/16’’, and 4 Flange Nuts 3/16’’. Secure and tighten all hardware. Slide the Grease Tray side tabs over the rails underneath the Grill Bowl as shown.
- Page 20 Upside of the Flame Toothed Washer as shown. Tamer, Ceramic/Front Temperature Gauge Wing Toothed W asher (for B2610ALP/NG Models) Main Burner Electrode Check With the assistance of another person, Cooking Rack/Secondary perform this Electrode Check before Cooking Grids proceeding. Flame Tamer/...
-
Page 21: Use & Care Instructions
USE AND CARE INSTRUCTIONS Use of alcohol, prescription or non-prescription drugs CORRECT LP GAS TANK USE can impair your ability to properly assemble and LP Gas grill models are designed for use with a standard safely operate your grill. 20 lb. Liquid Propane Gas (LP Gas) tank (sold sepa- rately). - Page 22 USE AND CARE INSTRUCTIONS LP Gas Model only: NOTE about LP Gas Tank Exchange Programs Ÿ Secure a 20lb LP Gas Tank to Gas Grill Many retailers that sell grills offer you the option of replacing your empty LP Gas tank through an exchange service.
- Page 23 USE AND CARE INSTRUCTIONS LP Gas Model only: Check all connections for LP Gas Leaks Connect Regulator with Hose to your LP Gas Tank Never test for leaks with an open flame. Prior to first use, at the beginning of each season, or every time Turn all Burner Valves to the OFF position.
-
Page 24: Natural Gas Connection
Natural Gas Connection Fig.1 Natural Gas Model only: Connecting Natural Gas To Your Grill Connect the Swivel nut of the 12' Natural Gas Hose to the horizontal fitting of NG Regulator Horizontal as shown in Fig.1. Connect the other hose end Fitting (male plug) to the gas supply line from your home. -
Page 25: Lighting Instructions
Parts List. Also make sure all gas supply connections are securely tightened. Main Burner Familiarize yourself with all Safety and Use and Care (for B2610ALP/NG Models) instructions in this manual. Do not smoke while lighting your grill or when checking the gas supply connections. -
Page 26: Troubleshooting
USE AND CARE INSTRUCTIONS Troubleshooting To purge air from your gas line and/or reset the regulator excess gas flow device: If the grill fails to light : Turn gas off at source and turn Control Knobs to OFF. Wait Turn Control Knobs to the OFF position. at least 5 minutes for gas to clear, then retry. -
Page 27: Cleaning And Maintenance
Cleaning Exterior Stainless Steel Surfaces: CLEANING AND MAINTENANCE Routine care and maintenance is required to preserve Proper care and maintenance will keep your grill in top operating the appearance and corrosion resistance of stainless condition and prolong its life. Follow these cleaning procedures on steel. - Page 28 2. 2. CLEANING THE BURNER TUBES AND BURNER PORTS Regardless of which Burner cleaning procedure you To reduce the chance of FLASHBACK FIRE you must clean the Burner Tubes as follows at least once a month in summer use, we recommend that you also complete the follow- ing cleaning regimens to help prolong Burner life.
- Page 29 Cooking Instructions Indirect Cooking using Main Burners Burn-Off The indirect cooking method can also be used with the Before cooking on your gas grill for the first time, you supplied Cooking Grids. To cook indirectly, the food should "burn off" the grill to eliminate any odor or foreign should be placed on the left or right side of your grill with matter.
- Page 30 Guide to Grilling using the Main Burners and Direct Cooking Method Approximate Cooking Times Grilling Steak and Ribs Cut of Meat Rare: 4-8 minutes Turn the grill Burners on Hi, close the Lid and preheat your T-bone steak Medium: 10-14 minutes grill 3 to 5 minutes.
- Page 31 Guide to Roasting and Baking Using the Main Burners Food preparation An Important Note About Heat Settings Trim meat of excess fat. Truss meat and poultry with cooking The suggested heat settings shown are approximate. There string to retain shape if desired. Bacon strips can be used to are many factors such as outside temperature, wind condi- cover the outside surface of lean meat and poultry to help tions and grill location that affect your grill performance.
- Page 32 Guide to Smoking Preparing to Smoke Safe Minimum Internal Temperatures Fish 145ºF/63ºC Smoking gives food a distinctive, delicious flavor. You will find a variety of wood chips available for use in smoking grilled Pork 160ºF/71ºC foods. Pre-soaking of wood chips may be required so read Egg Dishes 160ºF/71ºC and follow the manufacturer's instructions for preparing...
- Page 33 Question: Question: Can I convert my grill from one fuel type to another in Sometimes I hear a humming sound coming from my other words from LPG to NG or vice versa? regulator. What causes this? And - My grill has a low flame and sometimes will not light.
- Page 34 Question: The Regulator and Hose supplied with my gas grill After every use (after your grill has cooled down), wipe stain- does not fit the older LP Gas tank I’ve used for years. less surfaces with a soft, soapy cloth or sponge then Why not? rinse with water.
- Page 36 Grand Hall Limited Warranty Grand Hall will warrant to the ORIGINAL PURCHASER of this gas grill that it will be free of defects in material and workmanship for set periods below from the date of purchase when used under normal outdoor use and correct assembly.
