Riptide
User Manual
Riptide_UserManual_Final.indd 1
7/17/2014 3:07:09 PM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Riptide and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Nuu Riptide

Summary of Contents for Nuu Riptide

  • Page 1 Riptide User Manual Riptide_UserManual_Final.indd 1 7/17/2014 3:07:09 PM...

  • Page 2: Table Of Contents

    Contents Getting Started..........3 Waterproof & Dustproof Performance....16 Caring for Your Riptide........17 Specifications..........18 Troubleshooting..........19 Customer Support........... 21 Warnings............22 FCC Information..........25 Warranty Information ........27 Riptide_UserManual_Final.indd 2 7/17/2014 3:07:09 PM...
  • Page 3 In The Box • NUU Riptide • Micro-USB Power Charging Cable • 3.5mm to 3.5mm Audio Cable • User Manual • Carabiner Riptide_UserManual_Final.indd 3 7/17/2014 3:07:11 PM...

  • Page 4: Getting Started

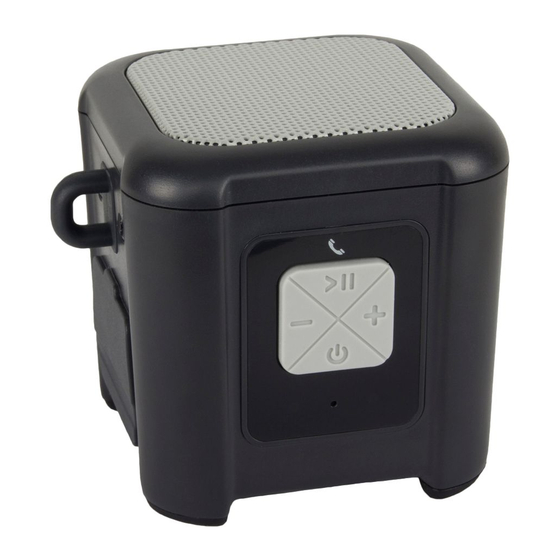

    Getting Started On/Off Switch Bluetooth Status Light Action Button Volume Up Volume Down Charging Indicator Micro-USB Charging Port AUX-IN AUX-OUT Carabiner loop Universal ¼-20TPI threaded hole for mounting Built-in Microphone Riptide_UserManual_Final.indd 4 7/17/2014 3:07:11 PM...
  • Page 5 Riptide_UserManual_Final.indd 5 7/17/2014 3:07:12 PM...
  • Page 6 Auto-off: After 30 minutes of inactivity, the NUU Riptide will shut off automatically. To turn the NUU Riptide on again, Press and hold the button for about 3 seconds. The NUU Riptide will not automatically shut off if you are playing audio through Bluetooth, or 3.5mm connection.
  • Page 7 Bluetooth Status Light The Bluetooth Status Light is a small LED located below the on/ off button that illuminates to indicate the current status of the NUU Riptide’s Bluetooth connection. Flashing Slowly and Intermittently: The NUU Riptide is on and is not in pairing mode. This is also the indicator for “auto-reconnect”, where the NUU Riptide attempts to connect with...
  • Page 8 • Playback • Speakerphone PAIRING WITH BLUETOOTH DEVICES Switch on the NUU Riptide. The Bluetooth Status Light will flash slowly. The NUU Riptide will attempt to re-connect with the previously paired device when it is powered on. If it cannot find the paired device, it will enter pairing mode automatically.
  • Page 9 “NUU Riptide” from the list of discoverable devices. If prompted for a PIN code, enter “0000” (4 zeros). It will take between 10 and 15 seconds for the NUU Riptide to pair with your device. When pairing is successful, you will hear a high tone and the Bluetooth Status Light will remain steadily lit.
  • Page 10 Action button. Incoming and outgoing calls are given priority over Bluetooth audio playback. If a call comes in while you are streaming Bluetooth audio, the track will pause and the NUU Riptide will play the ringtone. It will resume once the call has ended.
  • Page 11 Transfer From Speakerphone to Phone: During a phone call, press and hold the Action button for 1-2 seconds to switch between using the NUU Riptide and your phone to talk. You will hear a ‘beep’ indicating that the call has been transferred to your phone or the NUU Riptide.
  • Page 12 When you reach minimum volume, you will hear a low-pitched beep. Volume may only be adjusted on the NUU Riptide while it is connected to a Bluetooth device. When the NUU Riptide is connected via the AUX-IN, the volume is set to maximum and must be controlled on your phone/device.
  • Page 13 The indicator will automatically switch off when the unit is fully charged. Allow approximately 2.5 hours for the battery to fully charge. The NUU Riptide may be used while it is charging. NOTE: Your computer’s USB port may not supply enough power to charge and play at the same time.
  • Page 14 USB SPEAKER The NUU Riptide can be used as a USB speaker when connected to your computer’s USB port. Once connected you may control volume with either the NUU Riptide’s buttons or your computer’s volume controls. If the NUU Riptide does not automatically connect, you may have to manually select NUU Riptide as your output device.
  • Page 15 Like any phone/device headphone jack, the AUX-OUT of the NUU Riptide can be used as a music source that you can connect to another NUU Riptide’s AUX-IN to double the sound output power. NOTE: Audio content via 3.5mm stereo input will override audio streamed via Bluetooth.
  • Page 16 The NUU Riptide has a built-in microphone located under the Power button. This noise cancelling microphone enables you to use the NUU Riptide as a speakerphone in addition to a speaker. For more information on using the NUU Riptide as a speakerphone see page 9.

  • Page 17: Waterproof & Dustproof Performance

    Although the NUU Riptide is designed to be dustproof, waterproof and made to tackle any adventure, it is not indestructible. Damage caused from misuse, abuse or failure to properly maintain the NUU Riptide is not covered by the limited warranty. The following information should be kept in mind at all times: •...

  • Page 18: Caring For Your Riptide

    • The supplied accessories do NOT meet waterproof and dustproof specifications. • NUU Riptide will only meet IP57 standards when the cover to the charging and AUX-IN port has been securely closed and sealed. • While the NUU Riptide is dustproof, exposure to dust and the like may mar the surface finish.

  • Page 19: Specifications

    • Make sure the NUU Riptide is completely dry before opening the charging port cover. Specifications *Design and specifications are subject to change without notice. • IP57 waterproof & dustproof rating • Bluetooth Ver. 4.0. Pairs with any Bluetooth 2.0 device.

  • Page 20: Troubleshooting

    NUU Riptide. 4. Turn Bluetooth off and then on again on your phone/ device. If the NUU Riptide still won’t pair, remove it from the list of discoverable devices and retry the pairing process from the start.
  • Page 21 2. If there is still no response after step 1, connect the unit to the supplied power adapter and repeat step 1. 3. If there is still no response after steps 1-2, reset the NUU Riptide by pressing the volume up and volume down buttons at the same time.

  • Page 22: Customer Support

    Customer Support We want to help solve whatever issues you may encounter when using your NUU Riptide. If at any time you are not satisfied or have questions, please call or e-mail our dedicated customer support specialists and they will be more than happy to assist you.

  • Page 23: Warnings

    • The cover over the charging and AUX-IN port MUST be closed in order for the NUU Riptide to be waterproofPress firmly on the cover to ensure it is closed and sealed. Riptide_UserManual_Final.indd 23...
  • Page 24 • Do not expose the product to water deeper than 3 feet or for longer than 30 minutes. • Do not expose this product to fire or other sources of excessive heat. • Do not leave this product in direct sunlight for extended periods of time.
  • Page 25 • Do not dispose of the NUU Riptide in a fire. The battery could explode causing injury or death. • Dispose of the NUU Riptide with its battery in accordance with local regulations.

  • Page 26: Fcc Information

    FCC Information FCC STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation.
  • Page 27 However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •...

  • Page 28: Warranty Information

    Limited One Year Warranty Information NUU Limited (hereafter referred to as NUU), warrants this product to be free from defects in work- manship and materials, under normal use and conditions, for a period of one (1) year from the date of original purchase.
  • Page 29 CUSTOMER’S SOLE REMEDY FOR BREACH OF THAT WARRANTY SHALL BE REPLACEMENT OR REPAIR OF THE PRODUCT OR PART OR REFUND OF THE PURCHASE PRICE PAID, AT NUU. THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES (OR CONDITIONS), EXPRESSED OR IMPLIED, INCLUDING (WITHOUT LIMITATION), ANY WARRANTIES OF MERCHANTABILITY, NON-INFRINGEMENT, OR FITNESS FOR A PARTICULAR PURPOSE.
  • Page 30 POSSIBILITY OF SUCH DAMAGES, AND LIMITS ITS LIABILITY TO REPLACEMENT, REPAIR, OR REFUND OF THE PURCHASE PRICE PAID, AT NUU’S DISCRETION. THIS DISCLAIMER OF LIABILITY FOR DAMAGES WILL NOT BE AFFECTED IF ANY REMEDY PROVIDED HERE-IN SHALL FAIL OF ITS ESSENTIAL PURPOSE.
  • Page 31 Riptide_UserManual_Final.indd 31 7/17/2014 3:07:14 PM...
  • Page 32 Made in China © 2013 NUU. ALL RIGHTS RESERVED The Bluetooth word mark and logo are registered trademarks and are owned by the Bluetooth SIG, Inc. Riptide_UserManual_Final.indd 32 7/17/2014 3:07:14 PM...
