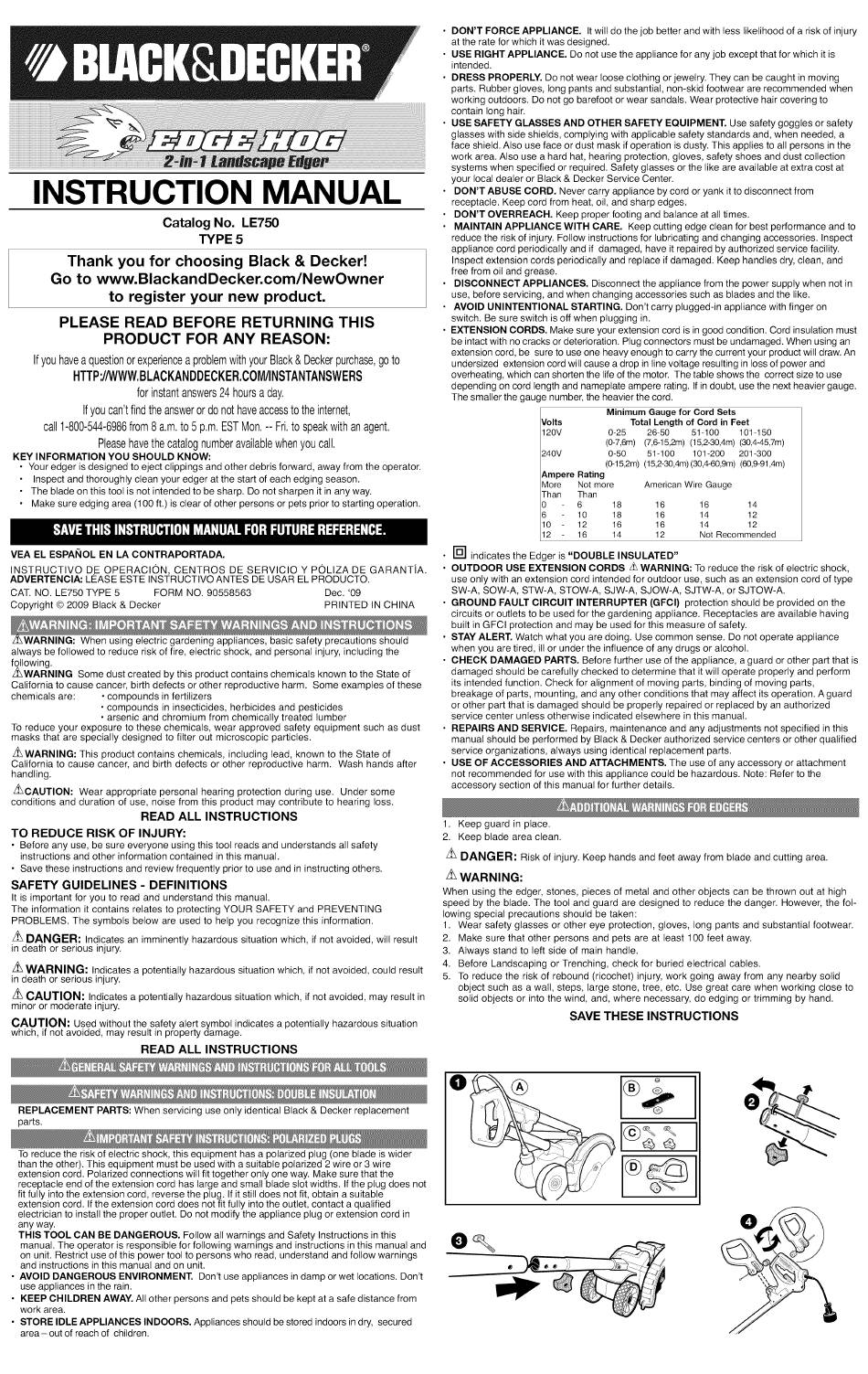

Black & Decker EDGE HOG LE750 5 Instruction Manual

2-in-1 landscape edger
Hide thumbs

Advertisement

Quick Links

INSTRUCTION MANUAL
Catalog No. LE750
TYPE 5
Thank you for choosing Black & Decker!
Go to www.BlackandDecker.com/NewOwner
to register
your new product.
PLEASE
READ BEFORE
RETURNING
THIS
PRODUCT
FOR ANY REASON:
If youhavea question or experience a problemwith yourBlack& Deckerpurchase, go to
HTTP://WWW.BLACKANDDECKER.COM/INSTANTANSWERS
for instantanswers24 hoursa day.
If youcan't findtheansweror do not haveaccessto the internet,
call 1-800-544-6986 from 8 a.m.to 5 p.m.ESTMon. -- Fri.to speakwith an agent.
Pleasehavethe catalognumberavailablewhenyoucall.
KEY INFORMATION
YOU SHOULD
KNOW:
• Your edger is designed
to eject clippings
and other debris forward,
away from the operator.
Inspect and thoroughly
clean your edger at the start of each edging season.
• The blade on this tool is not intended to be sharp. Do not sharpen it in any way.
Make sure edging area (100 ft.) is clear of other persons or pets prior to starting operation.
VEA EL ESPAI_IOL EN LA CONTRAPORTADA.
INSTRUCTIVO
DE OPERACION,
CENTROS
DE SERVICIO
Y POLIZA
DE GARANTiA.
ADVERTENCIA:
LEASE ESTE INSTRUCTIVO
ANTES
DE USAR EL PRODUCTO.
CAT. NO. LE750 TYPE 5
FORM NO. 90558563
Dec. '09
Copyright
© 2009 Black & Decker
PRINTED
IN CHINA
always be followed
to reduce risk of fire, electric shock, and personal
injury, including
the
following.
ZL_WARNING
Some dust created
by this product contains
chemicals
known to the State of
California
to cause cancer, birth defects
or other reproductive
harm.
Some examples
of these
chemicals
are:
• compounds
in fertilizers
• compounds
in insecticides,
herbicides
and pesticides
• arsenic
and chromium
from chemically
treated
lumber
To reduce
your exposure
to these chemicals,
wear approved
safety equipment
such as dust
masks that are specially
designed
to filter out microscopic
particles.
Z_WARNING:
This product contains
chemicals,
including
lead, known
to the State of
California
to cause cancer,
and birth defects
or other reproductive
harm.
Wash hands after
handling.
Z_CAUTION:
Wear appropriate
personal
hearing
protection
during use.
Under some
conditions
and duration
of use, noise from this product
may contribute
to hearing
loss.
READ ALL INSTRUCTIONS
TO REDUCE RISK OF INJURY:
• Before any use, be sure everyone
using this tool reads and understands
all safety
instructions
and other information
contained
in this manual.
• Save these instructions
and review frequently
prior to use and in instructing
others.
SAFETY GUIDELINES
- DEFINITIONS
It is important
for you to read and understand
this manual.
The information
it contains
relates to protecting
YOUR SAFETY
and PREVENTING
PROBLEMS.
The symbols
below are used to help you recognize
this information.
Z_ DANGER:
Indicates
an imminently
hazardous
situation
which, if not avoided,
will result
in death or serious
injury.
/K WARNING:
Indicates
a potentially
hazardous
situation
which, if not avoided,
could result
in death or serious injury.
/K CAUTION:
Indicates a potentially
hazardous
situation
which, if not avoided,
may result in
minor or moderate
injury.
CAUTION:
Used without the safety alert symbol
indicates
a potentially
hazardous
situation
which, if not avoided,
may result in property damage.
READ ALL INSTRUCTIONS
DON'T FORCE
APPLIANCE.
It will do the job better and with less likelihood
of a risk of injury
at the rate for which it was designed.
USE RIGHT APPLIANCE.
Do not use the appliance
for any job except that for which it is
intended.
DRESS PROPERLY.
Do not wear loose clothing or jewelry. They can be caught in moving
parts. Rubber gloves,
long pants and substantial,
non-skid footwear
are recommended
when
working
outdoors.
Do not go barefoot or wear sandals. Wear protective
hair covering
to
contain
long hair.
USE SAFETY
GLASSES
AND OTHER SAFETY
EQUIPMENT.
Use safety goggles or safety
glasses with side shields, complying
with applicable
safety standards
and, when needed,
a
face shield. Also use face or dust mask if operation
is dusty. This applies to all persons in the
work area. Also use a hard hat, hearing protection,
gloves, safety shoes and dust collection
systems
when specified
or required.
Safety glasses or the like are available
at extra cost at
your local dealer or Black & Decker Service
Center.
DON'T ABUSE
CORD.
Never carry appliance
by cord or yank it to disconnect
from
receptacle.
Keep cord from heat, oil, and sharp edges.
DON'T
OVERREACH.
Keep proper footing and balance at all times.
MAINTAIN
APPLIANCE
WITH CARE.
Keep cutting edge clean for best performance
and to
reduce the risk of injury. Follow instructions
for lubricating
and changing
accessories.
Inspect
appliance
cord periodically
and if damaged,
have it repaired by authorized
service facility.
Inspect extension
cords periodically
and replace if damaged.
Keep handles
dry, clean, and
free from oil and grease.
DISCONNECT
APPLIANCES.
Disconnect
the appliance
from the power supply when not in
use, before servicing,
and when changing
accessories
such as blades and the like.
AVOID UNINTENTIONAL
STARTING.
Don't carry plugged-in
appliance
with finger on
switch.
Be sure switch is off when plugging
in.
EXTENSION
CORDS.
Make sure your extension cord is in good condition.
Cord insulation must
be intact with no cracks or deterioration.
Plug connectors
must be undamaged.
When using an
extension
cord, be sure to use one heavy enough to carry the current your product will draw. An
undersized
extension cord will cause a drop in line voltage resulting in loss of power and
overheating,
which can shorten the life of the motor. The table shows the correct size to use
depending
on cord length and nameplate
ampere rating. If in doubt, use the next heavier gauge.
The smaller the gauge number, the heavier the cord.
Minimum
Gauge for Cord Sets
Volts
Total Length of Cord in Feet
120V
0-25
26-50
51-100
101-150
(0-7,6m) (7,6-15,2m) (15,2-30,4m) (30,4-45,7m)
240V
0-50
51-100
101-200
201-300
(0-15,2m) (15,2-30,4m)(30,4-60,9m)(60,9-91,4m)
Ampere Rating
More
Not more
American Wire Gauge
Than
Than
0
6
18
16
16
14
6
10
18
16
14
12
10
12
16
16
14
12
12
16
14
12
Not Recommended
[]
indicates
the Edger is "DOUBLE
INSULATED"
• OUTDOOR
USE EXTENSION
CORDS
Z_ WARNING:
To reduce the risk of electric shock,
use only with an extension
cord intended for outdoor use, such as an extension
cord of type
SW-A, SOW-A, STW-A,
STOW-A,
SJW-A, SJOW-A,
SJTW-A,
or SJTOW-A.
• GROUND
FAULT CIRCUIT
INTERRUPTER
(GFCI)
protection
should
be provided on the
circuits or outlets to be used for the gardening
appliance.
Receptacles
are available
having
built in GFCI protection
and may be used for this measure
of safety.
• STAY ALERT.
Watch what you are doing. Use common sense.
Do not operate appliance
when you are tired, ill or under the influence
of any drugs or alcohol.
• CHECK
DAMAGED
PARTS.
Before further
use of the appliance,
a guard or other part that is
damaged
should
be carefully
checked
to determine
that it will operate properly
and perform
its intended
function.
Check for alignment
of moving
parts, binding
of moving
parts,
breakage
of parts, mounting,
and any other conditions
that may affect its operation.
A guard
or other part that is damaged
should
be properly
repaired or replaced
by an authorized
service
center unless otherwise
indicated
elsewhere
in this manual.
• REPAIRS AND SERVICE.
Repairs,
maintenance
and any adjustments
not specified
in this
manual should be performed
by Black & Decker authorized
service centers
or other qualified
service
organizations,
always
using identical
replacement
parts.
• USE OF ACCESSORIES
AND ATTACHMENTS.
The use of any accessory
or attachment
not recommended
for use with this appliance
could be hazardous.
Note: Refer to the
accessory
section
of this manual for further details.
1. Keep guard in place.
2.
Keep blade area clean.
/_ DANGER:
Risk of injury. Keep hands and feet away from blade and cutting
area.
_ WARNING:
When using the edger, stones,
pieces of metal and other objects
can be thrown out at high
speed by the blade. The tool and guard are designed
to reduce
the danger.
However,
the fol-
lowing special precautions
should
be taken:
1. Wear safety glasses
or other eye protection,
gloves,
long pants and substantial
footwear.
2.
Make sure that other persons
and pets are at least 100 feet away.
3. Always
stand to left side of main handle.
4.
Before
Landscaping
or Trenching,
check for buried electrical
cables.
5. To reduce
the risk of rebound
(ricochet)
injury, work going away from any nearby solid
object such as a wall, steps, large stone, tree, etc. Use great care when working
close to
solid objects
or into the wind, and, where necessary,
do edging
or trimming
by hand.
SAVE
THESE
INSTRUCTIONS
REPLACEMENT
PARTS: When servicing
use only identical
Black & Decker replacement
parts.
To reduce the risk of electric shock, this equipment
has a polarized
plug (one blade is wider
than the other). This equipment
must be used with a suitable polarized
2 wire or 3 wire
extension
cord. Polarized connections
will fit together only one way. Make sure that the
receptacle
end of the extension
cord has large and small blade slot widths. If the plug does not
fit fully into the extension
cord, reverse the plug. If it still does not fit, obtain a suitable
extension
cord. If the extension
cord does not fit fully into the outlet, contact
a qualified
electrician
to install the proper outlet. Do not modify the appliance
plug or extension
cord in
any way.
THIS TOOL CAN BE DANGEROUS.
Follow all warnings
and Safety Instructions
in this
manual. The operator is responsible
for following
warnings and instructions
in this manual and
on unit. Restrict use of this power tool to persons who read, understand
and follow warnings
and instructions
in this manual and on unit.
• AVOID DANGEROUS
ENVIRONMENT.
Don't use appliances
in damp or wet locations.
Don't
use appliances
in the rain.
• KEEP CHILDREN
AWAY. All other persons and pets should be kept at a safe distance from
work area.
• STORE IDLE APPLIANCES
INDOORS.
Appliances
should be stored indoors in dry, secured
area-
out of reach of children.
O
®

Advertisement

loading
