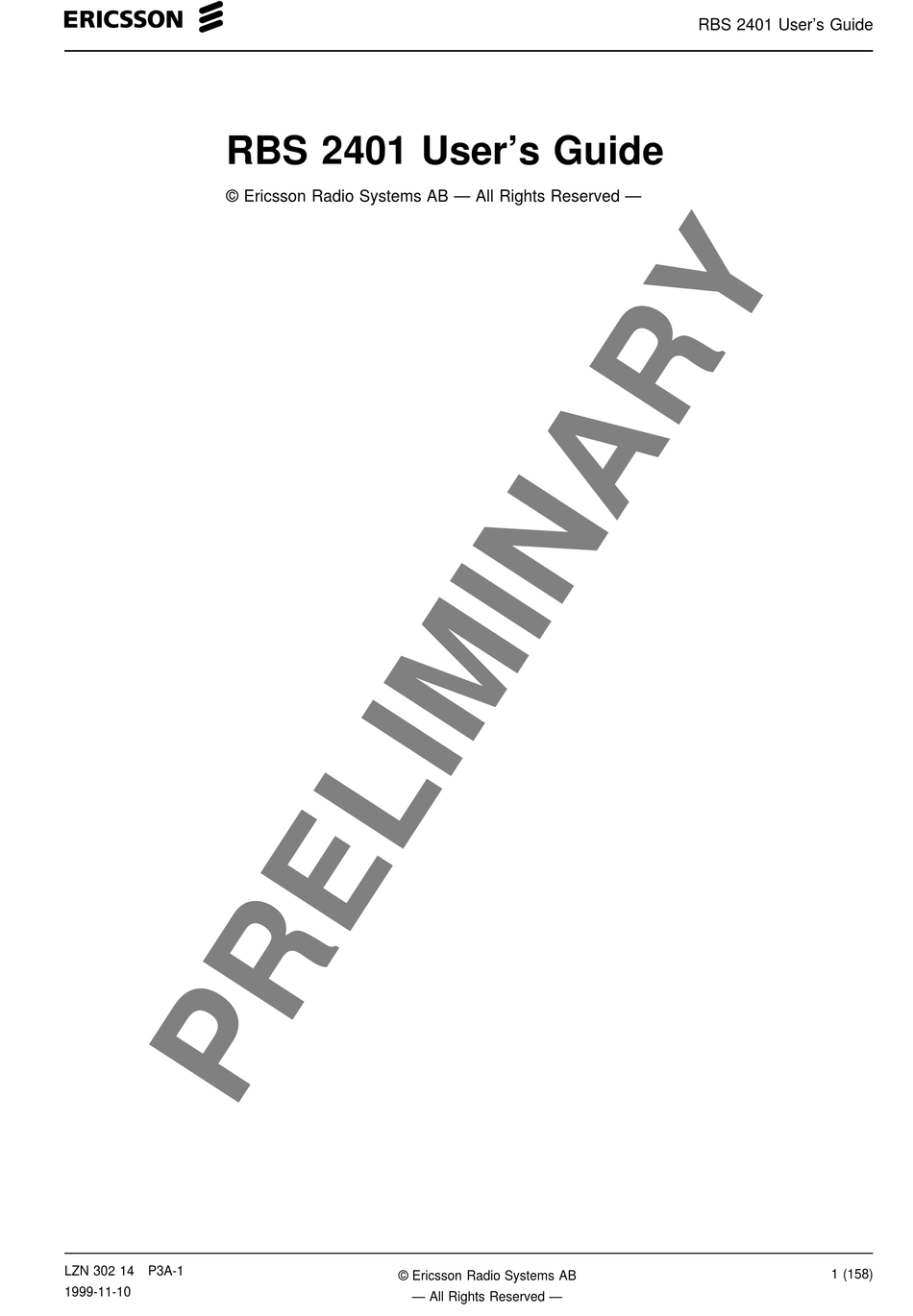

Page 2 RBS 2401 User’s Guide Due to continued progress in methodology, design and manufacturing, the contents of this document are subject to revision without notice. 2 (158) LZN 302 14 P3A-1 © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 3: Table Of Contents
RBS 2401 User’s Guide Contents 1 Introduction ....................7 1.1 Competence Requirements for Work with RBS 2401......7 1.2 Release History ..................8 1.2.1 R1A to R2A...................8 2 Safety Instructions..................9 2.1 Warnings....................9 2.2 Notes......................10 2.3 Electrical Hazards..................11 2.3.1 Electrostatic Discharge, ESD ............... 13 2.4 Working at Heights ..................
Page 4 RBS 2401 User’s Guide 4.2.1 Installation Procedure Overview............32 4.2.2 Unpacking.....................33 4.2.3 Mounting the Radio Cabinet..............34 4.2.4 Connecting Cables ................38 4.2.5 Extension and Reconﬁguration.............50 4.3 Test of Radio Cabinet................51 4.3.1 User Interface ..................51 4.3.2 Test Procedure Overview..............53 4.3.3 Test Procedure..................53 4.4 Installation and Test of Optional AGW............59...
Page 5 RBS 2401 User’s Guide 5.3.3 Replacement of HDSL Module.............116 5.3.4 Replacement of AGW................124 5.3.5 Replacement of Fuse for HDSL Module and AGW ......133 5.4 Preventive Maintenance................138 5.5 Concluding Routines................147 5.5.1 Transport of a Faulty Unit..............147 5.5.2 Report of Finished Work...............147 5.5.3 Repair Delivery Note - “Blue Tag”............147...
Page 7: Introduction
Introduction Introduction The RBS 2401 is a pico base station intended for indoor installation. It is equipped with two low power transceivers and an optional omnidirectional antenna. The small dimensions mean indoor coverage for GSM 900, GSM 1800 and GSM 1900 with a minimum of space required.
Page 8: Release History
Introduction • A basic knowledge of Ericsson materials. • Good understanding of technical English. Release History Except editorial changes such as correction of spelling, grammar, and layout, this manual has been revised as follows: 1.2.1 R1A to R2A • Information affecting several chapters: −...
Page 9: Safety Instructions
For certain work, additional training or special training may be required. For more precise information on the amount and content of the general and/or special training required for work on Ericsson products or systems, please contact the supervisor or the local Ericsson company. Warnings Warnings are used to indicate hazardous activities.
Page 10: Notes
Notes Note: Notes are used to call the reader’s attention to key points that might otherwise be overlooked. 10 (158) LZN 302 14 P3A-1 © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 11: Electrical Hazards
• Remove wrist watches, rings, bracelets, etc. • Switch off the power if the cabinet is damp inside. LZN 302 14 P3A-1 11 (158) © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 12 Always use eye protectors (goggles) such as 25072 (goggles in the Common Tool Kit LTT 601 044/1) when drilling. Flying chips and dust may get into your eyes. 12 (158) LZN 302 14 P3A-1 © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 13: Electrostatic Discharge, Esd
The resistance value is low enough to discharge the electrostatic voltage. Never replace the cable with any other cable. The ESD wrist strap must be connected to earth. Ericsson recommends wrist strap LYB 250 01/14. Storing and Transporting printed board assemblies and IC Components Use the original packaging.
Page 14: Working At Heights
Rules and Advice for the Safe Use of Ladders • Make sure that the ladder is undamaged and has been approved for use. 14 (158) LZN 302 14 P3A-1 © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 15 Never prop up a ladder with boxes, stones or the like. • Extend the ladder completely. • Check that all four anti-slipping treads are ﬁrmly positioned on the base. LZN 302 14 P3A-1 15 (158) © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 16: Radio Frequency Radiation
Radio frequency (RF) radiation from antenna systems can endanger your health. Co-ordinate with all mast users to switch off the transmitters when working with, or near, antennas. 16 (158) LZN 302 14 P3A-1 © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 17: Other Hazards
Radio Base Station. Sharp Edges WARNING Wear protective gloves when handling the equipment. There may be sharp metal edges. LZN 302 14 P3A-1 17 (158) © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 19: Site Planning And Product Data
Required Space for Service 3 0 0 3 0 0 2 0 0 2 0 0 5 0 0 Measurements in mm P004587A Figure 10 LZN 302 14 P3A-1 19 (158) © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 20: Antenna System
There are two alternatives: • External antenna (if available) • Omnidirectional antenna (optional) P004614A Figure 12 RBS 2401 with omnidirectional antenna (optional) mounted 20 (158) LZN 302 14 P3A-1 © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 21: Product Data Rbs 2401
Site Planning and Product Data Product Data RBS 2401 3.2.1 Main Units P004753B Figure 13 RBS 2401 main units Front cover Radio cabinet Wall bracket Omnidirectional antenna (Optional) HDSL module or AGW (Optional) LZN 302 14 P3A-1 21 (158) © Ericsson Radio Systems AB 1999-11-10 —...
Page 22: Technical Data
200 - 250 V AC ±10 %, 50 Hz ±10 % 200 V AC ±10 %, 60 Hz ±8 % RBS 2401 is automatically adapted to any voltage within the operating range 100 - 127 V AC, and 200 - 250 V AC.
Page 23: Transmission
60 Hz max. 60 A < 5 kA 3.2.3 Transmission Transmission Cables RBS 2401 can be connected to transmission interface G.703 type E1, using two coaxial cables 75 or four-wire twisted pair 120 LZN 302 14 P3A-1 23 (158) © Ericsson Radio Systems AB 1999-11-10 —...
Page 24 Interfaces 16 mm Max 1,5 mm 16 mm PCM B PCM A P004640A Figure 17 RBS 2401 is equipped with four transmission ports: • PCM-A IN • PCM-A OUT • PCM-B IN • PCM-B OUT Type of connection: Two clamp terminals, each 6 x max. 1.5 mm Note: According to type approval, max.
Page 25: Omnidirectional Antenna (Optional)
HDSL module or AGW due to the risk of interference. If an HDSL module or AGW is installed, an external antenna should be used. Both TRXs of the RBS 2401 are connected to both antenna outputs. Antenna connectors: 2 x TNC, coaxial. P004614A Figure 19...
Page 26: Product Data Hdsl Module
Figure 20 Unused antenna connector terminated Product Data HDSL Module Dimensions and weight See Product Data for RBS 2401. Temperature and Humidity Limits Same limits as for RBS 2401. Soundless operation The HDSL module does not make any noise when in operation.
Page 27: Product Data Agw
HDSL 1 or 2 pair G.703 E1 120 Product Data AGW Dimensions and weight See Product Data for RBS 2401. Temperature and Humidity Limits Same limits as for RBS 2401. Soundless operation The AGW does not make any noise when in operation.
Page 28 The AGW is equipped with one transmission terminal (modular for connection against Ethernet LAN ). Cascade Connection It is not possible to arrange a cascade connection when using the AGW. 28 (158) LZN 302 14 P3A-1 © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 29: Installation And Tests
- 115 V LTT 601 12/1 Selection of screws and plugs for wall bracket (1) Included in LTT 601 045/3, Personal Installation Tool Kit. LZN 302 14 P3A-1 29 (158) © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 30: Test Equipment
LPB 112 12/1 TEMS Kit for GSM 1900 LPB 112 03/1 Mobile Station Cable LPB 112 294/5 Only for TEMS Dual Band GSM 900/1800 30 (158) LZN 302 14 P3A-1 © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 31 - Test Mobile Phone - User’s Manual for TEMS software - TEMS PC software on diskette - TTL converter - MS Cable - Connector Cable LZN 302 14 P3A-1 31 (158) © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 32: Installation Of Radio Cabinet
Positioning the Wall Bracket Mounting the Wall Bracket Mounting of Cabinet Connecting Cables Setting the Transmission Switch(es) Mounting the Fuses Mounting the Antenna P004974A Figure 25 32 (158) LZN 302 14 P3A-1 © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 33: Unpacking
Front cover Fuses and holder PCM cable Jumper cable (length = 1 m) Wall bracket HDSL module or AGW (Optional) Antenna (Optional) Radio cabinet LZN 302 14 P3A-1 33 (158) © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 34: Mounting The Radio Cabinet
45+y (min 345 mm) Wall: 255+x (min 555 mm) P004708A Figure 28 Marking out the position of the reference screw for the wall bracket 34 (158) LZN 302 14 P3A-1 © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 35 Place the wall bracket in position with the reference screw. P004709 Figure 29 Level the wall bracket, and mark the holes for the four fastening screws. P004710A Figure 30 LZN 302 14 P3A-1 35 (158) © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 36 Installation and Tests Mount the wall bracket. P004711A Figure 31 Mount the radio cabinet on the wall bracket. P004525A Figure 32 36 (158) LZN 302 14 P3A-1 © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 37 Installation and Tests Secure the radio cabinet on the wall bracket with the two screws. Tx20 P004526A Figure 33 LZN 302 14 P3A-1 37 (158) © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 38: Connecting Cables
CAUTION Sensitive components such as Integrated Circuits (IC) can be damaged by discharges of static electricity. 38 (158) LZN 302 14 P3A-1 © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 39 Installation and Tests Remove the installation box cover. Tx20 P004877A Figure 34 Connect the ESD wrist strap. P004712A Figure 35 LZN 302 14 P3A-1 39 (158) © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 40 Dismount the cable gland plate Tx20 P004718A Figure 36 Dismount the earth clamp. Tx10 P004719A Figure 37 Unplug the terminal blocks. P004720 A Figure 38 40 (158) LZN 302 14 P3A-1 © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 41 Thread on the cable gland parts. 120 ohm P004860A Figure 39 Strip the cable and the wires. Unit of measurement: mm P004861A Figure 40 LZN 302 14 P3A-1 41 (158) © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 42 75 W P004721A Figure 41 Connect the PCM cable. The 75 connection cable is supplied with the RBS 2401. Note: If another cable is used, it must be earthed. To do this, connect the PCM_OUT_N_LINE to PCM_OUT_GND. 100/120 W 75 W...
Page 43 PCM_B_OUT_GND PCM_A_OUT_GND PCM_B_OUT_N_LINE PCM_A_OUT_N_LINE PCM_B_OUT_P_LINE PCM_A_OUT_P_LINE PCM_B_IN_GND PCM_A_IN_GND PCM_B_IN_N_LINE PCM_A_IN_N_LINE PCM_B_IN_P_LINE PCM_A_IN_P_LINE...
Page 44 2,5 mm P004727A Figure 47 AC mains cable X1.1-2 X1.1-2 230 V AC 115 V AC P004728A Figure 48 AC mains terminal 44 (158) LZN 302 14 P3A-1 © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 45 Installation and Tests Remount the cable gland plate. Tx20 P004729A Figure 49 Connect the protective earth cable. Tx20 P004730A Figure 50 LZN 302 14 P3A-1 45 (158) © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 46 Installation and Tests Plug in the terminal blocks. P004731A Figure 51 Mount the earth clamp. P004732A Figure 52 46 (158) LZN 302 14 P3A-1 © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 48 5x20 115V T3,15 A 5x20 230V T2,5 A P004735A Figure 55 Insert the fuse holder in the fuse compartment. P004805A Figure 56 48 (158) LZN 302 14 P3A-1 © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 49 (If the RBS is to be tested now, perform the tests according to Section 4.3 Test of Radio Cabinet on page 51.) P004615A Figure 57 Mount the installation box cover. Tx20 P005034A Figure 58 LZN 302 14 P3A-1 49 (158) © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 50: Extension And Reconfiguration
P C M P C M P C M P004866A Figure 60 Cascade connection: Master RBS and four Extension RBSs (The 100/120 connection shown) 50 (158) LZN 302 14 P3A-1 © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 51: Test Of Radio Cabinet
PCM-B terminated with a 46.4 resistor Test of Radio Cabinet 4.3.1 User Interface Optical Indicators Fault Operational Local Mode Power On P004867A Figure 62 LZN 302 14 P3A-1 51 (158) © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 52 Symbols Showing LED Status Fault Operational Local Mode FLASHING Power On P004986A Figure 63 Switches and Connectors O M T P004738A Figure 64 52 (158) LZN 302 14 P3A-1 © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 53: Test Procedure Overview
High voltage is used in the operation of this equipment. Both direct contact with the mains power and indirect contact via damp items or moisture can be fatal. LZN 302 14 P3A-1 53 (158) © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 54 Wait for the start-up to complete. This could take 30 to 120 seconds. Fault Operational Local Mode Flashing light Power On Steady light 30-120 sec. P004855A Figure 67 54 (158) LZN 302 14 P3A-1 © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 55 The BSC simulator, BSCSimII, is shown below, but any PC with OMT software (R7C or later) will do. P004856A Figure 69 Connecting the OMT LZN 302 14 P3A-1 55 (158) © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 56 (1.5) Mbit/s, or Figure 72 on page 57 E1 (2.0 Mbit/s) Ad21x3/ BSC Sim Adapter P004917A Figure 71 Test setup for T1 (1.5) Mbit/s 56 (158) LZN 302 14 P3A-1 © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 58 Make two test calls: one to the mobile station, and one from the mobile station. If two ARFCNs are entered, make calls until both ARFCNs are displayed in the Dedicated Channel window. 58 (158) LZN 302 14 P3A-1 © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 59: Installation And Test Of Optional Agw
Installation of AGW Mount the AGW with six screws, two on each side, and two screws on the cable gland plate. Tx20 P005190A Figure 75 LZN 302 14 P3A-1 59 (158) © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 61 Installation and Tests Plug in the transmission cable. P005194A Figure 78 Strip the AC cable. max 2,5 mm P004727A Figure 79 LZN 302 14 P3A-1 61 (158) © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 62 Connect the AC cable. X1.1-2 X1.1-2 230 V AC 115 V AC P004728A Figure 81 Connect the earth cable. Tx20 P004730A Figure 82 62 (158) LZN 302 14 P3A-1 © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 63 Installation and Tests Run LAN cable through gland, and shrink on the modular connector. P005463A Figure 83 Plug in the LAN cable. P005258A Figure 84 LZN 302 14 P3A-1 63 (158) © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 64 Installation and Tests Remount the cover. P005461A Figure 85 Tighten the cable glands. P005459A Figure 86 64 (158) LZN 302 14 P3A-1 © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 65 The antenna connector not used is to be terminated with a 50 resistor. P005230A Figure 87 Remount the front cover on the AGW. P005443A Figure 88 LZN 302 14 P3A-1 65 (158) © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 67 Install the fuses. 5x20 115V T3,15 A 5x20 230V T2,5 A P004735A Figure 91 Insert the fuse holder in the fuse compartment. P005456A Figure 92 LZN 302 14 P3A-1 67 (158) © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 68: Test Of Agw
Only a qualiﬁed and authorized electrician is permitted to install or modify the electrical installation. 68 (158) LZN 302 14 P3A-1 © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 69: Installation Of Hdsl Module
Mount the module with six screws, two on each side, and two screws on the cable gland plate. Tx20 P005334A Figure 94 Remove the cover. Tx20 P005337A Figure 95 LZN 302 14 P3A-1 69 (158) © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 70 Connect the DC cable, and the transmission cables to the radio cabinet. P005336A Figure 96 Run the transmission cables from the radio cabinet through the opening up to the module. P005362A Figure 97 70 (158) LZN 302 14 P3A-1 © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 71 Run the AC cable through the cable gland. P005197A Figure 99 Connect the AC cable. X1.1-2 X1.1-2 230 V AC 115 V AC P004728A Figure 100 LZN 302 14 P3A-1 71 (158) © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 72 DS DOWNSTREAM (TOWARDS NEXT RBS) NC NOT CONNECTED P005352A Figure 102 Set the DIP-switches. The tables below show the settings of the DIP-switches in different modes. 72 (158) LZN 302 14 P3A-1 © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 73 HDSL operation in point-to-point Proprietary mode mode SW 5 Number of pairs in point-to-point 1 pair used DXX proprietary mode 2 pair used LZN 302 14 P3A-1 73 (158) © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 74 Reserved in ETSI compliant mode ON Not applicable SW 7 Modem role in point-to-point mode HDSL Master HDSL Slave SW 8 Usage of external alarm External alarms 74 (158) LZN 302 14 P3A-1 © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 75 PCM_A_OUT_GND PCM_A_OUT_GND PCM_B_OUT_GND PCM_B_OUT_GND PCM_A_OUT_N_LINE PCM_A_OUT_N_LINE PCM_B_OUT_N_LINE PCM_B_OUT_N_LINE PCM_A_OUT_P_LINE PCM_A_OUT_P_LINE PCM_B_OUT_P_LINE PCM_B_OUT_P_LINE PCM_A_IN_GND PCM_A_IN_GND PCM_B_IN_GND PCM_B_IN_GND 46.4 W 46.4 W PCM_A_IN_N_LINE PCM_A_IN_N_LINE PCM_B_IN_N_LINE PCM_B_IN_N_LINE PCM_A_IN_P_LINE PCM_A_IN_P_LINE PCM_B_IN_P_LINE PCM_B_IN_P_LINE Pair 1 Pair 1 Pair 1 Pair 1 Pair 1 Pair 1 Pair 2 Pair 2 Pair 2...
Page 76 Installation and Tests Remount the cover on the module. Tx20 P005338A Figure 104 Tighten the cable glands. P005459A Figure 105 76 (158) LZN 302 14 P3A-1 © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 77 The antenna connector not used is to be terminated with a 50 resistor. P005230A Figure 106 Remount the front cover on the HDSL module. P005443A Figure 107 LZN 302 14 P3A-1 77 (158) © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 78 1 0 0 / 1 2 0 P005457A Figure 108 Install the fuses. 5x20 115V T3,15 A 5x20 230V T2,5 A P004735A Figure 109 78 (158) LZN 302 14 P3A-1 © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 79 Installation and Tests Insert the fuse holder in the fuse compartment. P005456A Figure 110 Mount the installation box cover. Tx20 P005439A Figure 111 LZN 302 14 P3A-1 79 (158) © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 80: Test Of Hdsl Module
1. LED indicator FAULT is OFF. 2. LED indicator OPERATIONAL is ON. 3. RBS 2401 is in Remote mode (Local mode indicator OFF). 4. Backup copy of the RBS IDB saved on a diskette. 5. LED status on HDSL module/AGW checked.
Page 81: Test Record
Test Checklist Test Failed Remarks - Start-up of RBS 1 - Read IDB - Fault Status Reading - MS Test Call using simulator LZN 302 14 P3A-1 81 (158) © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 82 TNOM NODE ID (1) R7 and later TEI Value TEI Value Multidrop Stand Alone RBS 1 RBS 2 RBS 3 RBS 4 RBS 5 82 (158) LZN 302 14 P3A-1 © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 83 RBS 5 LBO-A (dB) LBO-B (dB) Antenna Installation Test Installation check Remarks Visual check Antenna system used: - RBS 2401 omnidirectional - External MS Test Call using BSC Simulator (Optional test) RX Level RX Quality TRX 1 RX-A TRX 2...
Page 84: Signatures
MS Terminated Remarks PSTN TO MS CALL Failed Remarks HDSL module 4.7.3 Signatures Responsible for Test Record Name Date Customer Acceptance Name Date 84 (158) LZN 302 14 P3A-1 © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 85: Trouble Report
The trouble report should be sent to the nearest FSC (Field Support Center) for resolution and registration in the Ericsson trouble report system MHS (Modiﬁcation Handling System). The FSC should forward the trouble report via the node MHO ERA BTS.
Page 86 Product number or Document number: R-state Site name: Site status: Site id: Trouble symptoms: Trouble Desciption: Comments: 03_0179A Figure 113 Example of ﬁlled-in trouble report 86 (158) LZN 302 14 P3A-1 © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 87 Product number or Document number: R-state Site status: Site name: Site id: Trouble symptoms: Trouble Desciption: Comments: 02_0179A Figure 114 Trouble report, blank LZN 302 14 P3A-1 87 (158) © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 88: Repair Delivery Note ''Blue Tag
The repair delivery note LZF 084 64 can be ordered from the local FSC. A description of how to ﬁll in a repair delivery note is included in chapter Maintenance. 88 (158) LZN 302 14 P3A-1 © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 89: Maintenance And Spare Parts
(1) Included in LTT 601 045/3, Personal Installation Tool Kit. Fault Localisation 5.2.1 Radio Cabinet Explanation of LED Symbols Fault Operational Local Mode FLASHING Power On P004986A Figure 116 LZN 302 14 P3A-1 89 (158) © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 90 Maintenance and Spare Parts RBS 2401 Operational Fault Operational Local Mode Power On P004867A Figure 117 “RBS 2401 operational” indicated 90 (158) LZN 302 14 P3A-1 © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 91 ﬂashing, try to reload BTS Operational software manually or replace Local Mode the cabinet. Power On P005394A IDB is corrupt. Reinstall IDB. Software fault LZN 302 14 P3A-1 91 (158) © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 92: Hdsl Module
Downstream -DC Power On P005399A 2 Pair (2p) Downstream ON Upstream -Pair 2 Upstream -Pair 1 Downstream DC Power -DC Power On P005401A 92 (158) LZN 302 14 P3A-1 © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 93 • Pair 2: Upstream link • Check transmission Line missing PAIR 2 Upstream link -Pair 2 Upstream -Pair 1 Downstream -DC Power On P005400A LZN 302 14 P3A-1 93 (158) © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 94: Agw
Section 5.3.4 on Operational page 124. Lan Link Fault P005404A LAN connection missing. Check LAN connection, or possible network problem. Operational Lan Link Fault P005403A 94 (158) LZN 302 14 P3A-1 © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 95: Corrective Action
Sensitive components such as Integrated Circuits (IC) can be damaged by discharges of static electricity. 5.3.1 Replacement of Radio Cabinet Remove the front cover. P004858A Figure 118 LZN 302 14 P3A-1 95 (158) © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 97 Maintenance and Spare Parts Switch off the AC mains power. P004888A Figure 121 Connect the ESD wrist strap. P004712A Figure 122 LZN 302 14 P3A-1 97 (158) © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 98 Remove the antenna P004897A Figure 123 Loosen the earth clamp(s). L O O P B A C K P C M A P005470A Figure 124 98 (158) LZN 302 14 P3A-1 © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 100 PC M A Tx20 P004900A Figure 127 Loosen the cable gland plate. Tx20 P004876A Figure 128 Disconnect the ESD wrist strap. P004712A Figure 129 100 (158) LZN 302 14 P3A-1 © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 101 Maintenance and Spare Parts Loosen the two cabinet securing screws. Tx20 P004953A Figure 130 Remove the faulty cabinet, and mount a new cabinet. P004901A Figure 131 LZN 302 14 P3A-1 101 (158) © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 102 Secure the cabinet by tightening the two securing screws. Tx20 P005049A Figure 132 Loosen the eight fastening screws for the installation box cover. Tx20 P005053A Figure 133 102 (158) LZN 302 14 P3A-1 © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 103 Tx20 P004718A Figure 135 Mount the cable gland plate, with its cables, on the new cabinet. Tx20 P004931A P004931A Figure 136 LZN 302 14 P3A-1 103 (158) © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 104 If the RBS is cascaded, this step must be completed within 10 seconds, otherwise the PCM line will be lost. LO O P B A C K P004932A Figure 138 104 (158) LZN 302 14 P3A-1 © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 105 Mount the fuses in the fuse holder. Be sure to use the fuses intended for the actual mains voltage. 5x20 115V T3,15 A 5x20 230V T2,5 A P004735A Figure 140 LZN 302 14 P3A-1 105 (158) © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 106 Maintenance and Spare Parts Insert the fuse holder in the fuse compartment. P004805A Figure 141 Mount the antenna. P004615A Figure 142 106 (158) LZN 302 14 P3A-1 © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 108 • TEI (Cascade) TEI= 58 TEI= 59 TEI= 60 TEI= 61 TEI= 62 P004883A Figure 146 For further information, see OMT User’s Manual. 108 (158) LZN 302 14 P3A-1 © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 110: Replacement Of Fuses In Radio Cabinet
To ﬁnish the work, continue with section Section 5.5 Concluding Routines on page 147. 5.3.2 Replacement of Fuses in Radio Cabinet Checking the Fuses Remove the front cover. P004858A Figure 150 110 (158) LZN 302 14 P3A-1 © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 111 Make sure that the AC mains power is switched on. Measure on the AC terminal to verify that the RBS has voltage. P004853A Figure 152 LZN 302 14 P3A-1 111 (158) © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 112 If the fuses are OK, replace the RBS according to instructions on Section 5.3.1 on page 95. Fuse blown Fuse OK P004871A Figure 154 112 (158) LZN 302 14 P3A-1 © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 113 Remove the blown fuse, and insert a new in the fuse holder. 5x20 115V T3,15 A 5x20 230V T2,5 A P004735A Figure 155 Insert the fuse holder in the fuse compartment. P004805A Figure 156 LZN 302 14 P3A-1 113 (158) © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 114 If not, replace the cabinet according to instructions on Section 5.3.1 on page 95. Fault Operational Local Mode Power On P004867A Figure 158 114 (158) LZN 302 14 P3A-1 © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 115 Figure 159 Mount the front cover. P004859A Figure 160 To ﬁnish the work, continue with section Section 5.5 Concluding Routines on page 147. LZN 302 14 P3A-1 115 (158) © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 116: Replacement Of Hdsl Module
Remove the front cover on the radio cabinet. P005441A Figure 161 Remove the installation box cover on the radio cabinet. Tx20 P005442A Figure 162 116 (158) LZN 302 14 P3A-1 © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 117 R e m o t Operational R e s e t Local Mode Power On P005436A Figure 163 Switch off the AC mains power. P004888A Figure 164 LZN 302 14 P3A-1 117 (158) © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 118 Maintenance and Spare Parts Connect the ESD wrist strap. P005437A Figure 165 Remove the front cover on the module. P005443A Figure 166 118 (158) LZN 302 14 P3A-1 © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 119 Remove the installation box cover on the module. Tx20 P005337A Figure 167 Disconnect the cables to the PCM terminals from the module (M1 and M2). P005471A Figure 168 LZN 302 14 P3A-1 119 (158) © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 120 Disconnect the transmission cable from the radio cabinet (depending on conﬁguration M2, M4 or M5). P005458A Figure 169 Loosen the two ﬂange plates. P005445A Figure 170 120 (158) LZN 302 14 P3A-1 © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 121 For further information on DIP-switch settings, refer to chapter Installation and Tests. Install the new HDSL module (follow the steps above in reverse order). LZN 302 14 P3A-1 121 (158) © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 123 Remount the front cover on the module. P005443A Figure 175 Remount the installation box cover on the radio cabinet. Tx20 P005439A Figure 176 LZN 302 14 P3A-1 123 (158) © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 124: Replacement Of Agw
Check the status of the RBS, see Table 18 on page 147. 5.3.4 Replacement of AGW Remove the front cover on the radio cabinet. P005441A Figure 178 124 (158) LZN 302 14 P3A-1 © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 126 Maintenance and Spare Parts Switch off the AC mains power. P004888A Figure 181 Connect the ESD wrist strap. P005437A Figure 182 126 (158) LZN 302 14 P3A-1 © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 127 Maintenance and Spare Parts Remove the front cover on the AGW. P005443A Figure 183 Remove the installation box cover on the AGW. P005192A Figure 184 LZN 302 14 P3A-1 127 (158) © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 128 Disconnect the transmission cable from the radio cabinet (E1/T1). P005434A Figure 186 Disconnect the DC cable from the AGW (7 V DC). P005433A Figure 187 128 (158) LZN 302 14 P3A-1 © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 129 Loosen the two ﬂange plates. P005445A Figure 188 Loosen the six screws, two on each side, and two on the cable gland plate. Tx20 P005432A Figure 189 LZN 302 14 P3A-1 129 (158) © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 130 P005446A Figure 190 Install the new AGW (follow the steps above in reverse order). Switch on the AC mains power. P004870A Figure 191 130 (158) LZN 302 14 P3A-1 © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 131 R e m o t R e s e t Local Mode Power On P005472A Figure 192 Remount the front cover on the AGW. P005443A Figure 193 LZN 302 14 P3A-1 131 (158) © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 132 Remount the front cover on the radio cabinet. P005440A Figure 195 Check the status of the RBS with the new AGW, refer to Table 18 on page 147. 132 (158) LZN 302 14 P3A-1 © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 133: Replacement Of Fuse For Hdsl Module And Agw
Remove the front cover on the radio cabinet. P005441A Figure 196 Remove the installation box cover on the radio cabinet. Tx20 P005442A Figure 197 LZN 302 14 P3A-1 133 (158) © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 134 R e m o t Operational R e s e t Local Mode Power On P005436A Figure 198 Switch off the AC mains power. P004887A Figure 199 134 (158) LZN 302 14 P3A-1 © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 135 Figure 200 Remove the 3.15 A fuse and replace it with a new one. Use a nose cutting plier, or similar. P005423A Figure 201 LZN 302 14 P3A-1 135 (158) © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 137 Remount the front cover on the radio cabinet. P005440A Figure 205 Check the status of the RBS, refer to Table 18 on page 147. LZN 302 14 P3A-1 137 (158) © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 138: Preventive Maintenance
Replacement of the CPI board Remove the front cover on the radio cabinet. P004858A Figure 206 Removing the front cover 138 (158) LZN 302 14 P3A-1 © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 140 Maintenance and Spare Parts Switch off the AC mains power. P004888A Figure 209 Connect the ESD wrist strap. P004712A Figure 210 140 (158) LZN 302 14 P3A-1 © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 141 Maintenance and Spare Parts Remove the protective cover. p005198a Figure 211 Disconnect the cables from the CPI board. Unscrew the distance screw. P005203A Figure 212 LZN 302 14 P3A-1 141 (158) © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 142 Mount the new CPI board and tighten all screws, including the distance screw. Connect the cables to the CPI board. Remount the protective cover. p005229a Figure 214 142 (158) LZN 302 14 P3A-1 © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 143 Mount the fuses in the fuse holder. Be sure to use the fuses intended for the actual mains amperage. 5x20 115V T3,15 A 5x20 230V T2,5 A P004735A Figure 216 LZN 302 14 P3A-1 143 (158) © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 144 Maintenance and Spare Parts Insert the fuse holder in the fuse compartment. P004805A Figure 217 Disconnect the ESD wrist strap. P004712A Figure 218 144 (158) LZN 302 14 P3A-1 © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 146 Maintenance and Spare Parts Remount the installation box cover on the radio cabinet. Tx20 P004922A Figure 221 Remount the front cover. P004859A Figure 222 146 (158) LZN 302 14 P3A-1 © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 147: Concluding Routines
1. LED indicator FAULT is OFF. 2. LED indicator OPERATIONAL is ON. 3. RBS 2401 is in Remote mode (Local mode indicator OFF). 4. Backup copy of the RBS IDB saved on a diskette. 5. LED status on HDSL module/AGW checked.
Page 148 S = Unit in service when failure occured Consecutive No. Consecutive number, numeric 12345 indicators Cellsite No. Cellsite number, alpha and HU32 numeric indicators 148 (158) LZN 302 14 P3A-1 © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 149 Receiver ERA HWC, EPA Remarks/special Used for any special instructions attentions or instructions Reference No. Received Receiver’s nam Receiving date 1995-05-16 Date (yyyy-mm-dd) LZN 302 14 P3A-1 149 (158) © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 151: Spare Parts
Recommended for customer stock (Repairable) These parts that are intended to be replaced on site, and sent to an Ericsson Repair Centre for repair. Recommended for customer stock (Not repairable) These parts that are not repairable, intended to be replaced on site and then disposed.
Page 152: Recommended Spare Parts
Maintenance and Spare Parts 5.6.2 Recommended Spare Parts Exploded View Rese t Loca l/ Rem ote P004923B Figure 225 152 (158) LZN 302 14 P3A-1 © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 153 SDF 105 35/1 Cover Touch guard for CPI SEB 114 110/1 Wall attachment Mounting bracket SDD 513 0095/1 Cover lid Cover lid for test connection. LZN 302 14 P3A-1 153 (158) © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 155: Glossary
Glossary Glossary This glossary lists abbreviations and acronyms used in texts dealing with RBS 2401. Some basic terms and acronyms needed for cross-references are included in the list. In the RBS manuals, terminology deﬁned by Ericsson GSM System is used.
Page 156 High bit rate Digital Subscriber Line HardWare HardWare Unit An HWU consists of one or more SEs. An HWU is a functional unit within the RBS. 156 (158) LZN 302 14 P3A-1 © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 157 New RBS generation Remote mode When the RU is in RU mode Remote, a link is established between the BCS and the central main RU. LZN 302 14 P3A-1 157 (158) © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...
Page 158 LAPD frame as a terminal connection endpoint within a Service Access Point (SAP). TEMS TEst Mobile Station Transceiver Group Transceiver (combined transmitter and receiver) 158 (158) LZN 302 14 P3A-1 © Ericsson Radio Systems AB 1999-11-10 — All Rights Reserved —...

Ericsson RBS 2401 User Manual

1 Introduction

2 Safety Instructions

3 Site Planning and Product Data

4 Installation and Tests

5 Maintenance and Spare Parts

6 Glossary

Quick Links

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ericsson RBS 2401

Summary of Contents for Ericsson RBS 2401

Table of Contents
