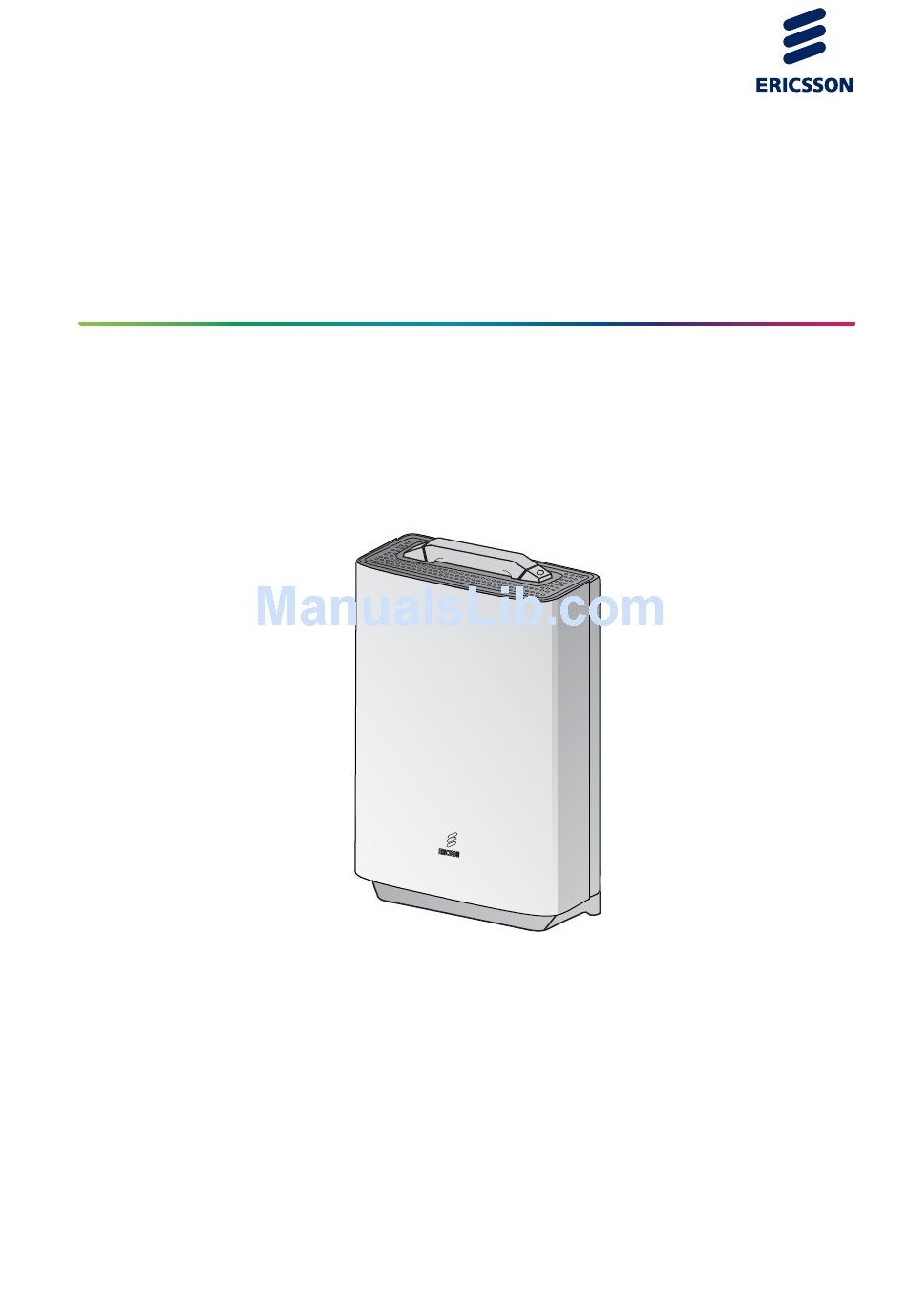

- Page 1 Installation and Interface RBS 6501 QUICK GUIDE...
- Page 2 Installation and Interface Resting the RBS Ge2152B Preparing for Installation Scanning Barcode Attaching the Front Solar Shield 55-70 mm Ge3443A Ge3811A Installing Mounting Bolts Ge2270C | 2014-05-09...
- Page 3 Installation and Interface Installing Mounting Brackets Pole Mounting with Hose Clamps Wall Mounting Ge4361A Ge4359A Using mUnit Base Mount (Optional) 15 mm 44 Nm Ge3571A Mounting the RBS Pole Intallation Wall Intallation 13 mm 18 Nm Ge2733B Ge3603A | 2014-05-09...
- Page 4 Installation and Interface Connecting the Cables Opening the Tamper-proof Cover Torx T20 GE3587B GE3445A GE3576A Connecting the Non-RF Cables Socket 13 mm toothed lock washer flat washer 24 Nm GPS ANT -48V TN B TN A GE3429A Ge3431A GE3439A Ge3431B | 2014-05-09...
- Page 5 Installation and Interface Connecting the External Antenna 18 mm 1.7 Nm r > 32 mm Ge3587A GE3442B Connecting to the Client P013452B Ge2282B Performing Concluding Routines Torx T20 1.7 Nm GE3446A Ge1105C Ge3604A | 2014-05-09...
- Page 6 Installation and Interface Optional Actions Installing the Semi-integrated Omni Antennas Low band or High band high band Ge4138 Mounting Antenna Brackets M6 screw 8 Nm Ge3573C Ge2302D Connecting Antenna Cables Antenna 1 Antenna 2 18 mm TX/RX A TX/RX B TX/RX A 1.7 Nm TX/RX B...
- Page 7 Installation and Interface Connecting RF Cables with a TX-Monitor For External Antenna For Semi-integrated Omni Antenna 18 mm 18 mm r > 32 mm ERICSSON Antenna A Antenna B 1.7 Nm 1.7 Nm TX/RX A ANT B ANT A r > 32 mm...
- Page 8 Installation and Interface Installing the Cover Plate 18 mm Torx T20 1.7 Nm GE3580B GE3580C Torx T20 2.7 Nm GE3442C Working at Height Ge2614A | 2014-05-09...
