Summary of Contents for JF Digital MX Series

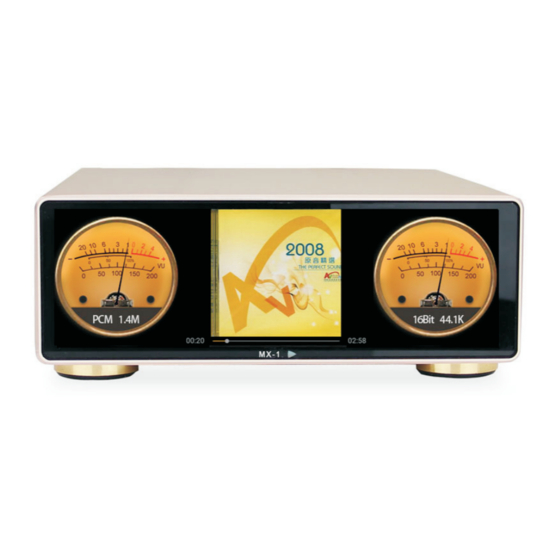

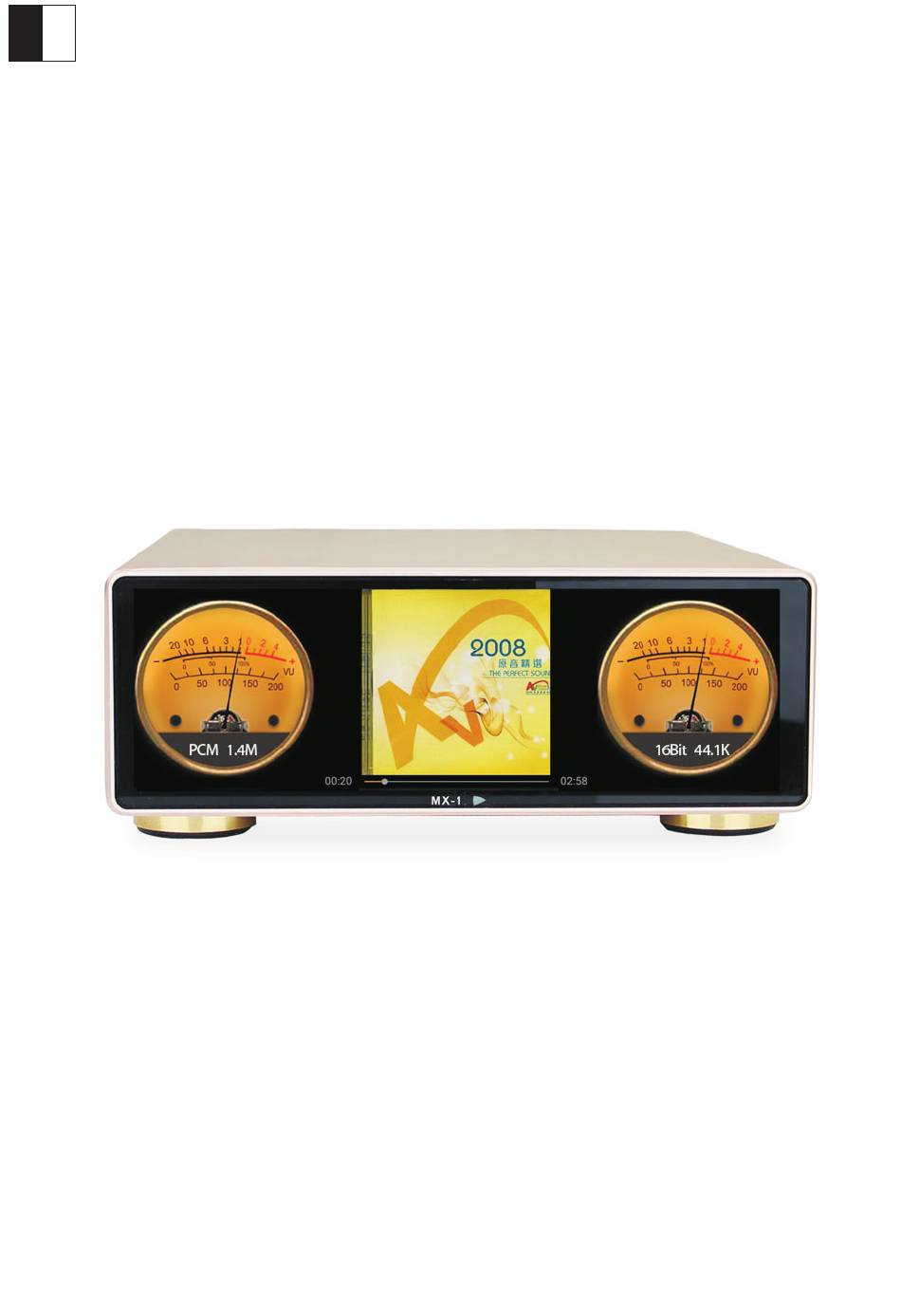

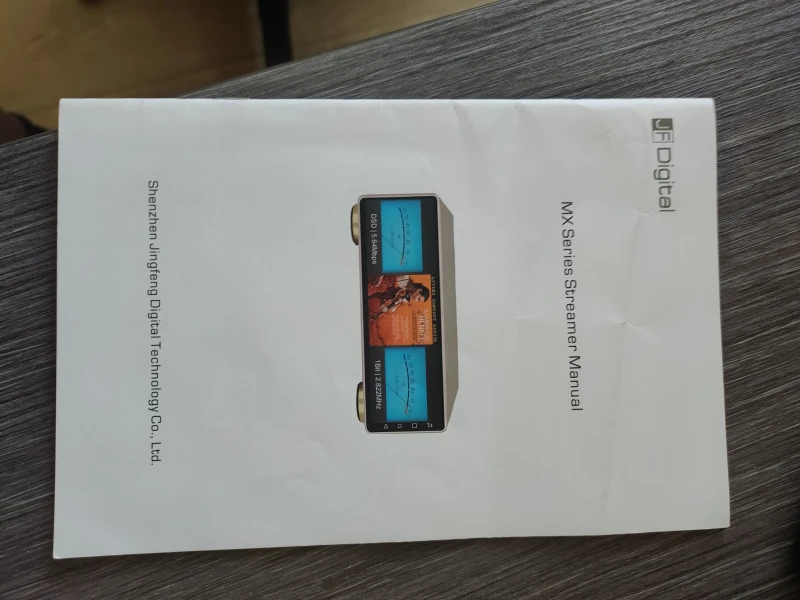

- Page 1 Digital MX Series Streamer Manual 、MX-1A、MX- (MX- Pro) Shenzhen Jingfeng Digital Technology Co., Ltd.
- Page 2 Copyright Jing Feng Digital Technology Ltd. 2019...
- Page 3 Table of Contents Getting started 1.1. Introduction to the user interface 1.2. The main screen 1.3. Custom notification bar shortcut switch 1.4. Connecting to a Wi-Fi network 1.5. Users remote upgrade Jingfeng MX player system 1.6. MX-1A, MX-2A Pro and MX-Pro differences 1.7.
- Page 4 1 Getting started 1.1 Introduction to the user interface ） Front：（MX- , MX-1A , MX-2A Pro 1. HiFiPlayer software short key 2. Android system touch button [task button] 3. Android system touch button [home button], switch back to the desktop 4.
- Page 5 MX-1A: S/P DIP OUTPUT 2 3 4 8 9 10 11 1. Power supply AC110 / 230V connector (Optional) 2. Power on / off switch button; 3. WiFi2.4G / 5G, Bluetooth 4.1 antenna connector; 4 System button: short press: screen on / off, long press: soft shutdown / restart; 100Mbps /1Gbps Ethernet interface: connect to 100Mbps /1Gbps...
- Page 6 7. USB2 audio output connector: connect external decoder with the USB cable; 8. TF card reader; 9. USB audio input connector; 10. Analog audio output connector; 11.Balanced Analog audio output connector; Note: USB audio input connector: After connecting the USB2/Audio Output connector, the music of this unit is decoded and played back through the Analog Audio Output Interface.
- Page 7 3. Click on the top right corner of the Wi-Fi interface, click on the top right corner and select Advanced to enter the advanced WLAN interface. 4. Tap the WPS button and press the WPS button on your WLAN router. Note: To use the WPS PIN method, tap the WPS PIN entry and enter the PIN code displayed on your player in the router.
- Page 8 2.2 Connect Bluetooth devices ，click to set 1. On the home screen, open the app list 2. On the Settings tab, click Wireless & networks > Turn on Bluetooth on the Bluetooth button. 3. The player will search for Bluetooth devices and list the available devices list. 4.
- Page 9 On: The coaxial, the fiber, the balance port audio are turned on, The USB audio output is turned off; Note: Close the Hi-Fi Player before you change the settings 2.6、MX-2A Pro operation instructions for the coaxial and USB input This machine does not support SPDIF input, only SPDIF output 192k. 1.
- Page 10 3. Internal storage: internal music files of this device. 4. External storage: Music files in external storage devices such as external hard disk drives, USB flash drives, and TF cards. 5. Display area: Displays each content as a list. 6.Folder Bar: Layers the music files found on this device. 7.
- Page 11 Click on the display area and drag the page to the right to pull out the sidebar. When you open the sidebar, drag the page to the left to close the page. There are five options below the sidebar, as shown in the figure below. Here is a detailed description of the options left: 1、Music Scan (file scanning);...
- Page 12 3. Settings The audio settings, there are eight options, as shown below： 1. Screen saver settings: There are three modes available, Default (default), Typical, List; 2. Language settings: There are three modes available, Simplified Chinese, Traditional Chinese, English(default); 3. Gapless play: (uninterrupted playback); 4.
- Page 13 3.2 Install other software tutorial There are two ways to install other apps, one is to connect to the network through the local machine, and the other is to install through an external storage device; 3.2.1 Local connection network download ，click on the serber browser to go to the 1.
- Page 14 Icon Specific function Features Features In the HiFiplayer mode: open the settings page. Setting button In the HiFiplayer mode, open the Sidebar sidebar interface. button Go back button. Back button Arrow keys: Under any interface, you can select up/down/left/right operations; Confirmation key: Confirm the current selection.
- Page 15 2, Go to the settings in Hi-Fi Player apk and [set - DSD mode -Native] source output. Q：Is the MX series player playing at a certain frequency? A： Go to the settings in Hi-Fi Player apk and [Setting - Fixed Sample Rate Output -...
- Page 16 Packing Instructions In the event it is necessary to repack the equipment for shipment, the equipment must be packed exactly as shown below. It is very important that the four feet are attached to the bottom of the equipment. This will ensure the proper equipment location on the bottom foam pad.
- Page 17 ·Connecting power line Be sure the plug insert firmly. Do not let allwires cross and be sure enough socket. ·Keep avoid moisture Avoid water drop in, do not use in bathroom, near water or raining area. ·Check the socket Keep check the socket, clean the dust or it will cause high temperatureand cause fire.
- Page 18 NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL. To prevent the risk of electric shock, do not remove cover or back. No user-serviceable parts inside. Information for the consumer: Disposal of your old product. Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.
- Page 19 MX-Series Specifications Specifications Configuration Operating System Android7.1 + Custom Audio Framework 4 Core CPU 2GB DDR3 64GB eMMC Screen 8-Inch Touchscreen USB-OTG, supports hard drives up to 8TB TF Card Supports TF-Cards up to 256GB WiFi/ BT 2.4/5GHz , AC + Bluetooth 4.1 Ethernet 100/1000Mbps Update...
- Page 20 www. jfdigital.com 2019.10 V1.1 Made in China...
Need help?
Do you have a question about the MX Series and is the answer not in the manual?
Questions and answers
Good Day, my MX-Pro dosn't see wav files 32-384 in MX remote app (Android phone) with SMB protocol from SATA HDD, other files FLAC 24-192 are OK, version 1.1.6, May be I have to change any settings? or other application? And also no sound by USB connection, playing but no out to DAC, should be USB cable 3.0? Note: if I make both external and exclus. USB - Off, it gives signal to DAC by USB cable 2.0 only 16-44, no native Thank U advance
To recognize WAV files (32bit/384kHz) in the MX remote app on Android using SMB protocol from a SATA HDD, ensure the following:
1. The HDD is connected via USB-OTG and supports up to 8TB.
2. SMB protocol is enabled and configured properly.
3. The MX-Pro supports WAV 64bit/768kHz, which includes 32bit/384kHz, so no additional setting is needed for format recognition.
For no sound output to the DAC via USB connection:
1. Go to “Settings – Sound – USB Audio Switch (internal/external)”.
2. Switch it ON to enable USB audio output for external decoding.
3. Ensure SPDIF is deactivated in this mode, as it becomes invalid when USB audio output is active.
If USB audio output is OFF, the DAC will not receive audio. If both SPDIF and USB outputs are active simultaneously, sound may be abnormal or silent.
This answer is automatically generated
где скачять обновление прошивки моя версия mx2apro
You can download the firmware update for the JF Digital MX Series MX2APRO from the official website of the original factory.
This answer is automatically generated
