Toro CM-658H-S Operator's Manual
  1. Manuals
  2. Brands
  3. Toro Manuals
  4. Mixer
  5. CM-658H-S
  6. Operator's manual
Toro CM-658H-S Operator's Manual

Toro CM-658H-S Operator's Manual

Concrete mixers
Hide thumbs Also See for CM-658H-S:
Table of Contents

Advertisement

Quick Links

Download this manual
Register at www.Toro.com.

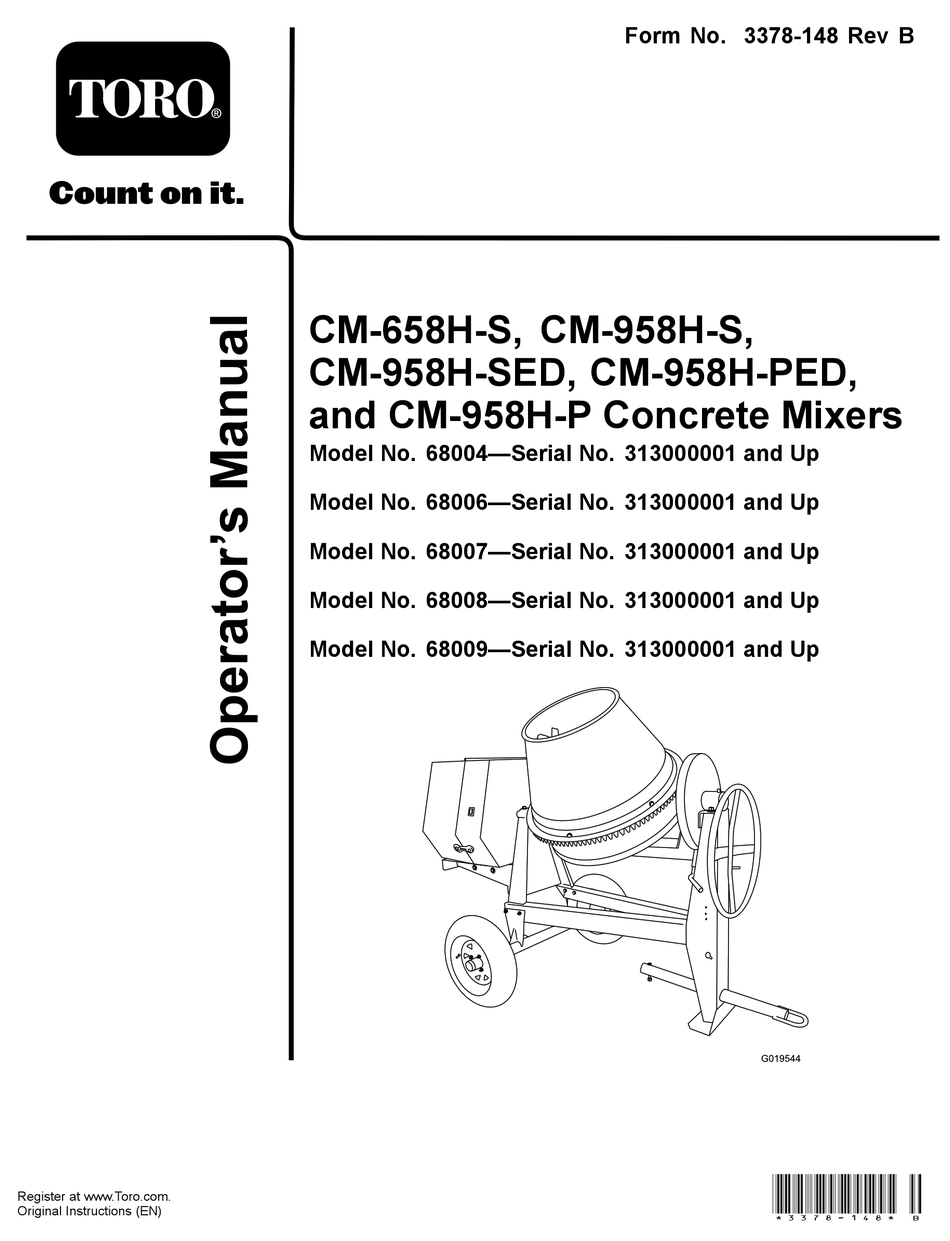

Original Instructions (EN)
CM-658H-S, CM-958H-S,
CM-958H-SED, CM-958H-PED,
and CM-958H-P Concrete Mixers
Model No. 68004—Serial No. 313000001 and Up
Model No. 68006—Serial No. 313000001 and Up
Model No. 68007—Serial No. 313000001 and Up
Model No. 68008—Serial No. 313000001 and Up
Model No. 68009—Serial No. 313000001 and Up
Form No. 3378-148 Rev B
G019544
*3378-148* B

Advertisement

Table of Contents
loading

Related Manuals for Toro CM-658H-S

Summary of Contents for Toro CM-658H-S

  • Page 1 Form No. 3378-148 Rev B CM-658H-S, CM-958H-S, CM-958H-SED, CM-958H-PED, and CM-958H-P Concrete Mixers Model No. 68004—Serial No. 313000001 and Up Model No. 68006—Serial No. 313000001 and Up Model No. 68007—Serial No. 313000001 and Up Model No. 68008—Serial No. 313000001 and Up Model No.

  • Page 2: Introduction

    You may contact Toro directly at www.Toro.com for product WARNING and accessory information, help finding a dealer, or to register your product. CALIFORNIA Whenever you need service, genuine Toro parts, or additional Proposition 65 Warning information, contact an Authorized Service Dealer or Toro...

  • Page 3: Table Of Contents

    Contents Introduction ..............2 Figure 3 Safety ................4 Safe Operating Practices........... 4 1. Safety alert symbol Safety and Instructional Decals ......... 7 Setup ................9 This manual uses 2 words to highlight information. 1 Installing the Tow Pole—Models 68004, 68006, Important calls attention to special mechanical information and 68009 ............

  • Page 4: Safety

    Safety • Never let children or untrained people operate or service the equipment. Local regulations may restrict the age of the operator. Improperly using or maintaining the machine can result • The owner/user can prevent and is responsible for in injury. To reduce the potential for injury, comply with accidents or injuries to people or damage to property.
  • Page 5 Preparation – Ensure that the lug nuts are tight and torqued properly. Become familiar with the safe operation of the equipment, – Ensure that the machine is properly secured. operator controls, and safety signs. • Use only accessories and attachments approved by the Operation manufacturer.
  • Page 6 Do not tamper with safety devices. • Chock the tires when storing the machine. • Keep all nuts, bolts, screws, and hose clamps securely tightened. Keep equipment in good condition. • Use only genuine Toro replacement parts to ensure that the original standards are maintained.

  • Page 7: Safety And Instructional Decals

    Safety and Instructional Decals Safety decals and instructions are easily visible to the operator and are located near any area of potential danger. Replace any decal that is damaged or lost. 117–2718 125–4939 1. Warning—read the 4. Toxic gas inhalation Operator’s Manual.
  • Page 8 125–4940 1. Warning 3. Engine—stop 2. Engine—run 125–8175 1. Read the Operator’s Manual for information on greasing the machine. 125–8216 1. Read the Operator’s 2. Warning—limit towing speed to less than 55 mph Manual for information on how to tow the machine. / 88 km/h.

  • Page 9: Setup

    Setup Loose Parts Use the chart below to verify that all parts have been shipped. Procedure Description Qty. Tow pole kit (sold separately) Install the tow pole. Tongue Front stabilizer leg Short bolt Install the tongue. Long bolt Safety chain Install the safety chain.

  • Page 10: Installing The Tongue-Models 68007 And 68008

    Installing the Tongue—Models 68007 and 68008 Parts needed for this procedure: G021092 Tongue Figure 6 Front stabilizer leg 1. Front stabilizer leg Short bolt Long bolt 4. Install the tongue into the opening at the front of the machine, and secure it with 6 nuts and short bolts torqued to 102 N-m (75 ft-lb);...

  • Page 11: Installing The Safety Chain

    Models 68007 and 68008 (End-dump) 1. Form a hook on the end of a bendable piece of rod or stiff wire (not included) and insert it through both keyholes in the tongue of the machine (Figure 9). Installing the Safety Chain Parts needed for this procedure: Safety chain Connecting link...

  • Page 12: Product Overview

    Product Overview G019730 Figure 10 Models 68004, 68006, and 68009 1. Engine cowl 5. Tow pole 2. Engine switch 6. Safety-chain keyholes 3. Drum 7. Drum-tilt brake G019914 4. Handwheel 8. Rubber latch Figure 11 Models 68007 and 68008 1. Tongue-mounted tow 7.

  • Page 13: Controls

    Controls Become familiar with all of the controls before you start the engine and operate the machine. Engine Switch When the engine switch on the cowl is in the Run position, it allows the engine to run. Moving the engine switch to the Stop position stops the engine.

  • Page 14: Specifications

    Recoil-start Handle Oil-level Switch To start the engine, pull the recoil-start handle (Figure 12) The oil-level switch is located inside the engine, and it will quickly to turn the engine over. The engine controls described not allow the engine to run in the event the oil level is below above must all be set correctly for the engine to start.
  • Page 15 G020836 Figure 17 1. Example of tire wear caused by underinflation G019733 Figure 16 Drum-Tilt Brake 1. Unlocked position 2. Locked position Figure 18 1. Example of tire wear caused by overinflation 4. Ensure the engine cowl is closed and latched; refer to Closing the Cowl (page 21).
  • Page 16 7. Pull the clevis pin out from the front stabilizer leg and the tongue (Figure 21). G021 Figure 19 Raising the Stabilizer Legs (Models 68007 and 68008) G019915 Models 68007 and 68008 have a front stabilizer leg and 2 rear Figure 21 stabilizer legs.
  • Page 17 Important: Apply thread-locking compound as needed in the future. G019807 Figure 23 1. Coupler handle 4. Bolt 2. Coupler 5. Hitch ball 3. Clamp G020359 2. Apply chassis grease to the socket of the coupler and Figure 22 the area of the clamp that contacts the ball. 1.
  • Page 18 Hitching a Machine with a Pintle Hitch Hitching a Machine with a Pin Hitch Coupler Coupler 1. Remove the pin from the pintle hitch and open it 1. Position the front of the pin hitch coupler so that it (Figure 24). is located between the top and bottom plates of the pin/clevis receiver hitch of the tow vehicle, and ensure that the holes are aligned (Figure 25B).

  • Page 19: Towing The Machine

    Connecting the Safety Chains to the Important: Ensure that the chain has enough slack for turning around corners when towing the Tow Vehicle machine. 1. Pull the safety chain through the slots in the keyholes, Note: For models 68004, 68006, and 68009, stow so that the lengths on each side are equal.

  • Page 20: Preparing To Use The Machine

    WARNING Towing the machine with material in the drum increases the risk of a hitch malfunction and tire failure. In addition, material could bounce out of the drum and hit other vehicles and/or people. Material in the drum increases the weight, which affects momentum and braking distance.

  • Page 21: Opening And Closing The Cowl

    8. Push the clevis pin through the front hole in the tongue 3. At the side of the machine, grasp the ring of the latch and the front stabilizer leg (Figure 30), and carefully and pull it onto the latch anchor on the rear cowl. lower the machine to the ground.
  • Page 22 Add the correct amount of fuel stabilizer/conditioner to the DANGER fuel, and follow the directions of the manufacturer. In certain conditions during fueling, static Note: Fuel stabilizer/conditioner is most effective when electricity can be released causing a spark which mixed with fresh fuel. To minimize the chance of varnish can ignite the fuel vapors.

  • Page 23: Checking The Engine Oil Level

    34). port to raise the level to the Full mark on the dipstick (Figure 35). Note: Toro Premium Engine Oil is available from your Authorized Toro Dealer. 7. Replace and secure the dipstick (Figure 35).

  • Page 24: Starting And Stopping The Engine

    Starting and Stopping the • To start a cold engine, move the choke lever to the Closed position—all the way to the left (Figure 37); Engine refer to Choke Lever (page 13). • To start a warm engine, move the choke lever in Starting the Engine the Open position—all the way to the right.

  • Page 25: Using The Machine

    Using the Machine Concrete has the following 4 basic ingredients: • Sand DANGER • Gravel This machine is capable of amputating hands. • Portland cement • Stay in the operator’s position while the machine • Water is running. Depending on the application, you can use different ratios •...
  • Page 26 Dumping the Drum Note: When dumping a batch of material, leave the engine running so that the rotating drum helps dump the material. 1. Align a wheelbarrow or similar container of adequate capacity in the path of the drum opening. 2.

  • Page 27: Maintenance

    Maintenance Important: Before performing any maintenance procedures, first stop the engine, wait 5 minutes to allow all moving parts to come to a complete stop and cool, and disconnect the spark-plug wire. Recommended Maintenance Schedule(s) Maintenance Service Maintenance Procedure Interval •...

  • Page 28: Removing And Installing The Divider Plate

    Removing and Installing the 4. Tighten the bolts with a wrench until they are secure. Divider Plate You need to remove the divider plate to provide access before performing some maintenance procedures. Removing the Divider Plate 1. Unlatch and open the cowl; refer to Opening the Cowl (page 21).

  • Page 29: Lubrication

    Lubrication Engine Maintenance Servicing the Air Cleaner Lubricating the Machine Service Interval: Before each use or daily—Inspect the Service Interval: Monthly—Grease the trunnions and the air-cleaner elements. drum spindle. Every 50 hours—Clean the air-cleaner elements. Clean 1. Clean around each grease fitting with a rag, and lift the them more frequently in dusty operating conditions.

  • Page 30: Changing The Engine Oil

    Changing the Engine Oil Service Interval: After the first 25 hours Every 100 hours Toro Premium Engine Oil is available from your Authorized Toro Dealer. Important: Use 4-cycle engine oil that meets or exceeds the requirements for API service category SJ, SL, SM, or higher .

  • Page 31: Servicing The Spark Plug

    Removing the Spark Plug 5. When the oil has drained completely, install the drain plug with a new washer (Figure 45). 1. Park the machine on a level surface and turn off the engine; refer to Stopping the Engine (page 24). Note: Dispose of the used oil at a certified recycling center.
  • Page 32 Checking the Spark Plug • When installing an in-service spark plug, tighten the plug an additional 1/8 to 1/4 turn. Note: Use a gapping tool/feeler gauge to check and adjust • When installing a new spark plug, tighten the plug the gap.

  • Page 33: Servicing The Spark Arrester

    Cleaning the Spark Arrester Service Interval: Every 100 hours Note: A spark arrester is available as an option. If you require a spark arrester, contact your Authorized Toro Service Dealer. Genuine Toro spark arresters are approved by the USDA Forestry Service.

  • Page 34: Fuel System Maintenance

    Fuel System 9. Align the O-ring in to the groove in the sediment cup and install the sediment cup to fuel valve housing. Maintenance 10. Move the lever of the fuel valve to the On position (all the way to the right) and check for leaks. If it leaks, replace the O-ring.

  • Page 35: Belt Maintenance

    Belt Maintenance 3. With your finger, push on the belt with 6.8 kg (15 lb) of pressure, midway between the pulleys (Figure 53). 4. Measure the distance from the belt to the straightedge. Servicing the Drive Belts The distance should be approximately 1 cm (13/32 inch);...

  • Page 36: Replacing The Drive Belts

    Replacing the Drive Belts Cleaning Service Interval: Every 100 hours Cleaning the Machine Note: The machine has 2 drive belts. Remember to buy 2 belts for replacement. Regular cleaning and washing with mild detergent and water 1. Complete steps 1 through 3 in Adjusting the Drive-belt will increase the life span of the machine.

  • Page 37: Storage

    10. Paint all scratched or bare metal surfaces with paint Storing the Machine available from your Authorized Toro Dealer. For storage over 30 days, prepare the machine as follows: 11. Store the machine in a clean, dry garage or storage area.

  • Page 38: Troubleshooting

    Troubleshooting Problem Possible Cause Corrective Action The engine will not start. 1. The engine switch on the cowl is in the 1. Press the engine switch to the Run Stop position. position. 2. The fuel valve is in the Off position. 2.
  • Page 39 Notes:...
  • Page 40 Toro importer. If all other remedies fail, you may contact us at Toro Warranty Company. Australian Consumer Law: Australian customers will find details relating to the Australian Consumer Law either inside the box or at your local Toro Dealer.
