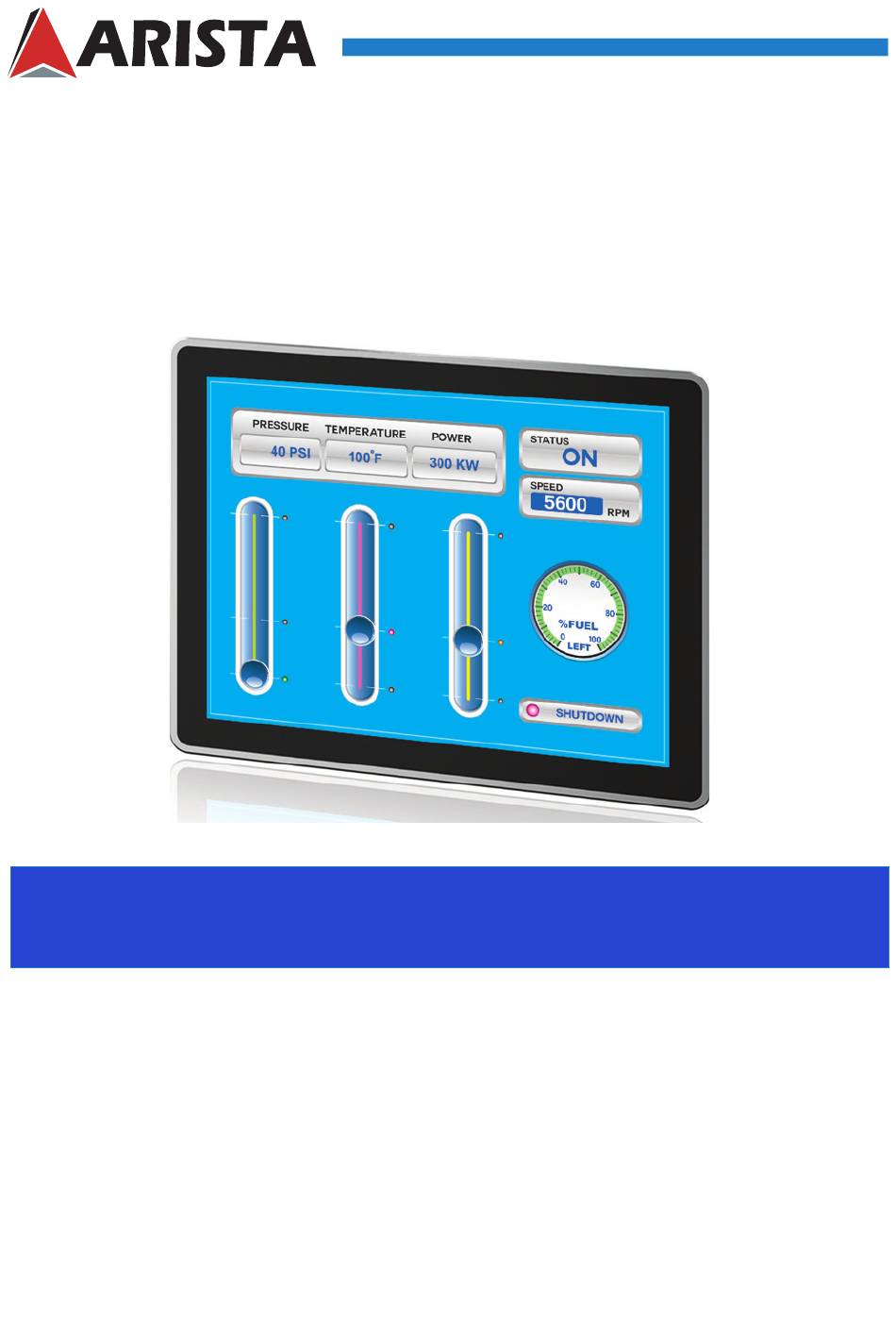

ARP-3800AP-E01 Series Fanless Touch Panel Computer
ARP-3815AP-E01
This manual is a user guide for ARP-3800AP-E01 Series Fanless Touch Panel Computer. ARP-
3800AP-E01 Series of touch panel computers are industrial level all in one computers, delivering high
performance while working on low consumption.
Please read carefully the information below to get familiarity with safety installation techniques and
precautions. For any questions or support, please call us at 1.877.827.4782 Monday through Friday
8:00am to 5:00PM Pacific Time.
ARP-3817AP-E01 ARP-3819AP-E01
ARP-3821AP-E01
USER MANUAL
ARP-3824AP-E01
Publication date: 2016/09/22
Version No.: V2.1
Advertisement
Table of Contents
Related Manuals for Arista ARP-3800AP-E01 Series
Summary of Contents for Arista ARP-3800AP-E01 Series
- Page 1 ARP-3821AP-E01 ARP-3824AP-E01 USER MANUAL This manual is a user guide for ARP-3800AP-E01 Series Fanless Touch Panel Computer. ARP- 3800AP-E01 Series of touch panel computers are industrial level all in one computers, delivering high performance while working on low consumption. Please read carefully the information below to get familiarity with safety installation techniques and precautions.
-
Page 2: Product Safety Precautions
Ensure that the power source is grounded correctly. • Unplug the ARP-3800AP-E01 Series touch panel computer if cleaning is needed. The Important: Read all the contents of this instruction manual carefully before you first use the ARP-3800AP-E01 Series touch panel computer. -
Page 3: Table Of Contents
Contents Contents Product safety precautions ....................2 Contents ..........................3 Chapter 1 Welcome ......................4 Features............................4 Product specifications ........................5 Unpacking ............................7 Chapter 2 Basics.........................8 Product overview.......................8 Physical dimensions ........................10 Chapter 3 Connections ....................15 Pins in the Serial port( COM1~COM4)..................16 Pins in the VGA port........................17 Pins in the GPIO port......................18 Pins in the DC-IN power connector....................19 Mounting the computer....................20... -
Page 4: Chapter 1 Welcome
Features • 15”/17”/19”/21.5”/24” LCD • Projected Capacitive Touch Screen • Aluminum or Stainless Steel Flush Bezel • Powered by Intel Low Power E3845 1.91GHz Quad Core Atom CPU • Up to 8GB DDR3 Memory • SATA DOM, 2.5” HDD, 2.5” SSD •... -
Page 5: Product Specifications
Product specifications... -
Page 7: Unpacking
Before unpacking the unit, inspect the shipped carton for damage. If any visible damage is found, contact the manufacturer or authorized seller for assistance. Otherwise, proceed t ures with unpacking. ARP-3800AP-E01 Series touch panel computer DIN-Rail AC/DC power supply x1 AC power cable x1 Driver CD Rom x1... -
Page 8: Chapter 2 Basics
Chapter 2 Basics Product overview ARP-3800AP-E01 Series Touch Panel Computer Front Side Bottom... - Page 9 1. PS/2 Keyboard connector 8. CFAST card slot 2. PS/2 Mouse connector 9. USB port 3. USB ports 10. Power LED(up)/HDD LED(down) indicator 4. HDMI port 11. 24V DC-IN power connector 5. GPIO port 12. Battery power input connector 6. RJ45 LAN port 13.
-
Page 10: Physical Dimensions
Physical dimension The diagrams below show the physical and specific dimensions of the ARP-3800AP-E01 Series touch panel computer. For ARP-3815AP-E01 358.0mm 14.09" 79.5mm 3.13" 260.4mm 282.0mm 10.25" 11.10" 140.5mm 5.53" 336.4mm 13.24" 201.4mm 7.93" 29.8mm 1.17" 110.0mm 47.2mm 4.33" 1.86" 54.5mm 2.15"... - Page 11 For ARP-3817AP-E01 393.0mm 112.7mm 15.47" 4.44" 56.2mm 2.21" 122.5mm 4.82" 325.0mm 303.4mm 12.80" 11.94" 140.5mm 5.53" 31.0mm 7.80" 29.8mm 1.17" 201.4mm 7.93" 371.4mm 14.62"...
- Page 12 For ARP-3819AP-E01 428.0mm 16.85" 150.5mm 5.93" 353.0mm 331.4mm 13.90" 13.05" 140.5mm 5.53" 406.4mm 16.0" 201.4mm 7.93" 29.8mm 1.17" 113.2mm 49.9mm 57.7mm 4.46" 1.96" 2.27"...
- Page 13 For ARP-3821AP-E01 531.0mm 20.91" 122.1mm 4.81" 303.0mm 328.8mm 11.93" 12.94" 140.5mm 5.53" 505.2mm 19.89" 201.4mm 7.93" 29.8mm 1.17" 113.4mm 48.9mm 57.9mm 4.46" 1.93" 2.28"...
- Page 14 For ARP-3824AP-E01 584.7mm 23.02" 165.2mm 6.50" 346.1mm 367.7mm 13.63" 14.48" 140.5mm 5.53" 336.4mm 13.24" 201.4mm 7.93" 29.8mm 1.17" 111.0mm 46.9mm 55.5mm 4.37" 1.85" 2.19" L(Overall Length) W(Overall width) H(Overall Height) ARP-3815AP-E01 14.09”/358.0mm 11.10”/282.0mm 4.33”/110.0mm ARP-3817AP-E01 15.47”/393.0mm 12.80”/325.0mm 4.44”/112.7mm ARP-3819AP-E01 16.85”/428.0mm 13.90”/353.0mm 4.46”/113.2mm ARP-3821AP-E01...
-
Page 15: Chapter 3 Connections
Chapter 3 Connections This section describes the connections/connectors available on the ARP-3800AP-E01 Series touch panel computer. Connectors are located at the bottom of ARP-3800AP-E01 Series touch panel computer. -
Page 16: Pins In The Serial Port(Com1~Com4)
Pins in the serial port(COM1~COM4) 1 2 3 4 5 6 7 8 9 Pin NO. Definition(RS-232 mode) Definition(RS-422/RS-485 mode) DCD, data carrier detect TX-, Transmit data ground (RS422/RS485) RXD, Receive data TX+, Receive data(RS422/RS485) TXD, Transmit data RX+, Transmit data (RS422) DTR, Data terminal ready RX-, Receive data ground (RS422) GND, Signal ground... -
Page 17: Pins In The Vga Port
Pins in the VGA port Pin NO. Pin Assignment Definition VGA R VGA Red signal VGA G VGA Green signal VGA B VGA Blue signal No connection Ground Ground Ground Ground No connection Ground No connection CRT DDC Data The data of display data channel VGA HS VGA H-Sync signal VGA VS... -
Page 18: Pins In The Gpio Port
Pins in the GPIO port 9 10 The GPIO (General Purpose Input/Output) port is optional and can be used as expansion input or output ports by software routines as needed. Pin NO. Pin Assignment Definition +V5S +V5S I/O_BUS_GPIO1 GPIO input I/O_BUS_GPIO2 GPIO output- I/O_BUS_GPIO3... -
Page 19: Pins In The Dc-In Power Connector
Pins in the DC-IN power connector Pin NO. Definition... -
Page 20: Mounting The Computer
Mounting the computer 1. Panel mounting The ARP-3800AP-E01 Series touch panel computer can be placed on a shelf, table, or mounted onto a wall or board. To mount it onto a wall or board, you will require the mounting bolts and screws found in the accessory box. - Page 21 Step3. Tighten the "M4" sized mounting screws into the wall and board through the mounting bolts and mounting holes and make sure the ARP-3800AP-E01 Series touch panel computer is correctly and securely seated onto the board or wall.
-
Page 22: Connecting To A Display
1. Connecting to a display through VGA port • Connect one end of the VGA cable to the VGA port of the ARP-3800AP-E01 Series touch panel computer. Connect the other end of the VGA cable to the VGA port of a display. -
Page 23: Connecting To Keyboard Or Mouse
Connecting to keyboard and mouse • Insert a USB keyboard and a USB mouse(not supplied) to ARP-3800AP-E01 Series touch panel computer for controlling on the computer(Figure 1). You can also insert a PS2 type keyboard or a PS2 type mouse(not supplied) to your computer(Figure 2). USB port ARP-3819AP-E01... -
Page 24: Connecting To Network
Connecting to network • Connect one end of the RJ45 LAN cable to the LAN port of the ARP-3800AP-E01 Series touch panel computer. Connect the other end of the RJ45 LAN cable to the LAN port of a modem. ARP-3819AP-E01 Modem LAN port LAN port... -
Page 25: Connecting The Power Supply
• Connect one end of the 72W DIN-Rail AC/DC power supply(Only ARP-3824AP-E01 uses150W DIN-Rail AC/DC power supply.) to the DC-in(24V) power connector of the ARP-3800AP-E01 Series touch panel computer. Connect the other end of DIN-Rail AC/ DC power supply to an AC outlet. - Page 26 The AC to DC 24V power supply provided with the ARP-3800AP-E01 Series touch panel computer does not have environmental protection. In order to meet a degree of protection, the power supply has to be installed in a specific IP rating enclosure. Step1 Step2 Step3 Industrial Enclosure Screws DIN-rail Power supply In order to correctly install the power supply, the specific dimensions for the power supply are indicated in the diagram below.
-
Page 27: Connecting The Battery Power
Use battery power when you’re away from a power AC outlet. Follow the steps below to connect to the battery. The additional battery are optional and can be purchased serparately through Arista Corporation. • Connect one end of the battery cable to the Battery power input connector of the ARP-3800AP -E01 Series touch panel computer. -
Page 28: Installing Memory Module/Expansion Card
ARP-3800AP-E01 Series touch panel computer. 1. As shown in the figure below, remove the screws on the sides of the bottom cover. 2. Then remove the bottom cover of the ARP-3800AP-E01 Series touch panel computer, you will find the DDR3 SO-DIMM slot, MINI_PCIE1 slot and PCIE x 16 slot. The ARP-3800AP-E01 Series touch panel computer comes with the B059... - Page 29 2. Insert the DIMM into the slot at 45-degree angle, then push it in until the golden finger on the DIMM is deeply inserted into the DIMM slot. 3. Firmly press the DIMM down to lock the module in place. Removing the memory module Follow these steps to remove the DIMM. 1. Use your finger to simply push away the retaining clips on both sides of the DIMM outward to unlock the DIMM.
- Page 30 Installing expansion card The MINI-PCIE slot supports PCIE cards such as a Wi-Fi LAN card, mSATA SSD, SCSI card, USBcard, and other cards that comply with PCIE specifications. The following figure shows a Wi-Fi LAN card installed on the MINI-PCIE slot. Follow the steps outlined below to install a Wi-Fi LAN card. 1. Locate the Wi-Fi LAN card on MINI-PCIE slot and align the notch on the card with the key on the slot.
-
Page 31: Chapter 4 Bios Setup
Chapter 4 BIOS Setup Introduction The computer uses the latest “American Megatrends Inc. ” BIOS with support for Windows Plug and Play. The CMOS chip on the motherboard contains the ROM setup instructions for configuring the built-in motherboard BIOS. The BIOS (Basic Input and Output System) Setup Utility displays the system’s configuration status and provides you with options to set system parameters. -
Page 32: Entering The Setup
Entering the Setup When you power on the system, BIOS enters the Power-On Self Test (POST) routines. POST is a series of built-in diagnostics performed by the BIOS. After the POST routines are completed, the following message appears: Press the Delete key to access BIOS Setup Utility. Resetting the default CMOS values When powering on for the first time, the POST screen may show a “CMOS Settings Wrong”... - Page 33 The default BIOS setting for this built-in motherboard apply for most conditions with optimum performance. We do not suggest users change the default values in the BIOS setup and take no responsibility to any damage caused by changing the BIOS settings. BIOS navigation keys The BIOS navigation keys are listed below: FUNCTION...
-
Page 34: Main Menu
Main Menu When you enter the BIOS SETUP UTILITY, the Main menu will appear and display the system overview. You can set the system clock in this main menu. BIOS Information This item shows the current BIOS information, including BIOS Version, Build date and time. EC Information This item shows the current EC information, including EC Version. -
Page 35: Advanced Menu
Advanced Menu This section allows you to configure and improve your system and allows you to set up some system features according to your preference. Important: The default valu Be cautious when changing the setting of the Advanced menu items. Incorrect field values can cause the system to malfunction. - Page 36 FB1216 Super IO Configuration Scroll to this item and press <Enter> to view the following screen: Serial Port1/Port2/Port3/Port4 Configuration Serial port1/port2/port3/port4(Enabled) Use this option to enable or disable the use of serial ports. Change settings(Auto) Select an optimal settings for Super IO device. Type select(RS232) Select serial port type(RS232,RS422,RS485).
- Page 37 S5 RTC Wake Settings Scroll to this item and press <Enter> to view the following screen: Wake system from S5(Disabled) Use this item to enable or disable system wake on alarm event. Select Fixed Time. system will wake on the hr::min::sec specified. Select Dynamic Time, system will wake on the current time + Increase minute(s).
- Page 38 CPU Configuration Scroll to this item and press <Enter> to view the following screen: Socket 0 CPU information Use this item to view Socket 0 CPU information. Intel Virtualization Technology(Enabled) Most of the time, hardware virtualization technology extensions should be enabled in motherboard BIOS in order to run recent OS and applications.
- Page 39 IDE Configuration Scroll to this item and press <Enter> to view the following screen: SATA Port1~2 dynamically detect whether there are SATA devices on motherboard. If devices are connected with the corresponding ports, then it will display the SATA device type. Otherwise, it will display “Not Present”.
- Page 40 Miscellaneous Configuration Scroll to this item and press <Enter> to view the following screen: OS selection (Windows 7) Use this option to select the operating system for the computer. Press <Esc> to return to the Advanced Menu screen.
- Page 41 USB Configuration Scroll to this item and press <Enter> to view the following screen: Legacy USB Support (Enabled) Use this option to enable USB mouse and USB keyboard support. ENABLED option enables legacy USB support. AUTO option disables legacy support if no USB devices are connected. DISABLED option will keep USB devices available only for EFI applications.
-
Page 42: Chipset Menu
Chipset Menu The chipset menu allows you to change the settings for the Host Bridge chipset, South Bridge chipset and other system.Since the features in this section are related to the chipset on the CPU board and are completely optimized, you are not recommended to change the default settings in this setup table unless you are well oriented with the chipset features. - Page 43 LCD Control Scroll to this item and press <Enter> to view the following screen: Primary IGFx Boot display (VBIOS Default) Select the video device which will be activated during POST. This has no effect if external graphics present. Secondary boot display selection will appear based on your selection. VGA modes will be supported only on primary display.
- Page 44 South Bridge Scroll to this item and press <Enter> to view the following screen: Azalia HD Audio Use this option to control detection of the Azalia device. Azalia controller(Enabled) Disabled: Azalia will be unconditionally disabled. Enabled: Azalia will be unconditionally enabled. Auto: Azalia will enabled if present disabled otherwise.
-
Page 45: Security Menu
Security Menu The Security Menu allows you to set Administrator and User password. If ONLY the Administrator’s password is set, then this only limits access to setup and is only asked for when entering Setup. If ONLY the user’s password is set, then this is a power on password and must be entered to boot or enter Setup. -
Page 46: Boot Menu
Boot Menu The Boot Menu allows you to change the system boot options. Bootup Num-lock state (ON) If this item is set to “On”, it will automatically activate the Numeric Lock funcition after boot-up. UPS FUNCTION (OFF) This item allows you to configure the Uninterruptible Power System(UPS) setting. Set this item to “OFF”, you can still work well with the system unit using battery power when sudden power lost occurs. -
Page 47: Save&Exit Menu
Save & Exit Menu The Save & Exit Menu allows you to save the changes that you have made in the Setup Utility and exit the Setup Utility. Save Changes and Exit When you select this option, it will pop-out the following message, “Save configuration changes and exit setup?”... -
Page 48: Chapter 5 Appendix
• Keep the ARP-3800AP-E01 Series touch panel computer in a dry, clean space. Minimize exposure to dust - don’t get the power switches or other controls wet. • If the ARP-3800AP-E01 Series touch panel computer gets wet, power it off immediately. -
Page 49: Product Limited Warranty
North America region. 1) Limited Warranty Coverage • If a product does not work properly because of a defect in materials or workmanship, Arista Corporation will, for the length of a period of three years, starting with the date of the original purchase (invoice date), at its discretion, either repair your product with new or refurbished parts, or replace it with a new or refurbished product. - Page 50 Any damages will be assessed and the cost of repair or refurbishment will be deducted from the credit issued. No Credit DOA: No credit will be given to the customer for DOA products received by Arista beyond 30 calendar days after the invoice date. No credit will be given to all non-cancellable,...
- Page 51 • In cases of transportation damage, the customer is responsible for filing any and all claims with the shipping carrier. • To avoid any potential risk that an RMA product is lost or damaged while in transit to Arista, it is recommended that the customer insures and declares the full value of the RMA product.
- Page 52 Products will not be accepted by Arista Corporation if not accompanied by a valid RMA number, which must be clearly marked on the outside of the package. Arista reserves the rights to return any RMA product received that does not comply with the information given on the original Return Material Authorization (RMA) request, such as: • Invalid RMA number...
-
Page 53: Disposal And Recycling Information
Disposal and Recycling Information Your ARP-3800AP-E01 Series touch panel computer must be disposed of properly according to local laws and regulations. When your computer reaches the end of its life cycle, contact your local authorities to know about recycling options. - Page 54 Talk to us. We listen. Arista Corporation 40675 Encyclopedia Circle, Fremont, CA 94538 U.S.A. Tel: (510) 226-1800 Fax: (510) 226-1890 http://www.goarista.com...
