Overview
SOLARIMMERSION IV is an intelligent surplus power control system for your PV system. It diverts
surplus power which would normally be exported to the grid. When the unit is connected to an
immersion heater, it can heat water for free using the surplus power.
SOLARIMMERSION IV ‐ Highlights:
 Heats water using surplus power from all sorts of micro‐generation systems (wind turbines,
hydro power)
 Keeps exported power as close to zero as possible by adjusting power levels to the immersion
heater.
 Single sensor clip.
 LCD display for easy control and management of the unit
 No need to change immersion heater or the tank.
 No manual intervention required to use surplus power.
 Built‐in override and boost timer functions to an immersion heater manually if required.
 Low threshold levels meaning, less wasted power.
 Diverts as little as 20W of surplus power
 Built‐in multifunction relay for Second load.
 Internal thermal protection
 Multiple loads available
2. Technical Specifications

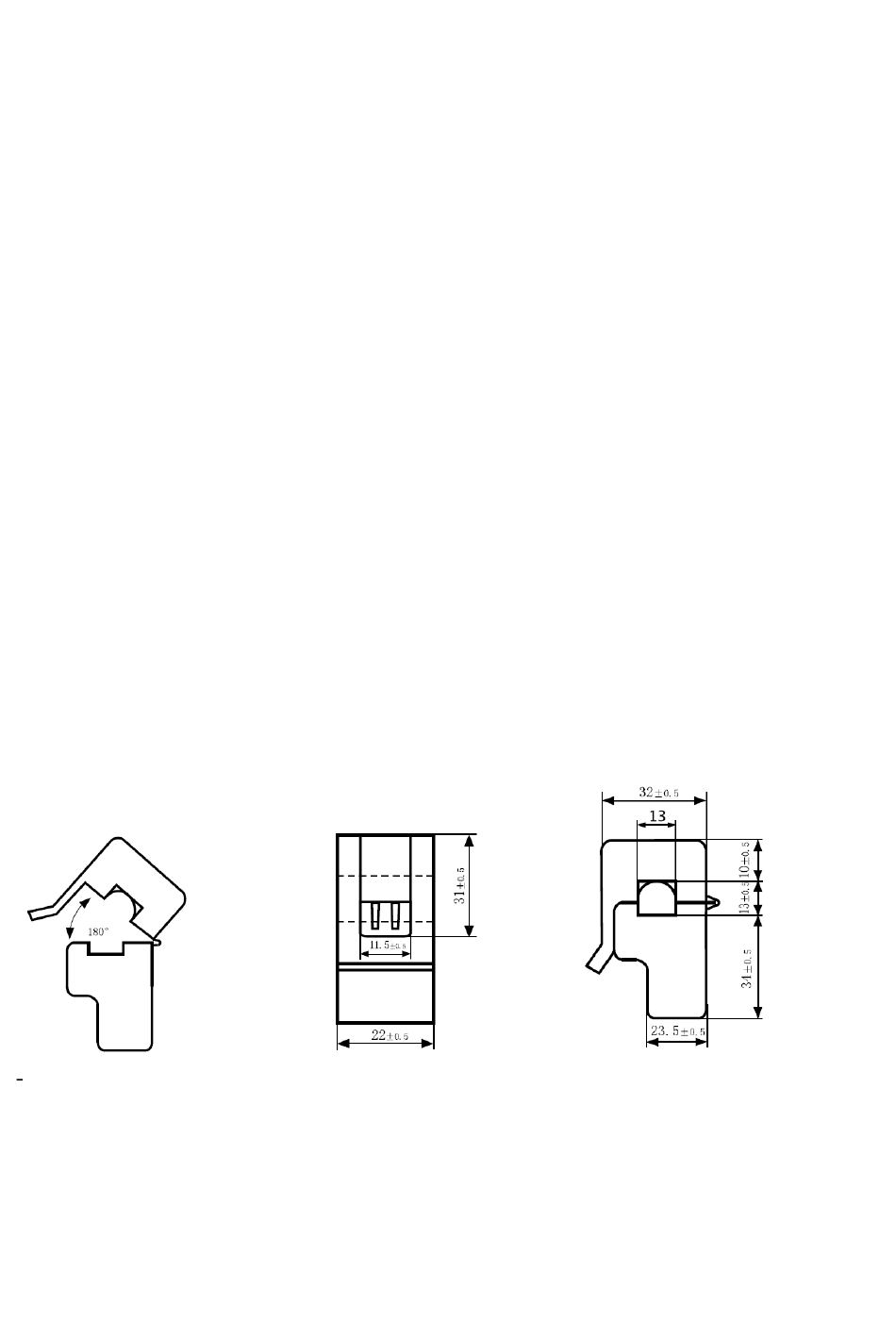

Non Intrusive current transformer
Input range: 0 ‐ 100Aac, 50Hz. (2000:1 / 100A = 50mA)
Over range: 200% continuous
Isolation 2500V RMS. Input / Output / Case
