SOLARIMMERSION Mark IV Advanced Installation Manual page 13

5. Using Menu Controls & Setting Time

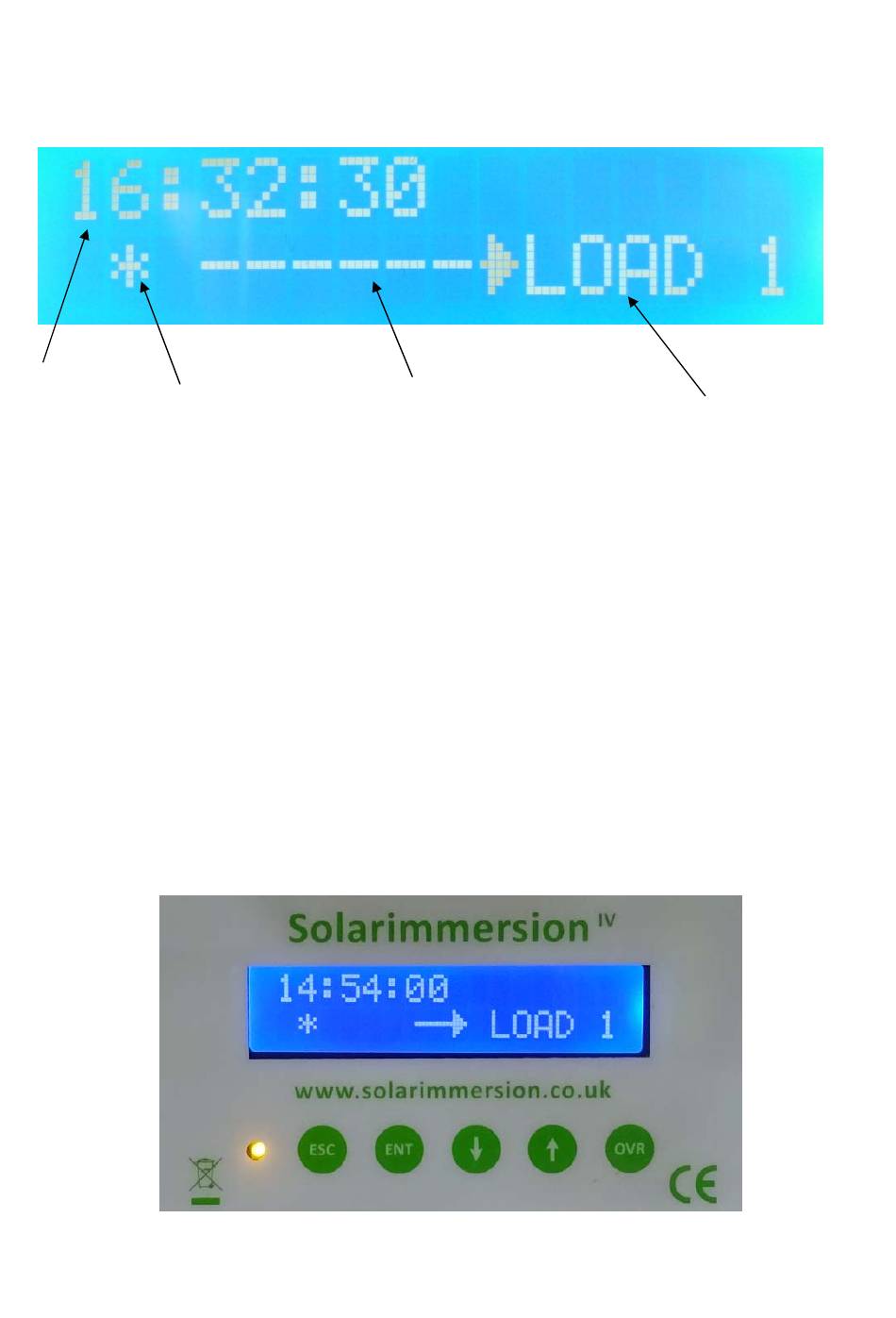

When you have turned on the unit the default home screen will appear as shown in the imagine
below. (This is the screen you will return to every time you press the "ESC" button)
Current time
Sun symbol constant ‐
Surplus Energy available,
divert active.
Sun symbol Blinking ‐
No surplus available,
divert on hold.
There are FIVE control buttons underneath the LCD screen:
Override – (OVR) to activate the Override function (Hold for 2 seconds to activate)
Up (↑) – to navigate through the Menu/Sub Menu options or to increase values
Down (↓) – to navigate through the Menu/Sub Menu options or to decrease values
Enter – (ENT) to select a Menu option or save new values
Escape – (ESC) to cancel an action and return to the default home screen
Yellow LED ‐ Power ON indicator
Load diverting indicator
13
Current Load
This will be "LOAD
2"when the secondary
load is activated.
