FEIN retains all rights of disposal, such as copying and circulation.

Repair instructions

AFMM 14

C-SC_CSSM

2012.08

1/25

Table of Contents

Need help?

Do you have a question about the AFMM 14 and is the answer not in the manual?

Questions and answers

Summary of Contents for Fein AFMM 14

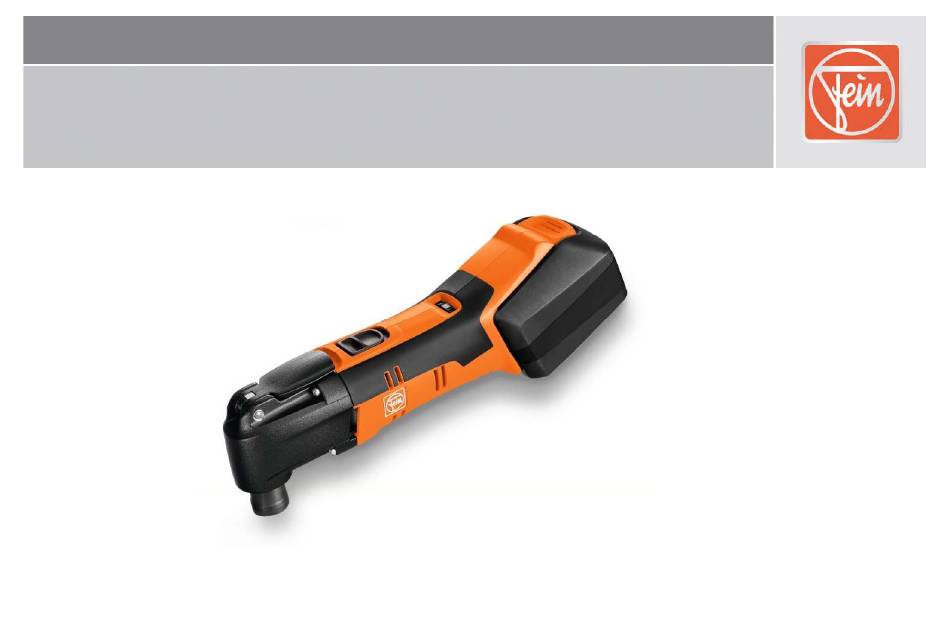

Page 1 Repair instructions AFMM 14 All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM 2012.08 1/25 FEIN retains all rights of disposal, such as copying and circulation.
Page 2: Table Of Contents
Provisions Tools required Tools required Lubricants and auxiliary substances required Disassembly Assembly Connection diagram All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM 2012.08 2/25 FEIN retains all rights of disposal, such as copying and circulation.
Page 3: Models Described
These instructions describe how to repair the following models: ib h i th f ll Model Order no. AFMM 14 712909 All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM 2012.08 3/25 FEIN retains all rights of disposal, such as copying and circulation.
Page 4: Technical Data
Up to date test data for all models can be found on the FEIN Extranet. Lubricants A list of lubricants and container sizes available from FEIN can be found on the FEIN Extranet. Lists of spare parts Lists of spare parts and exploded views are available online at www.fein.com All rights reserved by FEIN, especially in case of industrial rights registration.
Page 5: Provisions
The German Equipment and Product Safety Act applies for correct use. d P d t S f t A t Outside Germany, the regulations applicable in the relevant country must be observed! All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM 2012.08 5/25...
Page 6: Tools Required
6 41 22 117 000 Slide gauge Press-in fixture 6 41 22 108 00 0 All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM 2012.08 6/25 FEIN retains all rights of disposal, such as copying and circulation.
Page 7: Lubricants And Auxiliary Substances Required
0 40 101 0100 4 12 g Finish spray wax 6 37 260 2501 0 All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM 2012.08 7/25 FEIN retains all rights of disposal, such as copying and circulation.
Page 8: Disassembly
Repair instructions 6. Disassembly Press releasing button and pull out battery. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM 2012.08 8/25 FEIN retains all rights of disposal, such as copying and circulation.
Page 9 3. Unscrew locking spring. 4 Drive out bushes 4. Drive out bushes. Tool: -Punch -Torx 15 screwdriver All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM 2012.08 9/25 FEIN retains all rights of disposal, such as copying and circulation.
Page 10 The parts shown are available separately as spare parts The parts shown are available separately as spare parts. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM 2012.08 10/25...
Page 11 Remove control rod and spring. -Torx 15 screwdriver Remove electronics from motor housing together with motor and gearbox head. -Blade All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM 2012.08 11/25 FEIN retains all rights of disposal, such as copying and circulation.
Page 12 The cup on the new electronics prevents the motor s rotating magnet from damaging the motor cable. Tool: -Flat nose pliers All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM 2012.08 12/25 FEIN retains all rights of disposal, such as copying and circulation.
Page 13 -Extractor tool 6 41 14 033 000 5. Twist upper part of extractor tool against lower part and pull motor off gearbox head. -Hot air gun All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM 2012.08 13/25 FEIN retains all rights of disposal, such as copying and circulation.
Page 14 Repair instructions 6. Disassembly The motor is only available as a spare part as shown in the right-hand photo. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM 2012.08 14/25 FEIN retains all rights of disposal, such as copying and circulation.
Page 15: Assembly
The motor can only be pressed over the outer edge of the motor housing, otherwise the shaft will move and the motor will vibrate later on. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM 2012.08 15/25 FEIN retains all rights of disposal, such as copying and circulation.
Page 16 7. Assembly 1. Slide rubber ring true to size onto motor. Tool: -Slide gauge All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM 2012.08 16/25 FEIN retains all rights of disposal, such as copying and circulation.
Page 17 Repair instructions 7. Assembly 1. Connect motor cable on electronics. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM 2012.08 17/25 FEIN retains all rights of disposal, such as copying and circulation.
Page 18 The recess on the motor must sit in the centring in the housing s bottom section. The electronics must sit flush in the recess in the housing's bottom section. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM 2012.08...
Page 19 Repair instructions 7. Assembly 1. Screw down gearbox head with two screws on bottom section of housing. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM 2012.08 19/25 FEIN retains all rights of disposal, such as copying and circulation.
Page 20 Repair instructions 7. Assembly Switch position OFF Switch position ON Insert control rod. Insert spring. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM 2012.08 20/25 FEIN retains all rights of disposal, such as copying and circulation.
Page 22 Secure screws on gearbox head. Insert damping element Insert damping element. Tool: -Torx 15 screwdriver All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM 2012.08 22/25 FEIN retains all rights of disposal, such as copying and circulation.
Page 23 2. Screw down locking spring. 3. Fit clamping lever and eccentric ring and drive bolt into place. Tool: -Torx 15 screwdriver All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM 2012.08 23/25 FEIN retains all rights of disposal, such as copying and circulation.
Page 24 2. Perform function check. Tool: -Torx 15 screwdriver -Finish spray wax 6 37 26 025 010 All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM 2012.08 24/25 FEIN retains all rights of disposal, such as copying and circulation.
Page 25: Connection Diagram
Repair instructions 8. Connection diagram All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM 2012.08 25/25 FEIN retains all rights of disposal, such as copying and circulation.
