Foreword ............................................................ 2
Safety Precautions ............................................ 3
Name of each part ............................................. 6
Setting Ink .......................................................... 7
Replacing the Spout Rubber Assy .................. 9
Replacing the 2L Ink Pack .............................. 10
If ink error occurs ............................................ 12
Troubleshooting .............................................. 13
In a case like this ............................................. 14
Caution / Point to be checked ........................ 15
Japanese
はじめに ................................................................... 18
安全にお使いいただくために ................................... 19
各部の名称 ................................................................ 22
インクをセットする ................................................. 23
スパウトゴム Assy を交換する ................................ 25
2L インクパックを交換する ..................................... 26
インクエラーが発生したら ....................................... 28
故障？と思う前に ..................................................... 29
こんなときには ......................................................... 30
注意・確認事項など ................................................. 31
MIMAKI ENGINEERING CO., LTD.
URL: http://eng.mimaki.co.jp/
D202716-12
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for MIMAKI MBIS3
Summary of Contents for MIMAKI MBIS3
-
Page 1: Table Of Contents
はじめに ..............18 安全にお使いいただくために ........19 各部の名称 ..............22 インクをセットする ..........23 スパウトゴム Assy を交換する ........ 25 2L インクパックを交換する ........26 インクエラーが発生したら ........28 故障？と思う前に ............. 29 こんなときには ............30 注意・確認事項など ..........31 MIMAKI ENGINEERING CO., LTD. URL: http://eng.mimaki.co.jp/ D202716-12... -
Page 2: Foreword
Foreword Thank you very much for your purchase of the Mimaki Bulk Ink System "MBIS3". About This Operation manual • This Operation manual describes the operation and maintenance of "TPC-1000" (hereafter referred to as "this machine"). • Please read and fully understand this Operation manual before putting the machine into service. It is also necessary to keep this Operation manual on hand. -
Page 3: Safety Precautions
Safety Precautions About Symbols Symbols are used in this Operation manual for safe operation and for prevention of damage to the machine. One symbol is used for one caution. Please understand the meaning of each symbol and use this machine safely. Symbols and Their Meanings Meaning Failure to observe the instructions given with this symbol can result in death or serious injuries to... - Page 4 Cautions about installation Caution Do not install in the following places: • A place exposed to direct sunlight • A place where the temperature or humidity • On an inclined surface changes significantly (The recommended • A place that vibrates usage environment differs depending on the •...
- Page 5 If ink adhering to inside of the connector part may dry out, it may cause ink leakage when using it again. • To change the ink type or the color after installing MBIS3, replace the ink tube, spout rubber and the seat. Contact with sales office or our business office.
-
Page 6: Name Of Each Part

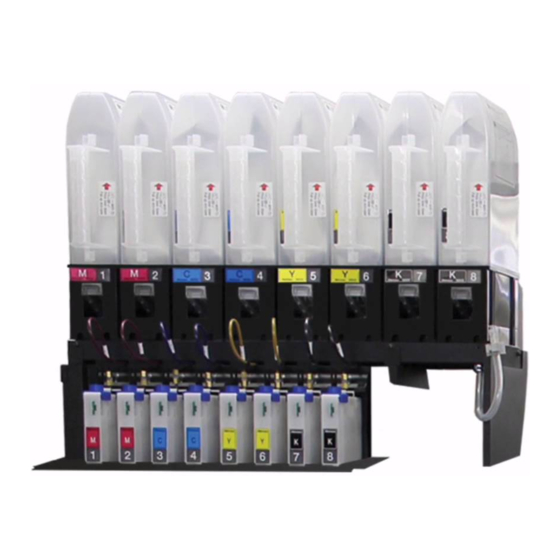

Name of each part As the ink supplying system of MBIS3 uses hydraulic head pressure, 2L eco case is located in the higher place. When you set or exchange ink, prepare a foot stool etc. 2L eco case Ink station of the... -
Page 7: Setting Ink
Setting Ink Take out the 2L ink pack. • Take out the 2L ink pack and the IC chip from a small cardboard box. 2L ink pack IC chip Mount the IC chip on the middle cartridge. Be careful of the IC chip direction. If it is set in the wrong direction, ink is not supplied properly. - Page 8 (3) Put the 2L ink pack facing the connector down, and close the 2L eco case. When putting the 2L ink pack, shape the pack referring to the label in the 2L eco case. If unshaped, you may not use up the ink. ...
-
Page 9: Replacing The Spout Rubber Assy
Replacing the Spout Rubber Assy Install the spout rubber in an eco case in order to reduce ink leakage from the 2L ink pack. The spout rubber is a supplied part. (SPA-0250: Set of 8 Rubber stopper 2L for case) The replacing timing sign of the spout rubber will be shown about once every half-year. -
Page 10: Replacing The 2L Ink Pack
Replacing the 2L Ink Pack When ink has run out, a message appears on the connected printer display. (See the operation manual of the printer for details.) Replace the 2L ink pack as follows. When exchanging 2L ink pack, be sure to wear goggles and gloves. Ink may spatter and get in your eyes accidentally. - Page 11 Mount the IC chip supplied with the replacement 2L ink pack on the middle cartridge. Be careful not to touch the metal part of the IC chip. There is the danger of damaging IC chip because of static electricity being generated. IC chip Middle cartridge ...
-
Page 12: If Ink Error Occurs
To display the details of ink error (1) Press the [ENTER] key in the local mode of the printer. • Here, warning messages unique to MBIS3 is explained. For other warning errors, refer to the instruction manual of the printer. -
Page 13: Troubleshooting
Troubleshooting Take the appropriate actions as described below before taking the trouble as a failure. If the problem is still not solved after troubleshooting, contact your distributor or our service office. Failure phenomenon Cause Solution The 2L eco case has not been •... -
Page 14: In A Case Like This
The number of pulling out and inserting the intermediate cartridge shall be minimized. If you pull out and insert the middle cartridge again and again, it may cause ink leakage etc. If you want to stop to use MBIS3 and want to use ink cartridge Firmware Version of the Printer... -
Page 15: Caution / Point To Be Checked
Caution / Point to be checked Do not leave the ink slot empty Do not leave the ink slot empty for a long time. Leaving it empty may dry the slot and solidify the ink in the machine, then the machine will become unable to supply ink. If ink cartridges are not set in the ink slot, an error message will display on the printer to set ink cartridges. - Page 16 Broken tube If the ink near-end / ink end occurs despite the remaining amount in 2L ink pack, the tube may have been broken. In this case, please call for service because the tube replacement is required. Broken tube Broken tube Notes when not using middle cartridge When you do not use the middle cartridge, thoroughly pull out it from the slot.
