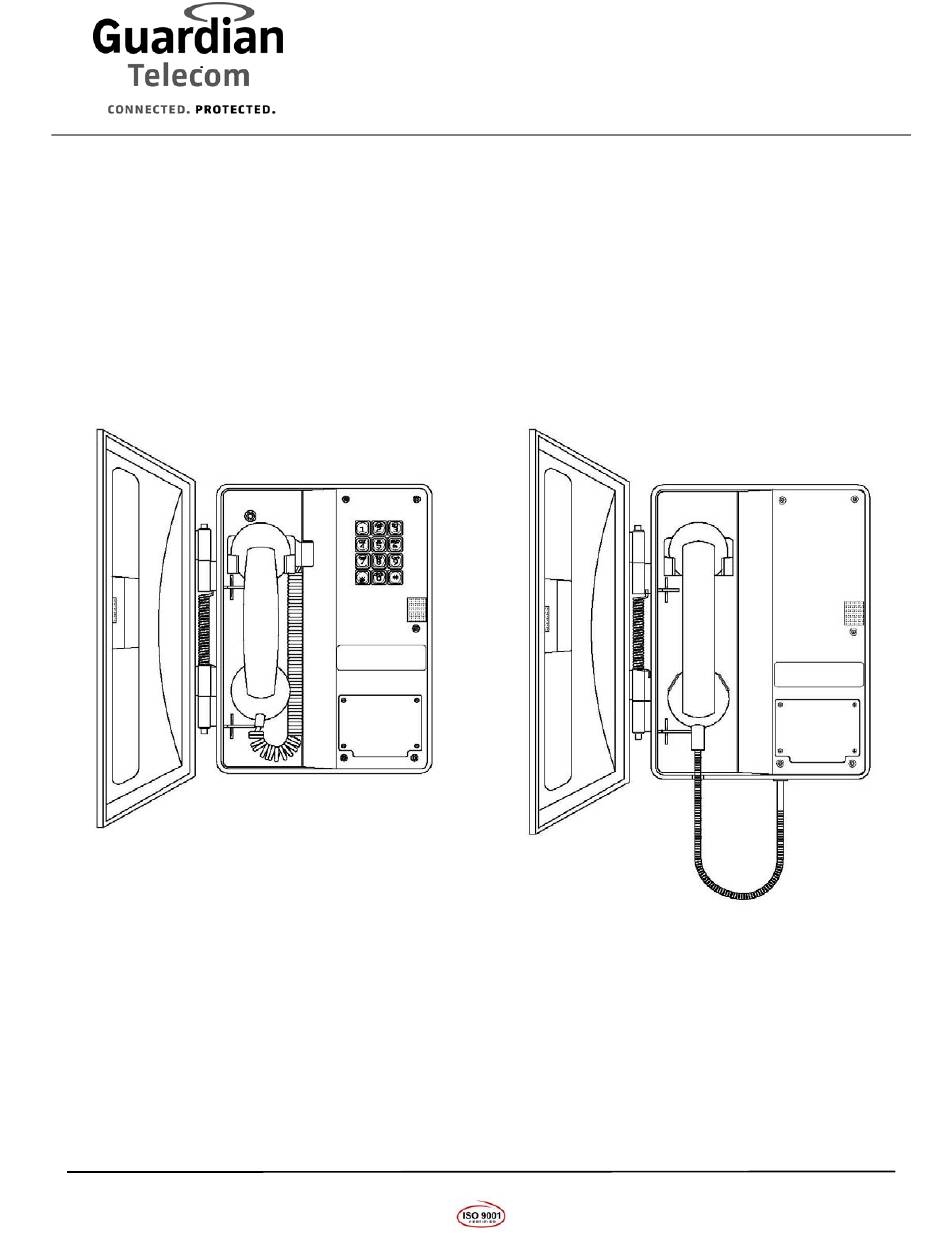

Guardian Telecom WRR-VoIP Series Installation & Operation Manual

Weather resistant voip telephones

Advertisement

Quick Links

Weather Resistant VoIP Telephones
WRR/WRT-VoIP Series
Installation & Operation
WRT-10-VoIP
WRR-41-VoIP
P007332 Rev. D 150916 9/16/2015 1:32 PM
Ph: 403.258.3100 \ email:info@guardiantelecom.com \ www.guardiantelecom.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WRR-VoIP Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Guardian Telecom WRR-VoIP Series

  • Page 1 Weather Resistant VoIP Telephones WRR/WRT-VoIP Series Installation & Operation WRT-10-VoIP WRR-41-VoIP P007332 Rev. D 150916 9/16/2015 1:32 PM Ph: 403.258.3100 \ email:info@guardiantelecom.com \ www.guardiantelecom.com...
  • Page 2 COPYRIGHT NOTICE: © 2015, Guardian Telecom Inc., ALL RIGHTS RESERVED. This manual and the related materials are the copyrighted property of Guardian Telecom Inc. No part of this manual or related materials may be reproduced or transmitted, in any form or by any means (except for internal use by licensed customers), without prior express written permission of Guardian Telecom Inc.
  • Page 3 Guardian Telecom Inc. Installation and Operation WRR/WRT-VoIP Series Telephones This manual gives instructions for the physical installation of WRR/WRT-VoIP telephones. For setup and configuration refer to manual P007402. Important Safety Instructions Read these instructions. Keep these instructions. Heed all warnings.
  • Page 4: Table Of Contents

    Guardian Telecom Inc. Installation and Operation WRR/WRT-VoIP Series Telephones Table of Contents   Package Contents ...................... 5     Models ........................5     Options ........................5       Accessories ........................ 5   Registering Your VoIP Product................... 5  ...
  • Page 5: Package Contents

    Guardian Telecom Inc. Installation and Operation WRR/WRT-VoIP Series Telephones 1. Package Contents (1) WRR-VoIP or WRT-VoIP Telephone. Note: Installation and Operation Manual, Setup and Configuration Manual, Guardian Discovery Utility, Interoperability Guide, VoIP Technical Support, Firmware and Autoprovisioning template are all available at www.guardiantelecom.com.
  • Page 6: Product Overview

    Guardian Telecom Inc. Installation and Operation WRR/WRT-VoIP Series Telephones 6. Product Overview WRR-VoIP and WRT-VoIP Series Weatherproof Telephones Guardian weatherproof telephones are designed to provide safe, reliable communication in areas prone to high humidity, chemical vapors, dust and physical abuse. Several variations and options are available to suit the end user’s requirements.
  • Page 7: Features

    Guardian Telecom Inc. Installation and Operation WRR/WRT-VoIP Series Telephones 8. Features   Enclosure Network web management interface  -Valox body construction Guardian discovery utility makes it easy to detect, locate and launch the web based configuration -weather and corrosion resistant...
  • Page 8: Figure 2 - Wrt-Voip Features (Wrr-Voip Similar)

    Guardian Telecom Inc. Installation and Operation WRR/WRT-VoIP Series Telephones Figure 2 - WRT-VoIP Features (WRR-VoIP Similar) Figure 3 - Overall Dimensions Page 8...
  • Page 9: Figure 4 - Wiring

    Guardian Telecom Inc. Installation and Operation WRR/WRT-VoIP Series Telephones J1: STANDARD 8 PIN RJ45 10/100Base-T And power input via Power over Ethernet Figure 4 - Wiring Page 9...
  • Page 10: Installation

    Guardian Telecom Inc. Installation and Operation WRR/WRT-VoIP Series Telephones 9. Installation Follow all appropriate electrical codes and use only approved electrical fittings for the installation. Figure 5 - Terminal Block See: Determine if power to operate the telephone will be provided via the Ethernet or if Connections external power will be required.
  • Page 11: Supported Protocols

    Guardian Telecom Inc. Installation and Operation WRR/WRT-VoIP Series Telephones Supported Protocols The WRT-VoIP Telephone with Keypad supports: SIP (Session Initiation Protocol) ● HTTP Web-based configuration ● Provides an intuitive user interface for easy system configuration and verification of WRT-VoIP Telephone with Keypad operations.
  • Page 12: Connecting A Device To The Auxiliary Relay

    Guardian Telecom Inc. Installation and Operation WRR/WRT-VoIP Series Telephones 13.2. Connecting a Device to the Auxiliary Relay The WRR/WRT-VoIP Telephone incorporates one on-board relay located on the PCBA, which See: Figure 6 - Auxiliary enables users to control a low current external relay or device. An external relay could control a...
  • Page 13: Identifying The Connector Locations And Functions

    Guardian Telecom Inc. Installation and Operation WRR/WRT-VoIP Series Telephones 13.3. Identifying the Connector Locations and Functions See Figure 7 and Table 1 to identify the connector locations and functions. Figure 7 - Connector Locations Connector Function PoE Network Connection (RJ-45)
  • Page 14: Network Connectivity, And Data Rate

    Guardian Telecom Inc. Installation and Operation WRR/WRT-VoIP Series Telephones 13.4. Network Connectivity, and Data Rate When you plug in the Ethernet cable or power supply: • The square, green Link light above the Ethernet port indicates that the network connection has been established (see Figure 8).
  • Page 15: Reset Switch

    Guardian Telecom Inc. Installation and Operation WRR/WRT-VoIP Series Telephones 13.5. RESET Switch When the Telephone is operational and linked to the network use the Reset Test Function Management (RESET) switch (Figure 9), on the Telephone board to announce, the Telephone’s IP Address, and test that the audio is working (see Section 8.5.1).
  • Page 16: Product Specifications

    Guardian Telecom Inc. Installation and Operation WRR/WRT-VoIP Series Telephones Product Specifications Electrical Performance >80 dB INGER UTPUT ICROPHONE OISE EDUCING YNAMIC ECEIVER EARING OMPATIBLE Category Specification 10/100 MBPS THERNET SIP RFC 3261 C ROTOCOL OMPATIBLE 802.3AF C 12-24V V OWER...
  • Page 17: Field Repairs

    Guardian Telecom Inc. Installation and Operation WRR/WRT-VoIP Series Telephones Field Repairs Field repairs may only be carried out by qualified technicians using OEM parts. Substitution of See: 19 Replacement parts voids warranty and may pose a hazard to users of the equipment.
  • Page 18: Replacement Parts

    Guardian Telecom Inc. Installation and Operation WRR/WRT-VoIP Series Telephones Replacement Parts Part No. Description P000126 Yellow Housing P001457 Rubber Feet P001488 Spring P001705 Handset Cradle Top P001706 Hinge Pin P002557 Gasket For Faceplate P002606 Gasket For Access Plate P002902 Handset Cradle Bottom...
  • Page 19: Cleaning Tips For Guardian Telephones

    Guardian Telecom Inc. Installation and Operation WRR/WRT-VoIP Series Telephones Cleaning Tips for Guardian Telephones Guardian Telephones may occasionally need to be cleaned to maintain appearance. Generally, wiping the surface with a clean, water dampened cloth will remove most films or residues. If the soiling is too stubborn for plain water, a mild detergent solution may be used.
  • Page 20: Warranty

    WRR/WRT-VoIP Series Telephones Warranty Guardian Telecom warrants your product to be free of defects in material and workmanship for a period of one year. Guardian Telecom will repair or replace any defective unit that is under warranty This warranty is null and void if any non-authorized modifications have been made to this product, or if it has been subjected to misuse, neglect, or accident.
  • Page 21: Guardian Product Return

    When a product has been installed following user manual instructions, and the unit fails to operate, the user must contact Guardian Telecom to obtain authorization to return the product. This can be done by done by completing a RMA form online at www.guardiantelecom.com, or by calling the service telephone number given in this...
  • Page 22 Guardian Telecom Inc. Installation and Operation WRR/WRT-VoIP Series Telephones Notes: Model No. Part No. Serial No. Date of Purchase Page 22...
  • Page 23 THIS PAGE INTENTIONALLY LEFT BLANK...
  • Page 24 Guardian Telecom Inc. Toll-free 1-800-363-8010 Phone (403) 258-3100 Fax. (403) 253-4967 www.guardiantelecom.com E-mail: sales@guardiantelecom.com (Click to open message box) CONNECTED. PROTECTED. © Guardian Telecom Inc. 2015...
