Summary of Contents for Guardian Telecom DTR-VoIP Series

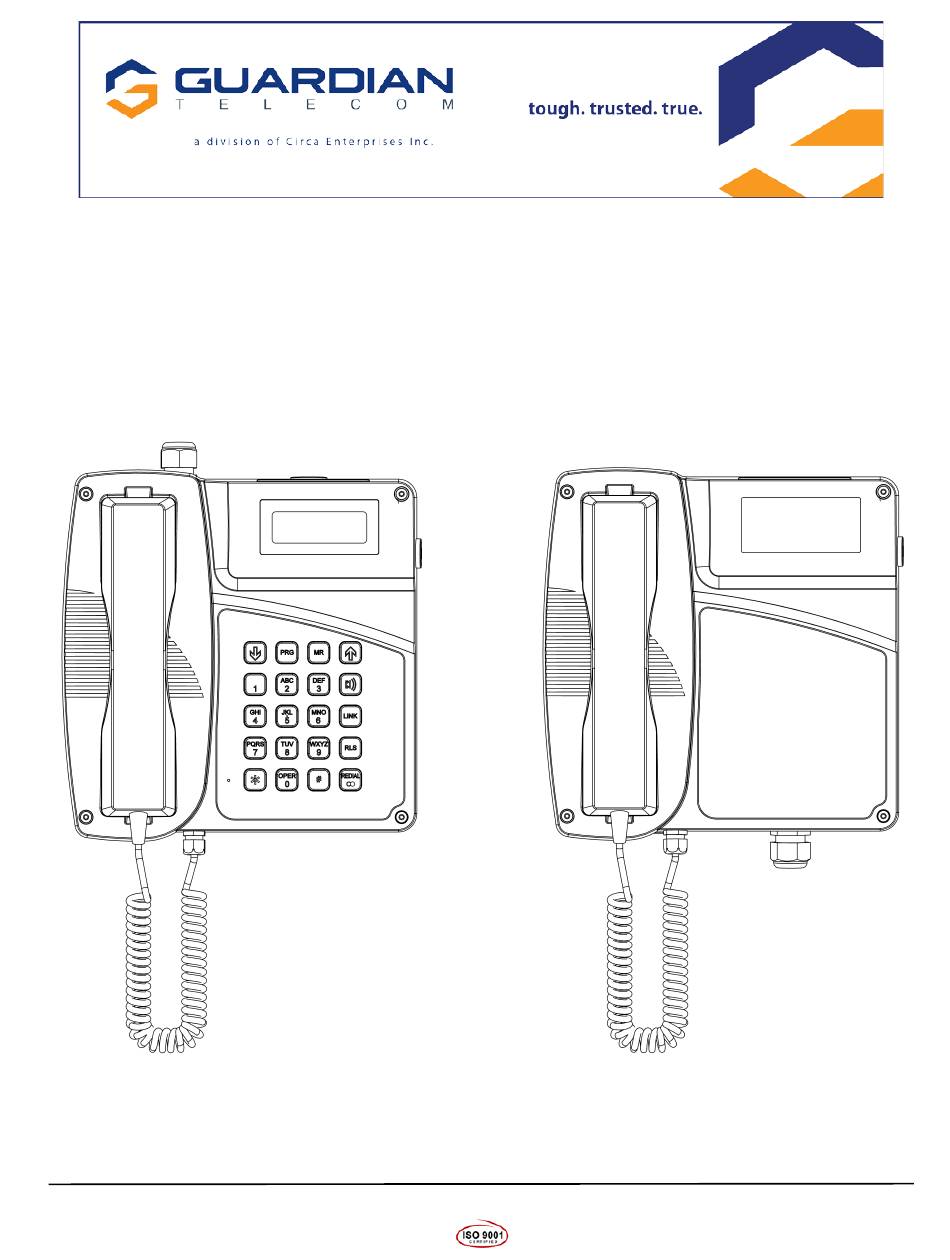

- Page 1 Industrial Desk/Wall Mount VoIP Telephones DTR-VoIP and DTT-VoIP Series Installation and Operation DTT-50-VoIP DTR-51-VoIP P007314 Rev. E 180917 9/21/2018 11:01 AM Ph: 403.258.3100 \ email:info@guardiantelecom.com \ www.guardiantelecom.com...
- Page 2 COPYRIGHT NOTICE: © 2018, Guardian Telecom, ALL RIGHTS RESERVED. This manual and the related materials are the copyrighted property of Guardian Telecom No part of this manual or related materials may be reproduced or transmitted, in any form or by any means (except for internal use by licensed customers), without prior express...
- Page 3 If trouble is experienced with this equipment (DTR-VoIP and DTT-VoIP), for repair or warranty information, please contact Guardian Telecom at 1-800-363-8010. If the equipment is causing harm to the telephone network, the telephone company may request that you disconnect the equipment until the problem is resolved.
-
Page 4: Table Of Contents
Guardian Telecom Installation and Operation DTR/DTT-VoIP Series Telephones Table of Contents Product Overview ....................... 6 Typical System Installation ..................6 Features ........................7 Installation ........................9 Wiring ........................11 Operation ........................11 Supported Protocols ....................12 Supported SIP Servers ..................... 12 DTR/DTT-VoIP Telephones Wiring ................ - Page 5 P3043 DTR-61-VoIP Ringdown telephone with armored handset cord. Accessories POE – Injector – Auxiliary Power Supply (Contact Sales) Loud Ringers and Strobe Lights Updating Your VoIP Product Please review www.guardiantelecom.com support pages to obtain the latest F/W or contact Guardian Telecom Support at mailto:rmateststation@guardiantelecom.com Page 5...
-
Page 6: Product Overview
Guardian Telecom Installation and Operation DTR/DTT-VoIP Series Telephones Product Overview DTT-VoIP Series Weather Resistant Telephones DTR-VoIP and DTT-VoIP telephones provide safe, reliable communications in areas that are prone to high humidity, chemical vapors, dust and physical abuse. These telephones are compatible with most SIP-based IP PBX servers that comply with SIP RFC 3261. Users can remotely monitor and program settings through a web browser to configure telephones on their network. -
Page 7: Features
Guardian Telecom Installation and Operation DTR/DTT-VoIP Series Telephones Features • • Enclosure Network web management interface -glass filled Polyester body construction • Guardian discovery utility makes it easy to detect, locate and launch the web based -weatherproof and corrosion resistant... -
Page 8: Figure 2 - Features (Typical)
Guardian Telecom Installation and Operation DTR/DTT-VoIP Series Telephones Figure 2 - Features (typical) Figure 3 - Overall Dimensions Page 8... -
Page 9: Installation
Guardian Telecom Installation and Operation DTR/DTT-VoIP Series Telephones Figure 4 - Wall Installation of Base Installation Enclosure Follow all appropriate electrical codes and use only approved electrical fittings for the installation. To Avoid The Danger Of An Accidental Shock or Circuit Damage If using an auxiliary power supply ensure it is unplugged during installation. -
Page 10: Figure 5 - Wiring
Guardian Telecom Installation and Operation DTR/DTT-VoIP Series Telephones J1: STANDARD 8 PIN RJ45 10/100Base-T and power input via Power over Ethernet Figure 5 – Wiring Alternate Power – Pin 3 is positive and pin 4 is negative input. Page 10... -
Page 11: Wiring
Guardian Telecom Installation and Operation DTR/DTT-VoIP Series Telephones Wiring Tip: If cable diameter is not in WARNING: Use properly sized cable to ensure a gas/dust tight seal at the cable gland to the range of the M12 or M20 maintain an IP66 rating, (M12 – 2 to 5mm), (M20 – 8 to 13mm). Take care not to lose parts glands provided an approved of the gland if the cap is removed. -
Page 12: Supported Protocols
Guardian Telecom Installation and Operation DTR/DTT-VoIP Series Telephones Supported Protocols The DTT-VoIP Telephone with Keypad supports: ● SIP (Session Initiation Protocol) ● HTTP Web-based configuration Provides an intuitive user interface for easy system configuration and verification of DTT-VoIP Telephone with Keypad operations. -
Page 13: Connecting A Device To The Auxiliary Relay
Guardian Telecom Installation and Operation DTR/DTT-VoIP Series Telephones 9.2. Connecting a Device to the Auxiliary Relay The ACR/ACT-VoIP Telephone incorporates one on-board relay located on the PCBA, which enables users to control a low current external relay or device. An external relay could control a The on board relay is protected by a 1 ringer, strobe light, door lock or any other apparatus. -
Page 14: Identifying The Connector Locations And Functions
Guardian Telecom Installation and Operation DTR/DTT-VoIP Series Telephones 9.3. Identifying the Connector Locations and Functions See Figure 8 and Table 1 to identify the connector locations and functions. Figure 8 - Connector Locations Connector Function PoE Network Connection (RJ-45) Hands free Microphone Interface/LED Interface... -
Page 15: Network Connectivity, And Data Rate
Guardian Telecom Installation and Operation DTR/DTT-VoIP Series Telephones 9.4. Network Connectivity, and Data Rate When you plug in the Ethernet cable or power supply: • The square, green Link light above the Ethernet port indicates that the network connection has been established (see Figure 9). -
Page 16: Reset Switch
Guardian Telecom Installation and Operation DTR/DTT-VoIP Series Telephones 9.5. RESET Switch When the Telephone is operational and linked to the network use the Reset Test Function Management (RESET) switch (Figure 10), on the Telephone board to announce, the Telephone’s IP Address, and test that the audio is working (see Section 9.5.1). -
Page 17: Specifications
Guardian Telecom Installation and Operation DTR/DTT-VoIP Series Telephones 10. Specifications Electrical Performance >80 dB INGER UTPUT ICROPHONE OISE EDUCING ECEIVER EARING OMPATIBLE Category 10/100 MBPS THERNET SIP RFC 3261 C ROTOCOL OMPATIBLE OWER NPUT 802.3AF C ETHOD OMPLIANT WITCH OR... -
Page 18: Field Repairs
Guardian Telecom Installation and Operation DTR/DTT-VoIP Series Telephones 11. Field Repairs See: 12 Replacement Parts Field repairs may only be carried out by qualified technicians using OEM parts. Substitution of parts voids warranty and may pose a hazard to users of the equipment. -
Page 19: Replacement Parts
Guardian Telecom Installation and Operation DTR/DTT-VoIP Series Telephones 12. Replacement Parts Part No. Description P001039 Magnetic reed hook switch P001462 0-Ring gaskets for faceplate screws (4 required) P004123 Nylon fastener for hook switch P3044 Replacement Handset c/w coil cord. P006614... -
Page 20: Warranty
Installation and Operation DTR/DTT-VoIP Series Telephones 13. Warranty Guardian Telecom warrants your product to be free of defects in material and workmanship for a period of three years. Guardian Telecom will repair or replace any defective unit that is under warranty. -
Page 21: Guardian Product Return
When a product has been installed following user manual instructions, and the unit fails to operate, the user must contact Guardian Telecom to obtain authorization to return the product. This can be done by completing an RMA form online at https://www.guardiantelecom.com/support/rma/, or by calling the service telephone... -
Page 22: Cleaning Tips For Guardian Telephones
Guardian Telecom Installation and Operation DTR/DTT-VoIP Series Telephones 19. Cleaning Tips for Guardian Telephones Guardian Telephones may occasionally need to be cleaned to maintain appearance. Generally, wiping the surface with a clean, water dampened cloth will remove most films or residues. If the soiling is too stubborn for plain water, a mild detergent solution may be used. - Page 23 Guardian Telecom Installation and Operation DTR/DTT-VoIP Series Telephones Notes: Model No. Part No. Serial No. Date of Purchase Page 23...
- Page 24 Guardian Telecom, a division of Circa Enterprises Inc. Toll-free 1-800-363-8010 Phone (403) 258-3100 Fax. (403) 253-4967 www.guardiantelecom.com E-mail: sales@guardiantelecom.com (Click to open message box) Tough. Trusted. True. © Guardian Telecom 2018...
