QMotion ZigBee HA 1.2 Programming Instructions

Qadvanced Roller Shade
ZigBee HA1.2
Programming Instructions
Read and understand each section before performing required steps
Refer to appropriate user manual whenever a QUBE is NOT USED to establish the ZigBee network. Instructions for
allowing Range Extenders and End Devices to join the ZigBee HA1.2 network will vary by manufacturer.

CREATE A NEW NETWORK (Qube)

1. Plug Qube into network router.
*Qube light will blink red while looking for updates, then
will turn solid GREEN when ready to be set up
2. INSTALL QMotion App for ZigBee HA1.2
__(visit Google Play / iOS App Store)
3. Follow directions on App to set up the Qube
4. INSTALL SHADE following appropriate instructions
ADD QMOTION RANGE EXTENDER TO ZIGBEE
NETWORK
1. Follow QMotion App instructions for adding devices to
__the network
2. PRESS and RELEASE the NETWORK button on Range
__Extender to be added to the network
__(The green LED will illuminate and blink when it has joined
___the ZigBee network )
3. Using the QMotion App, the Range Extender will need to
be named and put into a group.
4. The Range Extender green LED will continue to pulse,
__showing that it has extended the ZigBee network

ADD RZ2 ZIGBEE EXTENDER TO NETWORK

*ACTS ONLY AS A RANGE EXTENDER, CANNOT BE A
NETWORK
COORDINATOR
*Only when necessary in large rooms
1. Follow QMotion App instructions for adding devices to
__the network
2. PLUG in the RZ2 Range Extender.
*The App MUST be searching before plugging ZigBee
Extender into outlet.
3. The ZigBee Extender will blink orange until it joins the
network.
4. Once it joins it will be a solid green light.
5. The ZigBee Extender will need to be named and added
to a group.
IMPORTANT

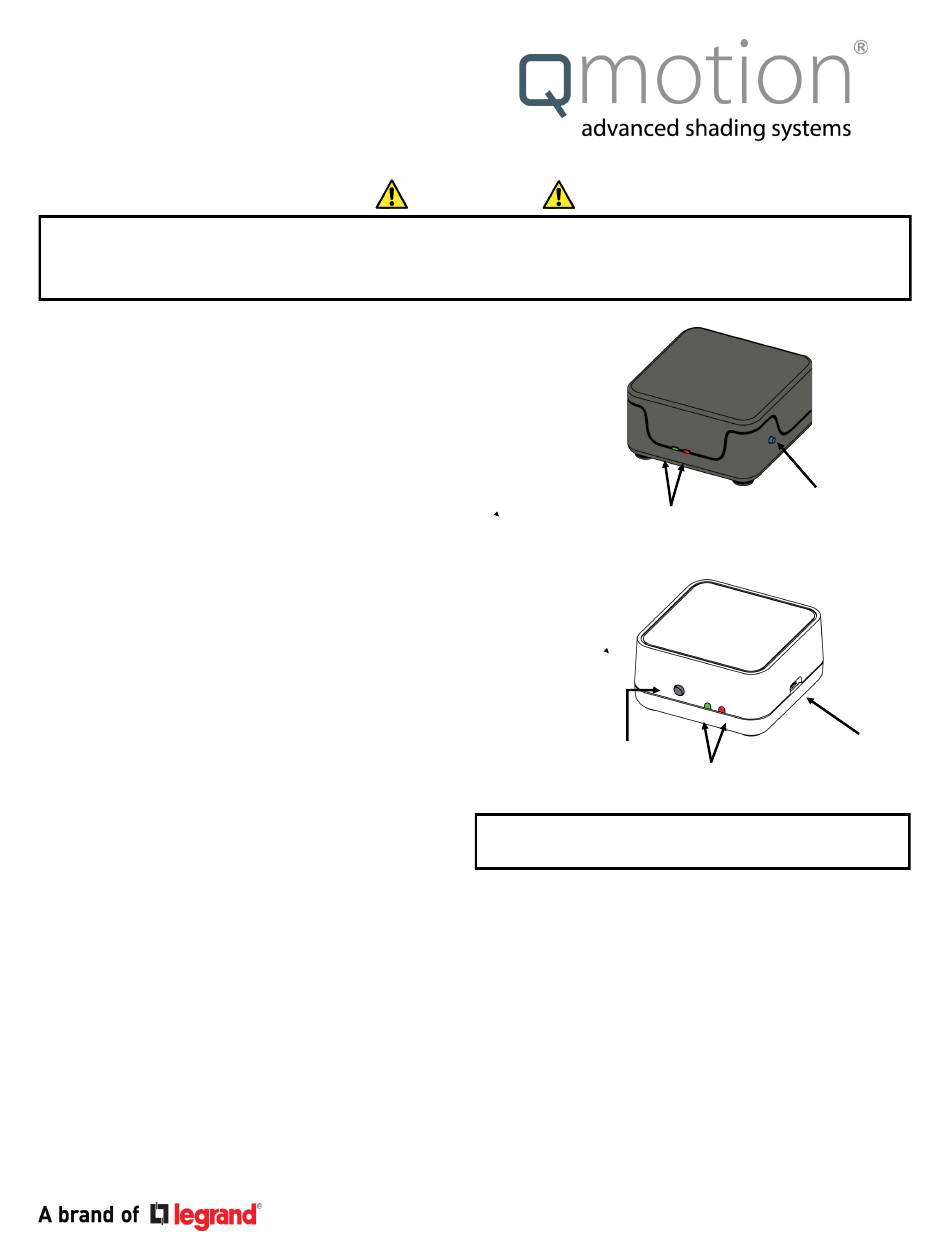

Qube
ZigBee Gateway
Range Extender
ZigBee Router
Range Extender: Green LED will flash rapidly for 1
second when a device (Shade/Remote) joins the network

ADD SHADE TO NETWORK

1. Follow QMotion App instructions for adding devices to
__the network
2. TUG the shade to be learned 6 inches. Shade will do
micro- jogs until it has learned to the network
(Shade will go to full UP position when learned. If
shade stops in place, tug again to activate micro-jogs)
3. Using the QMotion App, when a shade is selected it will
__JOG to identify itself. Once the shade jogs, complete
by naming and adding to a group.
www.qmotionshades.com
LED
Network-
Button
LED
Pensacola FL, 32514 1 -877-849-6070
Network
Button
Micro USB
Power Port
1
PN 9000223
