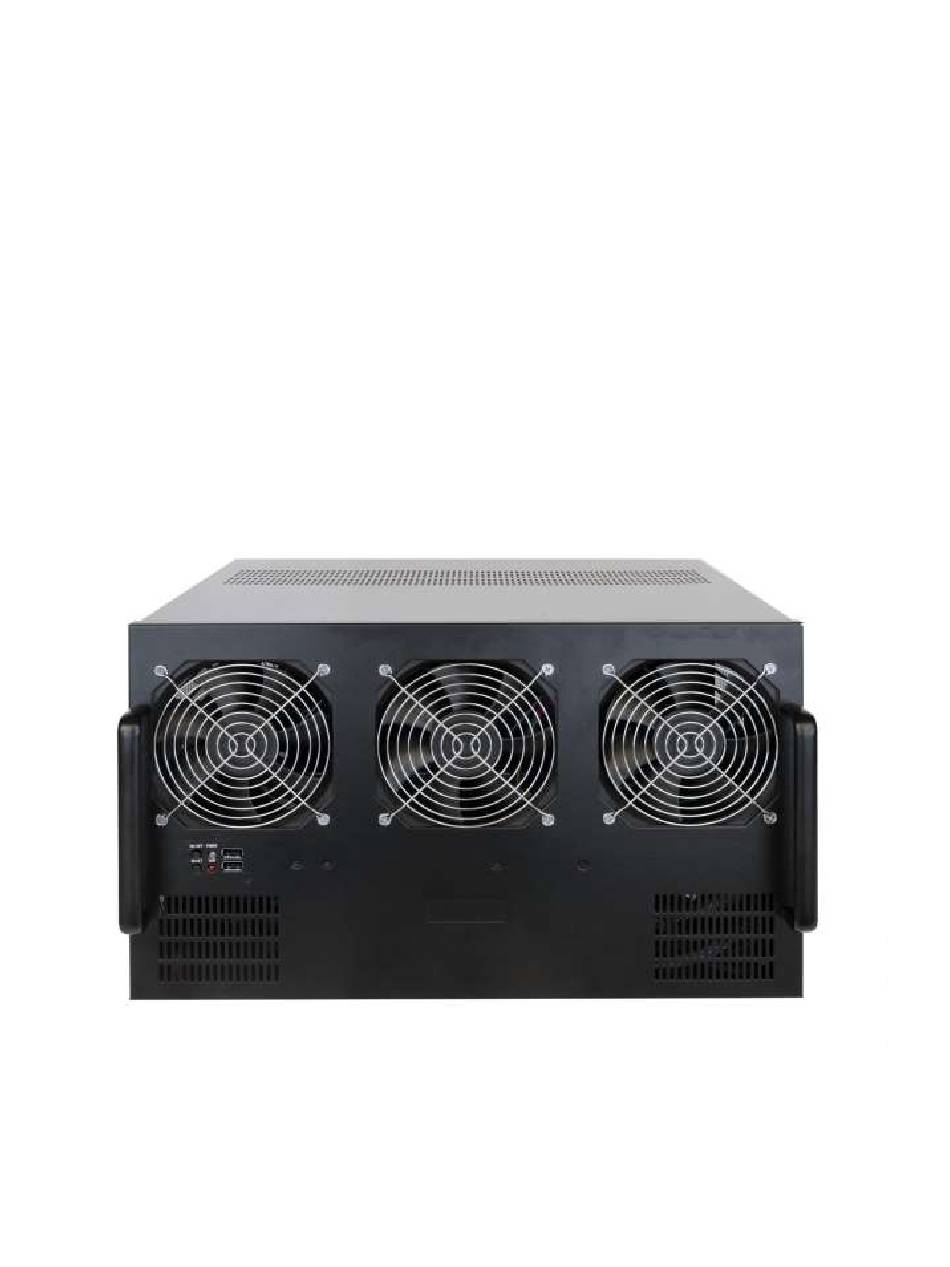

- Page 1 LEDGERWARE 6U Server Rack Mount Case Assembly Instructions...
- Page 2 These components are referenced in the instructions but are not included with the mining kit. ATX Power Supply 2.5” Hard Drive (optional if booting from an external source) ATX Mother Board ATX Mother Board Pass-Through Plate Graphics Cards 6U Server Rack Mount Case...
- Page 3 LEDGERWARE Assembly Instructions General Case Layout SAFETY ASSEMBLY CASE CASE COMPONENTS THAT ARE POWERED. GROUND YOURSELF BEFORE HANDLING ELETRONIC COMPONENTS MINIMIZE THE POTETIAL FOR STATIC DISCHARGE DURING ASSEMBLY. 6U Server Rack Mount Case...
- Page 4 Phillips head screwdriver. (Note: these screws are not the thumbscrews that open the fan door on the back of the case. Slide the chassis top backwards and set the chassis top aside. 6U Server Rack Mount Case...
- Page 5 Remove the Place an ATX power supply into the power supply mounting bracket by removing the four screws highlighted with green circles. Note: Two of the screws are black screws that are attached through the front of the case. 6U Server Rack Mount Case...
- Page 6 Step 4: Attach Fans to Power Supply Daisy-chain the three molex fans connectors together and then attach one of the molex fan cables to the power supply. Repeat this step for the three fans in the back of the case. 6U Server Rack Mount Case...
- Page 7 Remove the hard drive mounting bracket by removing the 4 screws holding it in place (with a Phillips head screwdriver). The four screws that need to be removed are highlighted by the pink circles below. 6U Server Rack Mount Case...
- Page 8 LEDGERWARE Assembly Instructions Attach your hard drive to the mounting bracket by screwing the base of the hard drive to the bracket. 6U Server Rack Mount Case...
- Page 9 Attach the ATX mother board to the standoffs using the 6-32 screws included in the accessories kit. Attach the Power/Reset Buttons & Power/Status LEDs to the ATX main board. Consult your ATX mother board instructions for the attachment locations. 6U Server Rack Mount Case...
- Page 10 LEDGERWARE Assembly Instructions Step 7: Add GPU Support Bar & GPU Flange Mount Bar Attach a riser PCB to a GPU 6U Server Rack Mount Case...
- Page 11 Position the GPU Support Bar and GPU Flange Mount Bar so that a GPU & riser is level and there is room between the CPU/main board & top of the case - when attached to both bars. 6U Server Rack Mount Case...
- Page 12 Step 8: Attach GPUs to GPU Flange Mount Bar Evenly space the GPUs to maximize airflow and attach them to the GPU Flange Mount Bar using the GPU Mounting Screws included in the accessories kit. 6U Server Rack Mount Case...
- Page 13 Place the GPU Safety Bar across the top of the GPUs and align it with the holes in the side of the case. Attach the GPU Safety Bar to the sides of the case using the bar attachment screws that are included in the accessories kit. 6U Server Rack Mount Case...
- Page 14 DUE TO THE HIGH VARIABILITY OF MINER AND SERVER BUILD WEIGHTS, IT IS SUGGESTED THAT ALL CASES THAT ARE RACKED INCLUDE RACK MOUNTING RAILS. 6U Server Rack Mount Case...
