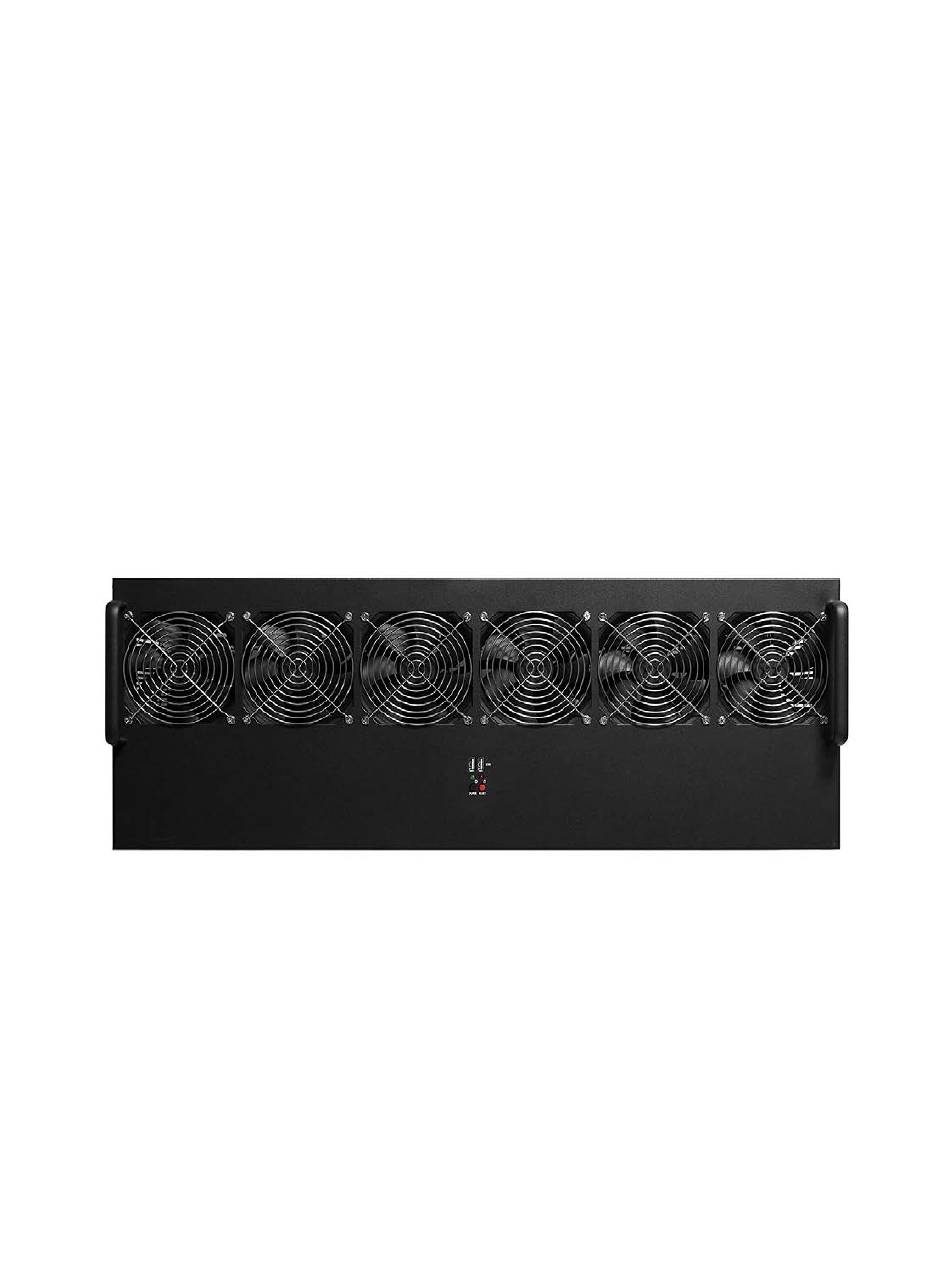

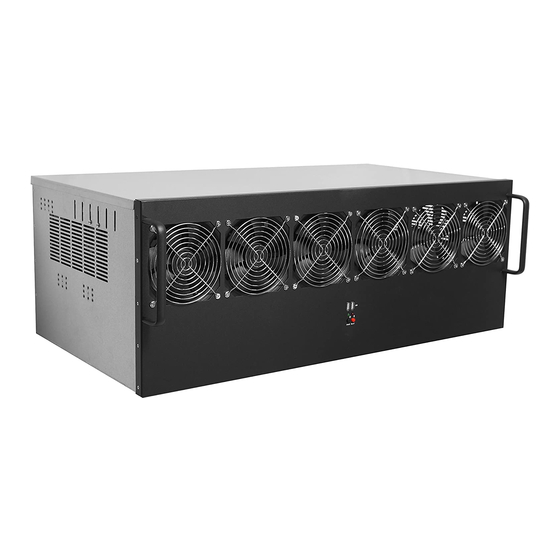

- Page 1 LEDGERWARE 13 GPU Mining Rig Case Assembly Instructions...
- Page 2 These components are referenced in the instructions but are not included with the mining kit. • ATX Power Supply • 2.5” Hard Drive (optional if booting from an external source) • ATX Mother Board • ATX Mother Board Pass-Through Plate • Graphics Cards 13 GPU Mining Rig Case...
- Page 3 LEDGERWARE Assembly Instructions General Case Layout SAFETY DO NOT ASSEMBLY THE CASE OR ANY CASE COMPONENTS THAT ARE POWERED. GROUND YOURSELF BEFORE HANDLING ELETRONIC COMPONENTS TO MINIMIZE THE POTETIAL FOR STATIC DISCHARGE DURING ASSEMBLY. 13 GPU Mining Rig Case...
- Page 4 Remove the two screws from the back of the case that keep chassis top from sliding backwards with a Phillips head screwdriver. Slide the chassis top backwards and set the chassis top aside. Remove the GPU Safety, GPU Support & Riser Support Bars from the case. 13 GPU Mining Rig Case...
- Page 5 Attach the ATX mother board to the standoffs using the 6-32 screws included in the accessories kit. Attach the Power/Reset Buttons & Power/Status LEDs to the ATX main board. Consult your ATX mother board instructions for the attachment locations. 13 GPU Mining Rig Case...
- Page 6 Note: If you are using two power supplies, repeat this step in the second power supply location. After both power supplies are installed attach the Dual PSU Adapter (from the accessories box). 13 GPU Mining Rig Case...
- Page 7 Step 5: Attach Fans to Power Supply Daisy-chain the six molex fans connectors together and then attach one of the molex fan cables to the power supply. Repeat this step for the six fans in the back of the case. 13 GPU Mining Rig Case...
- Page 8 (with a Phillips head screwdriver). Attach your hard drive to the mounting bracket by screwing the base of the hard drive to the bracket. Your bracket may look different than the one in the example below. 13 GPU Mining Rig Case...
- Page 9 Attach the risers using the two standoffs that are on the Riser Support Bar using the screws provided in the accessories kit. Once all the risers are attached to the Riser Support Bar, attached the Riser Support Bar to the inside of the chassis. 13 GPU Mining Rig Case...
- Page 10 LEDGERWARE Assembly Instructions Attach the USB Cords and power from the PSU to the risers. 13 GPU Mining Rig Case...
- Page 11 LEDGERWARE Assembly Instructions Step 8: Add GPU Support Bar & GPU Flange Mount Bar Attach the GPUs to the risers Then attach the GPUs to the GPU Support Bar 13 GPU Mining Rig Case...
- Page 12 Place the GPU Safety Bar across the top of the GPUs and align it with the holes in the side of the case. Attach the GPU Safety Bar to the sides of the case using the bar attachment screws that are included in the accessories kit. 13 GPU Mining Rig Case...
- Page 13 LEDGERWARE Assembly Instructions It is suggested that the GPUs are removed during transportation of the case to minimize damage that may be due to vibrations or movement of the GPUs. 13 GPU Mining Rig Case...
