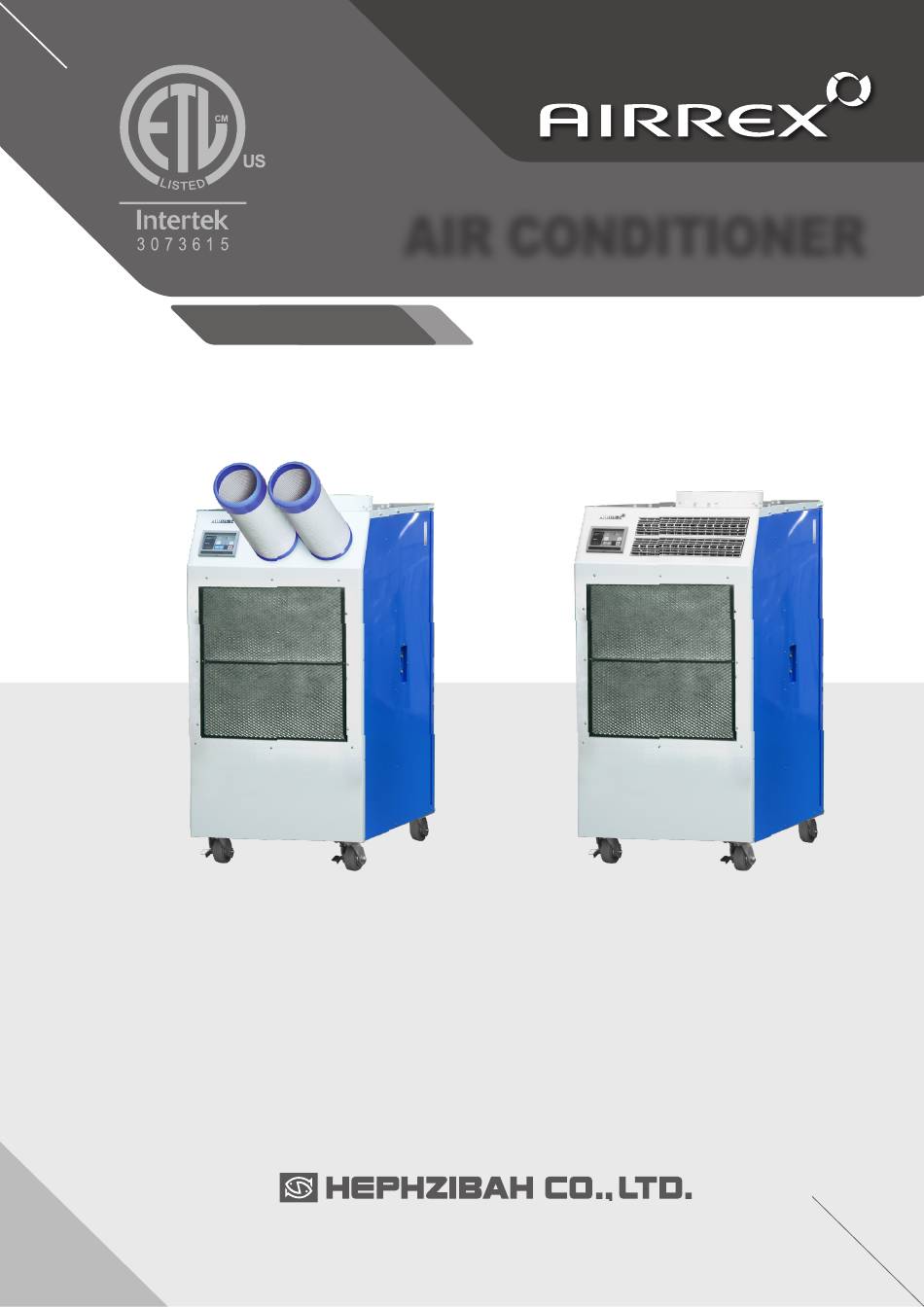

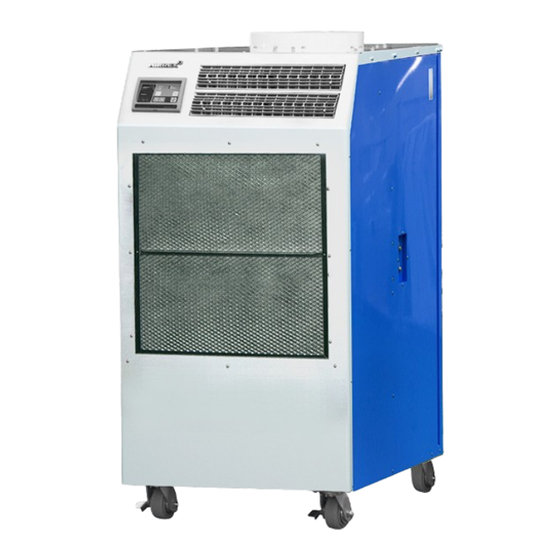

USER'S MANUAL
HSC-36B
▶ Thank you for purchasing the unit.
Before operation please read this user's manual carefully.
▶ Keep this manual on hand for reference.
▶ This unit is specified for use on the rated
voltage power supply. For use outside the local electricity
supply should be checked by a qualified electrician.
AIR CONDITIONER
▶ It is essential that you read 'SAFETY INSTRUCTIONS' carefully
before use and follow them at all times.
▶ The warranty form is on the last page. Please complete it
now and keep it in a safe place.
▶ We have a policy of continual improving on our products.
The contents (features and specifications) in this manual are
therefore subject to change without notice.
MODEL :
HSC(O)-36B
HSCO-36B
Advertisement
Table of Contents
Related Manuals for Hephzibah AIRREX HSC-36B
Summary of Contents for Hephzibah AIRREX HSC-36B
- Page 1 AIR CONDITIONER MODEL : HSC(O)-36B USER'S MANUAL HSC-36B HSCO-36B ▶ It is essential that you read ‘SAFETY INSTRUCTIONS’ carefully ▶ Thank you for purchasing the unit. Before operation please read this user’s manual carefully. before use and follow them at all times. ▶...
-
Page 2: Table Of Contents
TABLE OF CONTENTS ■ SAFETY INSTRUCTIONS ■ GENERAL ADVICE BEFORE USE ■ EXTERIOR DESCRIPTION ■ SPECIFICATIONS ■ CONTROL PANEL FUNCTIONS ■ MODE CHANGING METHOD ■ HOW TO SET THE 'OFF' TIMER ■ TEMPERATURE CONTROL OPERATION ■ SELECTION ■ 'ERROR' and WARNING INDICATORS ■... - Page 3 SAFETY INSTRUCTIONS WARNING Use a circuit breaker for the capacity. (It may cause fire and electric shock) The following symbols are for your guidance: = You must NOT. = You MUST. Before cleaning, disconnect the unit. (Otherwise risk of electric shock) Do not use a damaged power cable.
-
Page 4: Safety Instructions 3~4
SAFETY INSTRUCTIONS CAUTION Do not place this unit on uneven, unstable or inclined surface. (This could cause malfunction) When storing this unit, keep it in a dry, cool place. (To prevent corrosion and malfunction) If not being used for some time or if lightening is present, always disconnect from power. (To prevent risk of electric shock, short circuit or fire) Do not spray water onto this unit nor use solvents such as benzene, thinner or alcohol for cleaning. -
Page 5: Exterior Description
EXTERIOR DESCRIPTION FRONT VIEW ① ① ① Cool Air outlet ② Digital controller ② ② ③ Evaporator filter ③ Ambient air intake ③ ④ ④ ④ Service Valve ⑤ Condensate pump ⑥ Casters (Front Lockable) ⑤ ⑤ ⑥ ⑥ BACK & SIDE VIEW ①... -
Page 6: Specifications
SPECIFICATIONS MODEL HSC(O)-36B Btu/h 36,000 Cooling capacity (10,500) Power Supply 220Vac 60Hz 1Ph Power 4.62 Consumption Current 21.9 Consumption gal/day 39.3 Moisture Removal AHAM gal/day 26.3 Refrigerant R-410A / 5.07 Dimensions inch 29.1 x 33 x 54.5 (WxDxH) Weight Cooling 68˚F DB 60%RH ~ 113˚F DB 40%RH Operating Range... -
Page 7: Control Panel Functions
CONTROL PANEL FUNCTIONS ⑦ ⑤ ⑧ ⑥ ⑨ ④ ③ ① ② ① Power : Use to power on / off. setting temperature or sleep (off) time. ② ∨ ∧ Button : Raises or lowers the Use to select Cooling / Fan / Dehumidifier mode. ③... -
Page 8: Mode Changing Method
MODE CHANGING METHOD ※ COOLING MODE If you press 'Mode' button. 'COOL' is displayed. then LED is on. ※ FAN MODE When the cooling is operating. If you press the 'Mode' button, 'FAN' is displayed. then LED is off. ※ DEHUMIDIFICATION MODE When the fan is operating, If you press the 'Mode' button. -
Page 9: How To Set The 'Off' Timer
HOW TO SET THE 'OFF' TIMER This function enables you to set the length of time you want the unit to operate. You can set the time period from 30min. to 24 hours in 30min. and 1 hour increments. 1. When is operating, press the 'Off Timer' button and unit set the length of time you want by pressing ∧... -
Page 10: Temperature Control Operation
TEMPERATURE CONTROL OPERATION •When you turn ON, the setting temperature is displayed. •You can change setting temperature. •The display showing the set temperature will blink 3 times. Display Room Temperature range & Setting range. COOLING MODE Cooling operates when Room temperature is Mode Display range Setting range... -
Page 11: Selection
SELECTION SPOT or ROOM MODE To change the temperature of the entire room, select Spot or Room mode. For 'targeted' cooling of machinery servers or people etc select 'spot mode'. Applicable only when cooling mode. • If you want to display room temperature, when unit is operated, push 'mode' and '∨' button simultaneously for 3 seconds. -
Page 12: Error' And Warning Indicators
‘ERROR’ and WARNING INDICATORS Error Code Problem Cause Corrective Action High pressure Blocked air filter Ensure exhaust duct is not Blocked / kinked exhaust duct blocked / kinked Ambient temperature is too high Do not use the air conditioner if ambient temperature is higher than 113℉... -
Page 13: Fire Alarm & Error Signal Connection
FIRE ALARM & ERROR SIGNAL CONNECTION FIRE ALARM Input Terminal FA1 and FA2 When the signal from the fire alarm system is received, the unit turns off and does not operate until the unit has been RESET. Connecting the fire alarm wire from fire alarm system 1. -
Page 14: Economic Mode & Trouble Shooting
ECONOMIC MODE Cond. Fan Evap. Fan economic mode Model Etc. button Economy Normal Economy Normal (3 sec. continuous) HSC-12L Stop after 30 sec. airflow Fan integral type HSC(O)-14/18 Stop Stop after 30 sec. airflow (High) HSC(O)-24A Stop Stop after 30 sec. airflow (High) HWC-19 Stop... -
Page 15: Cleaning And Maintenance
CLEANING AND MAINTENANCE CLEANING THE AIR FILTERS 1. To remove filters, slide up a little ① and pull towards you ②. 2. Clean the filters with water or compressed air. 3. Clean evaporator and condenser units with a vacuum cleaner or compressed air. MAINTENANCE After cleaning, completely dry the inside of the unit by operating on 'Fan Mode'. -
Page 16: Accessories
ACCESSORIES MODEL DRAWING ITEM HSC(O)-36B 1.6ft. Diam. DUCT 6.9inch. OPTION 9.8ft. COLD DUCT COVER (FINISHING COLLAR) OUTLET FILTER CASSETTE FILTER CASSETTE EXHAUST... - Page 17 MEMO...
- Page 18 MEMO...
- Page 19 MEMO...
-
Page 20: Warranty
DISTRIBUTOR Telephone No. Name : Address : CUSTOMER DETAILS Telephone : Manufactured by : Distributed by : HEPHZIBAH CO.,LTD. Airrex USA (Juan-dong) 86, Gilpa-ro 1191 Jewell Dr Ste 101 Waco, TX 76712 71beon-gil, Michuhol-gu, Incheon, Korea 888-535-8841 TEL : TEL : +82-32-509-5834...
