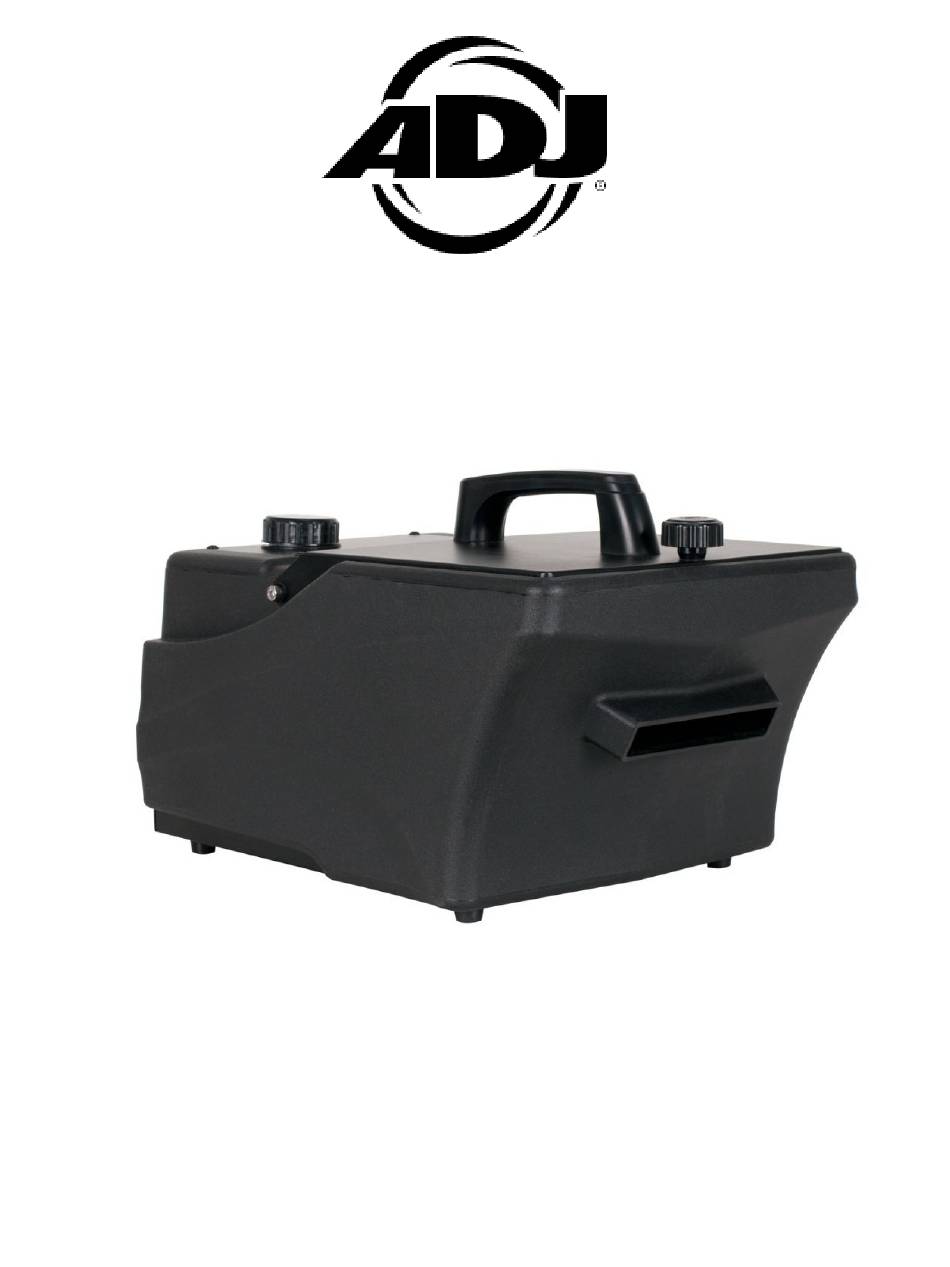

- Page 1 ENTOUR CHILL User Manual US SKU#: ENT791 UPC#: 818651028249 ITF-14#: 10818651028246...
- Page 2 All non-ADJ Products, LLC brands and product names are trademarks or registered trademarks of their respective companies. ADJ Products, LLC and all affiliated companies hereby disclaim any and all liabilities for property, equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic...
-
Page 3: Table Of Contents
General Set Up System Menu DMX Traits Wired Timer Remote Control Dimensional Drawings Fluid Sensor | Maintenance | Storage Breaker Reset | Trouble Shooting | Error Warnings Limited Warranty Specifications ADJ Products, LLC - www.adj.com - Entour Chill User Manual Page 3... -
Page 4: Introduction
Introduction: Congratulations, you have just purchased one of the most reliable low lying machines on the market today! The Entour Chill machine has been designed to perform reliably for years when the guidelines in this booklet are followed. Please read and understand the instructions in this manual carefully and thoroughly before attempting to operate this unit. -
Page 5: Features I Warranty Registration | Installation
Entour Chill Warranty Registration The Entour Chill carries a two-year limited warranty. Please fill out the enclosed warranty card to validate your purchase. All returned service items, whether under warranty or not, must be freight pre- paid and accompany a return authorization (R.A.) number. The R.A. number must be written on the outside of the return package. -
Page 6: Safety Guidelines
B. Objects have fallen on, or liquid has been spilled into the device. C. The device has been exposed to rain or water. D. The appliance does not appear to operate normally or exhibits a marked change in performance. ADJ Products, LLC - www.adj.com - Entour Chill User Manual Page 6... -
Page 7: Overview
10. Power Switch 4. Smoke Outlet 11. No-Fuse Breaker (NFB) 5. LCD Display 12. Power Input 6. LCD Screen Buttons 13. Drain Valve 7. DMX Input 14. Fluid Level Gauge ADJ Products, LLC - www.adj.com - Entour Chill User Manual Page 7... -
Page 8: General Set Up
4. After filling the icebox, unscrew and remove the tank reservoir cap. 5. Fill the reservoir with ADJ brand fog juice only, and replace the reservoir cap. Never run the device on anything other than an approved, ADJ branded water-based fog juice, as doing so can result in severe damage to your device. -
Page 9: System Menu
Pressing the STOP button to return to the beginning of the menu. After 10 seconds of non-operation, the system will return to the “Ready to Fog” status screen. ADJ Products, LLC - www.adj.com - Entour Chill User Manual Page 9... - Page 10 The tank lamp can also indicate the warm-up status of the device: - Red indicates that the device us warming up. - Green indicates that the device is ready for use. - Yellow indicates a fault or abnormal condition. ADJ Products, LLC - www.adj.com - Entour Chill User Manual Page 10...
-
Page 11: Dmx Traits
DMX Channel Values / Functions Supports Software Versions: and up Features subject to change without notice Channel DMX Value Function 000 - 031 Smoke Off 032 - 255 Smoke On ADJ Products, LLC - www.adj.com - Entour Chill User Manual Page 11... -
Page 12: Wired Timer Remote Control
4. After the unit has warmed up, the remote’s green indicator LED will glow. This LED indicates that the unit is ready to emit a low lying fog. 5. Use the control buttons and knobs on the remote to emit fog as desired. ADJ Products, LLC - www.adj.com - Entour Chill User Manual Page 12... -
Page 13: Dimensional Drawings
Entour Chill Dimensional Drawings ADJ Products, LLC - www.adj.com - Entour Chill User Manual Page 13... -
Page 14: Fluid Sensor | Maintenance | Storage
3-4 months, as long periods of inactivity can shorten your machine’s life. Only run ADJ-branded water-based fog juice through your unit. Running anything other then water based fog juice will result in severe damage to your device. -
Page 15: Breaker Reset | Trouble Shooting | Error Warnings
The following error warning messages may appear on the LCD screen, indicating a problem pre- venting the device from operating correctly. Do not operate the unit while these error messages are present to avoid further damage to the equipment. If these error messages persist, contact ADJ customer service for help. -
Page 16: Limited Warranty
The ADJ Products, LLC warranty is void if the serial number has been altered or removed; if the product has been modified in any manner which ADJ Products, LLC concludes, after inspection, affects the reliability of the prod- uct;... -
Page 17: Specifications
• Weight: 0.79 lb / 0.36 kg Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice. ADJ Products, LLC - www.adj.com - Entour Chill User Manual Page 17...
