Summary of Contents for Monoprice 38071

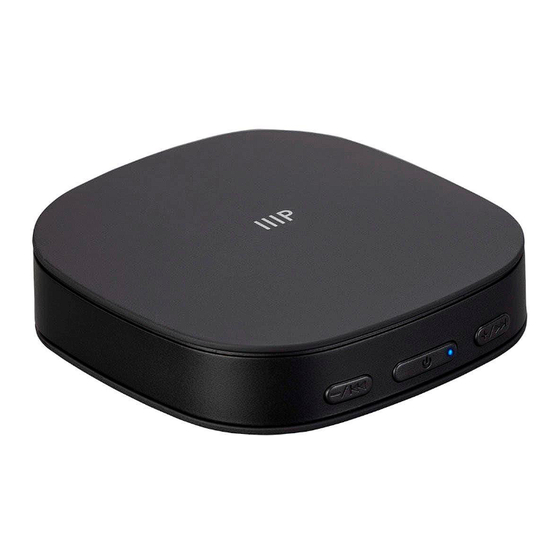

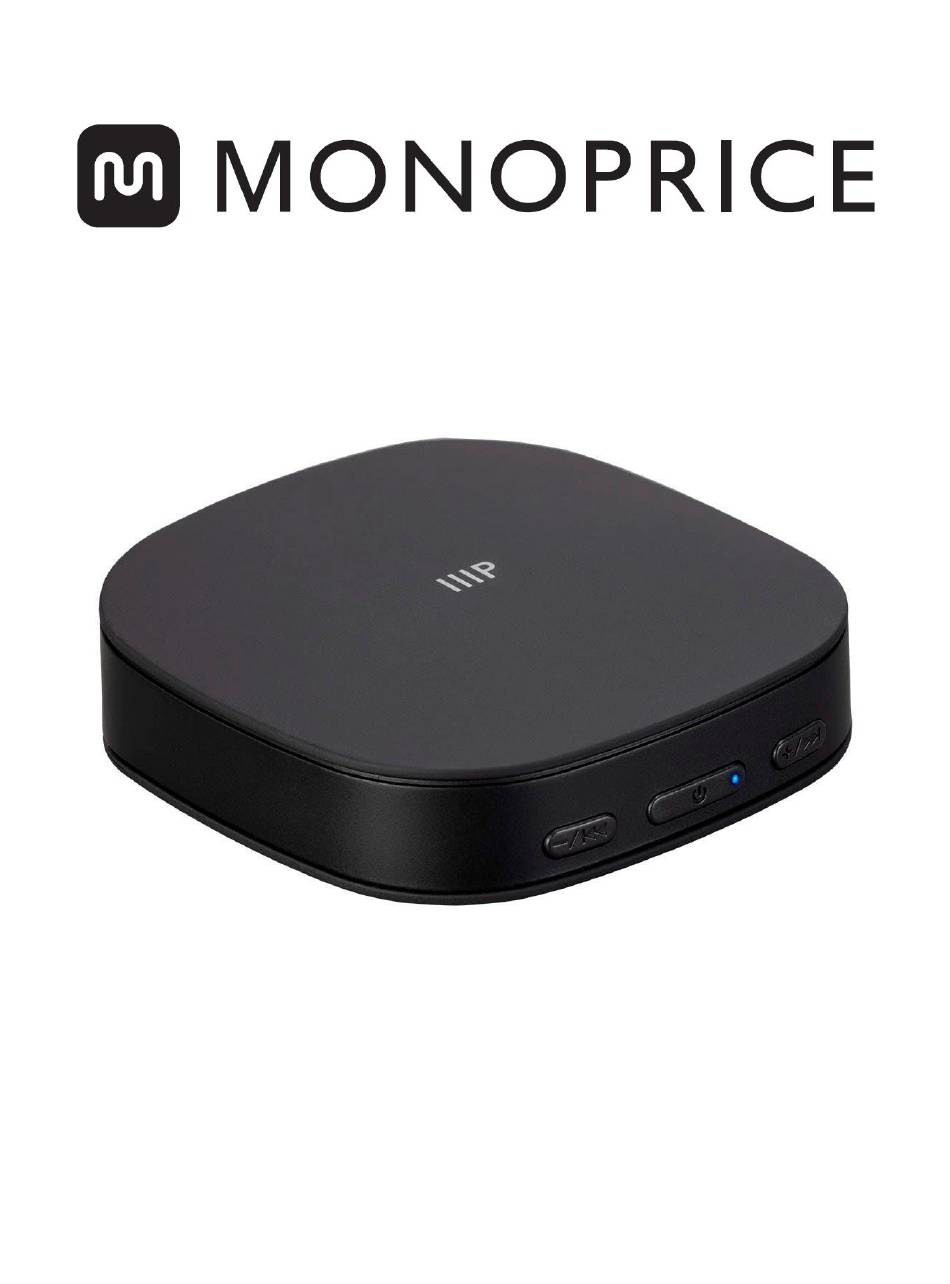

- Page 1 Premium Bluetooth® 5 Transmitter and Receiver P/N 38071 User's Manual...
-
Page 2: Safety Warnings And Guidelines
SAFETY WARNINGS AND GUIDELINES Please read this entire manual before using this device, paying extra attention to these safety warnings and guidelines. Please keep this manual in a safe place for future reference. • This device is intended for indoor use only. •... -
Page 3: Customer Service
INTRODUCTION The Monoprice Bluetooth® 5 Transmitter and Receiver allows you to turn any device into a Bluetooth-enabled one. It uses Bluetooth version 5 and features the Qualcomm® aptX™, aptX™ HD, and aptX™ Low Latency codecs for crystal clear streaming and perfect synchronization. -
Page 4: Package Contents
PACKAGE CONTENTS Please take an inventory of the package contents to ensure you have all the items listed below. If anything is missing or damaged, please contact Monoprice Customer Service for a replacement. 1x Bluetooth® Receiver and Transmitter 1x S/PDIF Digital Optical Audio Cable 1x 3.5mm Audio Cable... - Page 5 5. TX: When the switch is in the TX position, the device operates as a Bluetooth® transmitter. IMPORTANT! Turn the device off for at least 3 seconds before changing the operating mode. Note that changing the mode deletes all existing Bluetooth pairings.
- Page 6 DELETING BLUETOOTH PAIRINGS Perform the following steps to delete any existing Bluetooth® pairings from memory. 1. If the device is not already powered on, press and hold the POWER button for about 2 seconds to turn the device on. The LED will flash blue twice. 2.
-
Page 7: Led Indications
LED INDICATIONS Function LED Indication Power On Flash blue two times Power Off Flash red two times Low Battery Flashes red Charging Solid red Charging Complete Bluetooth® Pairing Mode (TX Mode) Flashes blue Bluetooth Pairing Mode (RX Mode) Flashes red and blue alternately Unconnected Standby Mode (TX Mode) Flashes blue one time each second Unconnected Standby Mode (RX Mode) - Page 8 TRANSMITTER (TX) MODE OPERATION Bluetooth Pairing (TX) Perform the following steps to pair the transmitter with a Bluetooth® device, such as headphones or a speaker. 1. If the unit is powered on, press and hold the POWER button for about 2 seconds to turn it off.
- Page 9 green. Note that the green LED will override other LED indications while Multipoint Mode is active. RECEIVER (RX) MODE OPERATION Bluetooth Pairing (RX) Perform the following steps to pair the receiver with a Bluetooth® device, such as a mobile phone or tablet. 1.
-
Page 10: Technical Support
Note that, although two devices are connected, only one can play audio at a time. TECHNICAL SUPPORT Monoprice is pleased to provide free, live, online technical support to assist you with any questions you may have about installation, setup, troubleshooting, or product recommendations. -
Page 11: Specifications
SPECIFICATIONS Model 38071 Bluetooth® Version Supported Bluetooth Profiles A2DP, AVRCP Bluetooth Range Up to 32 feet (10 meters) Bluetooth Pairing Name BTI-039 aptX™, aptX HD, aptX Low Latency, AAC, Supported Receiver Codecs Supported Transmitter Codecs aptX™, aptX HD, aptX Low Latency, SBC... -
Page 12: Regulatory Compliance
Modifying the equipment without Monoprice's authorization may result in the equipment no longer complying with FCC requirements for Class B digital devices. In that event, your right to use the equipment may be limited by FCC regulations, and you may be required to correct any interference to radio or television communications at your own expense. - Page 13 This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Monoprice™ and all Monoprice logos are trademarks of Monoprice Inc. The Bluetooth® word mark and logos are registered trademarks of Bluetooth SIG, Inc.
