Monoprice 38070 User Manual

Monoprice 38070 User Manual

Bluetooth 5 transmitter & receiver with aptx, aptx low latency, aac, and sbc codecs
Hide thumbs Also See for 38070:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
Monoprice Bluetooth 5 Transmitter & Receiver
with AptX, AptX-Low Latency, SBC
P/N 38070
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 38070 and is the answer not in the manual?

Questions and answers

Related Manuals for Monoprice 38070

Summary of Contents for Monoprice 38070

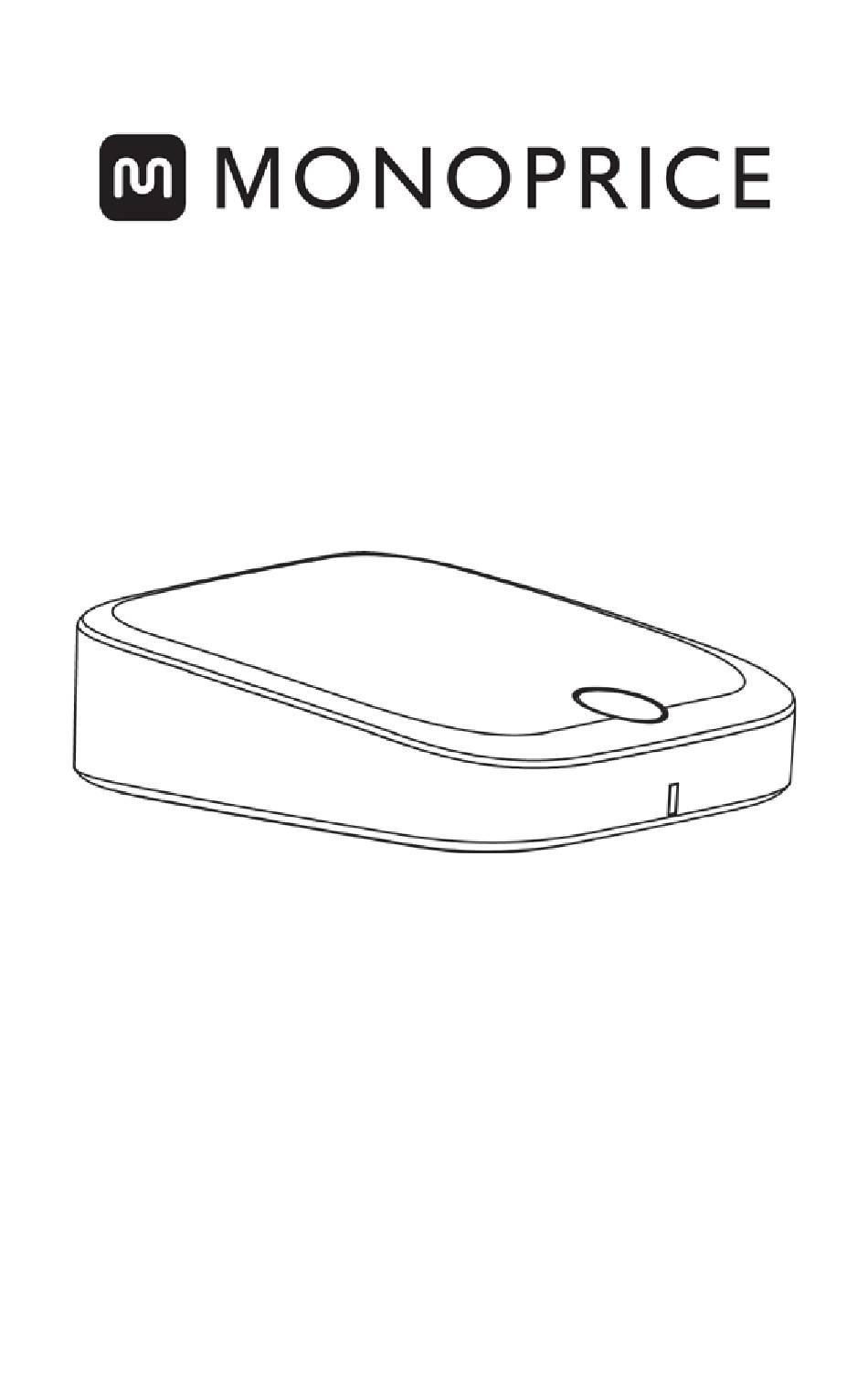

  • Page 1 Monoprice Bluetooth 5 Transmitter & Receiver with AptX, AptX-Low Latency, SBC P/N 38070 User's Manual...
  • Page 2 SAFETY WARNINGS AND GUIDELINES Please read this entire manual before using this device, paying extra attention to these safety warnings and guidelines. Please keep this manual in a safe place for future reference. • Do not expose this device to water or moisture of any kind.
  • Page 3 in the electrical components, which in turn could cause fire or severe electric shock. • Do not expose this device to excessively high temperatures. Do not place it in, on, or near a heat source, such as a fireplace, stove, radiator, etc.

  • Page 4: Customer Service

    • This device has no user serviceable parts. Do not attempt to open, service, or modify this device. CUSTOMER SERVICE The Monoprice Customer Service department is dedicated to ensuring that your ordering, purchasing, and delivery experience is second to none. If you have any problem with your order, please give us an opportunity to make it right.

  • Page 5: Package Contents

    If anything is missing or damaged, please contact Monoprice Customer Service for a replacement. 1x 38070 Bluetooth Transmitter and Receiver 1x USB Charging Cable 1x 3.5mm Audio Cable 1x Fiber Optic Cable...

  • Page 6: Product Overview

    PRODUCT OVERVIEW 1. TX/RX Switch 2. SPDIF/AUX Switch 3. AUX Audio Port 4. SPDIF Input 5. SPDIF Output 6. Micro USB Charging Port 7. Multi-function Button (MFB) 8. LED Indicator Light OPERATION Power On/Off...
  • Page 7 3 seconds to turn the product on, then quickly press the MFB twice to enter pairing mode. The LED indicator light will quickly flash blue. Put your Bluetooth audio device (speaker/headphones etc.) into pairing mode. Once 38070 has paired with the...
  • Page 8 3.5mm AUX cable and then you can use 38070 to connect to the paired speaker/ headphones or other Bluetooth audio device. *TVs and monitors can also connect to 38070 via the Fiber Optic cable and ports. Bluetooth Pairing (Receiver – RX Mode) •...
  • Page 9 Bluetooth settings, locate and select “MP38070.” Once 38070 has paired with the device the LED indicator will be solid blue. • Connect a speaker, headphones or other audio device to 38070 via the 3.5mm audio port to play audio from your paired Bluetooth device.
  • Page 10 Multi-device Pairing • Pair the first device as you would normally, then double press the MFB again to re-enter pairing mode. • Repeat the pairing steps for the second device, the LED indicator light will be solid green when both devices are connected. Charging •...
  • Page 11 computer, or outlet. A full charge will take approximately 2 hours. Status LED Indicator Power On 2x Flash Blue Power Off 2x Flash Red (TX) Flash Blue Bluetooth Pairing (RX) Flash Red and Blue Blue Flashes 1x/sec (TX) Standby (Disconnected) Blue Flash 2x/3 sec (RX) Standby (Connected) Solid Blue...

  • Page 12: Specifications

    SPECIFICATIONS Model 38070 Bluetooth Version Bluetooth Profiles A2DP, AVRCP aptX™, AAC, aptX™ low latency, Codec (RX) aptX™, low latency, aptX™, Codec (TX) Battery Capacity 350mAh/3.7V Charging Time ≈2 hours Standby Time ≈50 hours Playback Time 12-15 hours...
  • Page 13 Operating 14-131° F Temperature Product 2.4 x 2.4 x 0.7 in (60 x 60 Dimensions x 18mm) Product Weight 1.4oz (38.6g)

  • Page 14: Technical Support

    TECHNICAL SUPPORT Monoprice is pleased to provide free, live, online technical support to assist you with any questions you may have about installation, setup, troubleshooting, or product recommendations. If you ever need assistance with your new product, please come online to talk to one of our friendly and knowledgeable Tech Support Associates.

  • Page 15: Regulatory Compliance

    (2) this device must accept any interference received, including interference that may cause undesired operation. Modifying the equipment without Monoprice's authorization may result in the equipment no longer complying with FCC requirements for Class B digital devices. In that event, your right to use...
  • Page 16 interference to radio or television communications at your own expense. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 17 • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help.
  • Page 18 Monoprice, including the use of non-approved antennas, could void the user’s authority to operate this device. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful...
