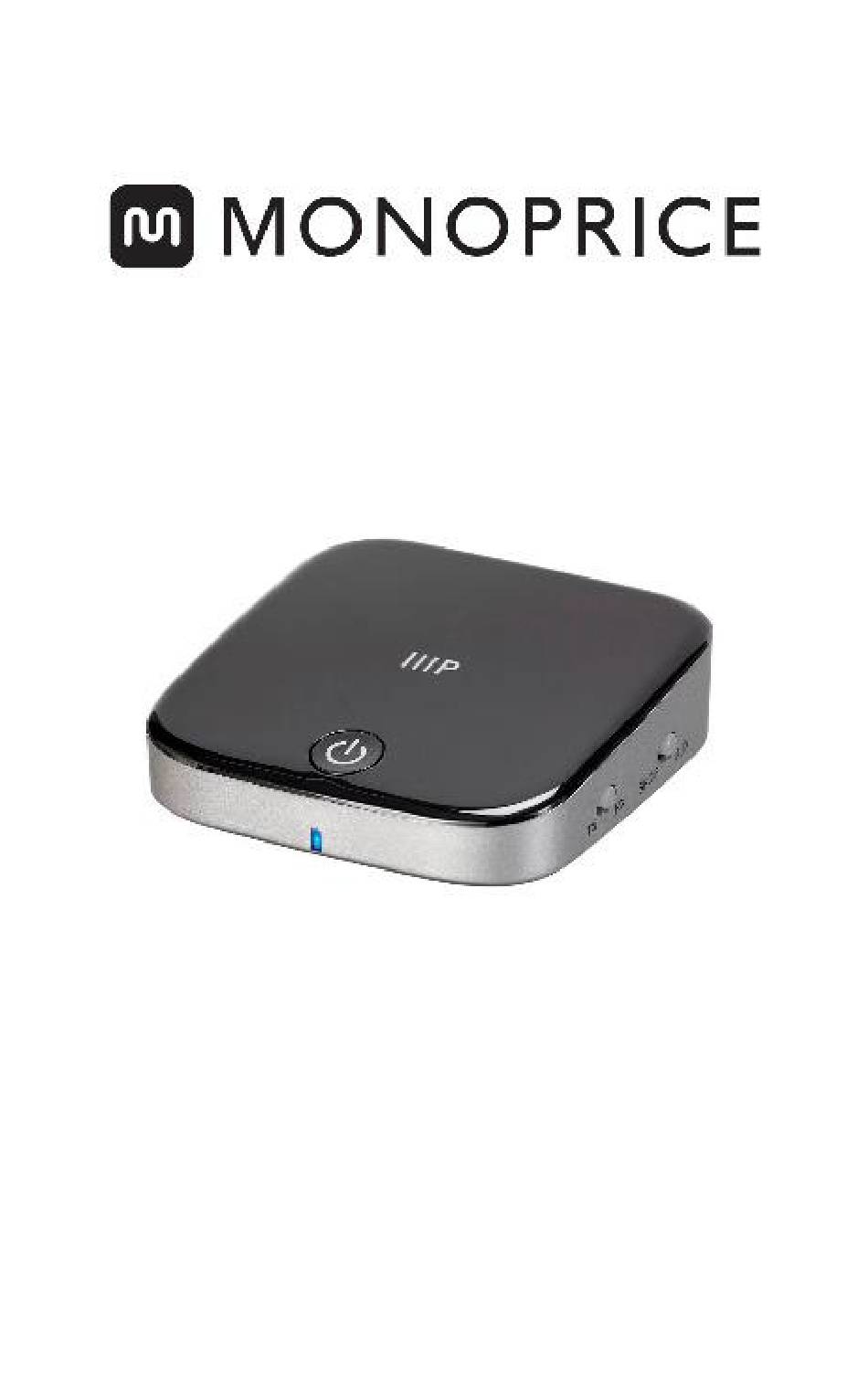

- Page 1 Bluetooth® 5 Transmitter & Receiver with aptX™, aptX Low Latency, and SBC P/N 38070 User's Manual...
- Page 2 SAFETY WARNINGS AND GUIDELINES Please read this entire manual before using this device, paying extra attention to these safety warnings and guidelines. Please keep this manual in a safe place for future reference. • This device is intended for indoor use only.
- Page 3 • Do not touch the device, the power cord, or any other connected cables with wet hands. • Do not expose this device to excessively high temperatures. Do not place it in, on, or near a heat source, such as a fireplace, stove, radiator, etc.
-
Page 4: Customer Service
If you have any problem with your order, please give us an opportunity to make it right. You can contact a Monoprice Customer Service representative through the Live Chat link on our website www.monoprice.com or via email at support@monoprice.com. -
Page 5: Package Contents
Please take an inventory of the package contents to ensure you have all the items listed below. If anything is missing or damaged, please contact Monoprice Customer Service for a replacement. 1x Bluetooth® Transmitter and Receiver 1x Micro USB Charging Cable 1x 3.5mm Audio Cable... -
Page 6: Product Overview
2. Plug the included micro USB cable into the USB port, then plug the other end into a USB power source (not included). The LED will illuminate solid red, regardless of other indications. 3. When charging is complete, the LED will turn off. - Page 7 position, the device operates as a Bluetooth® receiver. 2. SPDIF/AUX: When placed in the SPDIF position, the device uses the S/PDIF digital optical input/output. When placed in the AUX position, the device uses the 3.5mm input/output. 3. AUX: 3.5mm jack for analog audio input/output.
-
Page 8: Bluetooth Pairing
MFB to pause or play the connected device. 8. LED: The LED indicator shows the power and Bluetooth® pairing status of the device. BLUETOOTH® PAIRING TX Mode 1. Ensure the device is powered off and the TX/RX switch is in the TX position. 2. - Page 9 press the button to enter pairing mode. The LED will flash blue rapidly. 3. Put your Bluetooth® audio device (e.g., headphones, speaker, etc.) into pairing mode. Once pairing is complete, the LED will flash blue slowly. 4. Using the included 3.5mm audio cable, plug one end into the AUX jack, then plug the other end into the audio output of your mobile device.
- Page 10 RX Mode 1. Ensure the device is powered off and the TX/RX switch is in the RX position. 2. Press and hold the MFB for 3 seconds to power the device on, then quickly double press the button to enter pairing mode. The LED will flash red and blue rapidly.
- Page 11 necessary. Alternatively, plug the included S/PDIF digital optical cable into the SPDIF OUT RX port, then plug the other end into the S/PDIF digital optical input on your amplifier or receiver. Multi-Device Pairing 1. Pair your first device as normal. 2.
-
Page 12: Led Indications
LED INDICATIONS Status LED Indication Power On Flashes blue twice Power Off Flashes red twice TX Mode Pairing Flashes blue Flashes red and RX Mode Pairing blue TX Standby Flashes blue once (Disconnected) every second RX Standby Flashes blue twice (Disconnected) every 3 seconds Standby... -
Page 13: Technical Support
TECHNICAL SUPPORT Monoprice is pleased to provide free, live, online technical support to assist you with any questions you may have about installation, setup, troubleshooting, or product recommendations. If you ever need assistance with your new product, please come online to talk to one of our friendly and knowledgeable Tech Support Associates. -
Page 14: Specifications
SPECIFICATIONS Model 38070 Bluetooth® Version Bluetooth Profiles A2DP, AVRCP Supported aptX™, aptX low Receiver Codecs latency, AAC, SBC Supported aptX™, aptX low Transmitter Codecs latency, SBC Battery Capacity 350mAh Charging Time About 2 hours Standby Time About 50 hours Playback Time... -
Page 15: Regulatory Compliance
(2) this device must accept any interference received, including interference that may cause undesired operation. Modifying the equipment without Monoprice's authorization may result in the equipment no longer complying with FCC requirements for Class B digital devices. In that event, your right... - Page 16 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause...
- Page 17 This FCC Part 15 radio device operates on a non-interference basis with other devices operating at this frequency. Any changes or modification to said product not expressly approved by Monoprice, including the use of non-approved antennas, could void the user’s authority to operate this device.
- Page 18 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 19 Any changes or modification to said product not expressly approved by Monoprice, including the use of non-approved antennas, could void the user’s authority to operate this device. This device complies with IC RSS-210. Operation...
- Page 20 The Bluetooth® word mark and logos are registered trademarks of Bluetooth SIG, Inc. Qualcomm® is a trademark of Qualcomm Incorporated, registered in the United States and other countries. aptX™ is a trademark of Qualcomm Technologies International, Ltd., registered in the United States and other countries.
