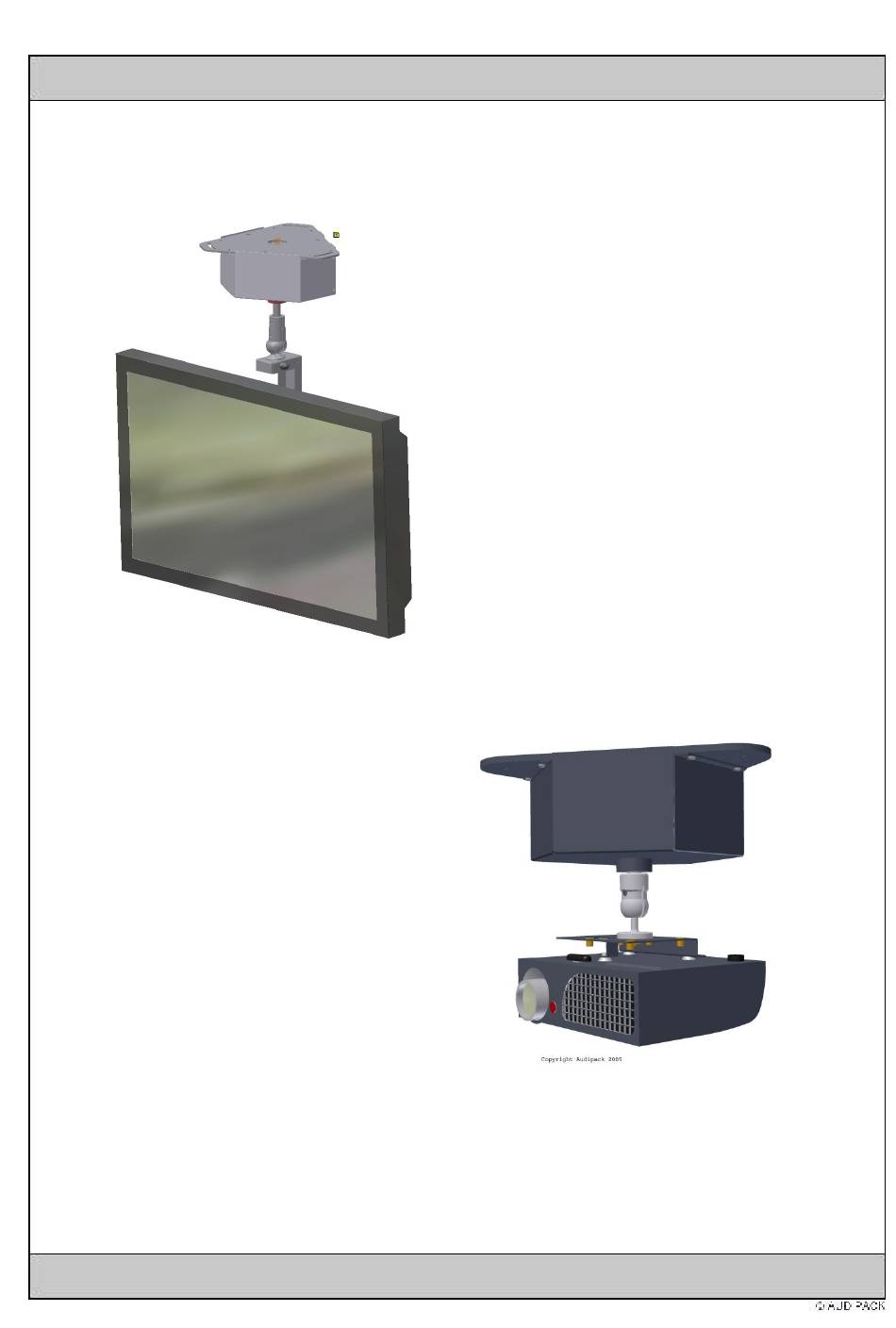

- Page 1 Mounting instructions Rota-Kit series Copyright Audipack (version 31-03-09)
- Page 2 Installation instruction Rota-Kit series The Rota-Kit is available in various version and are suitable for directing projectors to projection screens and flat screens towards public. With the 4 free programmable positions (within 350 degrees), the projector or flat screen can be pointed at any desired direction.
- Page 3 When the Rota-Kit is beeing installed before the projection screens, the following minimum tolerance can occur. The tolerance is caused by the resolution of the digital measurement of the Rota-Kit. The projection screen can be lined out if neccesary with the Rota-Kit. Ones the positions are set, the accuracy of positioning will be very high.
- Page 4 Use minimal 3 bolts or screws to fsten the Rota-Kit. Screw the keeper on the axis of the Rota-Kit. The type of keeper determines the choice of load on the Rota-Kit. Screw it on firmly (without tools) and lock the inserts with an allen-key..
- Page 5 The wired control can be connected to the green Phoenix connector. Mount the projector mount to the projector and mount this assembly to the rota-kit. Connect the power adapter to the Rota-Kit. The Rota-Kit will automatically go to it’s “0” position. Note: Mount the projector (or other AV equipment) cables in a way that they are clear from moving parts.
- Page 6 Programming the second position: Rotate the Rota-Kit to the second position. Programm this accurat position. Confirming and programming the first position: Return to position 1, bij using the start or fence and reprogramm position In this case the accuraty between position is consistant.
- Page 7 External control of the Rota-Kit. To controll the Rota-Kit by contact closures or (Audipack) remote controll, please follow the instructions on the wiring diagram. Use for each position a separate relay; do not use 1 relay for 2 positions. Use the below listed Audiapck remote controls for wirless remote.
- Page 8 General important announcements: When the power is taken of from the system in static position. The Rota-Kit will slowly return to it’s “0” position. After “homing” the programmed position can be activated again. There’s no need for reprogramming. The Rota-Kit will perform normal speed (inclusive slow- start and slow-stop).
- Page 9 FAQ: -The Rota-Kit doesn’t memories the programmed positions. The Rota-Kit is always tested before shipment. It might be possible that the sensor connector is disconnected or not connected properly. This connector can lose its position during rough transport or installation. -Remove the black Rota-Kit cover.
- Page 10 Notes:...
